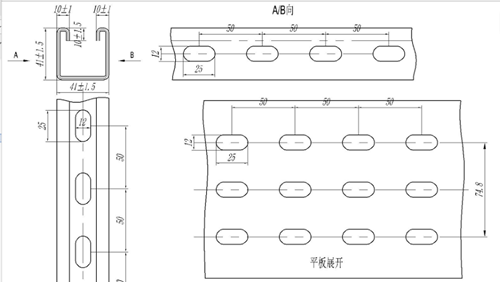

Product Drawing
Details
Material Thickness: 2.0-2.5mm
Feeding Material Width: 141mm
Applicable Material: PPGI, GI, PPGL

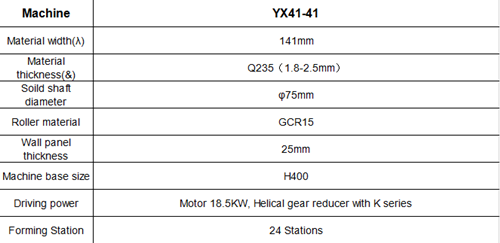

Machine Specification

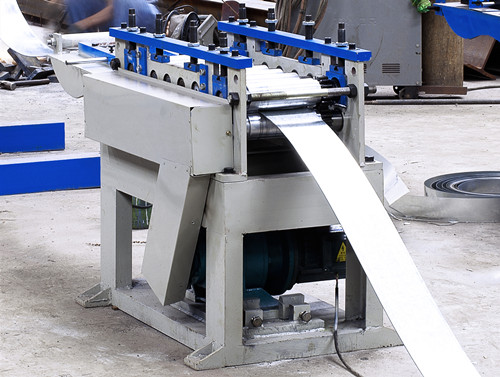

(1) Cold Rolling Mill
(2) Servo Feeding Device
Serve motoer: 2.2KW

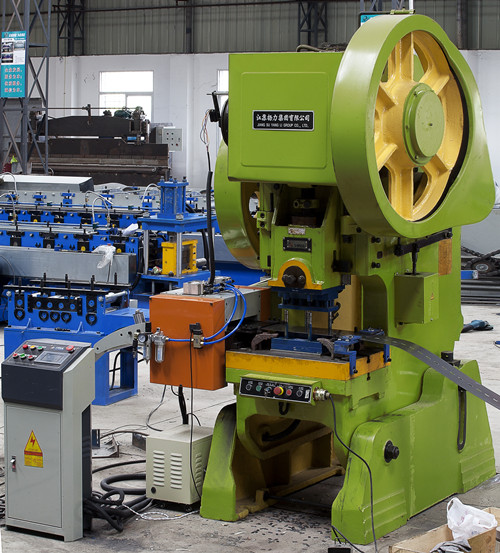

(3) Punching Device
With 63T punching press
(4) Hydraulic Cutting Device
Hydraulic cutting device with three blades
Hydraulic pressure range: 0-16Mpa
Hydraulic Motor：5.5KW
Cutting tool material: Cr12, Heat treatment
