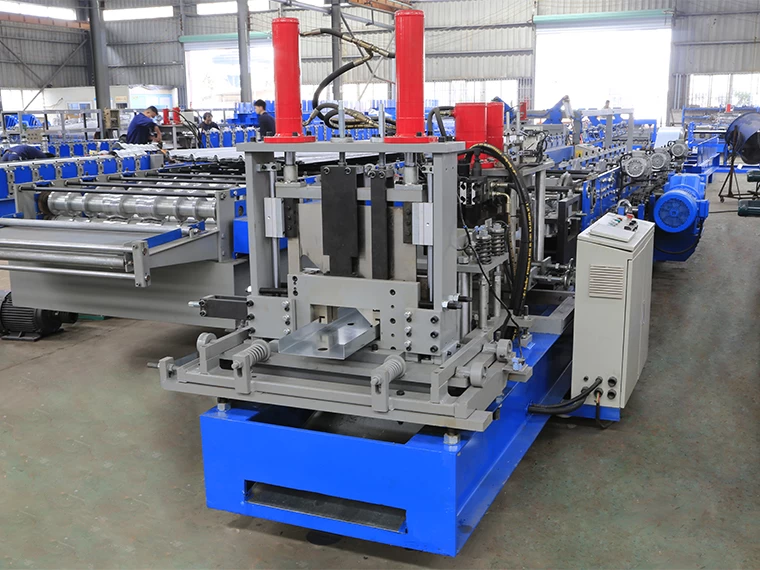

Stud and Track Roll Forming Machine for UC50-150 profile(SAMCO studmaker style)

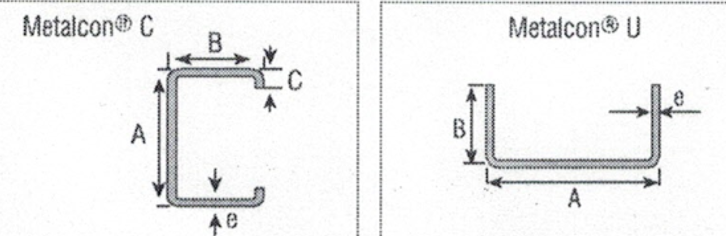

Used in ceilings and wall partitions of buildings..





         Stud and Track CU Purlin Roll Forming Machine

         for CU50-150 profile(SAMCO studmaker style)

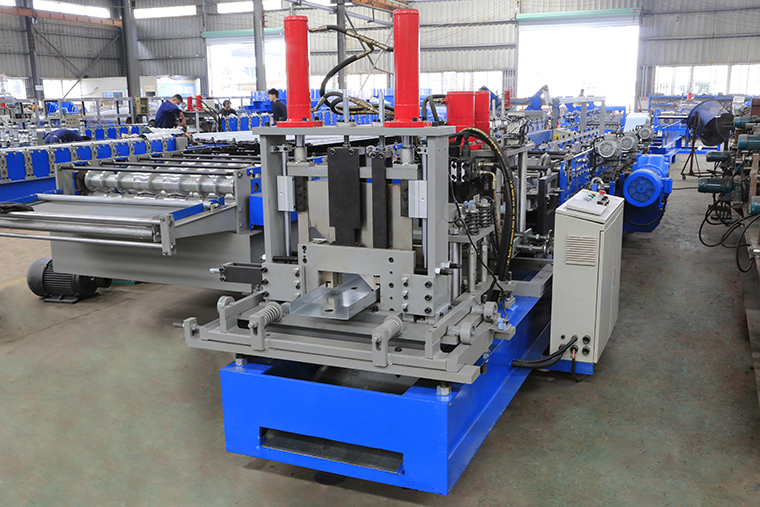

 Stud and Track Roll Forming Machine


1.Main features of Stud and Track Roll Forming Machine

   for CU50-150 profile(SAMCO studmaker style)



    The advantages of CU purlin machine AUTOMATIC size-change type are as follows:

    1.Produce different purlin size without changing rollers or spacers.

    2.No need changing cutter for different size.

    3.Easy operation, low maintenance cost

    4.Infinite sizing(any size within machine range),help to save material

    5.Optional Punch hole at any position of purlin web side and flange side



2.Detailed Images of Stud and Track Roll Forming Machine

   for CU50-150 profile(SAMCO studmaker style)


    Machine Parts

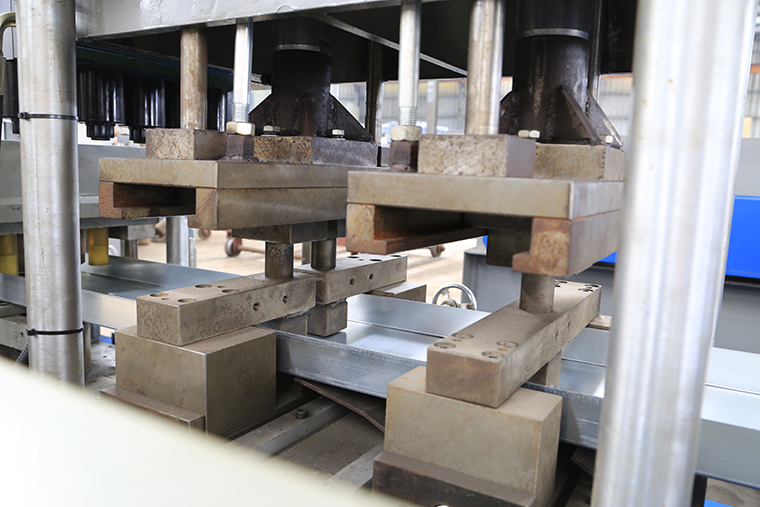

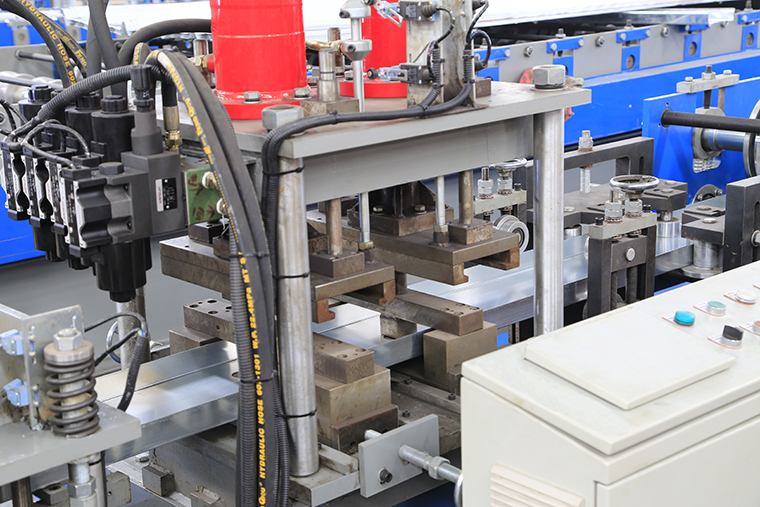

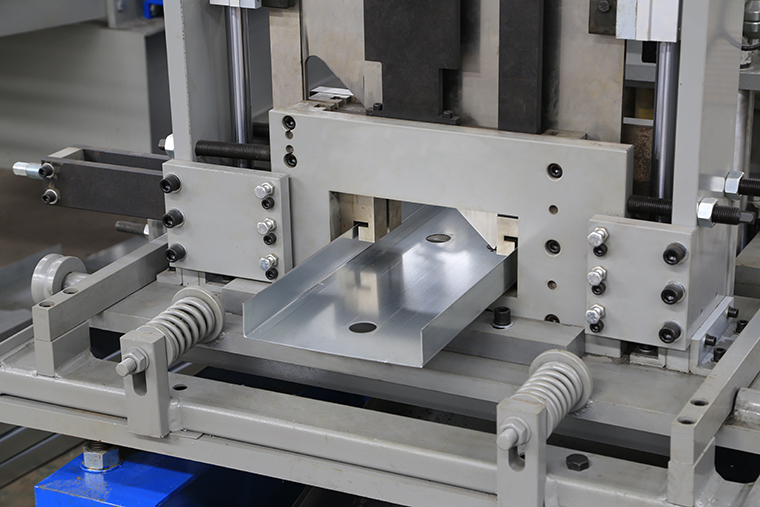

        1) CU stud and track machine punching system

        Brand: BMS    Original: China

      Stud and Track Roll Forming Machine

 Stud and Track Roll Forming Machine

 Stud and Track Roll Forming Machine

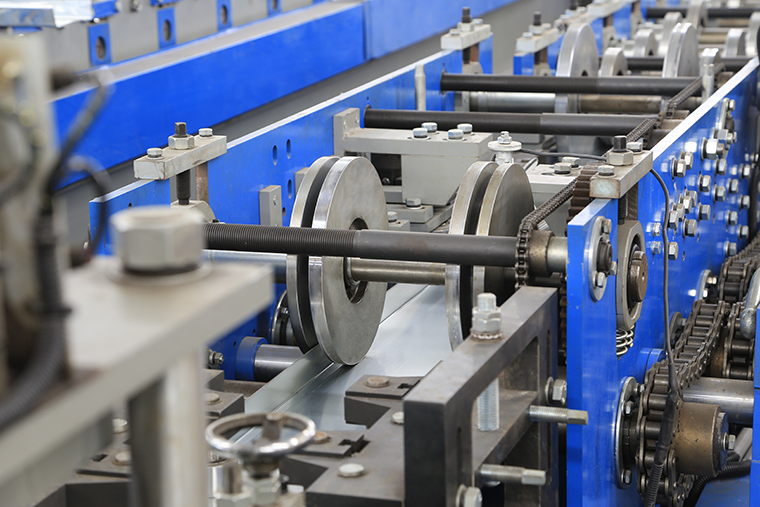

        2)   CU stud and track machine rollers

        Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 400# H type steel by welding



 Stud and Track Roll Forming Machine

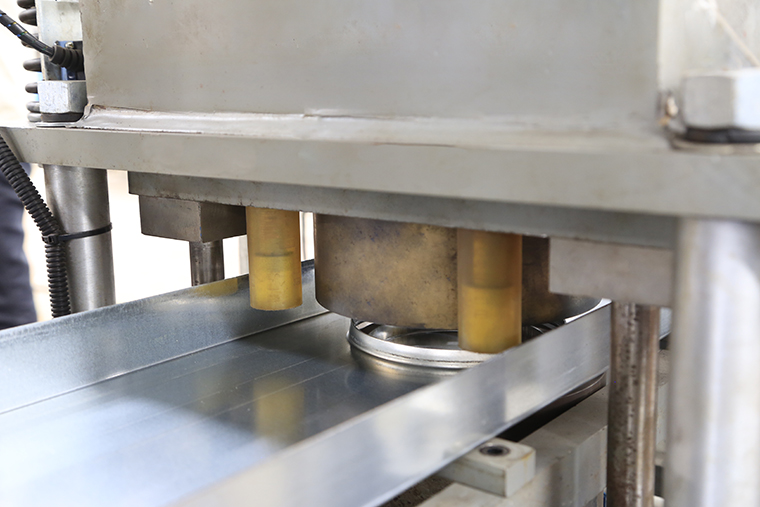

       3) CU stud and track machine post cutter

        No need to change cutter for different size,

        made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 30mm steel plate by welding
        Pre-punching & Pre-cutting, stop to punch, stop to cut
        hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa



 Stud and Track Roll Forming Machine

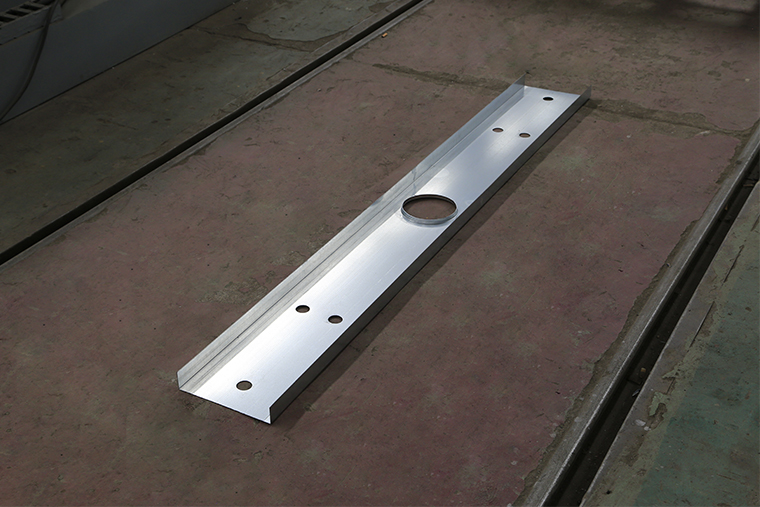

        4) CU stud and track machine product show



 Stud and Track Roll Forming Machine

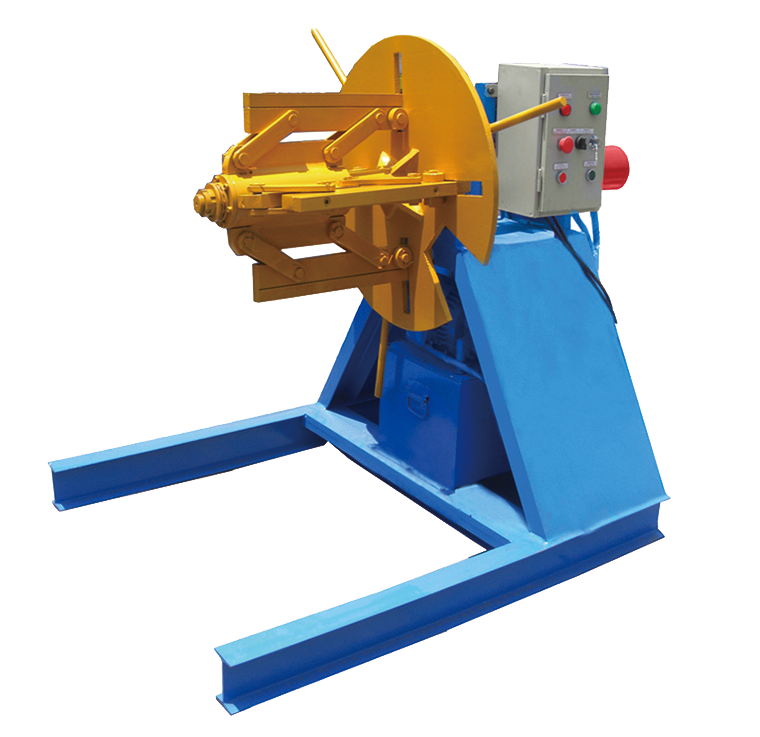

        5) CU stud and track machine decoiler

        ManualDecoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 470mm±30mm

        Capacity: Max. 3Ton





    With 3 tons hydraulic decoiler for option




        6) CU stud and track machine exit rack

        Un-powered,one unit


 Stud and Track Roll Forming Machine



Other detailes of CU stud and track roll forming machine



Suitable for material with thickness 1.5-3.0mm

Shafts manufactured from 45#,Main shaft diameter=φ90mm,precision machined

Motor driving,Gear chain transmission, 20 rollers to form.

Main motor=18.5KW , Frequency speed control. Forming speed approx.18m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)



Just adjust required WEB,HEIGHT and LIP by hand wheel with the help of

position clock(with digit display for easy operation) on it,

and then input the required production data on the touch screen.

It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters

like traditional old style machine  (which takes over 45 minutes for each production size changing).



Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of CU stud and track roll forming machine



1. The warranty of CU purlin roll forming machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
