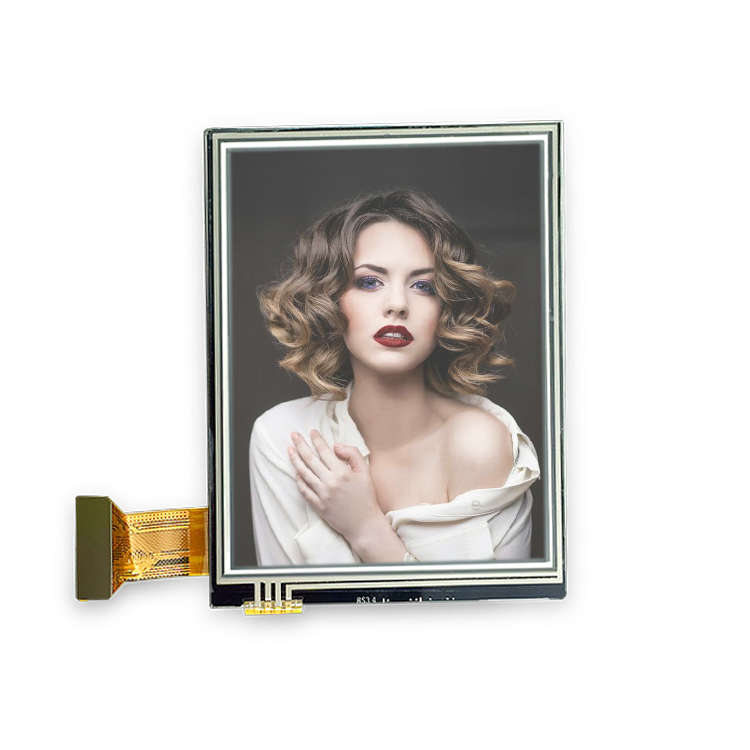

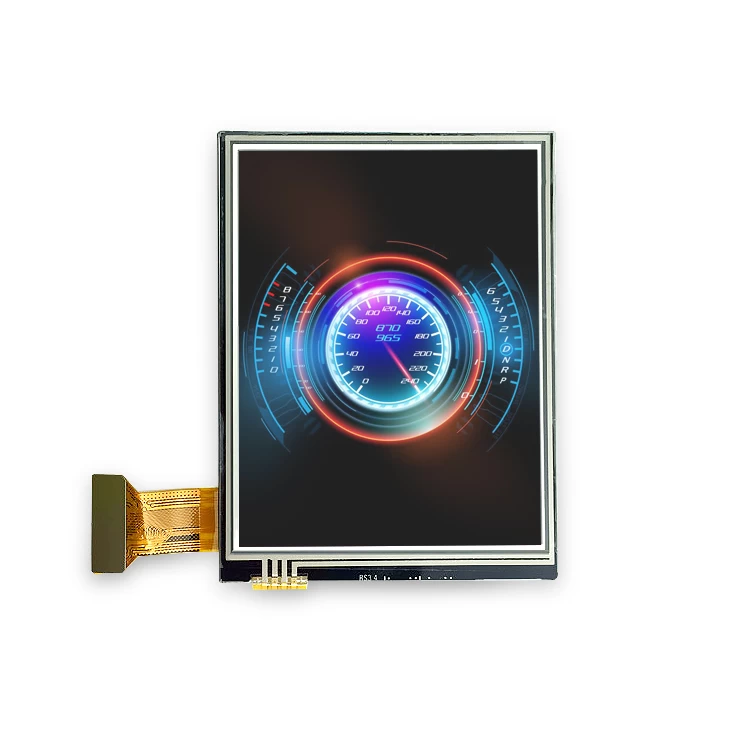

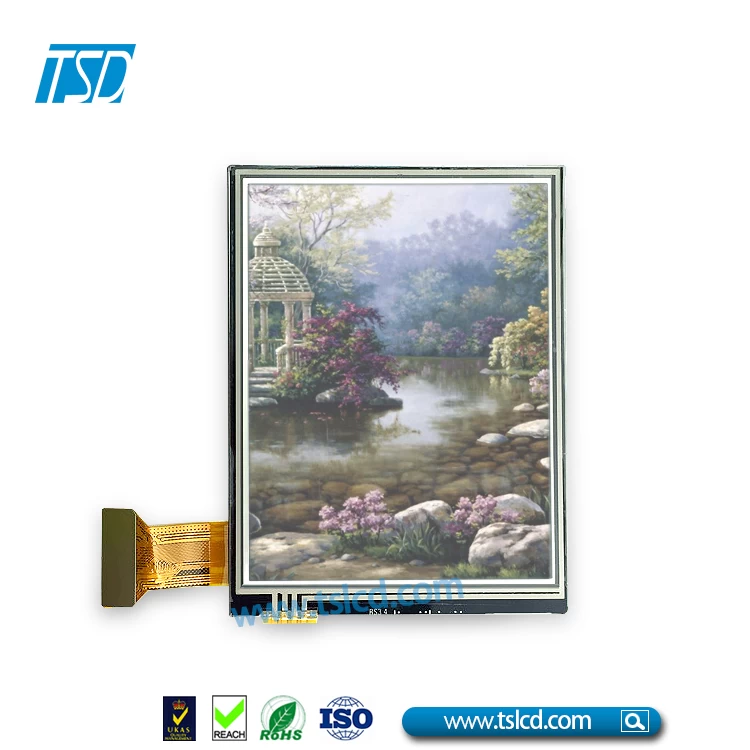

sunlight readable 3.5" transflective TFT LCD with RTP

3.5inch 240x320Res

Facebook Twitter Pinterest LinkedIn 分享

Specification
LCD type transflective 3.5" tft lcd
Display type 3.5" TFT, normal white
Touch panel without touch panel
Description transflective 3.5" tft lcd
Driver element a-si TFT Active matrix
Outline Dimension(mm) 85.0x53.64x2.93
v.A(mm) 74.52x56.54
A.A.(mm) 71.52x53.64
Driver IC ILI9341
Resolution(dots)_ 320*RGB*240
Viewing Direction 6H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 240(H)x 3RGB x 2400(V)
Pixel arrangement RGB Vertical Stripe
Display mode Normally white
Surface treatment Antiglare, Hard-Coating(3H)
Weight(g) TBD
Backlight 6 LEDs, White
Weight(g) TBD
Module lifetime(Hours) 50,000-100,000
