SunRack Ground Screw Mounting Structure

ground screw mounting 1.Easy Installation 2.Top Compatibility 3.Customized designed offered 4.IBC&AS/NZS 1170





 aluminum ground mounting solar system



Using SunRack , Enjoying Sunshine!

Using SunRack not only help you determine the best racking solution for solar power project,but also ensure you win the highest investment return and the most efficient of Enjoying Sunshine.



1. Lower cost, Incomparable value ;

2. Faster installation, Flexible attachment ;

3. More Perfect Service, Complete technical support ;

4.10 years limited warranty , 20 years design life .

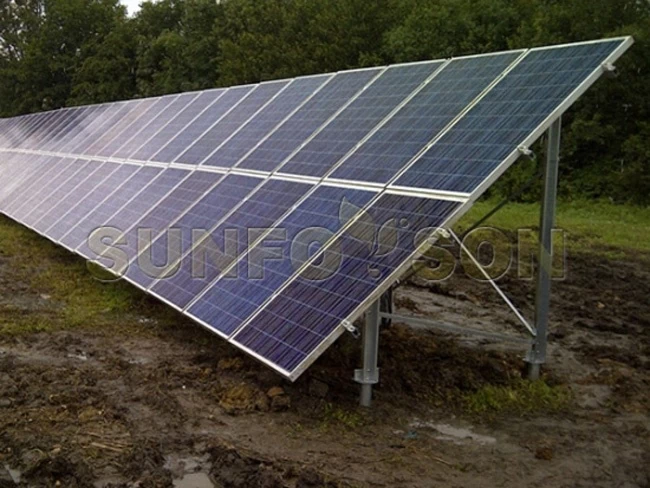

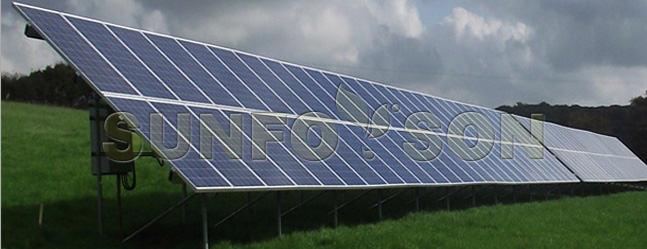

 SFS-GM-02 SunRack Ground Screw Mounting




Sunforson has developed different series ground screws to meet varied applications.  This screw-in foundation system is not only suitable for natural ground, but also for dense and even tarred surfaces. Applications are countless, from securing garden umbrellas, windy dryers and fences to carports, flag poles and traffic signs, solar panel systems, advertising boards and even outdoor building for events and expositions for its quick and easy created and removed advantages.




Installation Site:Open ground

Single System Weight:20~25 kg

Support Rail:Extruded aluminum

Applicable Temperature:50°~100°

Wind Load: 130mph(60m/s)

Snow Load: 30psf(1.4kN/m2)

Applicable Module: Framed

Module Orientation: Landscape or portrait

Code Compliance:AS/NZS 1170;

Material: Aluminum, stainless steel

Warranty: 10 years on material

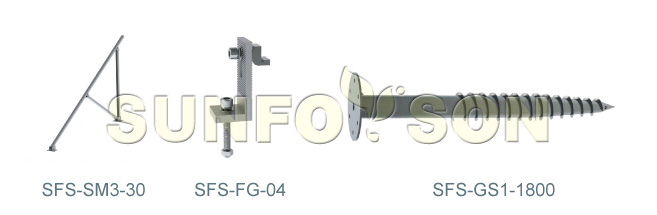

Overview of system componentsmid clamps for solar mount

solar mounting feets





1. Easy Installation:

The innovative Sunforson solar rail and G-Screw modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kit.The G-Screw module and unique rail extension method allow greatly reduced installation times. the ground screw installed by spiral pilling machine without digging and concrete. More convenient, cost effective, timesaving and environmentally friendily than others could be quickly and easily erected and removes without any waste.



2. Great Flexbilitity:
With the Sunforson ground mounting,framed or frameless photovoltaic modules can be easily mounted on ground.Designed as a unversal racking system,framed modules from all the popular manufacturers can be used.


3.  High Accuracy:
Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.



4.  Excellent Adaptability:
The  height adjustment of the rails from Sunforson allows a level PV array to be established, no matter how uneven the ground is.



5.  Maximum Lifespan:
All components are made of quality extruded aluminium and stainless steel, Hot Galvanizing Steel. The high corrosion resistance guarantees the maximun possible lifespan and is also completely recyclable.



6.  Guaranteed Durability: Maximum Lifespan:
Sunforson provides a guarantee of 10 years on the durability of all components used.



warranty of solar mount


A Full Commitment To Quality

Top material, quality craftsmanship and easy installation design, supported by senior engineers with comprehensive and in-depth mounting industry experience and garanteed with a 10-year limited parts warranty
