SunRack Pile Solar Mounting System

SunRack pile ground mounting bracket is applied for large solar project panel installation on a non-sandy ground.







Using SunRack , Enjoying Sunshine!

Using SunRack not only help you determine the best racking solution for solar power project,but also ensure you win the highest investment return and the most efficient of Enjoying Sunshine.



1. Lower cost, Incomparable value ;

2. Faster installation, Flexible attachment ;

3. More Perfect Service, Complete technical support ;

4.10 years limited warranty , 20 years design life .



SFS-GM-04A SunRack Pile Solar Mounting System






SunRack Pile Ground Mounting System is application for the large commercial and utility scale PV system on a non-sandy ground. It is suitable for the framed or frame-less module installation.

For Sunforson Pile Ground Mounting System, C Post can be pile into the ground 1~2meters by Pile Machine quickly, then you can mount the pre-assembly Beamstructure, the Sunrack Rail and the clamp easily.


Installation Site:Open ground

Single System Weight:20~25 kg

Support Rail:Extruded aluminum

Applicable Temperature:50°~100°

Wind Load: 130mph(60m/s)

Snow Load: 30psf(1.4kN/m2)

Applicable Module: Framed

Module Orientation: Landscape or portrait

Code Compliance:AS/NZS 1170;

 Material: Aluminum, stainless steel

Warranty: 10 years on material

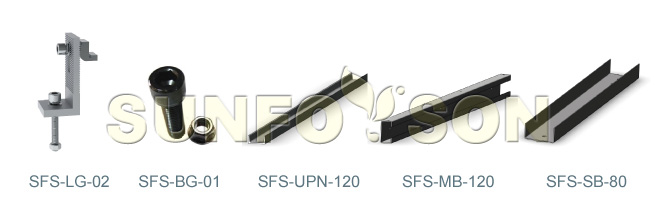

Overview of system components

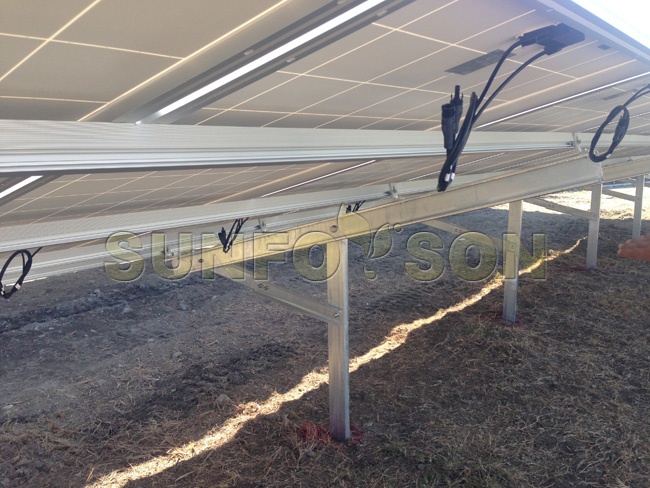

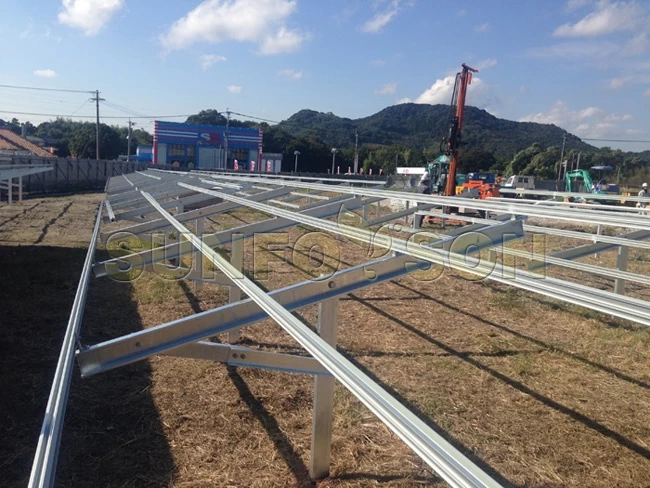

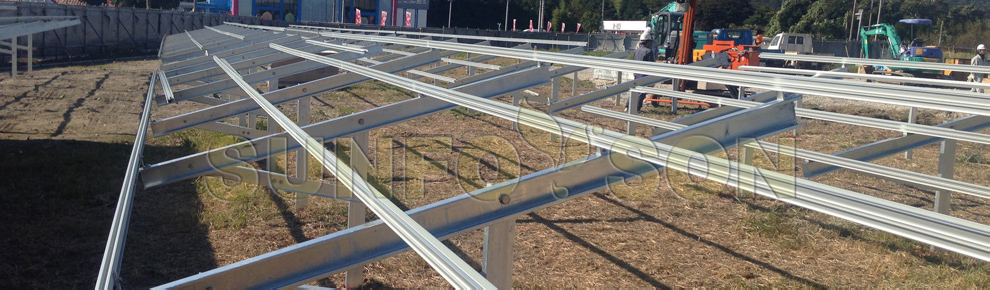

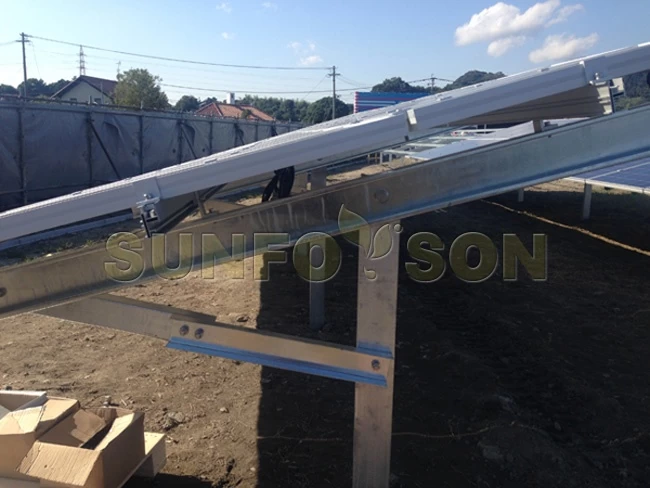

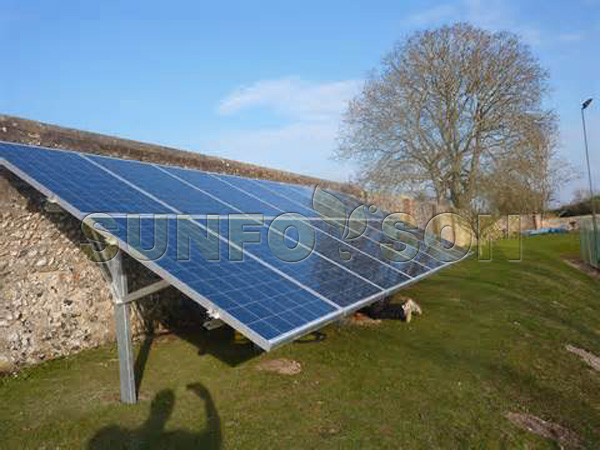

工程图片:






1. Easy Installation
The innovative Sunforson solar rail and G-Screw modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kit.The G-Screw module and unique rail extension method allow greatly reduced installation times.



2. Great Flexbilitity
With the Sunforson ground mounting,framed or frameless photovoltaic modules can be easily mounted on ground.Designed as a unversal racking system,framed modules from all the popular manufacturers can be used.


3.  High Accuracy
Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.



4.  Excellent Adaptability
The  height adjustment of the rails from Sunforson allows a level PV array to be established, no matter how uneven the ground is. To High Standard Sunforson System is made to the highest standard,safe and strong its designed to Comply with AS/NZS 1170.



5.  Maximum Lifespan
All components are made of quality extruded aluminium and stainless steel, Hot Galvanizing Steel. The high corrosion resistance guarantees the maximun possible lifespan and is also completely recyclable.



6.  Guaranteed Durability: Maximum Lifespan

Sunforson provides a guarantee of 10 years on the durability of all components used.




A Full Commitment To Quality

Top material, quality craftsmanship and easy installation design, supported by senior engineers with comprehensive and in-depth mounting industry experience and garanteed with a 10-year limited parts warranty
