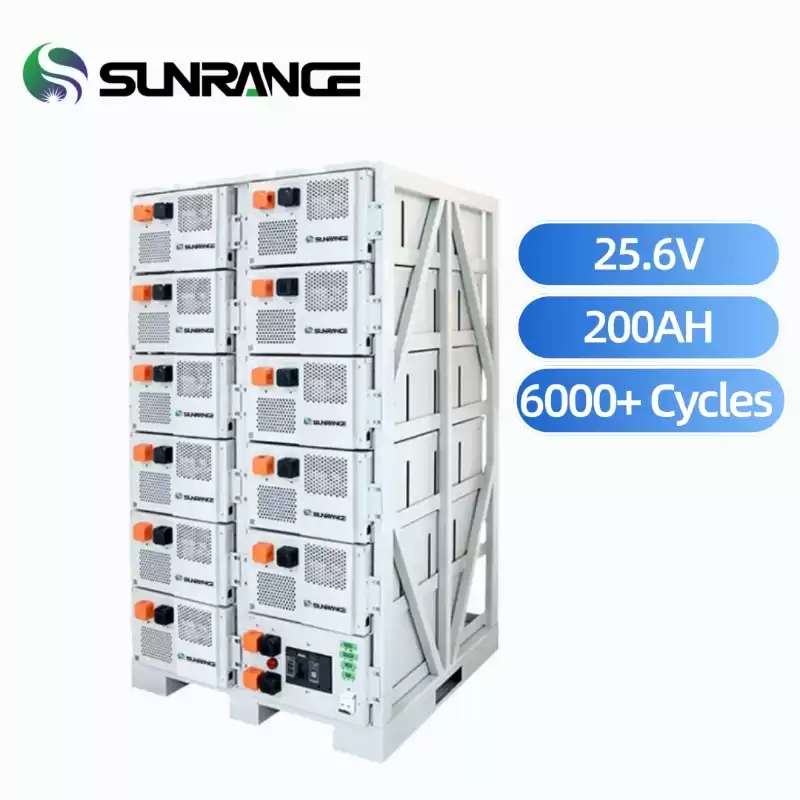

Sunrange High Voltage 25.6V 200AH Lithium Battery

Sunrange’s 25.6V 200AH high-voltage lithium battery is engineered for residential and small commercial solar energy storage systems. Packed with high-density LiFePO₄ cells, it boasts over 6,000 deep cycles and built-in intelligent BMS for full protection against overcharge, over-discharge and short circuits. Compact, maintenance-free and inverter-compatible, it ensures stable power supply. We offer 10-year warranty and prompt delivery.

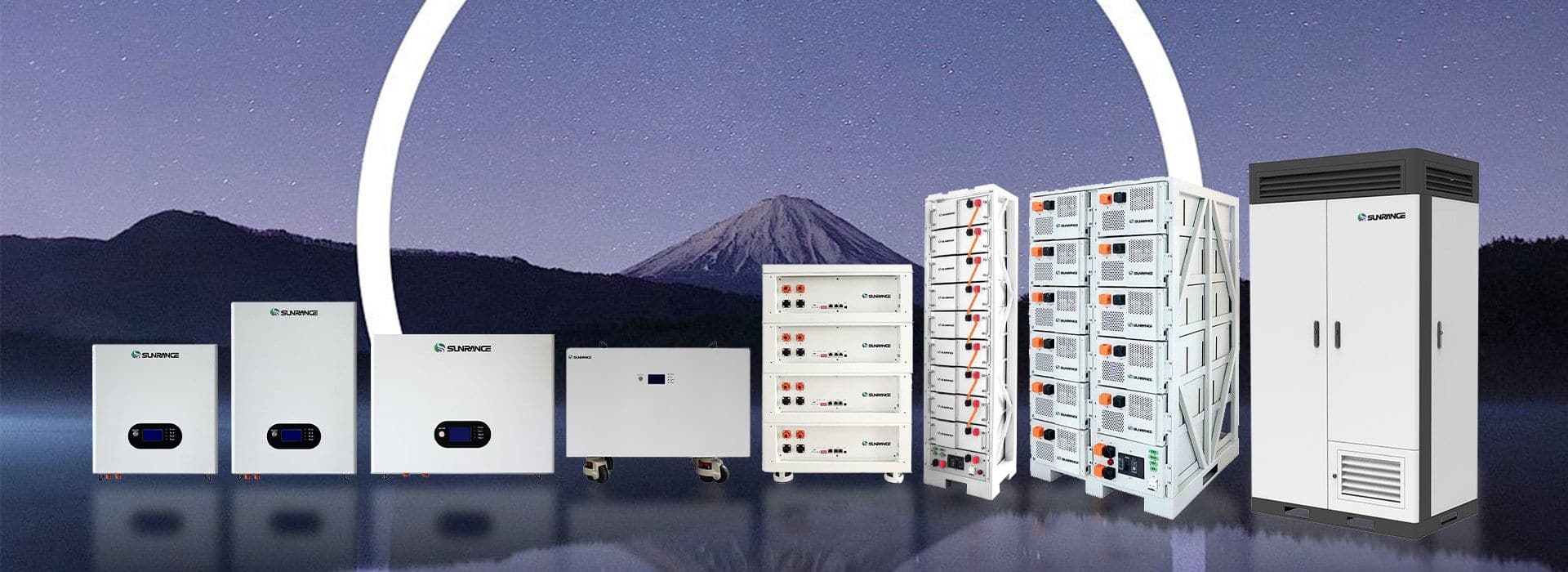

Sunrange Lithium Battery

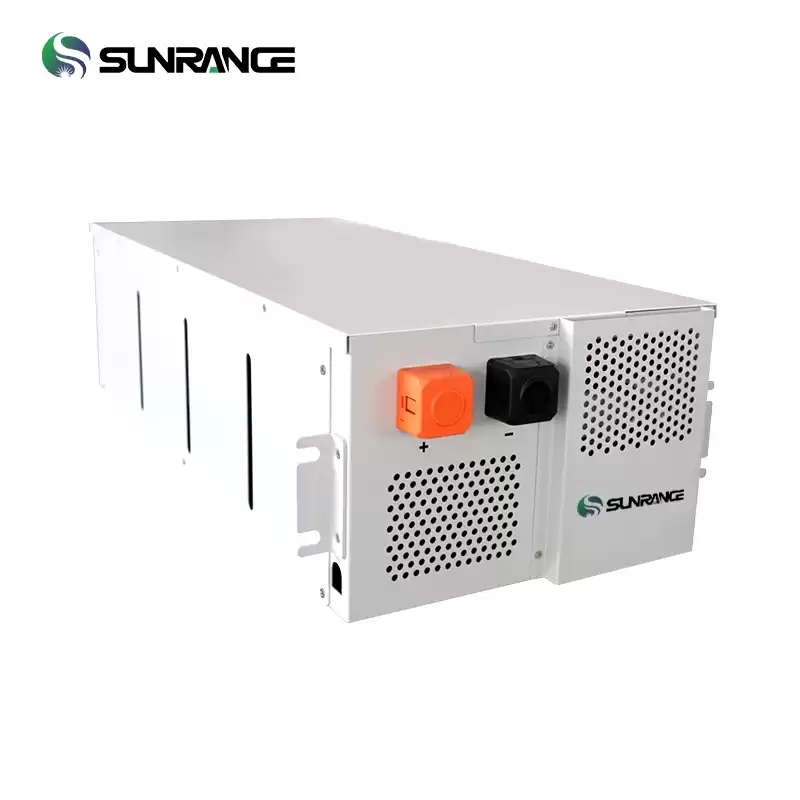

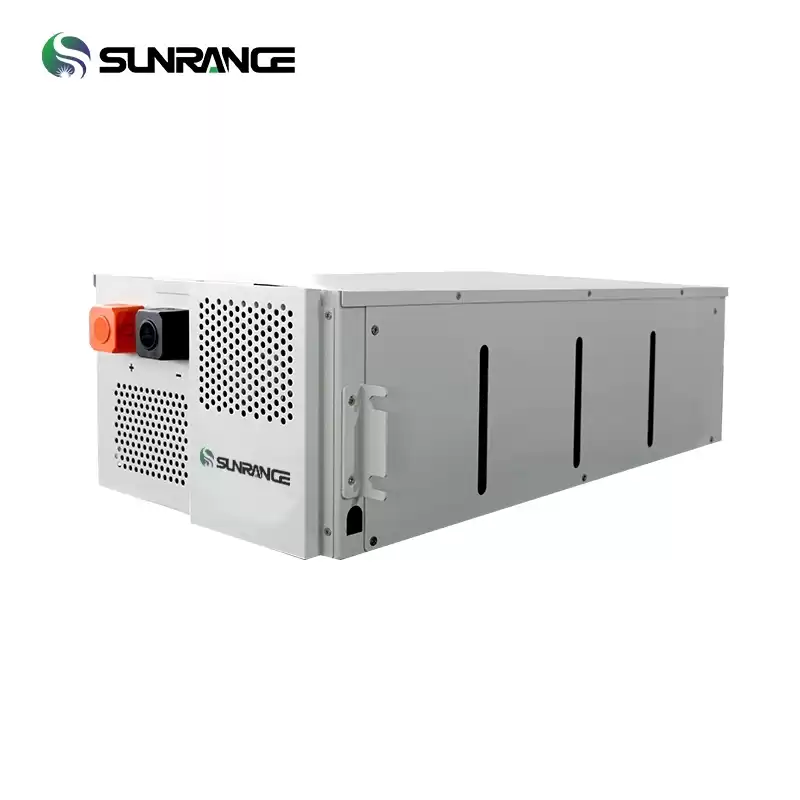

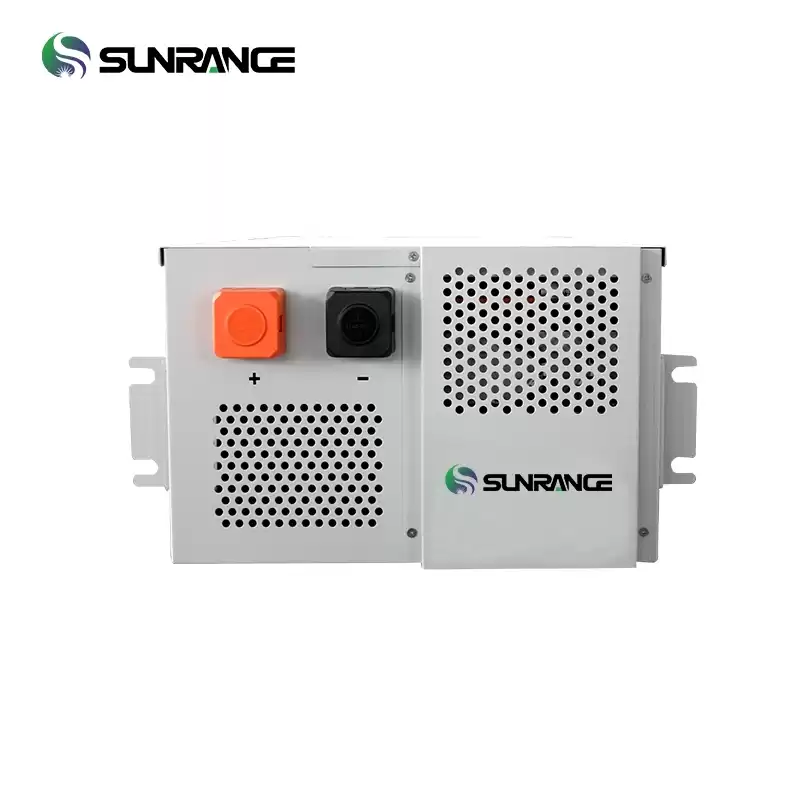

The SR25.6V200AH -H ithium-ion system offers reliable backup power for commercial/industrial use,enabling load balancing, peak shaving, and renewable energy stabilty, With high integration,long life,and wide temp range is modular 5.12Wh modules (15-series max) scale capacity from 35.84 to 76.8kWh for flexible storage.

Performance Parameter

Module                                                                     SR25.6V200AH-H
Basic Parameters
Capacity(kWh) 5.12
Nominal Voltage(Vdc) 25.6
Nominal Capacity(AH) 200
Voltage Range(Vdc) 21.6~28.8
Depth of Discharge 80%
Dimension(W*D*H,mm) 440*442*179
Design Life 15+years(25℃)
Cycle Life >6000(25℃)
Communication CANBUSModbus RTU/TCP/IP
Protection Class IP20
Weight(kg) 48
Operation Temperature 0~50℃
Storage Temperature -20~60℃
Product Certificate

  MSDS&UN38.3



Battery Type : Lithium Iron Phosphate
Module energy: 5.12KWH
Module Normal Voltage: 25.6V
Module Capacity: 200AH
Battery Module Qty In Series (Optional): 7 8 9 10 11 12 13 14 15
System Normal Voltage: 179.2V  204.8V  230.4V 256V 281.6V  307.2V  332.8V 358.4V 384V
System normal capacity: 200AH  200AH  200AH  200AH  200AH  200AH  200AH  200AH  200AH
System Capacity: 35.84KWH  40.96KWH  46.08KWH  51.2KWH  56.32KWH  61.44KWH  66.56KWH  71.68KWH  76.8KWH





Packaging & Shipping

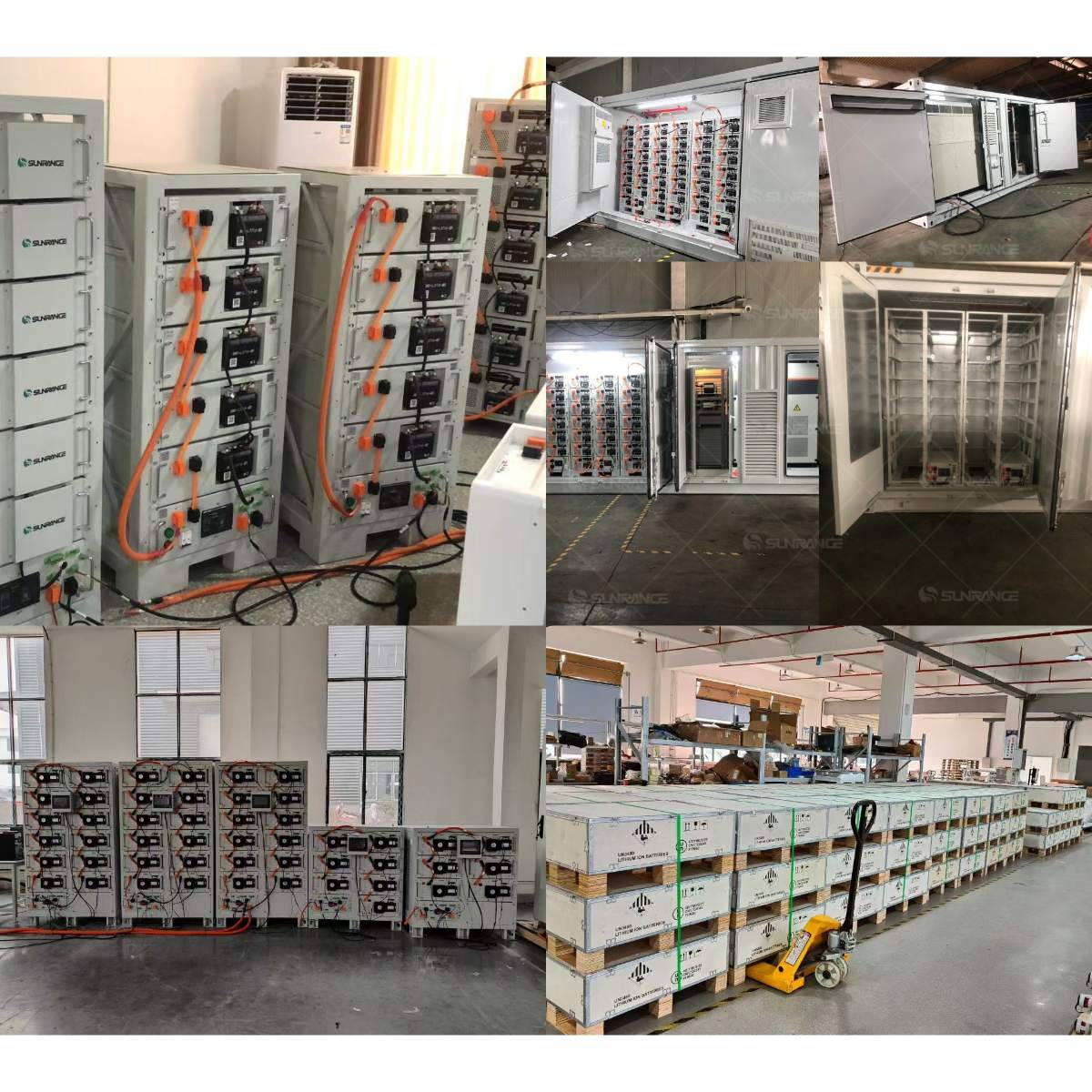

Sunrange Packaging & Shipping

Compatible Inverters List

  Sunrange Compatible Inverters List

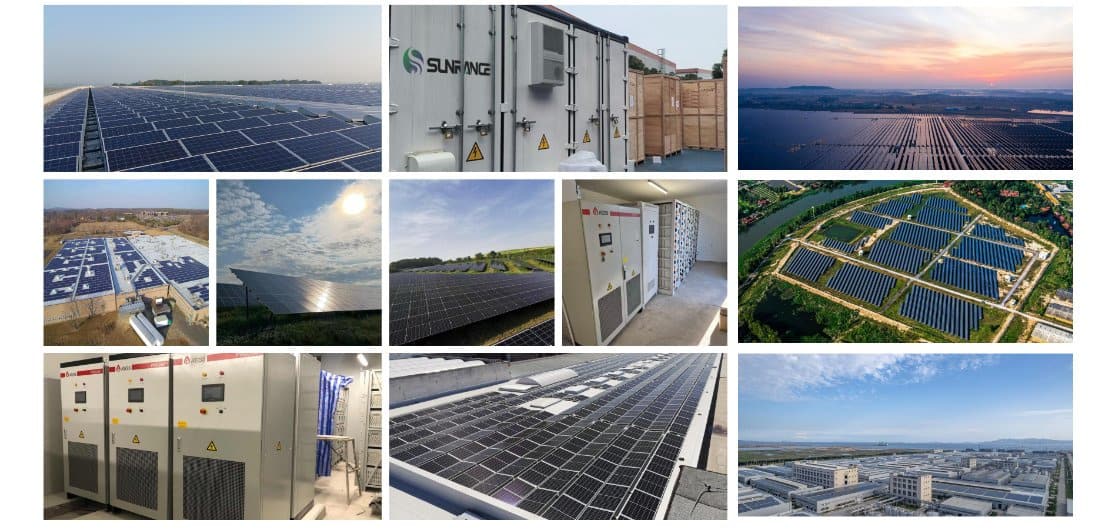

Project Case

Sunrange Project Case

FAQ

1. Comprehensive One-Stop Energy Storage Solution

We provide professional, all-in-one commercial & industrial energy storage system (ESS) solutions.



2. Customizable System Design (5KW–10MW)

Tailored solutions from 5KW to 10MW/more to meet diverse project needs.



3. Higher Real Power Output than Industry Standard

Our 100KW ESS system delivers up to 125KW real output while being rated at 100KW — ensuring more efficient and stable operation.



4. Advanced LFP Battery Technology (LiFePO₄)

Using high-density LFP cells (≥160Wh/kg), our systems are compact, lightweight, and space-saving. Safe and reliable, with over 6,000 cycles at 80% DOD and a lifespan of more than 10 years.



5. Ideal for a Wide Range of Applications

Designed for hotels, schools, factories, churches, broadcasting stations, and large villas.



6. Professional Installation & Commissioning Team

Backed by a team of experienced engineers for on-site installation, debugging, and technical support.
