*High-Performance Lithium Solar Battery

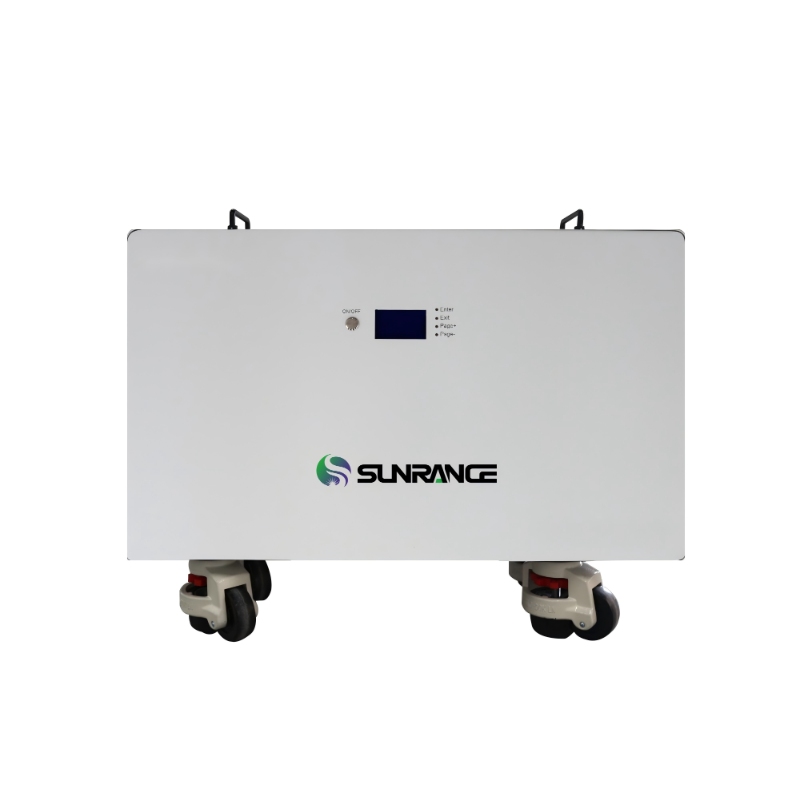

The 51.2V 280Ah; 314Ah LiFePO4 solar lithium battery by Sunrange Energy delivers reliable and efficient energy storage for solar power systems. Built with high energy density and Grade A lithium phosphate cells, it provides exceptional longevity and stability.
*Advanced Battery Management System (BMS)
Equipped with a sophisticated BMS, this battery ensures safety by preventing overcharging, overheating, and short-circuiting. The BMS optimizes efficiency and extends the battery’s lifespan, making it a secure choice for both residential and commercial solar installations.
*Eco-Friendly and Long-Lasting
The battery’s environmentally friendly lithium phosphate chemistry offers a sustainable energy solution. Its long cycle life means less maintenance and fewer replacements, making it a smart investment for renewable energy systems.
*Designed for Versatile Solar Applications
Ideal for home, commercial, or industrial settings, this battery pack serves well in off-grid solar systems, backup power, or grid-tied applications. Its compact design and efficient energy output suit a variety of energy storage needs.
| MODULE No |
51.2V280AH |
51.2V314AH |
| Nominal Voltage(V) |
51.2 |
51.2 |
| Nominal Capacity(AH) |
14336 |
16076.8 |
| Usable Capacity(AH) |
12902.4 |
14469.12 |
| Rated Energy(kWh) |
14.336 |
16.0768 |
| Battery Pack |
SRL-280-16S |
SRL-314-16S |
| Cycle Life |
≥6000@25℃ |
| C-Rate |
0.5C |
| Cooling Method |
Air Cooling |
| Communication |
RS485/CAN/Bluetooth (Optional) |
| Design Life |
10 years+ |
| Electrical Design Redundancy |
>20% |
| Charge/Discharge Standard |
| Discharge Voltage (V) |
44.8 |
44.8 |
| Charge Voltage(V) |
57.6 |
57.6 |
| Recommend Charge/Discharge Current(A) |
140 |
157 |
| Max.Charge/Discharge Current(A) |
200(3S) |
200(3S) |
| Operating Conditions |
| Operation Temperature |
0-40℃ |
| Storage Temperature |
-20-70℃ |
| Humidity |
15%-80% |
| System Parameters |
| Dimensions(W*D"H)mm |
761*260*503 |
761*260*503 |
| Weight(KG) |
113 |
113 |
| Certification |
CE/IEC/UN38.3/MSDS |
Advantage comparing with Lead Acid Battery?
Advantage comparing with Lead Acid Battery?
1. Energy Density
Lithium-lon: Higher energy density,meaning they store more energy for the same weight and sizeLead-Acid: Lower energy density,making them bulkier and heavier for the same energy storage capacity.
2. Cycle Life
Lithium-lon: Much longer cycle life,10+ years designed lifespan, up to 6000 cycles.
3. Efficiency
Lithium-lon: High round-trip efficiency of 90-95%, meaning less energy is lost during charging and discharging.
Lead-Acid: Lower efficiency, around 70-80%, with more energy lost as heat.
4. Depth of Discharge(DOD)
Lithium-lon: Can be discharged up to80-90% of their capacity without significantly reducing lifespan.
Lead-Acid: Typically recommended to discharge only 50% of their capacity to maintain longevity.
Compatible Inverters List
1.Is this battery compatible with my inverter?
Yes, it offers excellent compatibility. The built-in BMS supports RS485 and CAN communication protocols, allowing it to work seamlessly with most major brands of hybrid and off-grid inverters.
2.Is the wall-mounted design safe for home installation?
Absolutely. The battery is CE, IEC, and UN38.3 certified for safety. Its wall-mounted design is secure, space-saving, and specifically engineered for residential indoor use.
3.Can you provide customization options for your products?
Yes, we provide OEM Service for you.
4. May I have a piece of sample to check the quality?
Welcome to place the testing order to check the quality or for testing.
