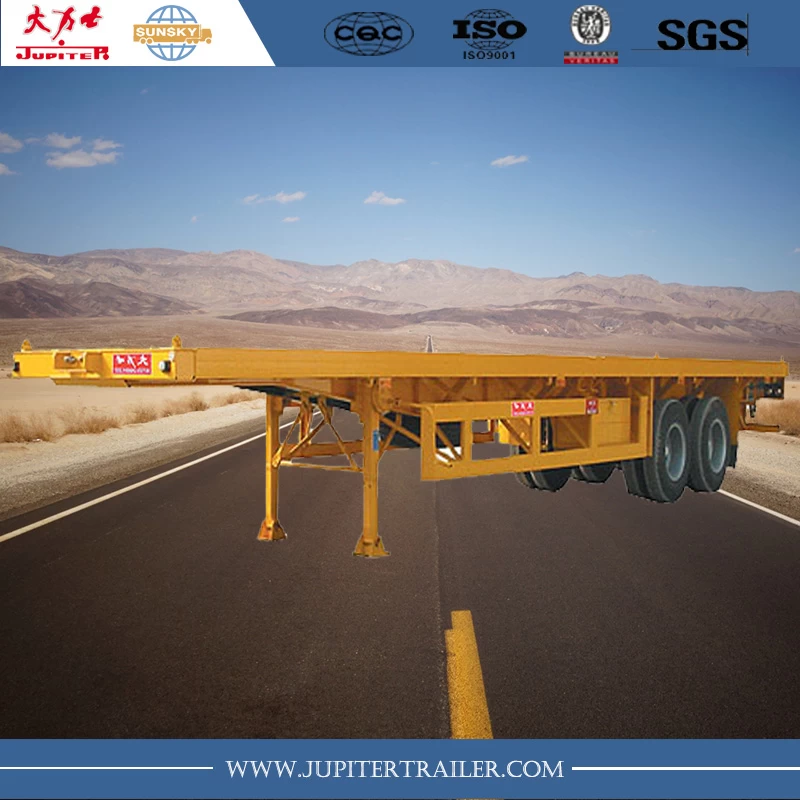

Sunsky brand 40ft 2-axle flatbed semi-trailer for carry container
Features:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1) Manufacturer, 32 years professional
experience.
2) Two years guarantee term provided freely.
3) Export more than 1000 units to Africa,
Southeastern Asia, and South America.
4) Products can be custom-made according to your design.
Specification:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
|
40FT 2-axle Flatbed semi trailer
|
|
Feature:
|
Carry 1X20FT、1X40FT、or 2X20FT container
|
|
Dimension(L*W*H):
|
12420*2480*1570mm
|
|
Main frame:
|
Heavy duty and extra durability design; Opting for high tensible low
carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
|
|
Model:
|
SS9280TJZP
|
|
No. of axle:
|
2
|
|
Payload(kgs):
|
40000
|
|
Tare weight(kgs):
|
6200
|
|
Kingpin:
|
The
world-famous JOST brand bolt-in/welded type 3.5”/2”
|
|
Landing
gear:
|
JOST brand
two-speed manual operation 19”
|
|
Tire size:
|
11.00R20、11R22.5、12R22.5、315/80R22.5、385/65R22.5
|
|
Rim size:
|
8.25*22.5、9.00*22.5、11.75*22.5
|
|
Axle:
|
Original BPW-12T/
FUWA-13T
|
|
Suspension
|
Germany type with
12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag
suspension
|
|
Brake
system:
|
Dual line
with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber,
46L air tank
|
|
Electric
system:
|
One unit of
24V 7-pin ISO standard socket; with brake light, turn light, reverse light,
side light, reflector, fog light; one set of 6-pin standard cable
|
|
Container
locks
|
12(for
1x20GP,2X20GP,1X40HQ)
|
|
Painting:
|
S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish
painting
|
|
Accessory:
|
One tool
box; one set of standard tool
|
|
We can
build the trailers according to customer’s design and requirement
|

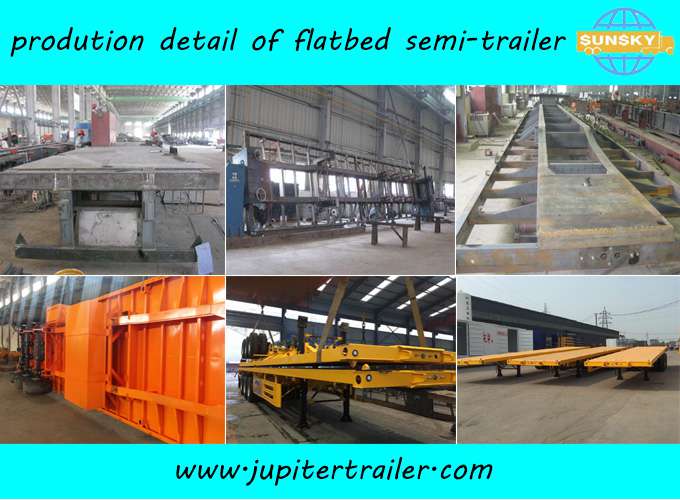

Production detail:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Producing process:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Our advantage and ability:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
What others we can supply:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
