Super Flexible RF Jumper Cable DIN Male Right Angle 5m
Product Description
|
Product Name
|
Jumper Cable / Cable Assembly
|
|
Part number
|
CA-12SFDMADM-5000
|
|
Impedance
|
50Ω
|
|
Connector
|

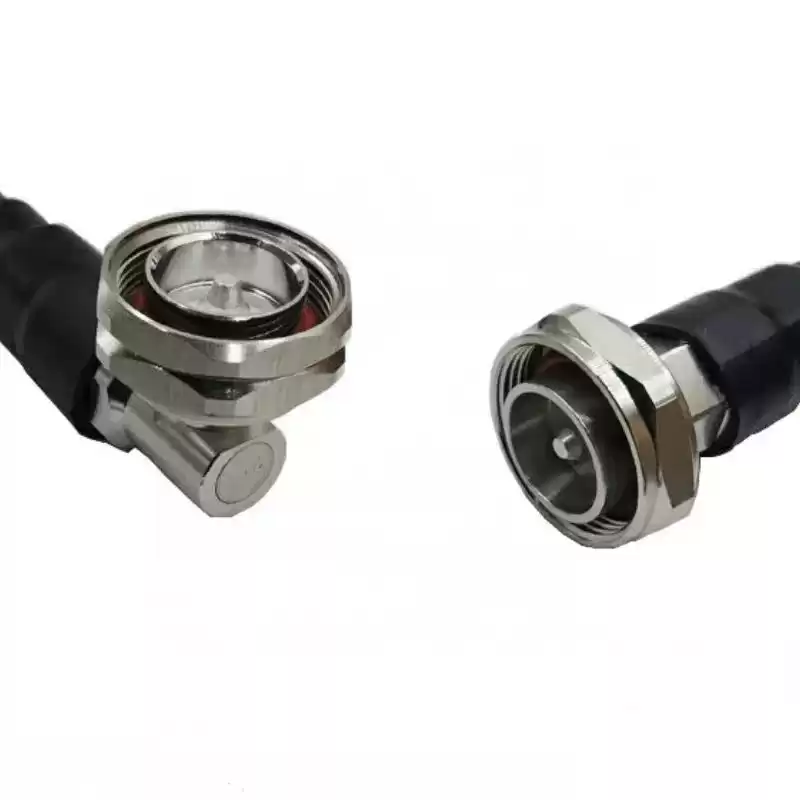

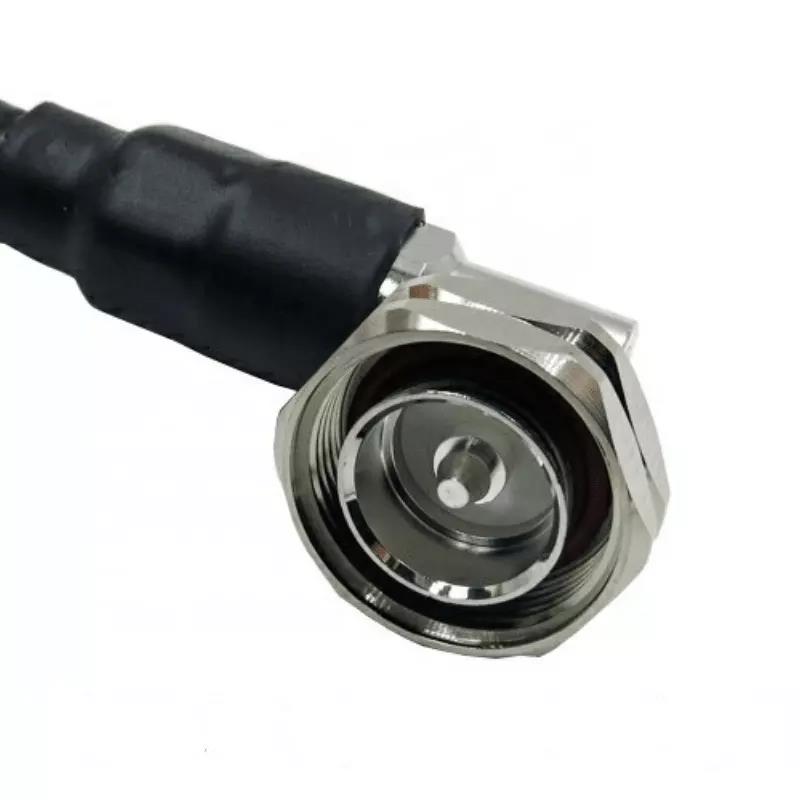

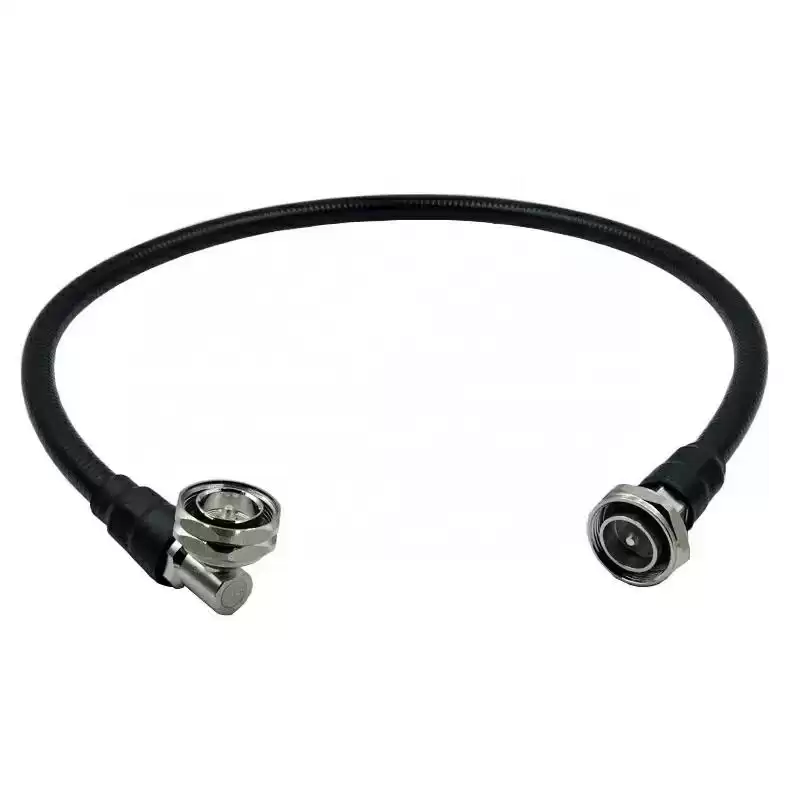

7/16 DIN male right angle to 7/16 DIN male straight
|
|
Cable
|
1/2" SF Cable
|
|
Frequency
|
DC-3GHz
|
|
Return loss
|
23dB
|
|
Insertion loss
|
1.3dB@3GHz
|
|
PIM
|
-160dBc@2×20W
|
|
Power handling
|
500W
|
|
DC breakdown voltage
|
2500V RMS
|
|
Length
|
5 meters
|
|
Packing
|
1pcs/bag
|
|
Operating temperature range
|
-30°C to +70°C
|
|
Storage temperature range
|
-40°C to +85°C
|
|
Relative humidity
|
5%- 95%
|
|
Barometric pressure
|
55KPa -106KPa
|
Product Details
Our Advantages
We have CA-12SFDMADM-5000 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
CA-12SFDMADM-5000, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
CA-12SFDMADM-5000 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
