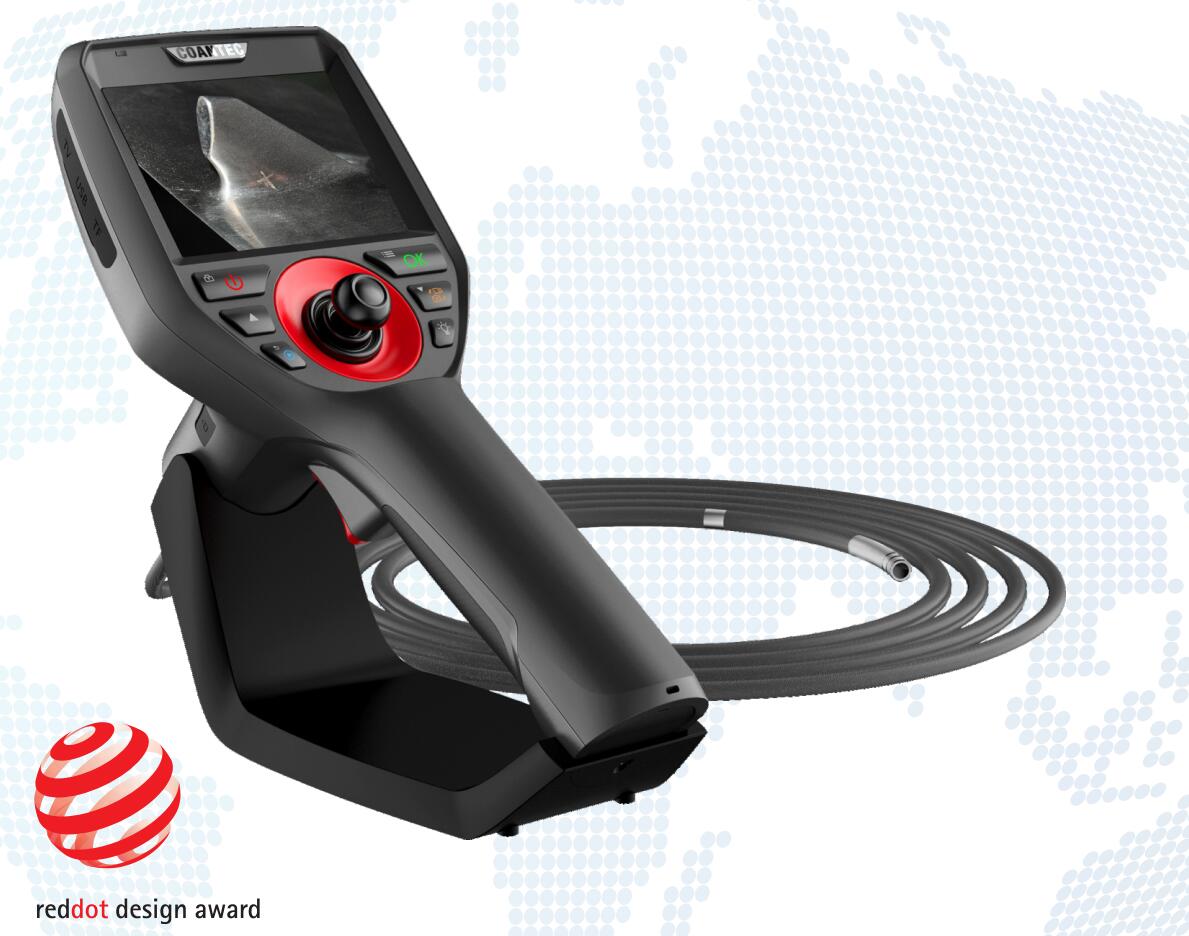

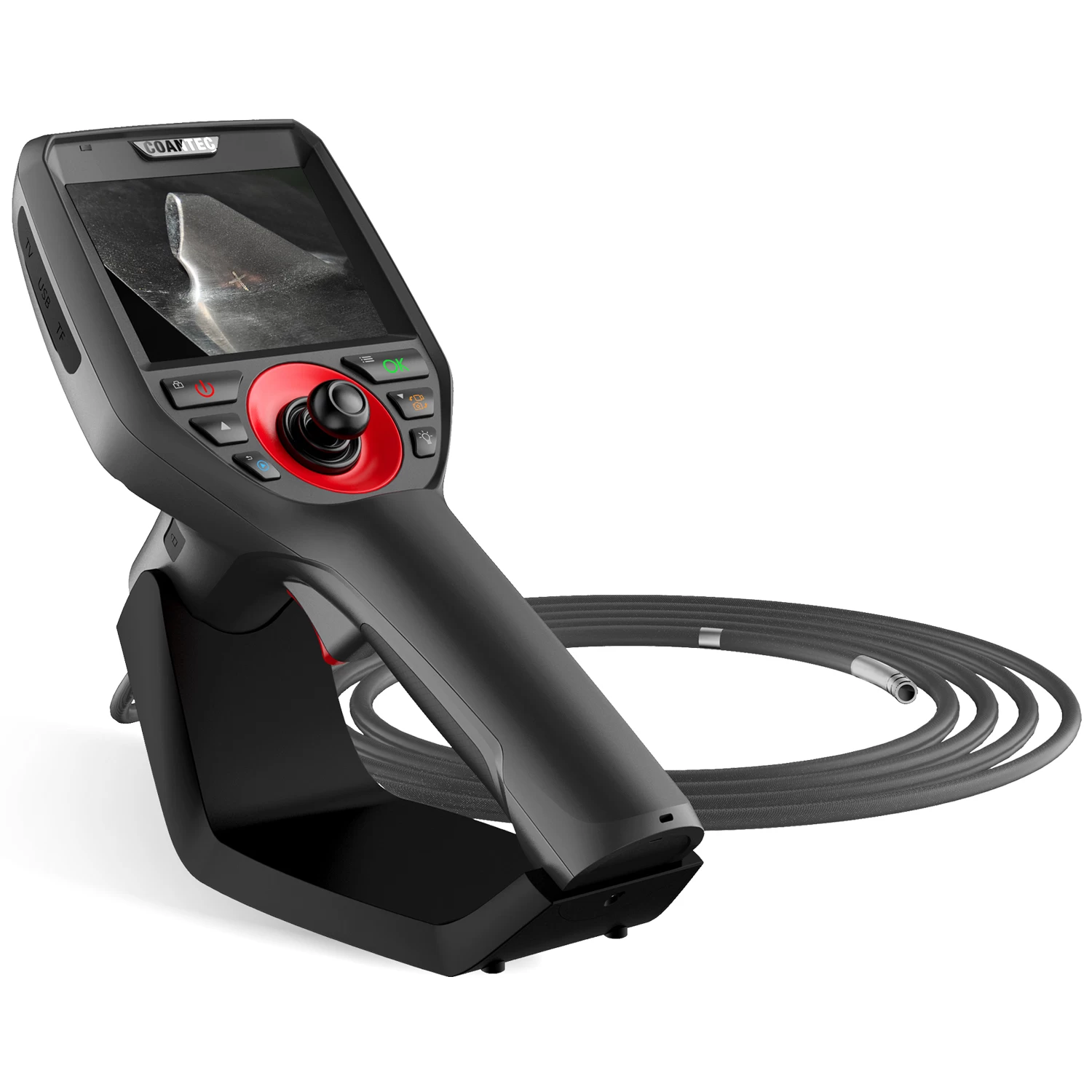

Super HD Mega Pixel Industrial Videoscope of Coantec C40 series
1. 720P megapixel Ultra HD camera
Daylight Display + Super HD Camera：
C40 is equipped with a 3.5 inch daylight and 1,000,000 pixels super HD camera. Real-time reflection of static images and dynamic video of the inspected object.

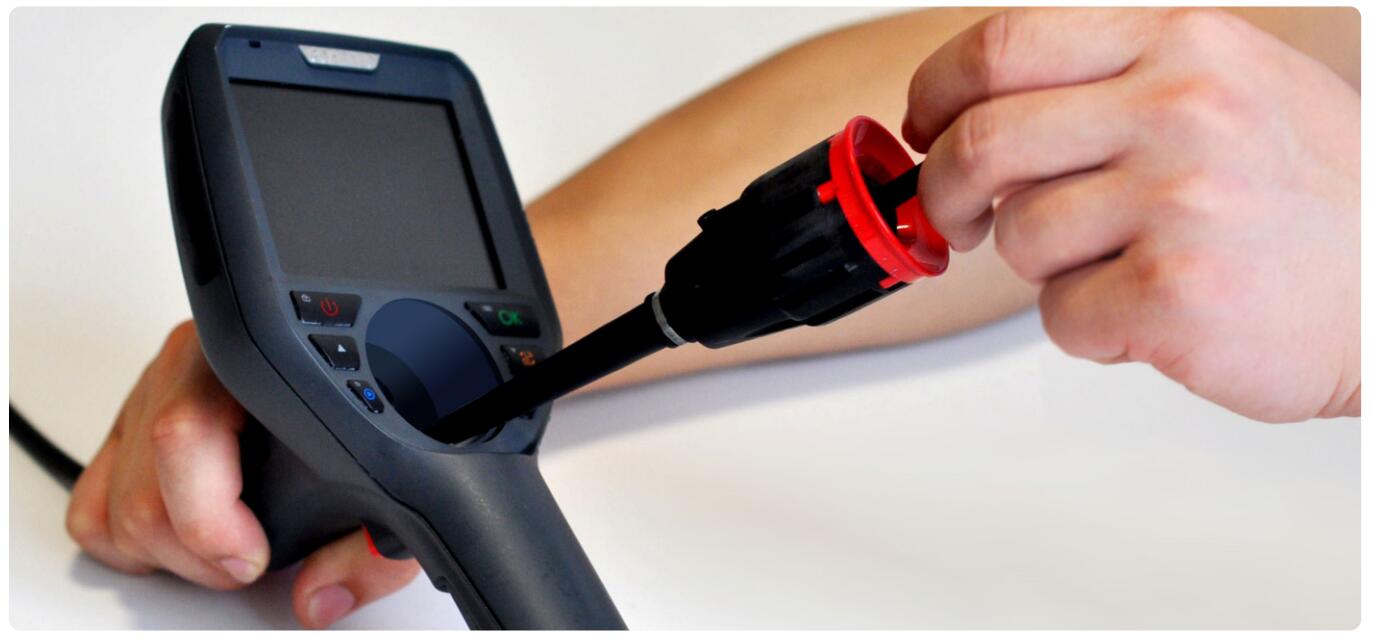

2. Rapid replacement of insertion tube with different specifications within 20 seconds
Insertion tube replaceable Technology:
The industry pioneered insertion tube replacement technology, which can rapidly replace insertion tube of different specifications within 20 seconds. Maximum cost saving for you.

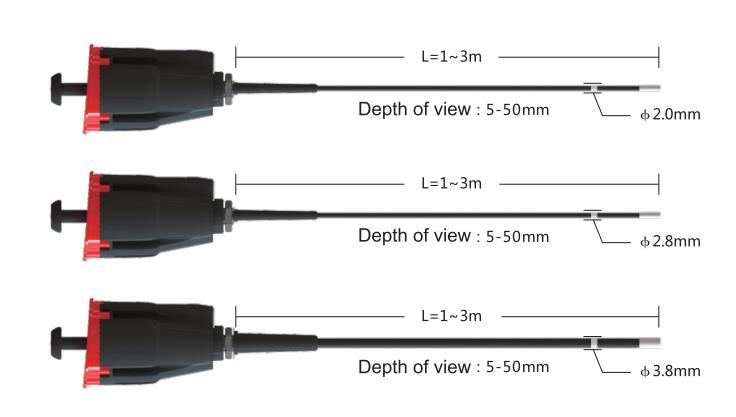

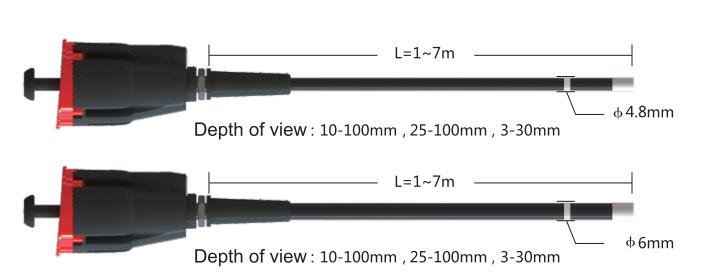

3. One host can be replaced with different insertion tuebs
One host can be equipped with 2-6mm different diameters, lengths and depth of field insertion tubes to achieve multi-purpose.

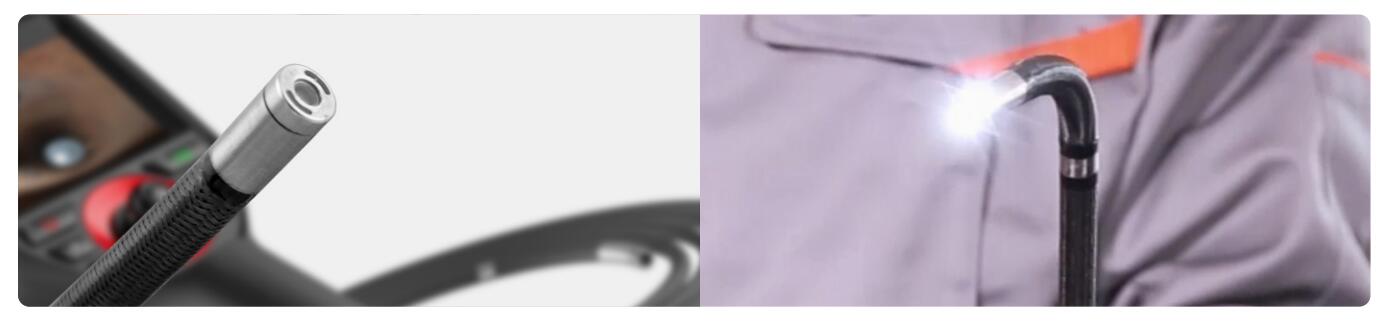

4. Super high illumination, super wide FOV
5. Warranty for rear-mounted LED light

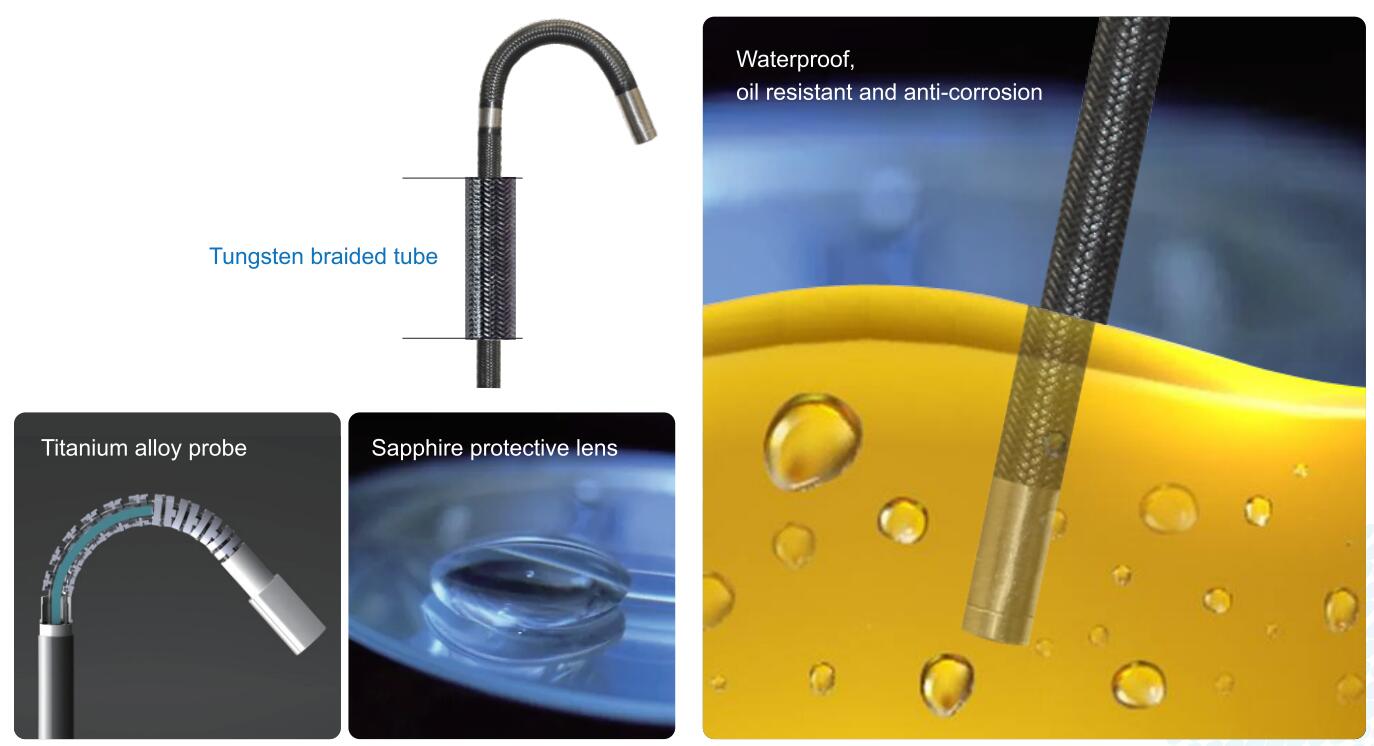

6. Strong adaptability to environment, waterproof, oil resistant and anti-corrosion
The insertion tube and probe can adapt to harsh environment. The insertion tube and probe is waterproof, oil resistant and corrosion resistant. Able to work continuously in water or oil in 30 Minutes.
|
Camera:
|
|
|
Probe Diameter
|
φ2.0mm / φ2.8mm / φ3.8mm / φ4.8mm / φ6.0mm
|
|
Pixels
|
φ2.0mm (160,000 pixels) / 2.8mm (160,000 pixels) /
3.8mm (300,000 pixels) / 4.8mm、6mm (1 megapixels)
|
|
Probe Material
|
Titanium alloy protective shell
|
|
Depth of Field
|
3-30mm / 5-50mm / 10-180mm
|
|
Field of View
|
70° / 120° Optional
|
|
Visible Direction
|
Standard direct view lens
(side view lens optional, except φ2.0mm/2.8mm)
|
|
System:
|
|
|
Integrated Design
|
Probe, Screen, Insert tube, Handle, Battery and other integrated
handheld design
|
|
Insert Tube
|
Replace with different Insertion tubes/ Diameter/ Length/ Depth of
field.
|
|
Tube Length
|
1m - 7m (φ2.0mm/ 3.8mm Up to 3m)
|
|
Probe Control
|
Mechanical damping control
|
|
Probe Articulation
|
360° all-way
|
|
Bending Angle
|
The minimum bending angle of the insertion tube in a straight
state ≥160°
|
|
Illumination Type
|
Front LED light or Rear-mounted Fiber (LED light life ≥30,000 hours)
|
|
Illuminance
|
Front LED guiding with max 20,000lx, Rear-mounted fiber guiding
with max 60,000lx (φ2.0mm Up to 8,000lx)
|
|
Digital Zoom
|
Support real-time 4x zoom, 8x partial zoom when playback
|
|
Brightness Level
|
Manual 7-level adjustment
|
|
Negative Function
|
Can be opened
|
|
Cross Cursor Function
|
Can be opened
|
|
Display
|
3.5 inch TFT daylight display, visible under sunlight
|
|
Image Resolution
|
1280*720/ 960*720（≥φ4.8mm）640*480（≤φ3.8mm）
|
|
Video Resolution
|
1280*720（≥φ4.8mm）640*480（≤φ3.8mm）
|
|

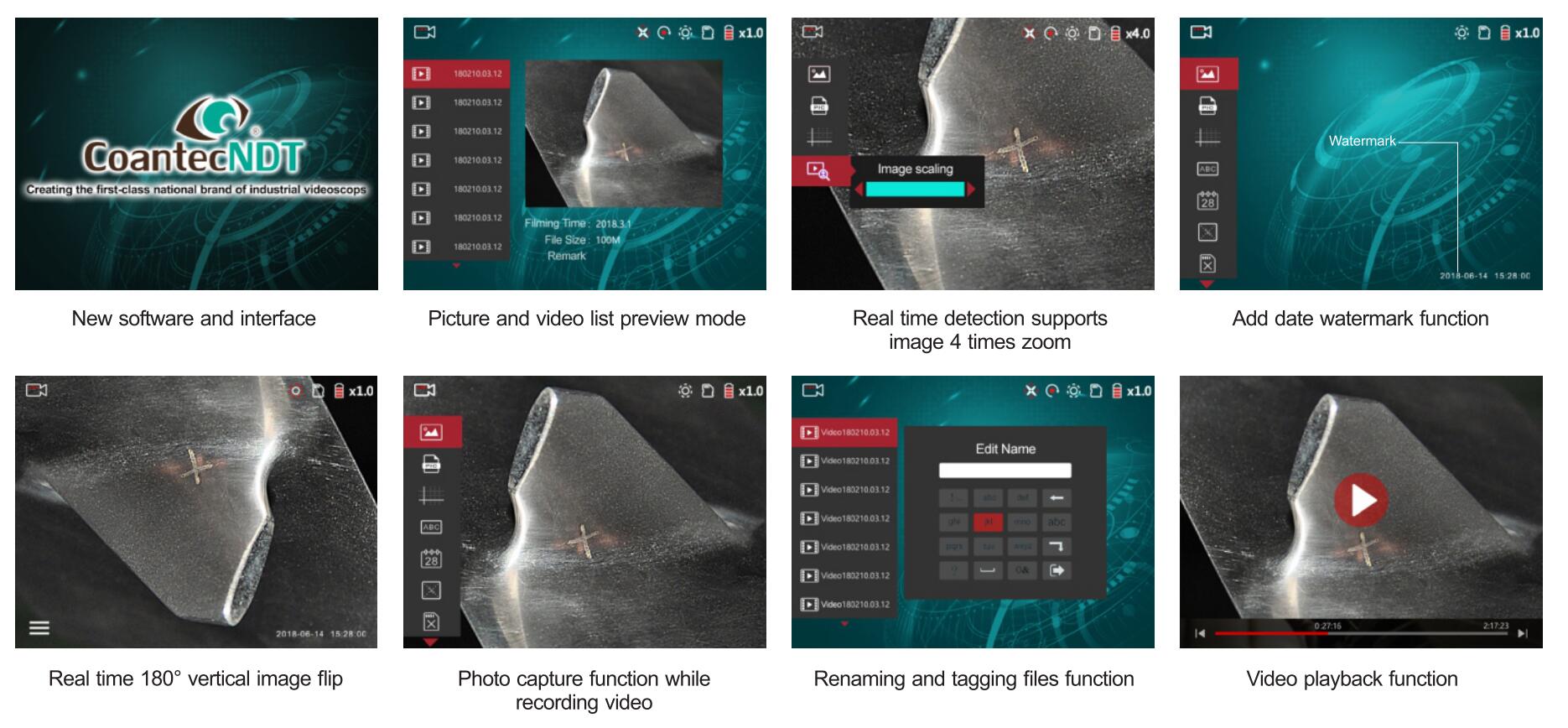

Shooting & Recording Function
|
With camera and video function, can be captured during recording
|
|
File Format
|
Picture: BMP ; Video: MP4
|
|
Image Flip
|
180°
|
|
Image Preview
|
List preview mode, full-screen view optional / time watermarking.
|
|
Memory
|
Standard 8G capacity TF card, maximum support 32G
|
|
Equipment Durability Protection Device
|
Buffer protection device for connecting host and insert tube
|
|
Insert Tube
|
Oil and corrosion resistant
|
|
Host:
|
|
|
Host Weight
|
≤0.55kg
|
|
Waterproof
|
Host IP55, Probe IP67
|
|

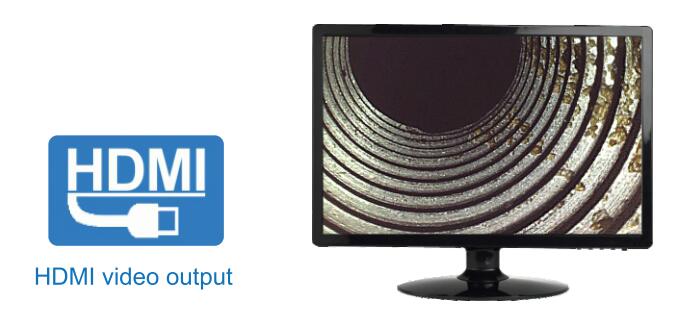

Output Port
|
HDMI
|
|
Battery:
|
|
|
Power
|
18650 rechargeable lithium battery,real-time online charging.
|
|
Battery
|
DC 4.2V
|
|
System Operating Time
|
≥4 hours (1 battery)
|
|
Operation Environment:
|
|
|
System Operating Temp
|
-10 ~ 50°C
|
|
Tip Operating Temp
|
-20 ~ 60°C
|
|
Storage Temperature
|
-20 ~ 60°C
|
|
Relative Humidity
|
15% ~ 90%
|
|
Accessories:
|
|
|
Standard Configuration
|
C40 Videoscope, Instrument case, Card reader, 8G TF card, Battery,
Charger, User manual, Anti-fall hand strap.
|
|
Optional
|
HDMI cable, Replaceable thermographic insertion tube,
Detachable magnetic base.
|
