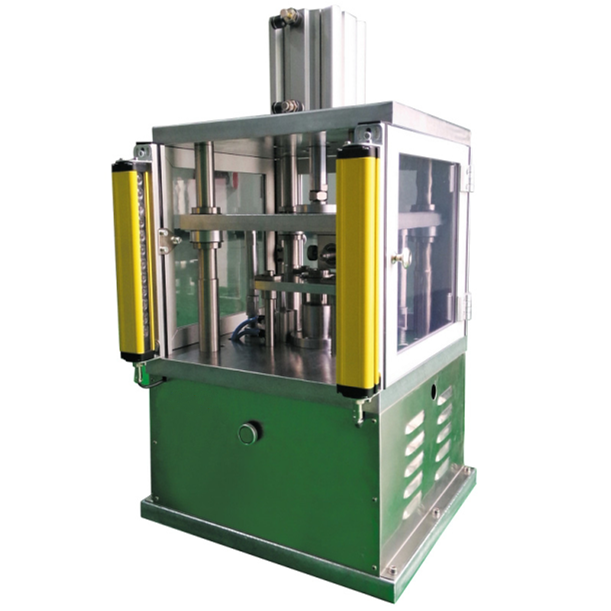

Supercapacitor Electric Sealing Machine for Columnar Super Capacitor Capping
For columnar super capacitor capping of laboratories.
This model suitable for your max super capacitor:D30mm*L50mm
Functional characteristics:
l Motor-driven spinning and capping principle adopted.
l Standardized fixtures used for quick replacement of fixtures
l Reliable capping.high accuracy and uniform size.
l Accuracy servo motor locating
l Standardized capping roller.standard configuration(18650,non-standard aluminum cases are customized)
Technical parameter
|
Model
|
TMAX-XFK26
|
|
Power source
|
AC220v/50hz
|
|
Air source
|
0.5-0.7Mpa
|
|
Standard accessories
|
Sealing mould for supercapacitor diameter 30mm*length 50mm
|
|
Optional accessories
|
18650,26650,32650,50100......standard aluminum shell mould
|
|
Capacity
|
5-10ea/min(Depending on manual proficiency )
|
|
Dimensions
|
324*352*600(mm). L*W*H
|
|
Weight
|
110kg
|
