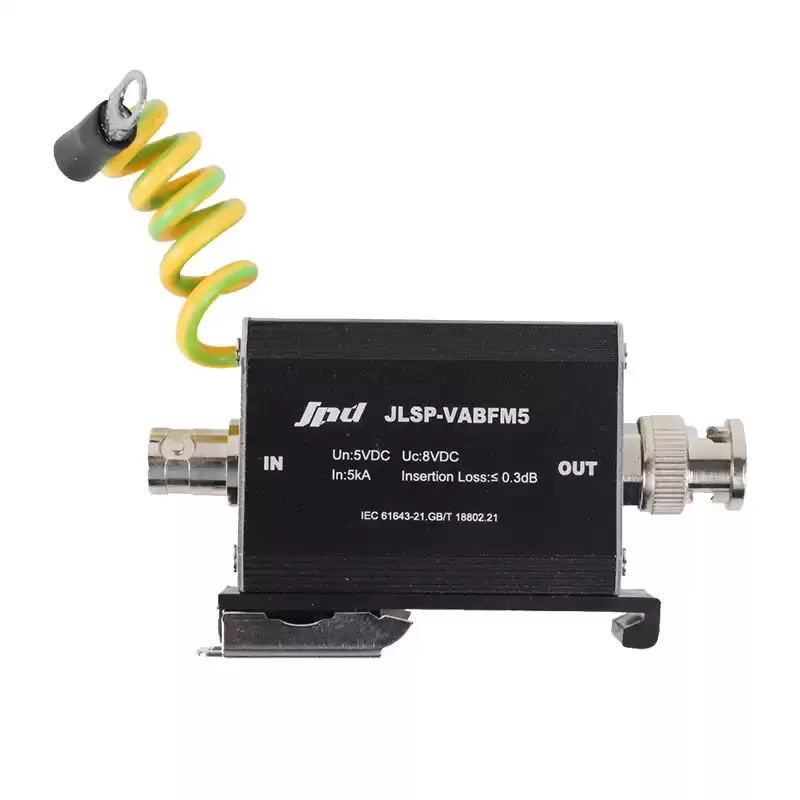

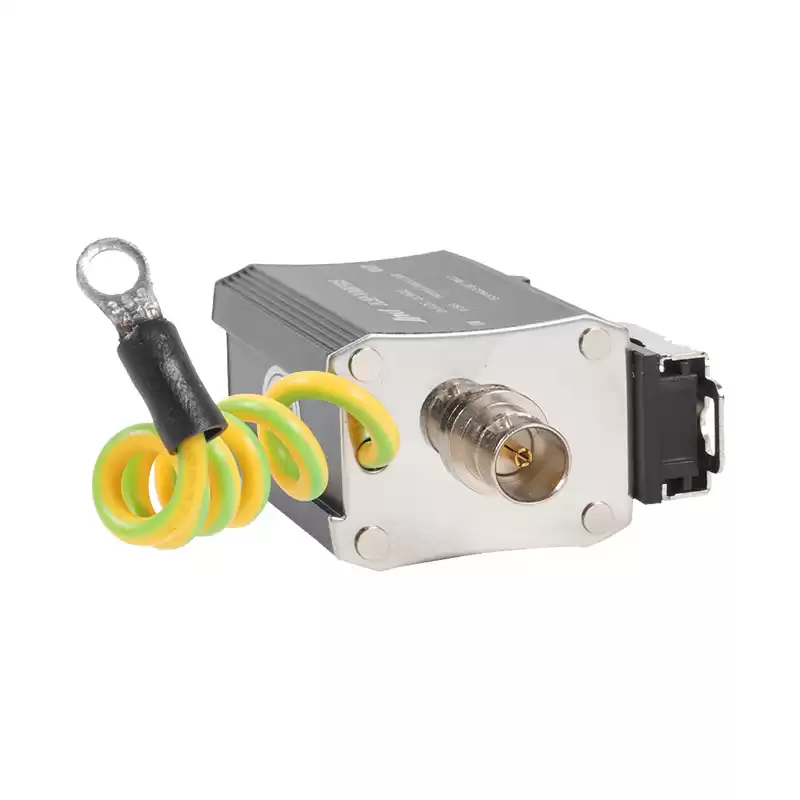

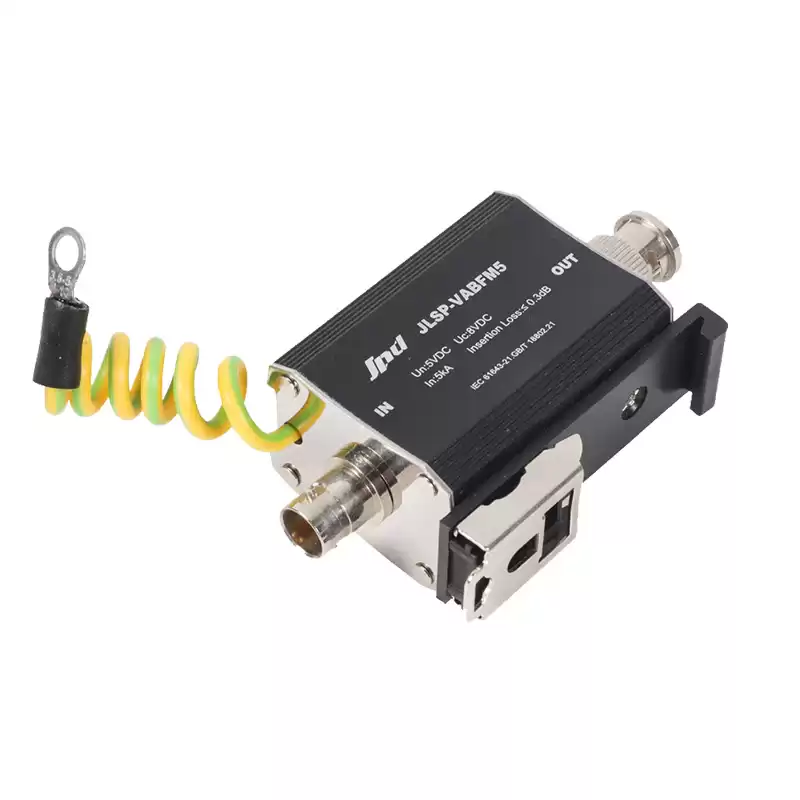

Surge protective device for video data transmission
It is suitable for coaxial communication equipment such as cable television, public television, instruments, monitoring systems and video-on-demand systems, and is dedicated to lightning and surge protection at the equipment end.
Standard compliance
IEC61643-21
Features:
* Low insertion loss and low voltage protection level
* Fast response: action with nanosecond
* High rate transmission
* Large discharge current capacity
* DB9 interface, easy mounting
* Protection for data line with D-SUB interface
|
Model
|
Nominal voltage Un(V)
|
Max.continuous operatingvoltage Uc(Vdc)
|
Nominal discharge current In(kA)
|
Protection level Up(line-line)(V)(B2:4kV)
|
Protection level Up(line-PE)(V)(B2:4kV)
|
Frequency(MHz)
|
Impedance
|
Insertion loss(dB)
|
|
JLSP-VABFM5
|
5
|
8
|
5
|
≦30
|
≦600
|
10
|
50
|
≦0.3
|
