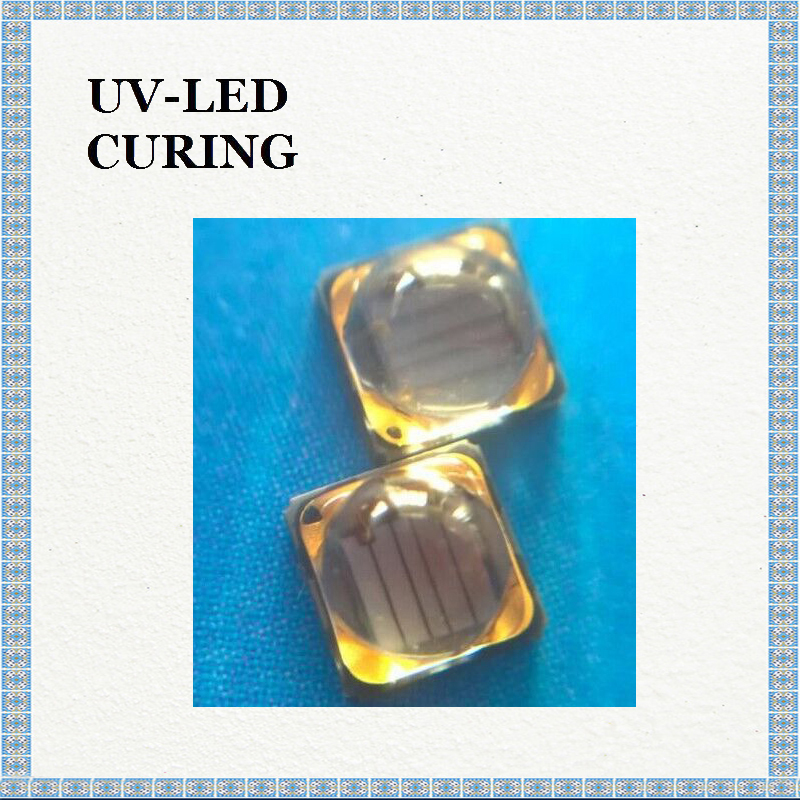

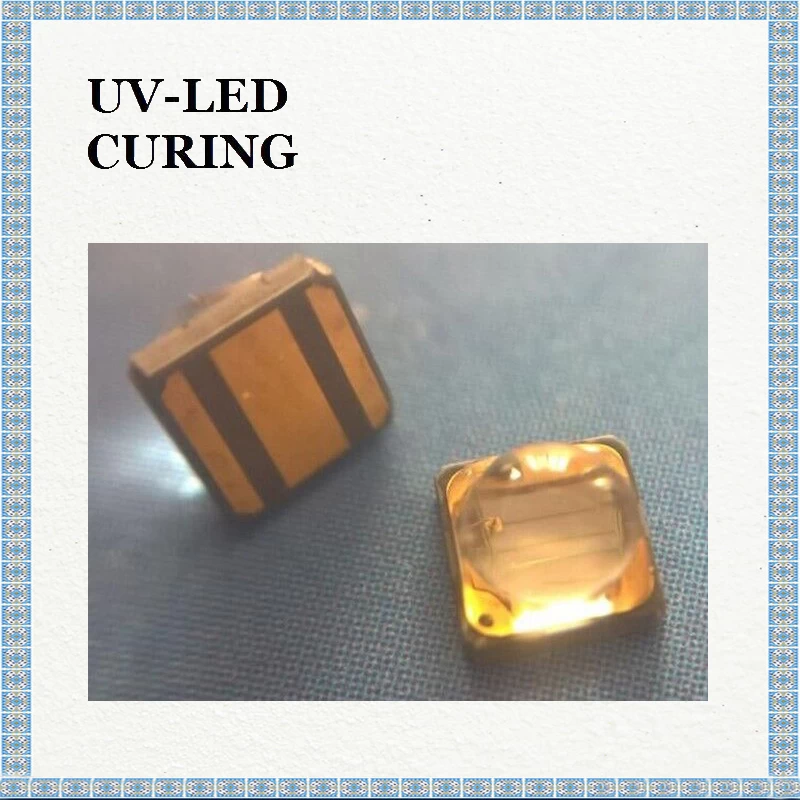

SVC CUN6GB1A UV 365nm LED is designed for high current operation and high power output applications. It incorporates state of the art SMD design and low thermal resistant material. CUN6GB1A(CA3535N) NUV LED is ideal UV light source for curing, printing, and detecting applications.
Product Parameters:
Brand: Korea SVC
Type：CUN6GB1A
Size:3.5*3.5mm
Wavelength:360-370nm
Radiant Flux:1000-1300mW
Forward Current/Forward Voltage:1400mA/3.0-4.4V
View Angle:55deg.
Lens：Quartz Glass

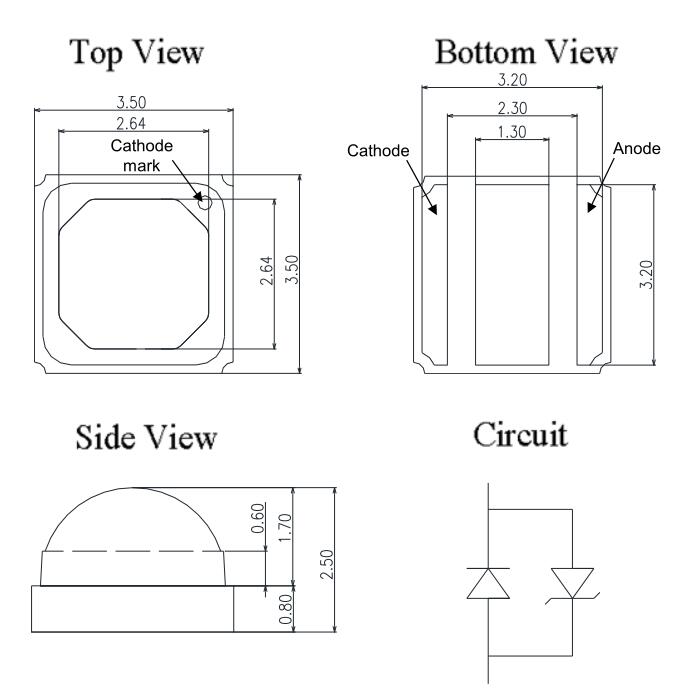

Outline dimensions
Notes :
[1] All dimensions are in millimeters.
[2] Scale : none
[3] Undefined tolerance is ±0.2mm

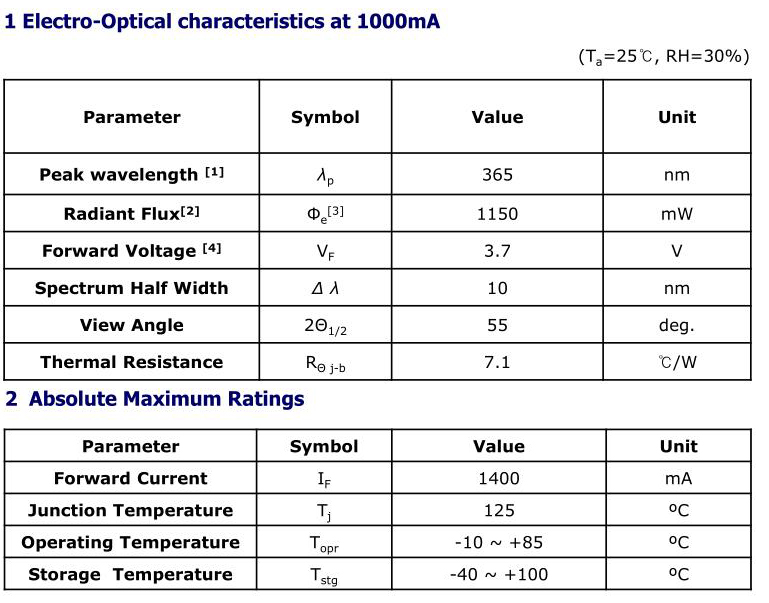

Characteristics of CUN6GB1A
Notes :
1. Peak Wavelength Measurement tolerance : ±3nm
2. Radiant Flux Measurement tolerance : ± 10%
3. Φ e is the Total Radiant Flux as measured with an integrated sphere.
4. Forward Voltage Measurement tolerance : ±3%
5. R θ J-b is the thermal resistance between chip junction to PCB board bottom.
The PCB is made of aluminium and the size of PCB is 2.5cm by 2.5cm

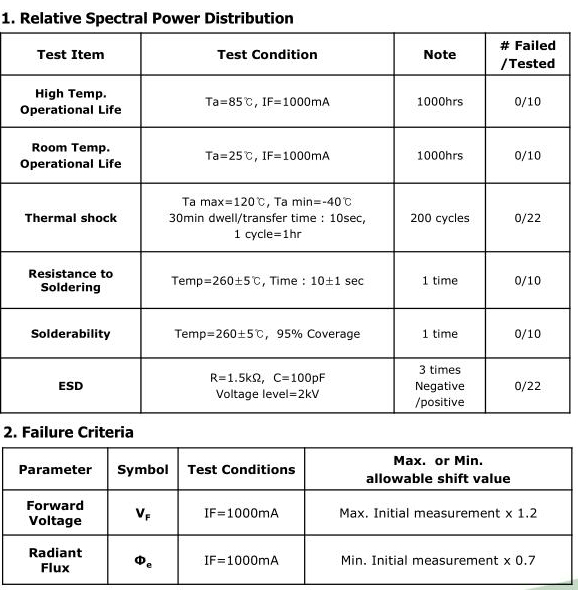

Reliability
Notes :
The value is measured after the test sample is cooled down to the room temperature.

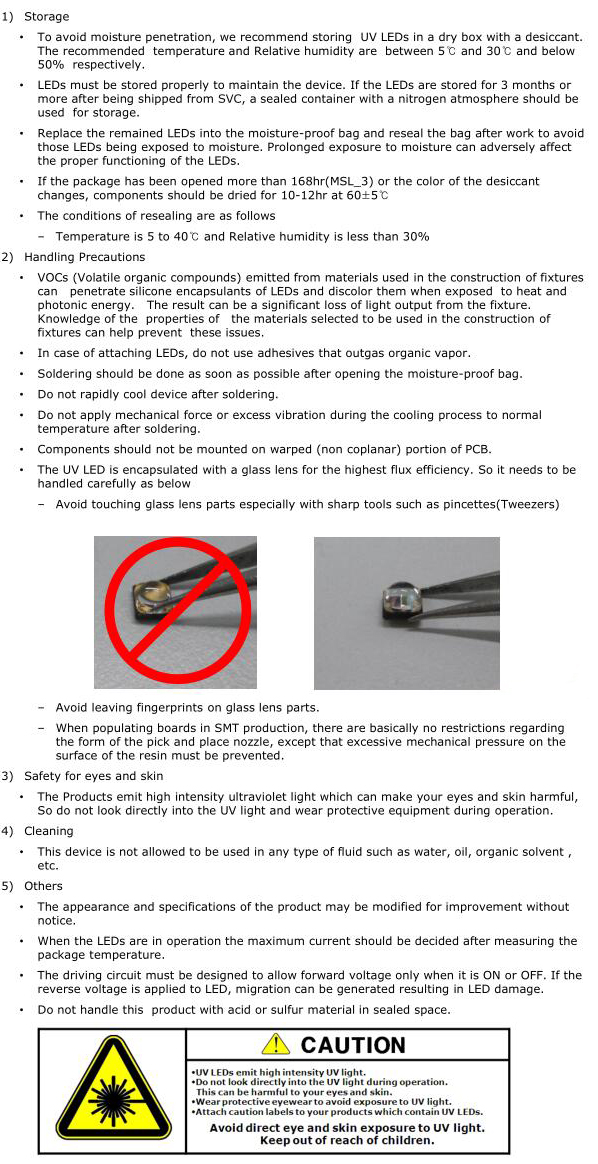

Precaution for use
