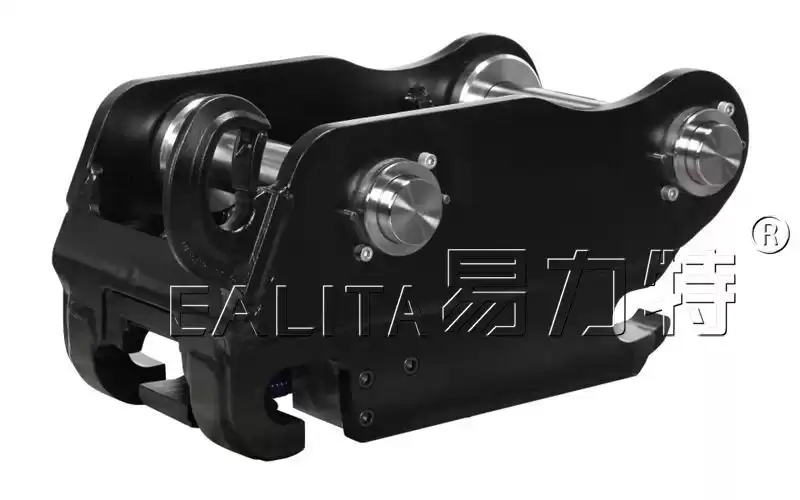

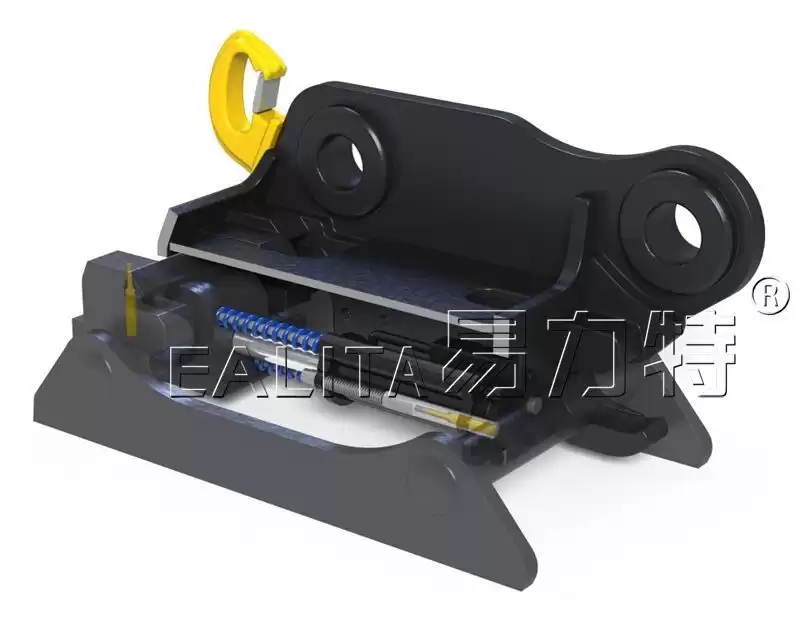

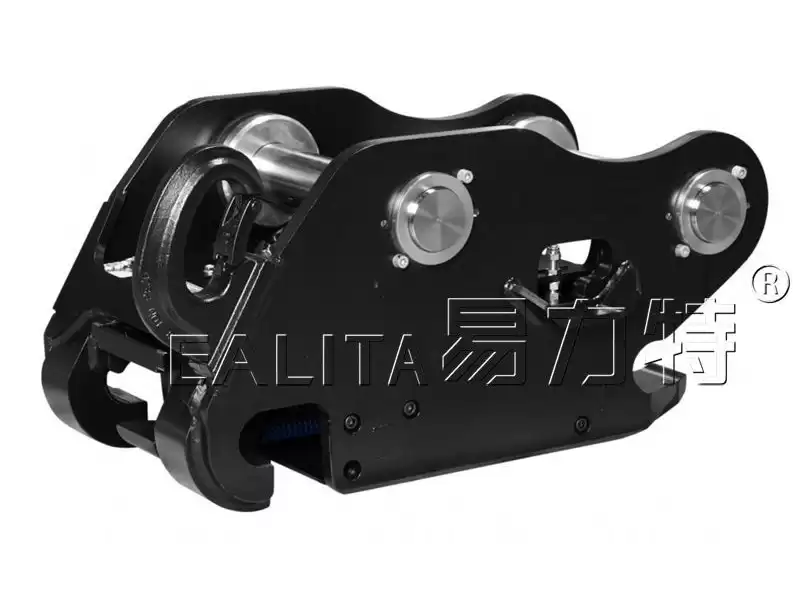

Quick Hitch Couplers guarantee both speed and safety when changing attachments on your machine.
- The quick coupling is available in both hydraulic and mechanical version.
- QC30H, QC40H, QC45H, QC50H , QC60H, QC70H, QC80H or other sizes bulit to order
|
Type
|
QC30H
|
QC40H
|
QC45H
|
QC50H
|
QC60H
|
QC70H
|
QC80H
|
|
Axle Dia Meter A
|
30mm
|
40mm
|
45mm
|
50mm
|
60mm
|
70mm
|
80mm
|
|
Width B
|
150mm
|
198mm
|
290mm
|
290mm
|
340mm
|
450mm
|
590mm
|
|
Length C
|
200mm
|
300mm
|
430mm
|
430mm
|
480mm
|
600mm
|
670mm
|
|
Build Height D
|
110mm
|
110mm
|
140mm
|
140mm
|
170mm
|
190mm
|
270mm
|
|
Weight
|
10kg
|
25kg
|
100kg
|
100kg
|
180kg
|
290kg
|
370kg
|
|
Max Hydraulic Pressure
|
22Mpa
|
22Mpa
|
35Mpa
|
35Mpa
|
35Mpa
|
35Mpa
|
35Mpa
|
|
Recommended Hydraulic Pressure Open/Close
|
21/3-6Mpa
|
21/3-6Mpa
|
21-25Mpa
|
21-25Mpa
|
21-25Mpa
|
21-25Mpa
|
21-25Mpa
|
|
Base Machine Weight
|
1-2t
|
2-6t
|
6-11t
|
6-11t
|
12-16t
|
16-30t
|
25-33t
|
