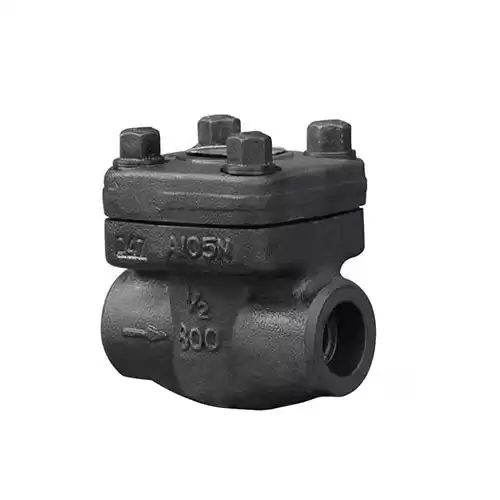

Swing Check Valve ½Inch 800LB A105N

API602 Forge Swing Check Valve

½Inch, 800LB, A105N, F6A

Manufacture STAVAL Factory Offers.


  • End ConnectionBW, Flange, SW, NPT, PE
  • BoreFull Bore
  • ConstructionBolt/Weld Cover, Full Open
  • Material RangeCarbon Steel,Stainless Steel,Alloy Steel,Bronze
  • Pressure Range150LB ~ 2500LB (PN16 ~ PN420)
  • Size Range½Inch ~ 2Inch (DN10 ~ DN50)
  • Working Temp. -196°C to +600°C

Key Specification

Type

Swing Check Valve

Size

½Inch

Pressure

800LB

Construction

Bolt Cover, Full Bore

Connection

SW End

Body/Cover Material

A105N

Disc Material

A182 F6A

Hinge Material

A276 410

Seat Material

A182 F6A

Bolt/Nut

B7/2H

Design Standard

API602

Face to Face Dimension

Manufacture's Std

End Connection

ASMEB 16.11

Inspection & Test Std.

API598

Temperature Range

-29℃~+425

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
