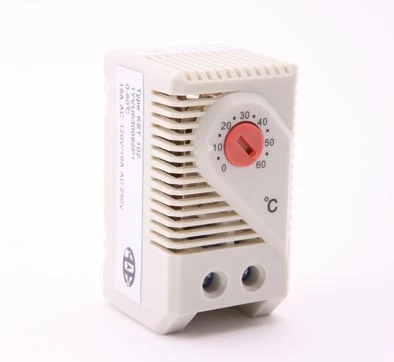

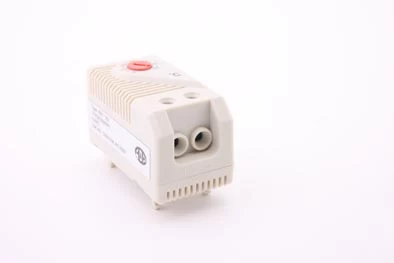

Features of Switchgear Thermostat 10℃
* High accuracy and
wide temperature-control range
* Small size
* High switching
performance
* Clip rail type, easy
installation
* Standard:GB14536-1996
JB/T3751-1997
|
Make and
break Temperature difference
|
≤7K
|
|
Liftime
|
> 100
000 cycles
|
|
Temp
Accuracy
|
±4℃
|
|
Protection
Grade
|
IP30
|
|
Sensor
|
Bimetallic thermal materials
|
|
Housing Materials
|
UL94 V-0 light blue flame retardant plastic
|
|
ContactType
|
Units
connect dynamically
|
|
Installation Method
|
35mm DIN rail（EN50022）
|
|
capacity of contact
|
10A
250VAC
|
|
Installation dimension
|
L*W
35mm*25mm
|
|
15A
125VAC
|
|
Torque for connection terminals
|
0.5 Nm
|
|
Contact resistance
|
<
50mΩ
|
|
Wire diameter of connection terminals
|
Rigid conductive wire 0.5~2.5mm²
Flexible conductive wire 0.5~1.5mm²
|
|
Insulated resistance
|
>50MΩ
|
|
Models
and Specifications Switchgear Thermostat
|
Temperature
Range
|
Model
|
Type of
output contact
|
|
10℃（fixed at
10℃，
not
adjustable）
|
KST101
|
NC，When the temperature reaches the set value, the
contacts will be closed
|
|
0℃～60℃
|
KST102
|
NC，When the temperature reaches the set value, the
contacts will be closed
|
|
0℃～60℃
|
KST201
|
NO，When the temperature reaches the set value, the
contacts will be opened.
|
Application areas of Switchgear Thermostat 10℃
* High and low voltage
switchgears
* Terminal box
* ZBW
* For
temperature control and alarming for heaters etc
Wiring Diagram and
Mounting Dimensions
