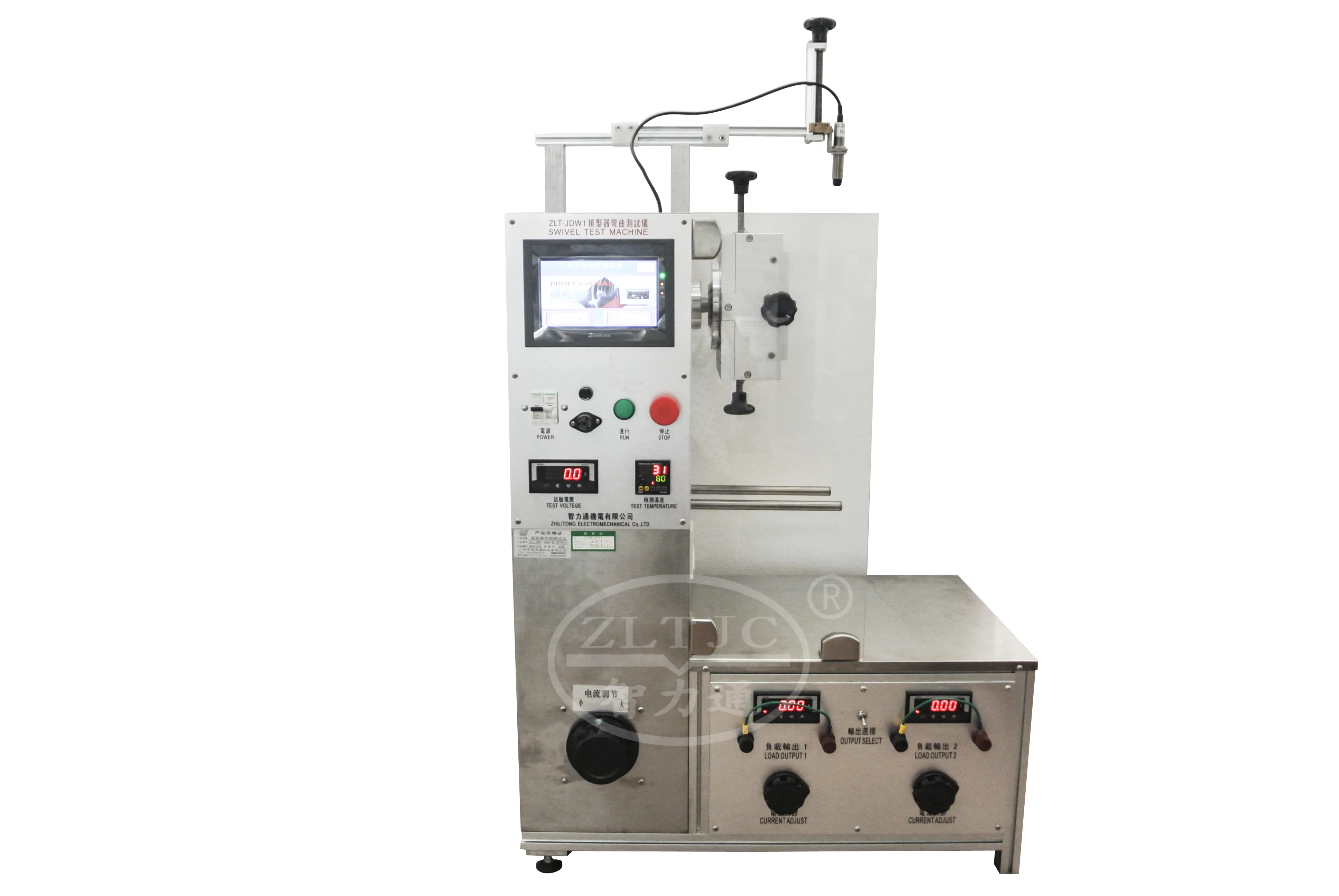

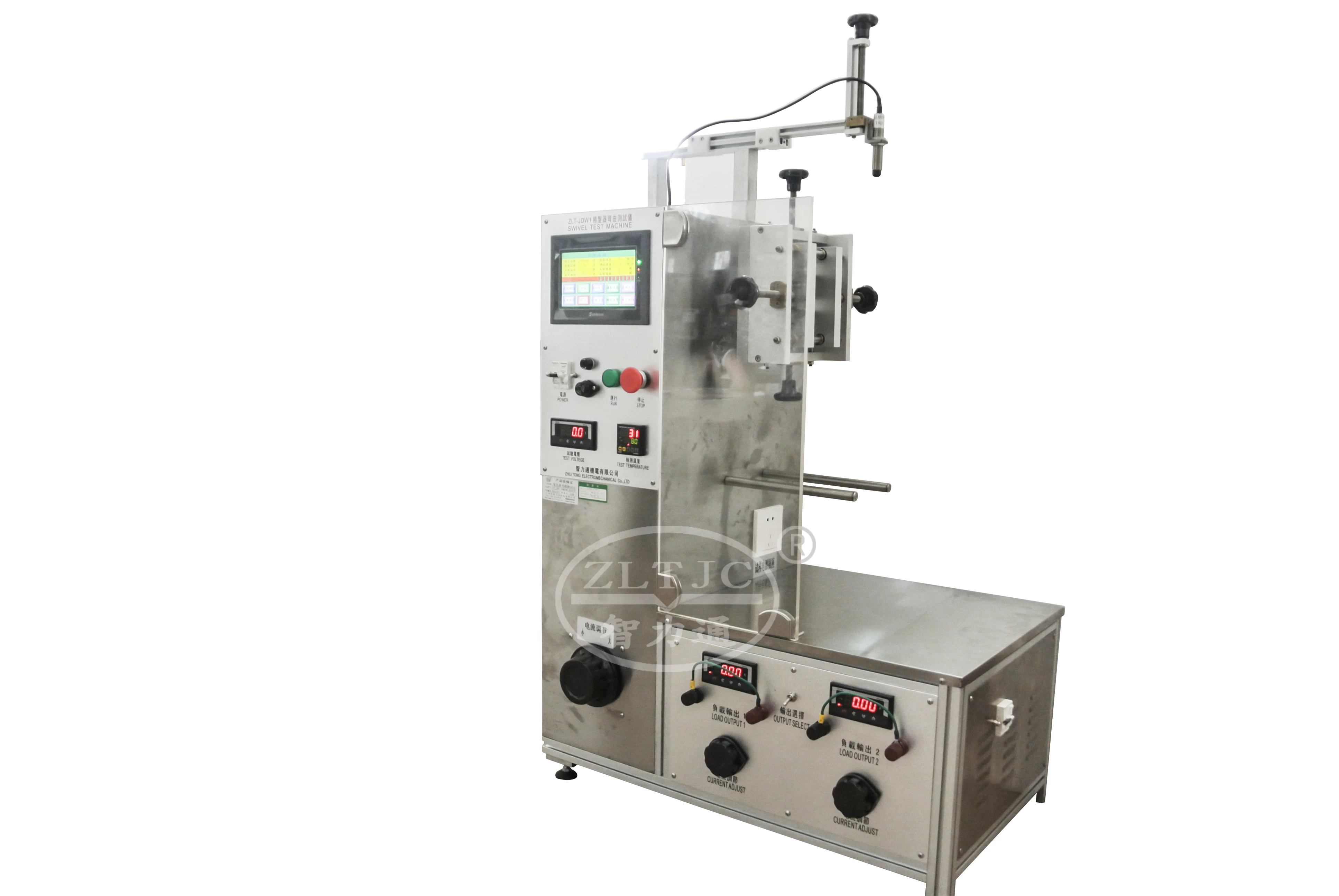

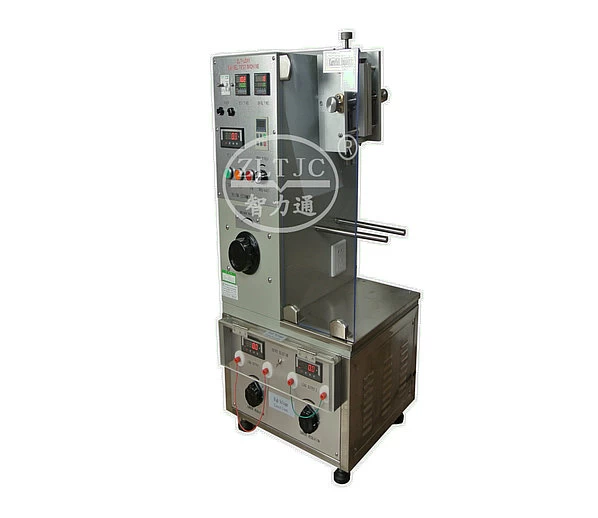

Swivel Test Machine
Product details:Model ZLT-JDW1
For continuous bending tests by swiveling movements to check supply cord where it enters the appliance, in accordance with IEC60335-2-23 clause 11.101.
Technical parameters:
1. Rotary speed: 0-50 RPM (variable-frequency adjustable).the direction of rotation being reversed every 20 times rotation , the test is carried out for total 1500 rotation.
2. Number of rotations: 0-9,999 rotations (adjustable)
3. Number of cycles: 0-999,999 (adjustable).
4. Weight: 1N.
5. Drive mode: electric
6. Sample clamp: four-jaw chuck
7. Current detection(on/off) : is available ,Voltage output: the rated voltage of specimen can be adjusted.
Power Supply: A.C.220V 50Hz, other voltages and frequencies on request.
