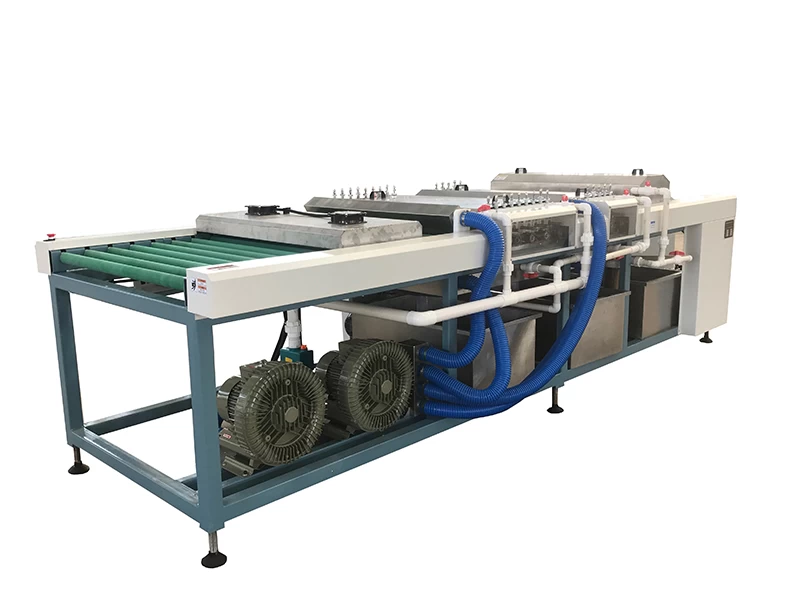

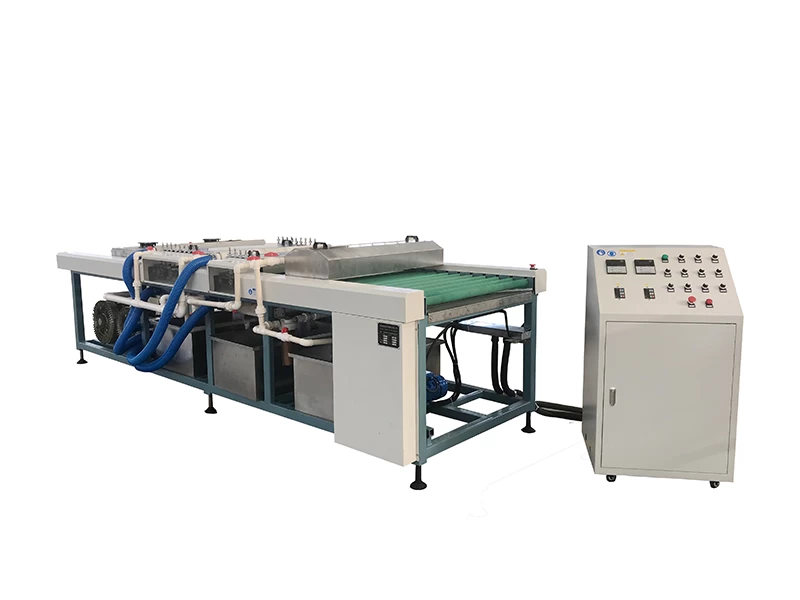

Structure Description:

Straight horizontal structure; sprocket drive; geared motor drive; no PLC only button control required.

Processing parameters:

Washing glass range: 200*200—600*800mm (glass width 1000mm)

Washing thickness range: 0.55-3mm (thickness manually adjusted with scale)

Beat: 0-5m/min (the glass beats of different size thicknesses should be different, the speed can be adjusted manually)

Configuration:

Motor: domestic, adjustable speed (two cleaning sections are independent motor control, can adjust speed separately)

Optical axis: domestic

Transmission component: whole machine rubber roller

Brush: 2 sets (cleaning section 1) 3 sets (cleaning section 2)

Sponge roll: 2 pairs

Touch screen: no

PLC: None

Frame: square tube welding

Electrical original: CHINT

Light inspection switch: domestic

Sheet metal cover: all stainless steel cover (optional carbon steel spray)

Air knife: 1 group (cut water) 1 group (air dried)

Fan: domestic
