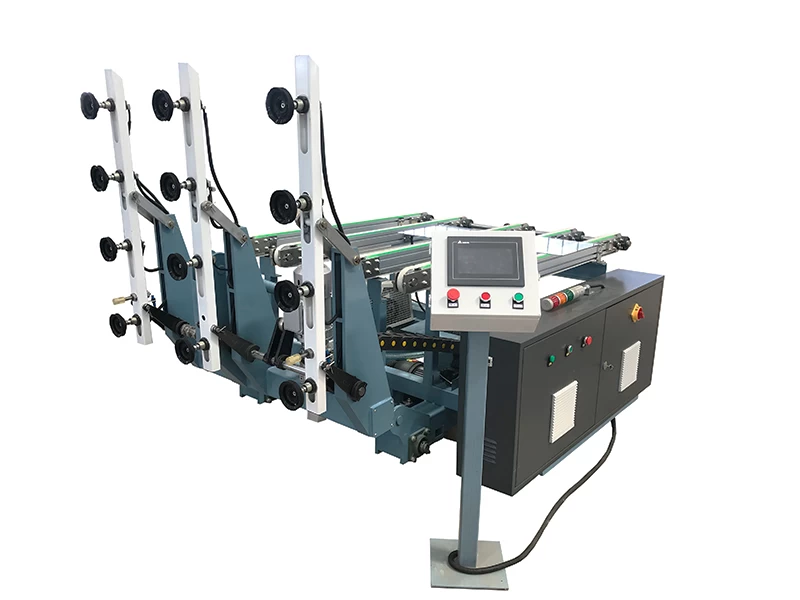

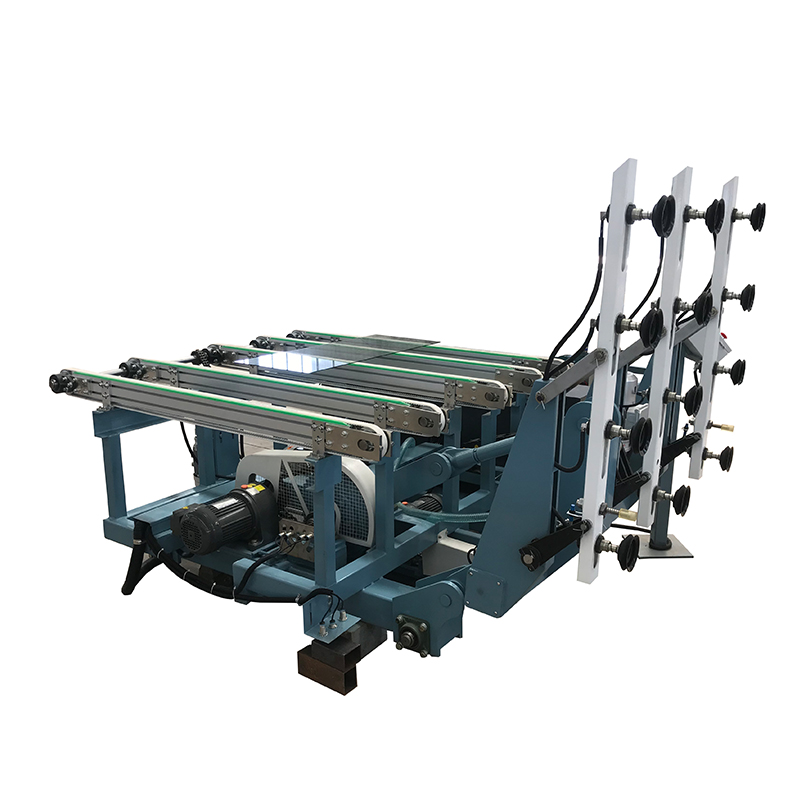

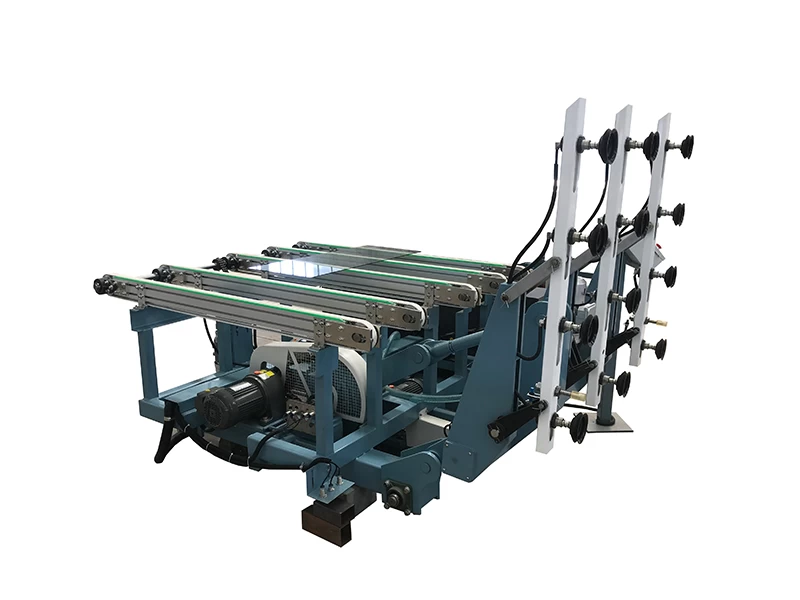

Mainly used for glass automatic loading and transmission, the back can be connected to glass cutting machine, glass edger, glass washing machine, glass hollow processing equipment. When the glass is placed in the designated position, after the glass is adsorbed, the sheet suction cup is automatically opened and placed on the timing belt, and the glass is automatically transported to the main body of the cutting machine. Note: The quantity of glass can be automatically controlled. That is, before the number of cut glass is completed, the manual operation after cutting can continue to take the piece on the device to avoid human factors damaging the glass.

Mechanical configuration

1) flip sprocket chain: special high-precision reinforcement

2) transmission belt: Barbary

3) vacuum suction cup: imported butyl rubber material (double adsorption structure)

4) transmission / flip motor: domestic quality

5) vacuum pump: Sino-German joint venture

6) bearing: most of Japan NSK

Electrical configuration

1) PLC controller and touch screen: Taiwan Delta

2) frequency converter: Taiwan Delta

3) photoelectric switch: Shanghai SONON

4) circuit breaker: China Chint

5) control electric Elm: imported flexible shielded electric

6) contactor: China CHINT

7) the main control pneumatic components: Taiwan AirTAC

Technical Parameters

1) the size of the upper film: the smallest size of the film: 1000 * 800mm (can be customized);

 Maximum size: 1500*1200mm (can be customized)

2) the thickness of the top sheet: 2-19mm

3) the fastest filming cycle: 40-60 seconds

4) transmission speed: 0~40m/min (adjustable)

5) the maximum suction depth: 700mm

6) the maximum loading of the film: 500KG

7) the number of arms on one side: 3

8) single arm suction cup number: 4

9) the upper flip arm: single turn

10) the film station: single station

11) installation power: 380V/50HZ (special circumstances can be adjusted according to customer requirements)

12) installed power 4.3KW/380V

13) compressed air: 0.3~0.5Mpa

14) vacuum pressure: -70~90Kpa (according to the thickness of the glass)

15) X-axis normal walking speed: 25 m / min (adjustable frequency conversion), Y-axis conventional walking speed: 5 m / min (frequency adjustable)

16) table height: 950 ± 50mm

Fully automatic loading process description:

 Walking - flip arm lift - automatic induction glass - suction cup adsorption glass - suction cup lift to separate the glass from the frame - back to the original - the glass is transmitted to the edger under the timing belt
