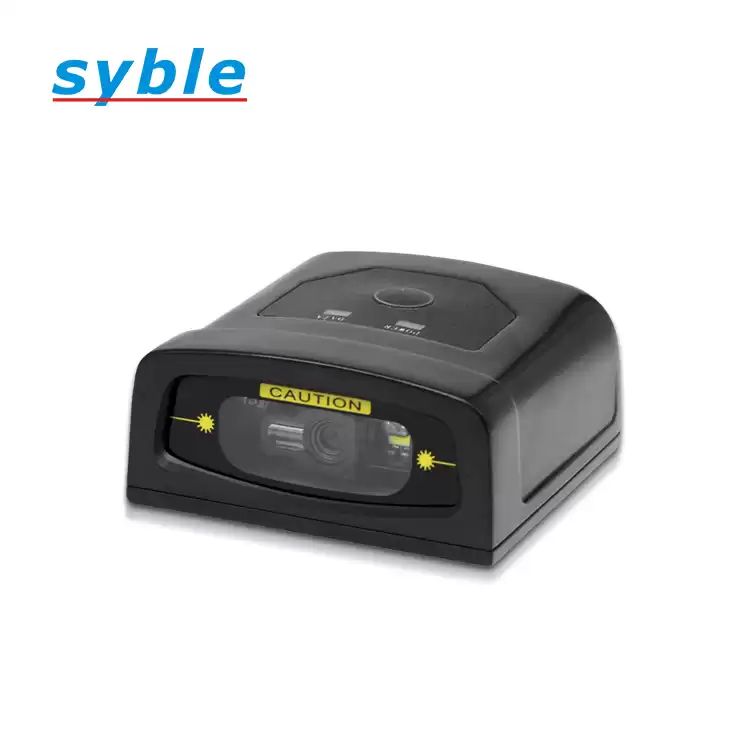

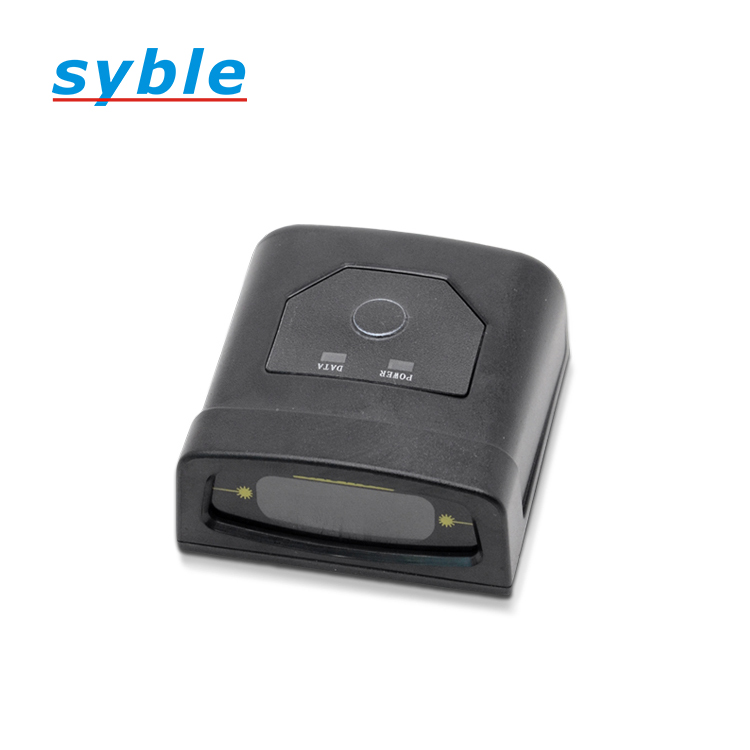

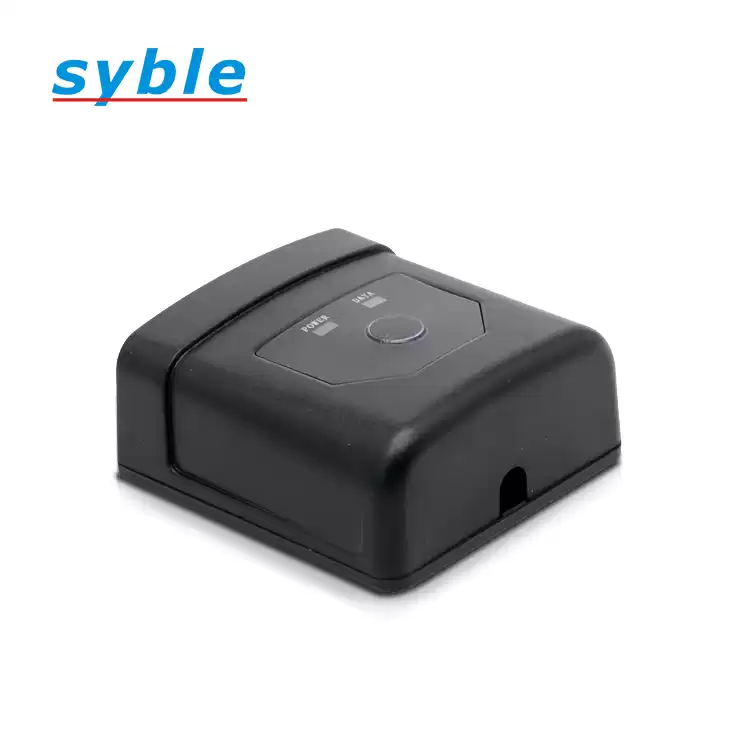

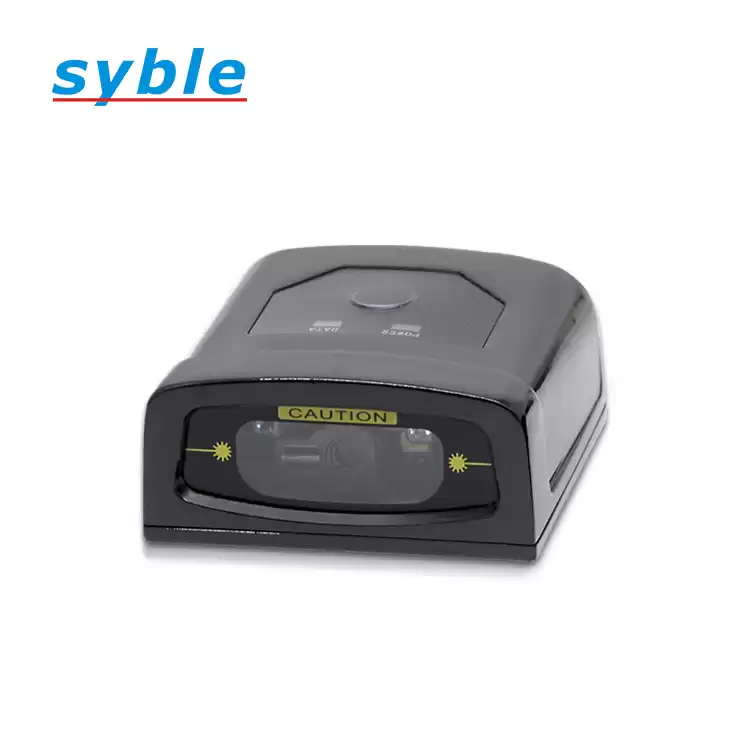

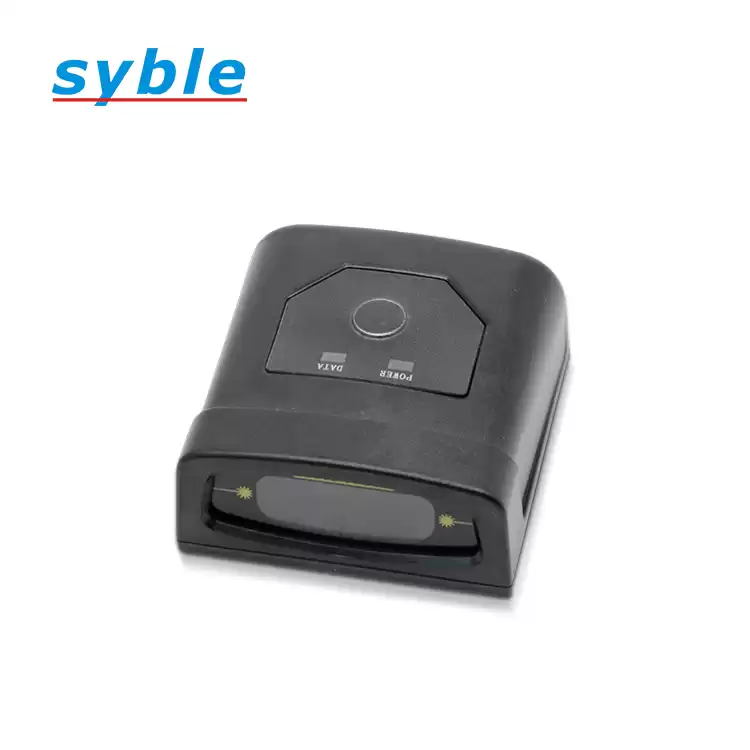

Syble 2D fixed barcode reader used on kiosk

Barcode scanner module can innterpretation of various one-dimensional or two-dimensional code.Plug and play, set up simple, can be quickly used on kiosk.

Facebook Twitter Pinterest LinkedIn 分享

2D barcode scanner module used on kiosk


Product features

-The 2D fixed scanner mount with new decoder chip. Interpretation of various one-dimensional / two-dimensional code

-Plug and play, set up simple, can be quickly used with other office equipment

-The wire adopts 0.01 mm copper wire, which contains pull-resistant nylon wire for longer service life

-Anti-freeze wire material, can be used at temperatures below minus 30 degrees


Model number:XB-7120

The barcode scanner module is widely used in all kinds of self-service terminal equipment.It has a wide range of uses,greatly improves work efficiency and saves time cost.


Specification

Light Sources

617nm LED Aimer,White LED

Supported Symbologies

1D:EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128,Codabar,Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN,MSI-Plessey,GS1 Databar,GS1 Composite Code,Code 11,Industrial 25,Standard 25,Plessey, Matrix 2 of 5.

2D:QR Code, Data Matrix, PDF417,Aztec, Maxicode,HanXin Code.

Scan Type

Image CMOS

Resolution

640*480

Scan Method

Manually/Contnuous/Automatic inductive scanning

Scan angle

Yaw ±55°, Rotation 360°, Pitch ±55°

Contrast

≥20%

Precision

≥5mil

Depth of scan field

EAN13 50-200MM(13MIL);QR 25-240MM(20MIL);PDF147 30-130MM(6.67MIL)

Error Rate

Less than 1/5 million

Interface

USB-HID,USB-COM,RS232

Physical Parameters

Dimensions

23.6mm*56.5mm*25mm

Weight

55g

Material

ABS+PC

Cable Length

2M

Environmental Parameters

Operating Temperature

-20℃~50℃

Storage Temperature

-40℃~70℃

Ambient lighting

0~100000LUX

Relative Humidity

5%~95%(Non-condensing)

Electrical Parameters

Voltage

DC5V±5%

Operating Current

170mA

Standby Current

USB 25mA; RS232 2uA


Product Overview



FAQ

Q1:How about the quality?

Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.

Q2: Why so competitive?

With almost many years experience,we owned a large domestic market in China.We are the best-seller in China.So large quantity will reduce our raw material cost directly.What’s more we have mature technology to save cost.

Q3: How to control the performance stable?

We take the flow line production in the whole processing. Every product will test 4 times at least before it delivery.

Q4:Is OEM or ODM available?

Yes.We are the factory directly.We can make it as your requirement.

Q5:Why customer choose us?

Bcz our factory with strictly quality control system.Prompt after-sales service.

Q6:How about the factory?

We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
