Display type

supports full-color, dual-color and single color led display

Display mode

640*480 800*600 1024*768 1280*768 1280*800 1280*1024 1440*900
1440*1080 1600*1200 1680*1050 1728*1296 1920*1080 1920*1200
2048*1152 2048*1280

Pixel

802 sending card max supports 2048*640

Cascade function

Through the dig switch on 802 sending card, several 802 sending cards
can be easily cascaded to support a super large led display

Audio Transmission Function

802 sending card sends audio data using network cable,
and Function board outputs audio signals to the display. Double 24bits
64KHZ hi-fi digital signal to analog signal or analog signal to digital signal,
making display have the perfect video effect.

Sending card rotation function

In Sender setting, sending card has 0, 90, 180, 270 degree rotation function

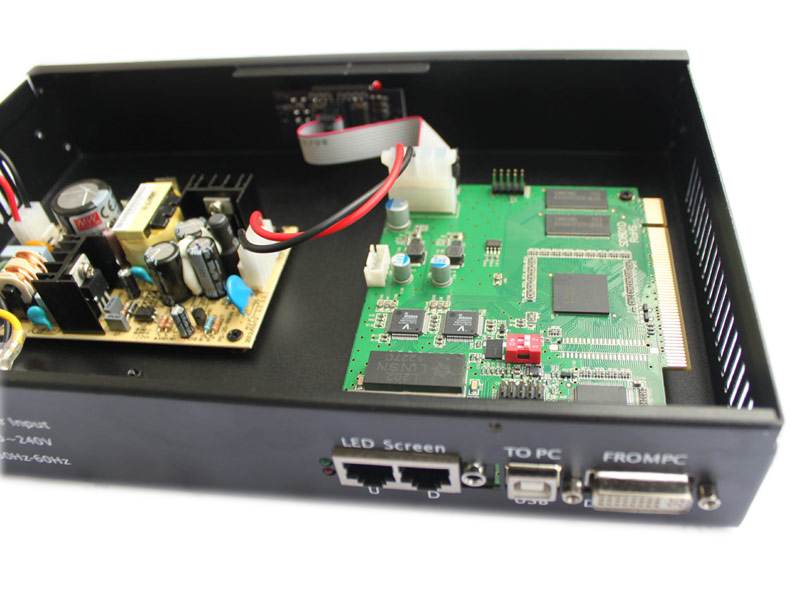

Sending card U/D port flexibility
for carrying half width or half height

For example, TS801 can max support 1280*1024 with two ports

Sending card zoom in/out function

In Sender setting, the ratio of width and height can be set to realize zoom in or zoom out

Multi-display synchronous and combination functions

One sending card can control multi-displays, realizing displays combination, synchronous display, and independent play.

Supporting 10-bit colors

The seventh supports 8-bit colors: 256*256*256=16777216 kinds of colors.
The eighth supports 10-bit colors: 1024*1024*1024=1073741824 kinds of colors.
It needs to work with our video processors using the 30 bits TTL.

Matching Software

LED STUDIO 12.65 or above
