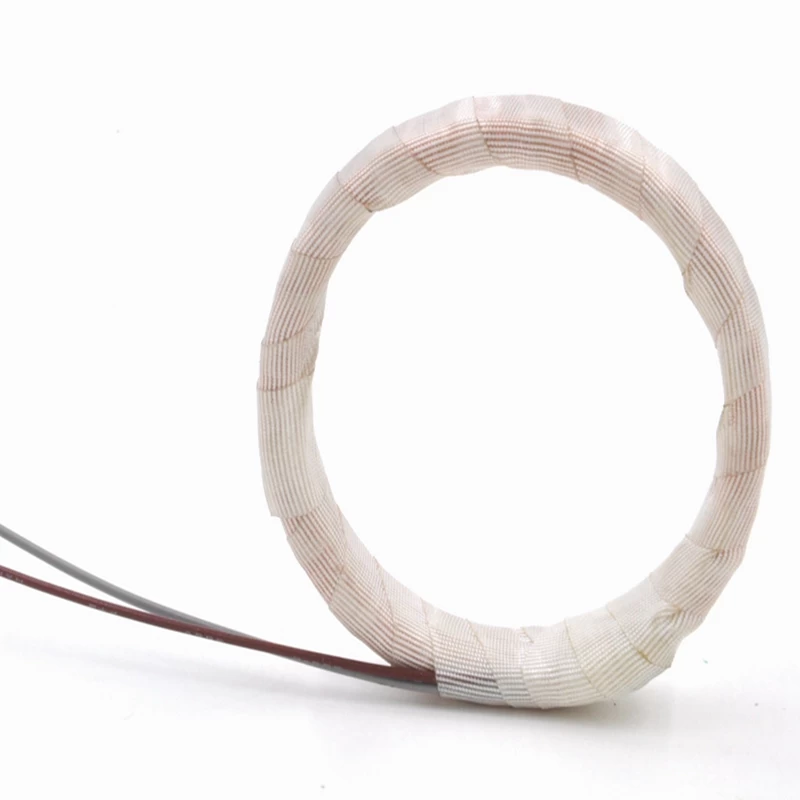

Tailor made Precision current sensor with low price PCT831

﹡High precision,wide linearity range for output current
﹡Small size and elegant looking
﹡Mount directly to PCB
﹡A variety of configuration and output characteristics



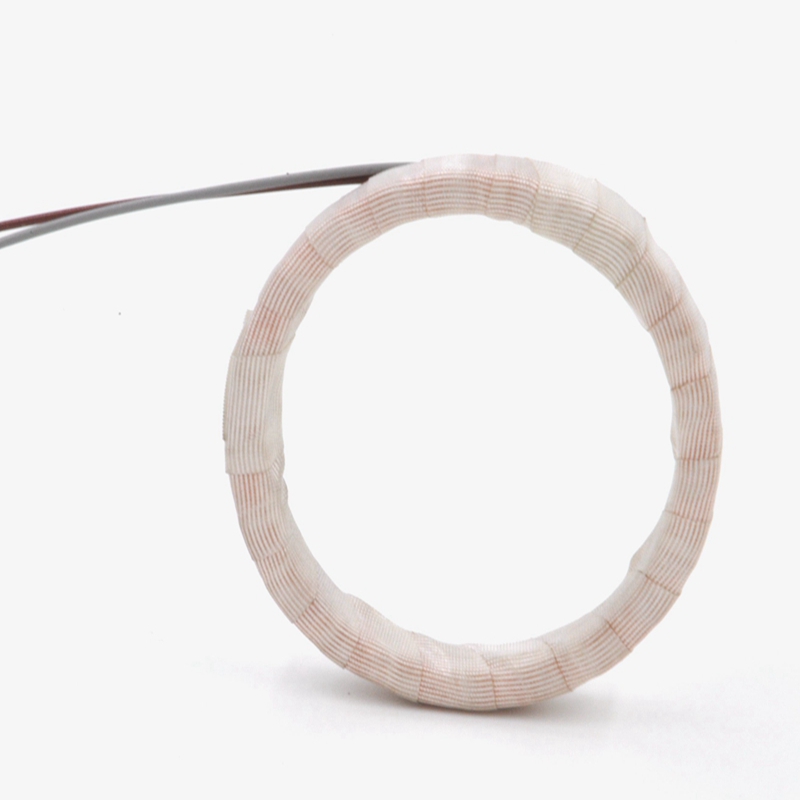

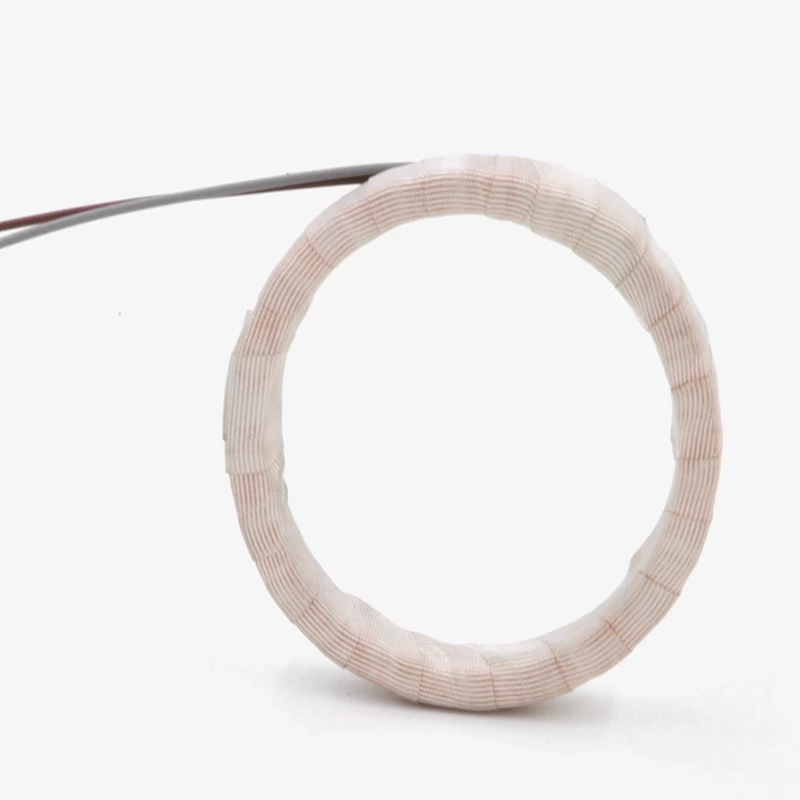

Tailor made Precision current sensor with low price PCT831

Precision current transformers are used to step down high AC and DC currents to a lower level that can be measured directly by the power analyzer. These systems safely step down currents while preserving the highest accuracy.
Our precision current transformer with high linearity over the whole current range and low phase error that is widely used on electrical measuring instrument, electrical protective devices and current sensing modules.

Rated Primary Current 50A
Max Primary Current 120A
Rated Secondary Current 25mA
Accuracy 0.1~2.0
Electrical Strength 3000VAC 1mA60s
Load Resistance 30Ω
Rated Frequency 50/60HZ

high frequency current transformer

Electrical Specification

Model No.

Electrical Characteristics

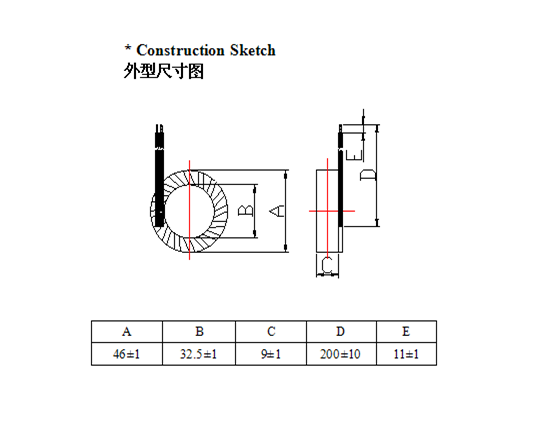

Dimension(Unit: mm/inch)

Standard PN

Current Ratio

RL(Ω)

Accuracy Class

A

B

C

D

E

F

PCT207

10A(30)/10mA

10

0.5

15.4

29.8

10.0

32.1

To be defined

To be defined

PCT207N100

20A(70)/10mA

10

0.5,0.2

0.606

1.173

0.394

1.264

PCT207N200

PCT210

10A(50)/10mA

10

0.5,1

6.8

16.9

7.85

19.5

PCT210S100

5A(10)/5mA

10

0.5,0.2

0.268

0.665

0.309

0.768

PCT210N100

PCT216

20A(40)/20mA

10

0.5,0.2

8.6

29.2

13.0

31.7

PCT216N100

50A(80)/25mA

10

0.5,0.2

0.339

1.150

0.512

1.248

PCT216N200

PCT225

20A(30)/20mA

10

0.5,0.2

10.9

25.5

9.0

28.5

PCT225N100

50A(60)/25mA

10

0.5,0.2

0.429

1.004

0.354

1.122

PCT225N200

PCT226

20A(30)/20mA

10

0.5,0.2

10.1

24.0

11.6

26.5

PCT226N100

50A(60)/25mA

10

0.5,0.2

0.398

0.945

0.457

1.043

PCT226N200

PCT233

20A(30)/10mA

10

0.5,0.2

10.2

24.8

10.0

27.8

PCT233N200

30A(50)/10mA

10

0.5,0.2

0.402

0.976

0.394

1.094

PCT233N300

PCT234

20A(60)/10mA

10

1,2

18.2

28.0

11.0

38.0

PCT234S200

30A(100)/10mA

10

1,2

0.717

1.102

0.433

1.496

PCT234S300

PCT235

10A(40)/10mA

10

0.5,0.2

8.0

27.0

17.0

29.6

PCT235N100

50A(85)/25mA

10

0.5,0.2

0.315

1.063

0.669

1.165

PCT235N200

PCT236

10A(30)/10mA

10

0.5,1

9.0

22.0

8.2

25.0

PCT236S100

20A(40)/8mA

10

0.5,1

0.354

0.866

0.323

0.984

PCT236N250

PCT237

20A(30)/10mA

10

0.5,0.2

14.6

30.0

9.2

32.2

PCT237N200

50A(120)/25mA

10

0.5,0.2

0.575

1.181

0.362

1.268

PCT237S200

PCT245

10A(30)/10mA

10

0.5,1

7.0

19.5

8.2

22.5

PCT245N100

20A(80)/10mA

10

0.5,1

0.276

0.768

0.323

0.886

PCT245S200


Characteristics Curve


Testing


Packing and Shipping
