Taiwan Quality China Price Ceiling Frame and Drywall Partition Forming Machine

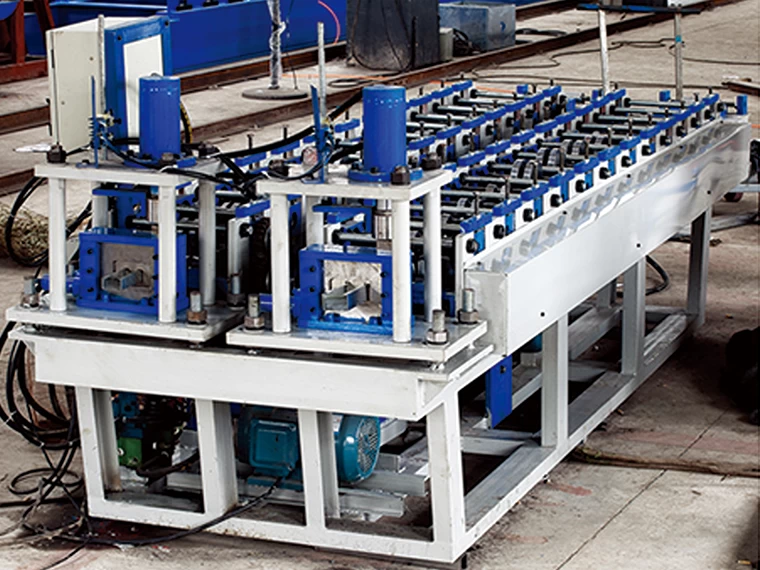

This machine can produce 2 profiles with one common the motor / hydraulic device / PLC control system, it uses of clutch mechanism to control the production of the two forming mills. This design saves space and cost for customer convenient. Besides, the change-over can be finished by PLC computer control system in offer convenient customer use.



Main Components
1.Manual Decoiler: one set
Un-powered,Manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max.5Ton
2.Cold Rolling Mills:
Material Thickness:0.5-1.5mm,Material Width:100-200mm,
With feeding material guide, body frame made from 450# H type steel by welding,Side wall thcikness: 18mm
Rollers manufactured from 45#, precision machined, hard Chrome Coated
Shafts manufactured from 45#,Diameter=φ70mm,precision machined
Motor Driving,Gear chain transmission,13 steps to form
Main Motor=5.5KW , Frequency speed control 380V/50Hz/3Ph
Forming speed approx.5m/min
3.Hydraulic Cutting device
Cutter frame made from high quality 20mm steel plate by welding
Post cut, stop to cutting, use the same hydraulic motor drive
hydraulic motor:3KW, Hydraulic pressure range: 0-18Mpa
Cutting tool material: Cr12, Heat treatment
4.PLC Control System(Touch screen brand:German Schneider Electric,Inverter brand:Taiwan DELTA,Encoder brand:Japan Koyo)
Control the quantity and cutting length automatically
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±2 mm
Control Voltage 24V
5.Exit Rack Un-powered, two units
6.User's manual in English

Features of Ceiling Frame and Drywall Partition Forming Machine
Ceiling Frame and drywall partition roll forming machine is used to produce profile  for door.This product is widely used in many kinds of industrial factory, civilian buildings, and wall board for attached part product. It has advantage of pretty appearance, durable using and so on. It is producted continuously as roll forming machine instead using bending machine to make angel tile saving human resources, lower labor cost.

The complete door frame roll forming machine line includes decoiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the ridge cap roll forming machine produces it automatically. The machines are easy to operate and running stable.

After-sale Service
1. The warranty of the roof panel forming machine is one year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories.

Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: 45 days
3. Port of loading: port of Xiamen
4. Type of payment: T/T
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,  Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
We are one of the best Drywall Partition Forming Machine manufacturers China, we also supply Unistrut Forming Machine products, waiting for your pleasant cooperation!
