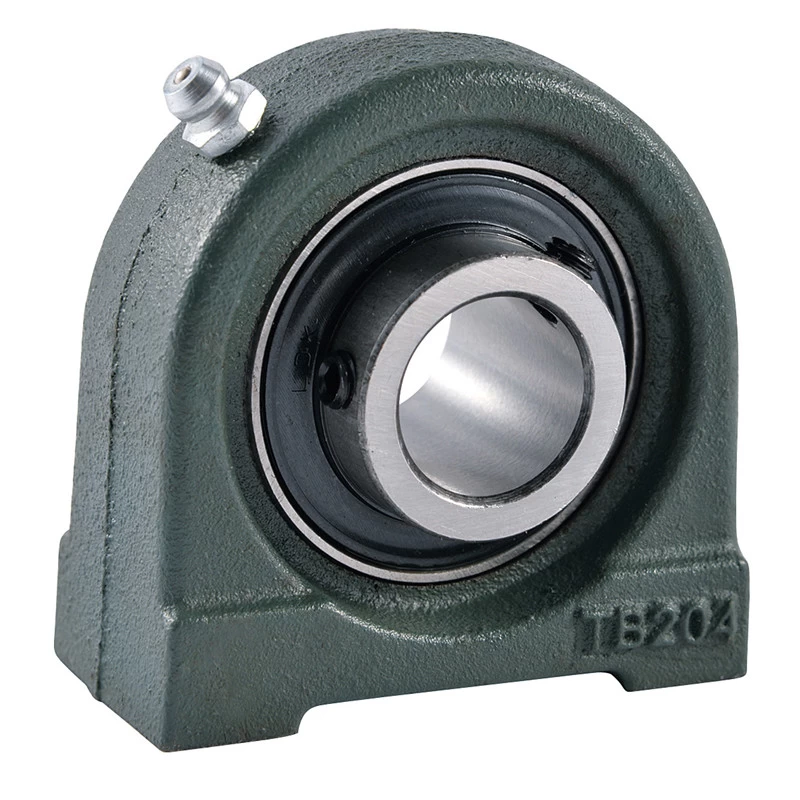

Tapped Base Pillow Block Bearing Units UCTB2

UCTB Standard duty,Wider inner ring bearing,Setscrew locking,Cast gray iron housing .

Cast ductile iron housing available upon request.

Facebook Twitter Pinterest LinkedIn 分享

Description

Tapped Base Pillow Block housing UCTB210

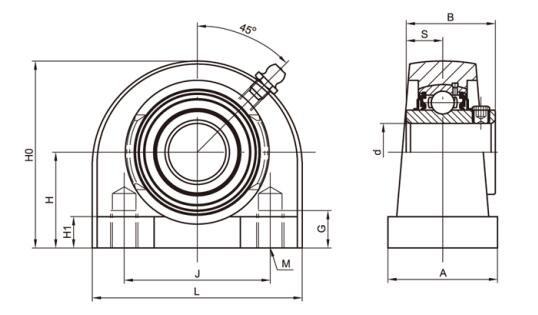

Unit No.	Shaft Dia		Dimensions (mm)										Weight
	d		H	L	J	A	H1	H0	G	M	S	B	(kg)
	(in)	(mm)
UCTB201		12	33.3	73.0	50.8	38.0	10.9	65.0	13.0	3/8-16UNC	12.7	31.0	0.77
UCTB201-8	1/2
UCTB202		15	33.3	73.0	50.8	38.0	10.9	65.0	13.0	3/8-16UNC	12.7	31.0	0.75
UCTB202-9	9/16
UCTB202-10	5/8
UCTB203		17	33.3	73.0	50.8	38.0	10.9	65.0	13.0	3/8-16UNC	12.7	31.0	0.74
UCTB203-11	11/16
UCTB204		20	33.3	73.0	50.8	38.0	10.9	65.0	13.0	3/8-16UNC	12.7	31.0	0.73
UCTB204-12	3/4
UCTB205		25	36.5	76.0	50.8	38.0	12.0	71.0	13.0	3/8-16UNC	14.3	34.1	0.83
UCTB205-14	7/8
UCTB205-15	15/16
UCTB205-16	1
UCTB206		30	42.9	102.0	76.2	38.0	12.0	86.0	16.0	7/16-14UNC	15.9	38.1	1.36
UCTB206-17	1-1/16
UCTB206-18	1-1/8
UCTB206-19	1-3/16
UCTB206-20	1-1/4
UCTB207		35	47.6	108.0	82.6	48.0	13.0	95.0	19.0	1/2-13UNC	17.5	42.9	1.83
UCTB207-20	1-1/4
UCTB207-21	1-5/16
UCTB207-22	1-3/8
UCTB207-23	1-7/16
UCTB208		40	49.2	117.0	88.9	48.0	13.0	100.0	19.0	1/2-13UNC	19.0	49.2	2.13
UCTB208-24	1-1/2
UCTB208-25	1-9/16
UCTB209		45	54.0	127.0	95.3	51.0	14.0	108.0	20.0	1/2-13UNC	19.0	49.2	2.75
UCTB209-26	1-5/8
UCTB209-27	1-11/16
UCTB209-28	1-3/4
UCTB210		50	57.2	140.0	101.6	51.0	14.0	117.0	22.0	5/8-11UNC	19.0	51.9	3.08
UCTB210-30	1-7/8
UCTB210-31	1-15/16
UCTB210-32	2
UCTB211		55	57.2	140.0	101.6	51.0	14.0	117.5	22.0	5/8-11UNC	22.2	55.6	3.37
UCTB211-32	2
UCTB211-34	2-1/8
UCTB211-35	2-3/16
