1. 960 by 320 mm per side;
2. 192 by 64 pixels each face;
3. 3G / GPS control;
4. Geo-located ads;
5. Temperature controller included;
6. Video showing supported.
Detail Description:

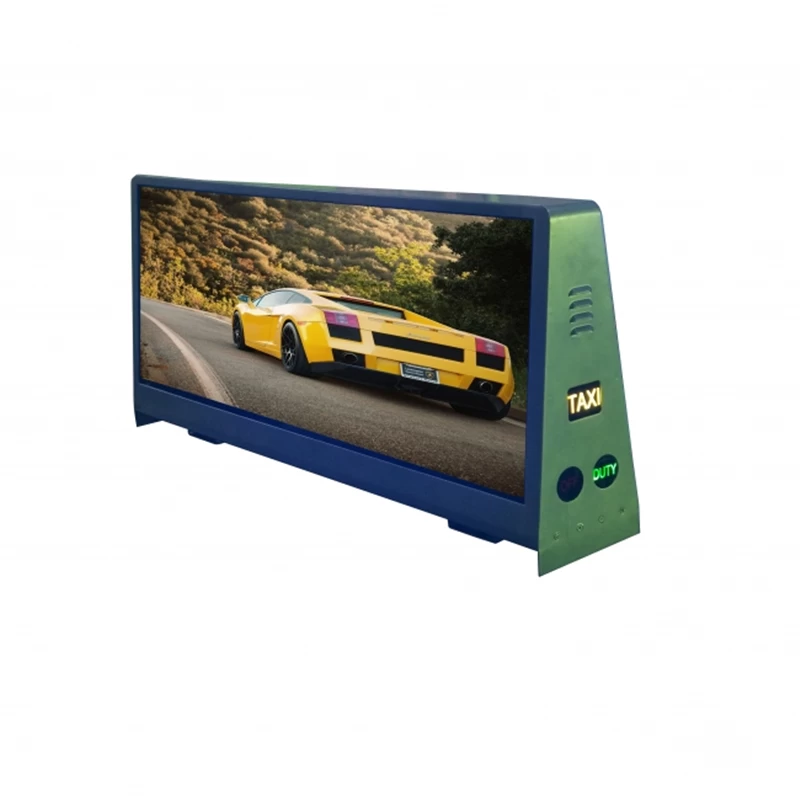

This is P5, with 960 × 320 mm per side, 192 × 64 pixels, about 23 kg/pc;
Temperature controller is added to turn on and off cooling fans at a specific temperature;
Time relay is equipped to turn on the device after some minutes when the engine is on.
Application:

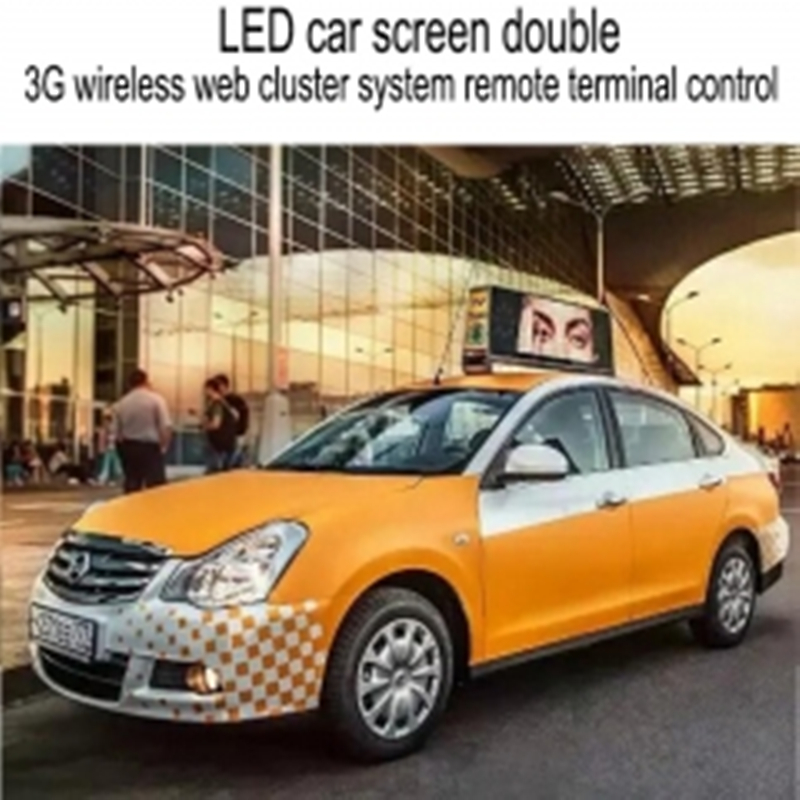

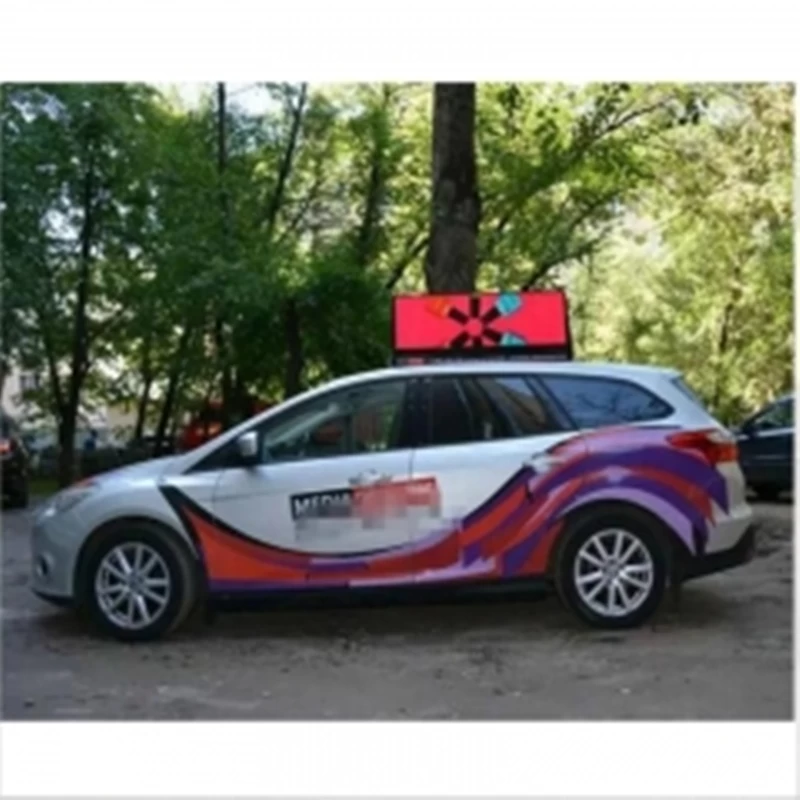

This is to be installed on taxi roof to show video, text, graphic, etc.
Specifications:
|
Type
|
PH5
|
|
Resolution
|
40,000 dots/m2
|
|
LED Type
|
SMD3528
|
|
Drive IC
|
SM16106
|
|
LED Module (per face)
|
W 6 × H 2 = 12 pcs
|
|
Module Pixel
|
W 32 × H 32 dots
|
|
Module Size
|
W 160 × H 160 mm
|
|
Screen Size (per face)
|
W 960 × H 320 mm
|
|
Cabinet Measurement
|
W 1012 × H 401 × D 190 mm
|
|
Cabinet Material
|
Aluminum made, galvanized iron base
|
|
Colour
|
Black
|
|
Weight
|
about 23 kg/pc
|
|
Input Power
|
DC 12~24V
|
|
Output Power
|
5V
|
|
Temperature Controller
|
Included
|
|
Time Relay
|
Included
|
|
Video Formats
|
MP4
|
|
Animation Formats
|
GIF, SWF
|
|
Picture Formats
|
JPG, BMP, WMF
|
|
Control Method
|
3G / WIFI / GPS
|
|
PC Solid Sheet
|
Included
|
|
Package
|
Plywood case
|
