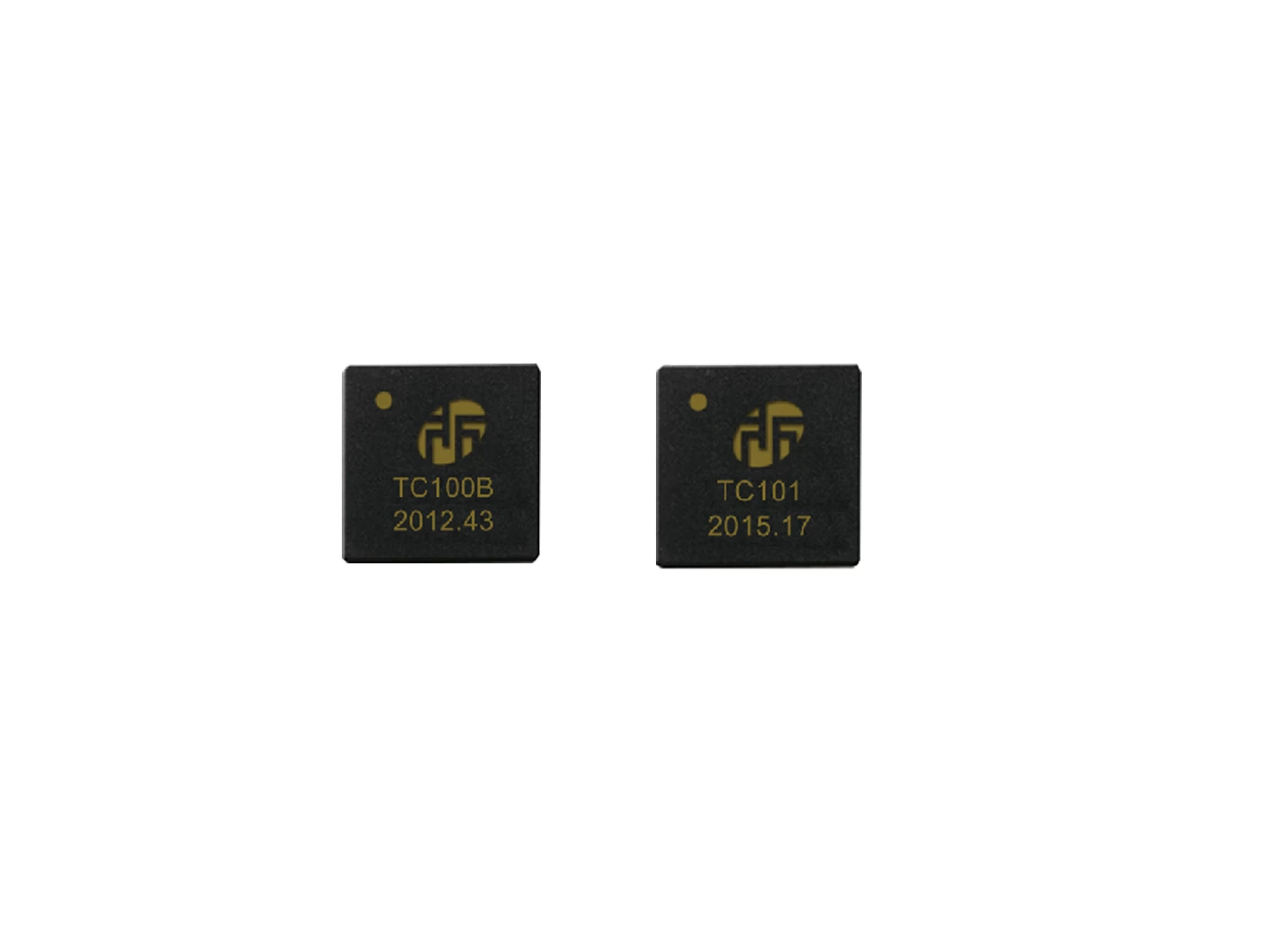

PDC (Powered Distributed Control) Master Communication Chips:
TC 100
External power component and over-current protection component, high customized drive capability;
Standard drive current≤600mA, Max. current≤ 1.8A.
TC 101
Built-in power component and over-current protection component, simple peripheral circuits;
Standard drive current≤200mA, suitable for small control system.

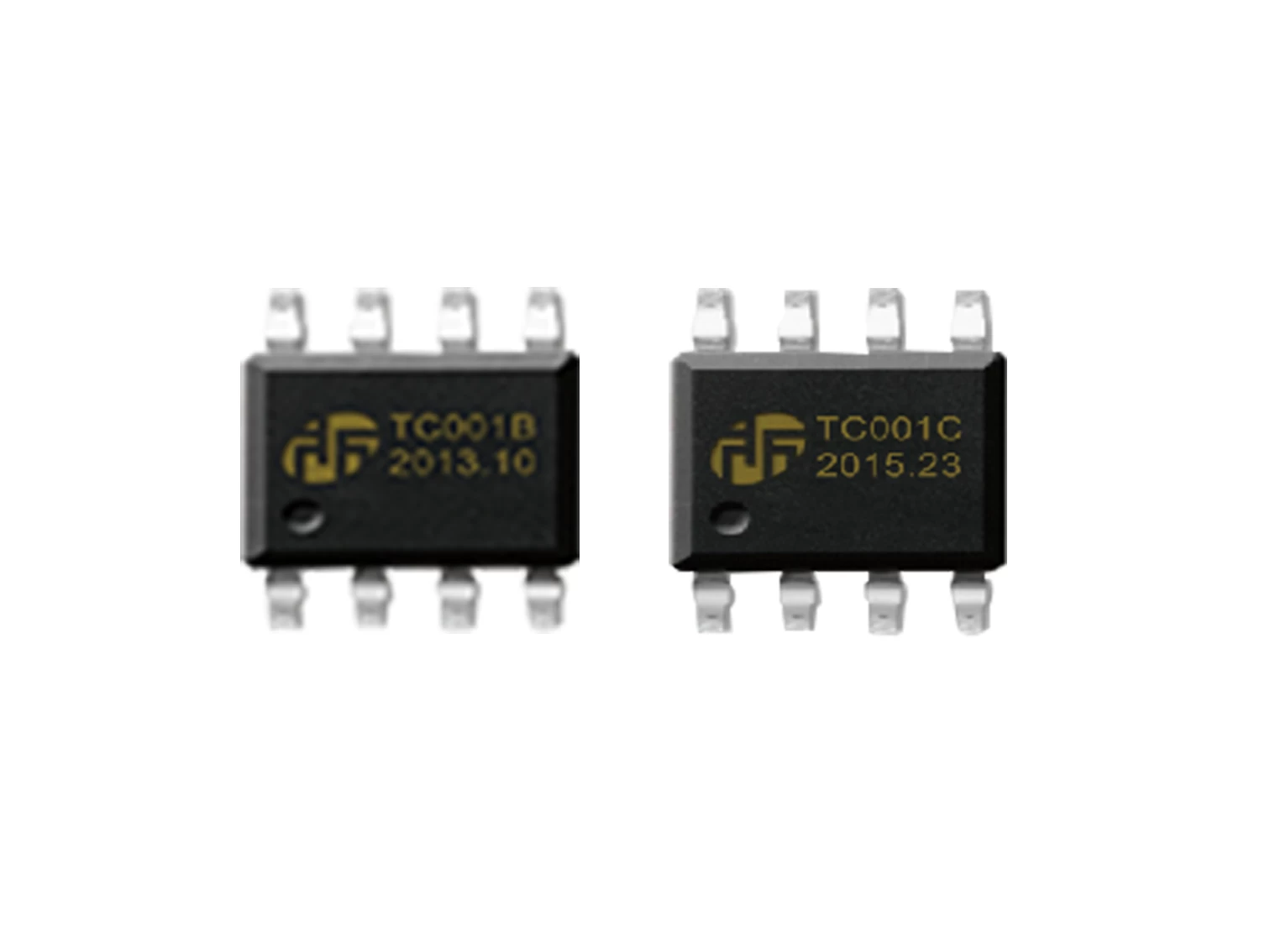

PDC (Powered Distributed Control) Slave Communication chips:
TC001B
Regulated output:3.3V/5V,10mA, Static power consumption＜100μA.
TC001C
Regulated output:5V,10mA, Static power consumption＜30μA;
With ESD enhance interface, with built-in digital and analog filter circuit.
The main technical parameters for PDC Bus
Parameters
|
Min.
|
Typical Value
|
Max.
|
Unit
|
Bus voltage
|
Downlink
|
10
|
24
|
36
|
V(DC)
|
|
Uplink
|
-
|
Constant:5
|
-
|
|
|
Drive current
|
Little
|
-
|
-
|
0.2
|
A
|
|
Standard
|
-
|
-
|
0.6
|
|
|
High
|
-
|
-
|
1.8
|
|
|
Rate
|
Downlink
|
-
|
9.6
|
-
|
Kbps
|
|
Uplink
|
-
|
19.2
|
-
|
|
|
Distance
|
-
|
-
|
2000
|
m
|
|
Node capacity
|
-
|
-
|
252
|
-
|
|
Uploading time
|
-
|
＜100
|
-
|
ms
|

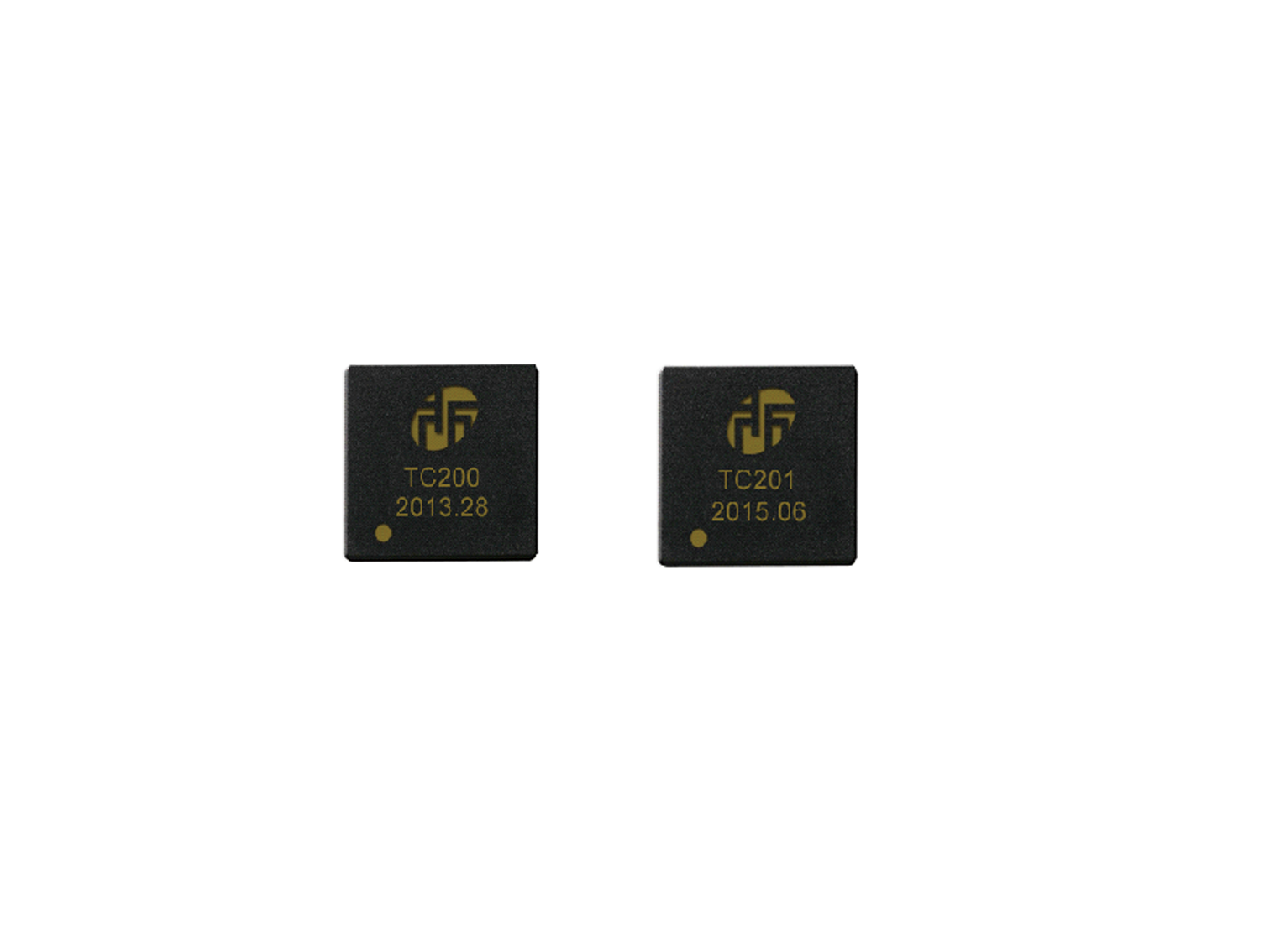

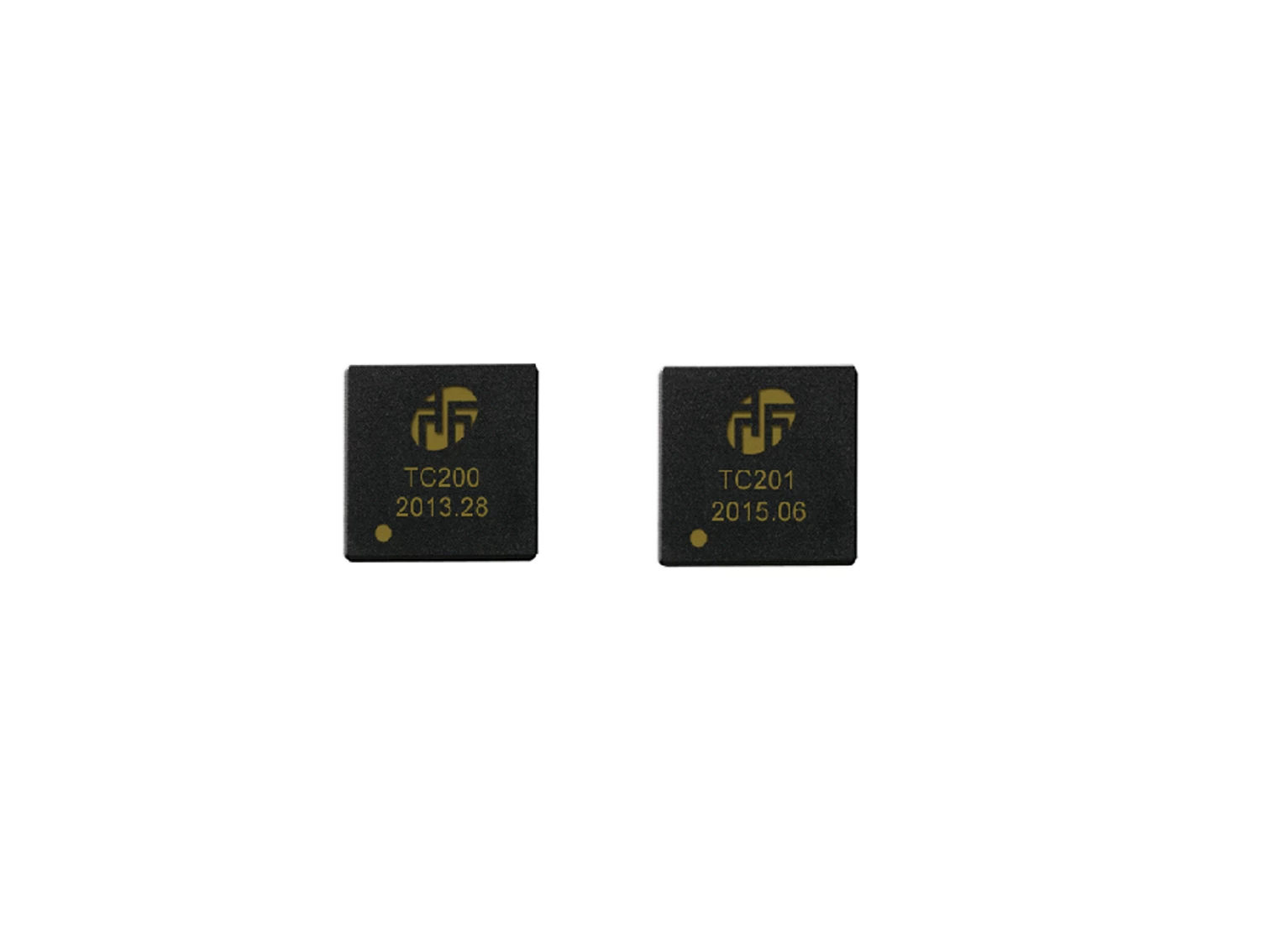

MPI (Multi Peer Interface) Master/Slave Communication Chips
Master and slave integration design.
TC200
Static power consumption＜1mA, Communication speed up to 1Mbps.
TC201
Communication speed up to 25Mbps;
With two circuits communication backup, automatic switching; Support multi-chip parallel.
The main technical parameters for MPI Bus
Parameters
|
Min.
|
Typical Value
|
Max.
|
Unit
|
Bus voltage
|
Downlink
|
-
|
High: 3.8 Low:1.2
|
36
|
V(DC)
|
|
Uplink
|
-
|
Constant:2.1
|
-
|
|
|
Rate
|
-
|
-
|
25
|
Mbps
|
Distance
|
-
|
-
|
2
|
m
|
Node capacity
|
-
|
-
|
100
|
ms
|
