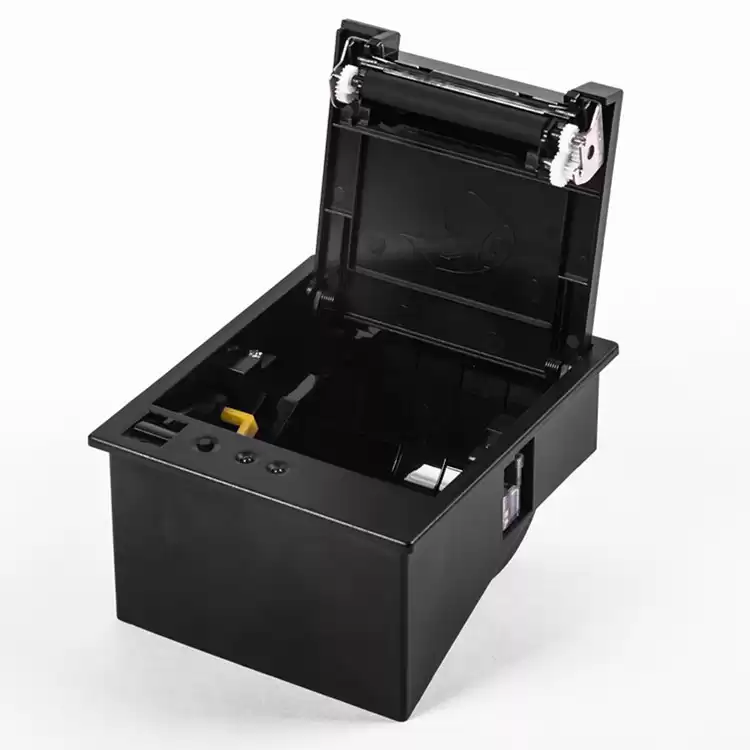

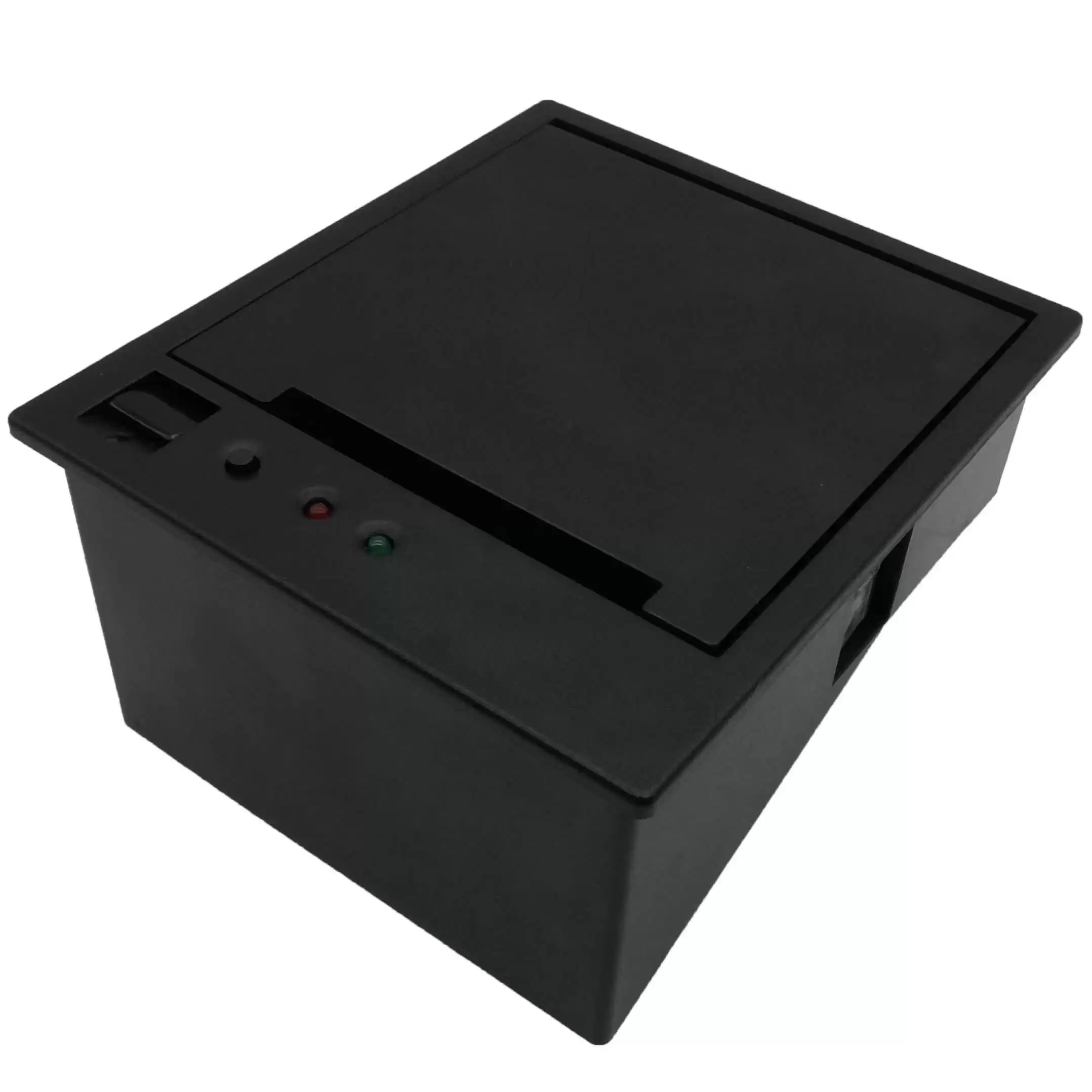

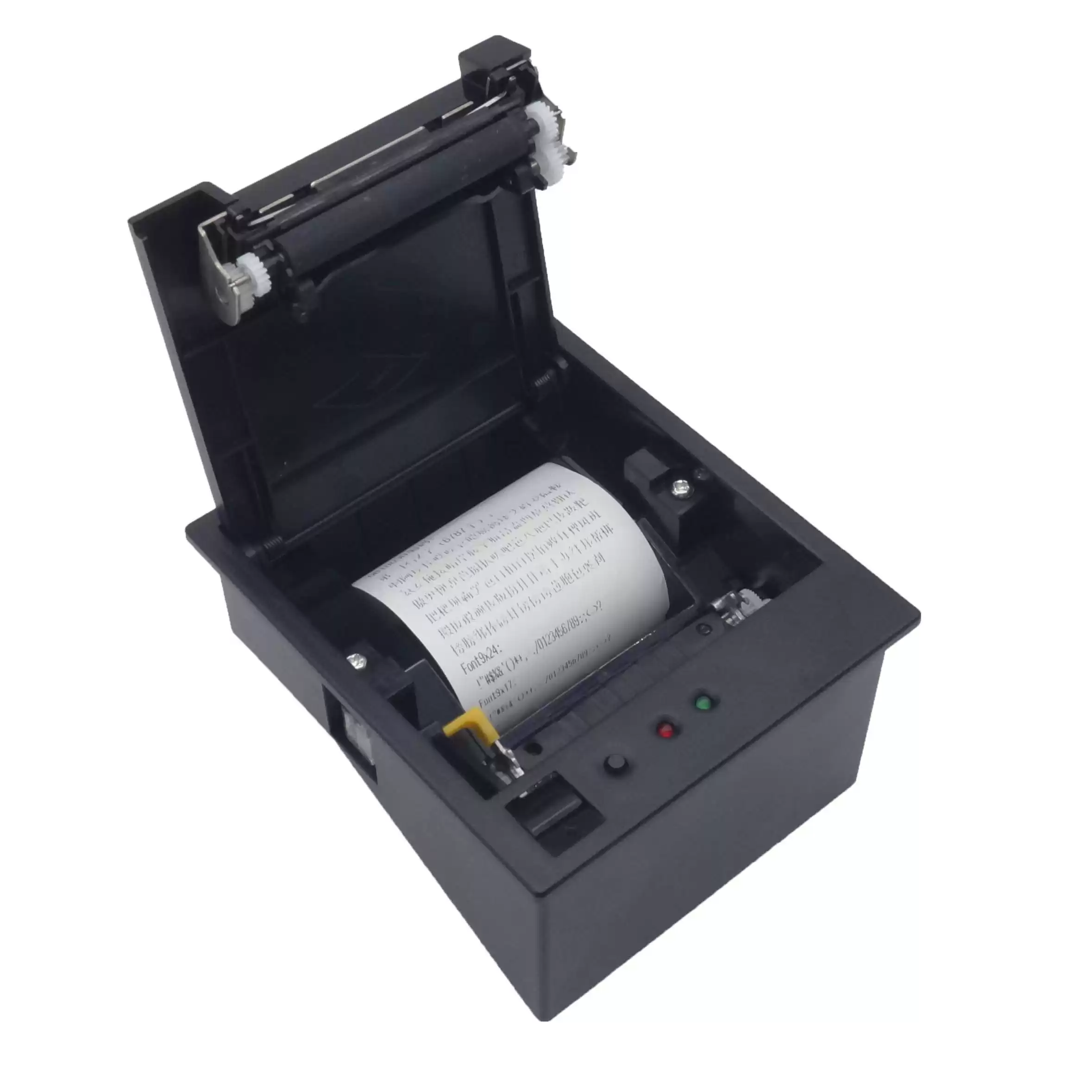

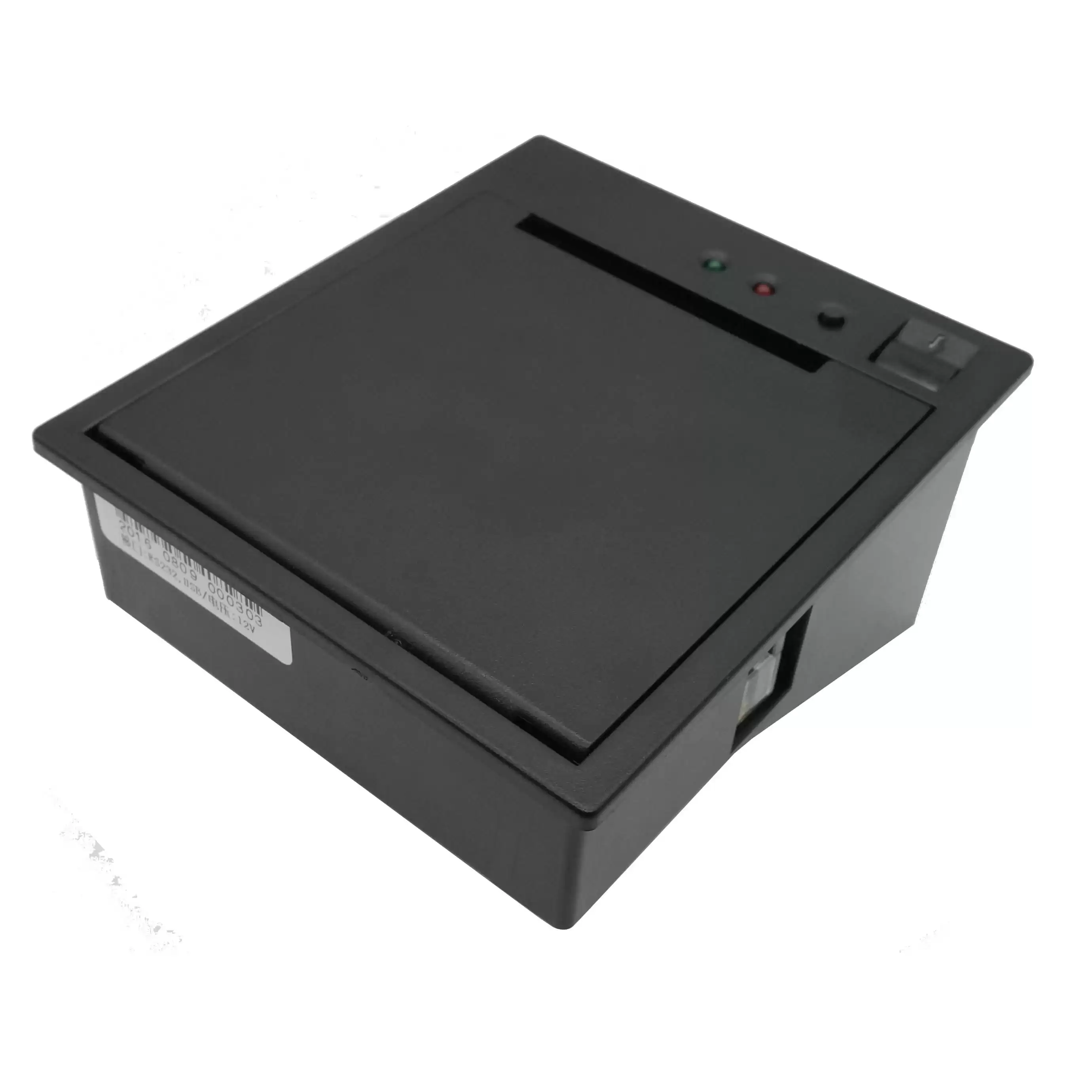

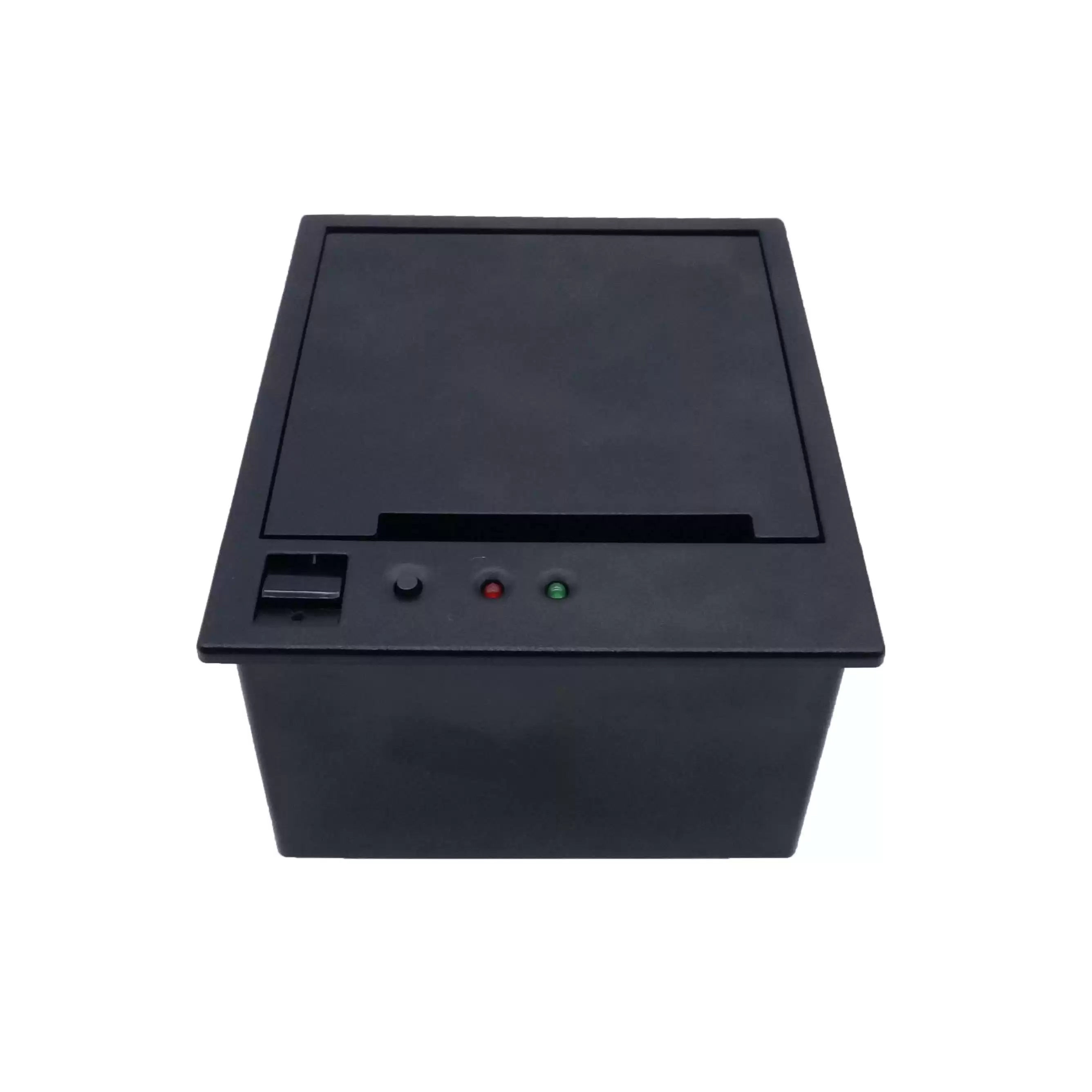

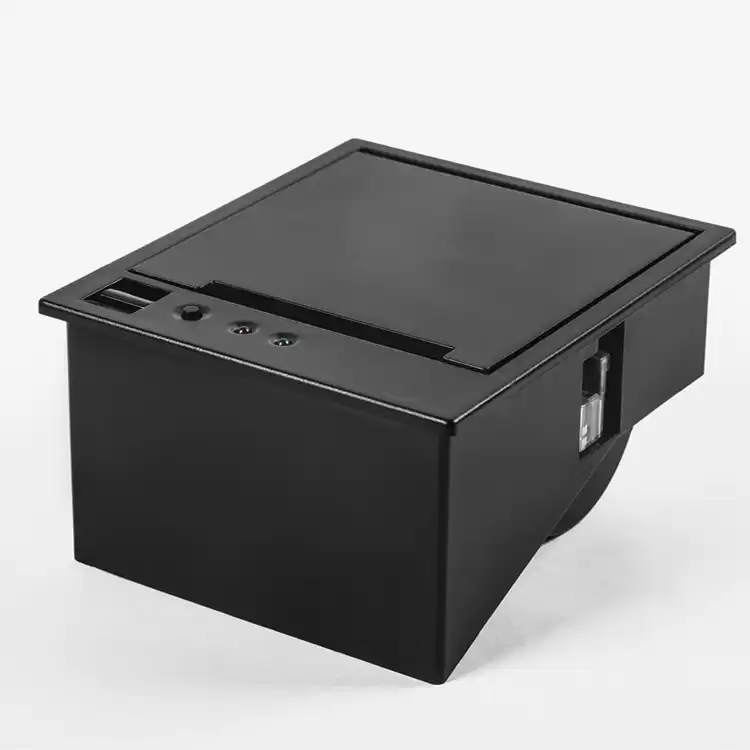

TC21 Thermal 58mm embedded printer with Auto cutter

Technical Parameters

Item	TC21(2inch)	TC33(3inch)
Printing method	Thermal printing
Resolution	203DPI, 8 dots/mm
Paper width	57.5±0.5mm	79.5±0.5mm
Printing width	48mm	72mm

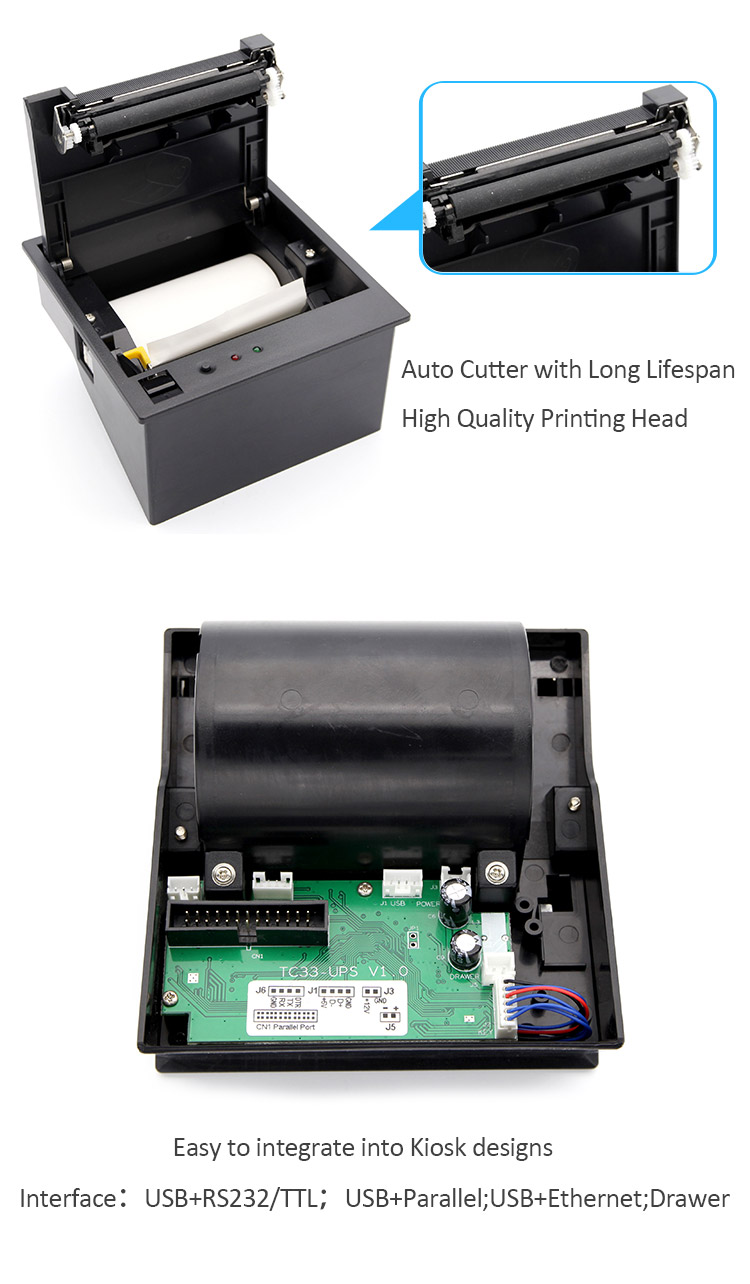

Interfaces	USB+RS232/TTL	USB+RS232/TTL+Parallel; Drawer optional
Paper cutting	Manual or Automatic cutting
Command set	ESC/POS compatible commands
User-defined characters	Support
Graphics printing	Support dots printing with different densities, raster bitmap print and downloaded bit image print
Code pages	Support Chinese, English, Japanese and other 45 kinds of international character sets
UTF-8	Support
Bar codes	UPC-A; UPC-E; EAN-8; EAN13; CODE39; ITF; CODEBAR; CODE128; CODE93; QR CODE

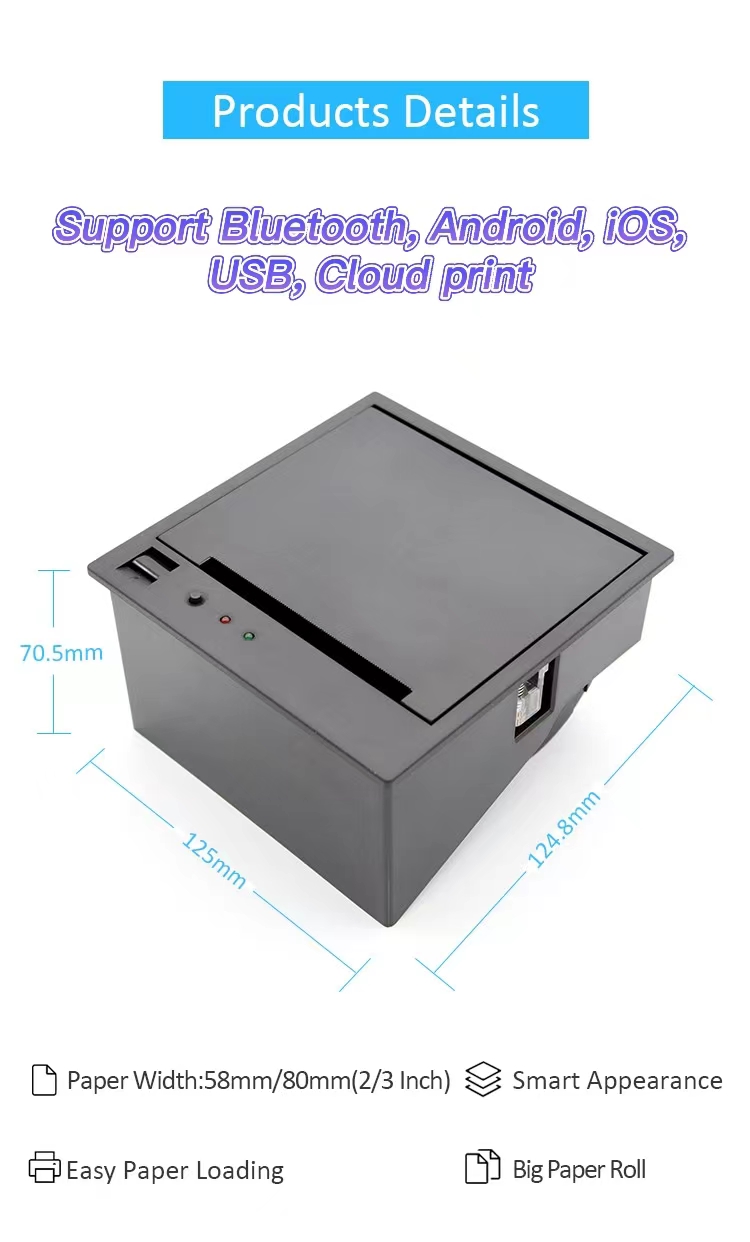

External dimension	102mm×118mm×62mm	124.8mm×125mm×70.5mm
Opening dimension	94.5mm×110mm(L×W)	117mm×117mm(L×W)
Paper roll diameter	50mm(Max)
TPH life	100km
Cutter life	1,000,000 times
Power Supply	12V
