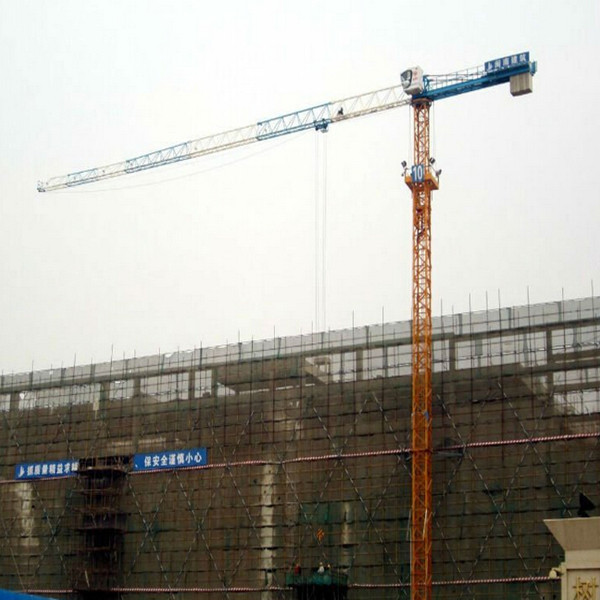

TC5512 6t Load Topless Tower Crane for Construction
Specifications of TC5512 6t topless tower crane
Hight quality,stable performance,lower price
working range 55m
max. hoisting load 6T
Tip load 1.2T
Technical Parameters of 6t topless tower crane TC5512
|
Chassis type
|
Fixing chassis
|
Fixing base
|
travelling
|
|
Basic height (m)
|
40.5
|
40
|
41.5
|
|
Max. height (m)
|
140
|
|
Max. working radius (m)
|
55
|
|
Max. hoisting capacity (t)
|
6.0
|
|
Tip load (t)
|
1.5
|
|
Telescoping type
|
Inner
|
|
Total motor power (kw)
|
44.7
|
|
Mast section size (m)
|
1.5*1.5*5
|
|
Working
speed
|
Multiplying power
|
a=2
|
a=4
|
|
Hoisting capacity (t)
|
1.3
|
3
|
6
|
2.6
|
|
Hoisting speed (r/min)
|
0-80
|
0-38
|
0-19
|
0-40
|
|
Slewing speed (r/min)
|
0-0.54
|
|
Trolley speed (r/min)
|
0-38
|
|
Automatic lifting speed (r/min)
|
0.52
|
|
|
|
|
|
|
|
|
Load Diagram
55m boom
|
Radius(m)
|
15.08
|
18
|
22
|
26
|
30
|
34
|
38
|
40
|
44
|
46
|
48
|
50
|
52
|
54
|
55
|
|
Load (kg)
|
6000
|
4925
|
3920
|
3220
|
2710
|
2320
|
2010
|
1880
|
1650
|
1555
|
1465
|
1380
|
1305
|
1235
|
1200
|
50m boom
|
Radius(m)
|
15.6
|
18
|
20
|
22
|
26
|
30
|
32
|
36
|
38
|
40
|
42
|
44
|
46
|
48
|
50
|
|
Load (kg)
|
6000
|
5120
|
4545
|
4075
|
3355
|
2825
|
2610
|
2250
|
2100
|
1965
|
1845
|
1730
|
1630
|
1535
|
1450
|
45m boom
|
Radius(m)
|
16.08
|
17
|
18
|
20
|
22
|
24
|
26
|
28
|
30
|
32
|
34
|
40
|
42
|
44
|
45
|
|
Load (kg)
|
6000
|
5640
|
5295
|
4705
|
4220
|
3820
|
3480
|
3185
|
2930
|
2710
|
2515
|
2045
|
1920
|
1805
|
1750
|
40m boom
|
Radius(m)
|
16.11
|
17
|
18
|
20
|
22
|
24
|
26
|
28
|
30
|
32
|
34
|
36
|
38
|
40
|
|
Load (kg)
|
6000
|
5655
|
5305
|
4715
|
4230
|
3825
|
3485
|
3190
|
2940
|
2715
|
2520
|
2345
|
2190
|
2050
|
tower crane Safety devices: 1): hoist height limit 2): over speed limit 3) over load limit 4):lifting moment limit 5): slewing angle limit 6): emergency stop button 7):obstruction light (tip of jib, tower head) 8): wind lock device
Packing & Delivery Case
INSTALLATION CASE
after-sale service
1.One year warranty will be offered,
2. a full set of accessories are provided
3. a full set of quick-wear parts are provided
4. Besides, Professional service team is available to give technical support for the installation and maintenance of Tower Crane and construction hoist.
5. Consulting hotline to receive customers’s inquiry and regularly inquiry the customer machine usage condition, and offer technical guidance and solution to problems in operation and maintenance.
6. tower crane oversea service: for installation and debug, We shall send one technician to the site to provide guidance on installation and debugging and the training of operators if necessary.
As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorable credibility to meet customers’ requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
If you want to know more about our products, pls contact us by email or phone. Also welcome consult us any question at your convenience, any inquiry or kind suggestions from you will be very appreciated.
Looking forward your kindly inquiry and hope to help your strong business in near future!
