TC6016 10t self erecting crane QTZ125 tower crane

TC6016, QTZ125 tower crane, China topkit tower crane self-raising hammerhead 10t tower crane. It has competitive price and excellent quality, suitable for all kinds of construction project and can work under all kinds of working conditions. It is China hot sale tower crane, produced by Good China tower crane manufaturers with best tower crane price.

Facebook Twitter Pinterest LinkedIn 分享

TC6016 10t self erecting crane QTZ125 tower crane

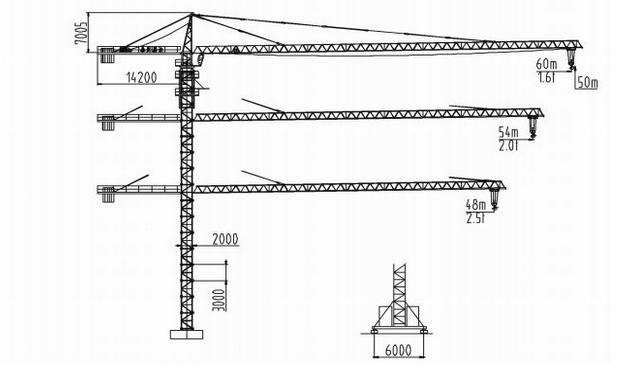

TC6016 10t tower crane QTZ125 tower craneTechnical Specifications:




Loading Diagram--TC6016 10t topkit tower crane



R a R(max)t C(max)t 18 24 30 36 42 48 54 60
60 4 13.33 10.00 7.08 5.05 3.86 3.08 2.52 2.11 1.79 1.53
2 24.49 5.00 5.00 5.00 3.93 3.15 2.59 2.18 1.86 1.60
54 4 14.05 10.00 7.53 5.38 4.12 3.29 2.71 2.27 1.93
2 25.85 5.00 5.00 5.00 4.19 3.36 2.78 2.34 2.00
48 4 14.75 10.00 7.97 5.71 4.38 3.51 2.90 2.43
2 27.20 5.00 5.00 5.00 4.45 3.58 2.97 2.50


QTZ125 TC6016 10t tower crane Technical Parameter:

Item Parameter
Rated hoisting moment 1250kn.m
Working radius 2.5-60m
Load capacity at max radius 1.6t
Max load capacity 10t
Free standing height 50.5m
Max attached height 200m
Working range adjustable 48m, 54m, 60m
Hoisting
mechanism
(VFD+PLC)		 Falls 2 4
Lifting capacity(t) 0-2.5 0-5 0-5 0-10
Speed(m/min) 0-80 0-40 0-40 0-20
Motor YZPBF250M1-6-45KW
Hoisting
mechanism
(VFD+PLC)		 Speed(m/min) 0-56
Motor YPBE132S-4-5.5KW
Slewing
mechanism
(VFD+PLC)		 Speed(m/min) 0-0.6
Motor YTW112M-4-4KW*2
Climbing speed(m/min) 0.5
Counterweight(t) 48m jib 54m jib 60m jib
15.45 17.85 18.9
Mast section size(L*W*H),m 2*2*3, panel style
Working temprature -40°C to 60°C
Max working wind(m/s) 20
Total Power(KW) 60
Rated working voltage & current 380V/116V




Topkit Tower Crane Specifications:



Fast Erection:

  • Assembling is extremely fast and easy, and specifically conceived to guarantee safety conditions during all operations.



Work Safety:

  • Fast erecting Topkit Tower Cranes are designed and manufactured to guarantee the highest safety standards during every assembling and working activity. The hinges coupling to the centre plate allow the jib and counter-jib to mesh without dangerous adjustments being required.



  • The lifting, slewing and distribution mechanisms are strong, simple and reliable, all controlled by a frequency inverter that give smooth and fast movements, avoiding to overstress the crane structure.


Easy Transport:

  • The modularity of its components makes it extremely easy and safe to transport, by keeping the required numbers of means of transport to a strict minimum.



Topkit Tower Crane Characteristics:

  • Stable Quality
  • Reliable Performance
  • Low Rate of Maintenance
  • Easier Installation & Dismantling



Our Service

As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorable credibility to meet customers’ requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.

 If you want to know more about our products, pls contact us by email or phone. Also welcome consult us any question at your convenience, any inquiry or kind suggestions from you will be very appreciated.



Looking forward your kindly inquiry and hope to help your strong business in near future!
