Performance still remain on top efficiency,
and large range of upgrade accessories is available to satiate your daily
operation.

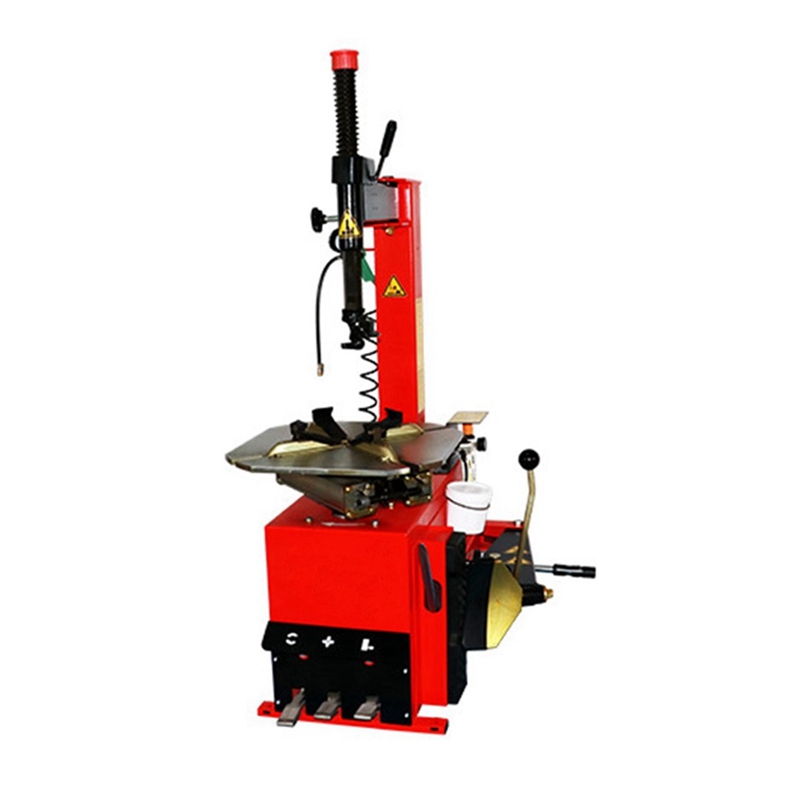

TCS301 Tire Changer Feature

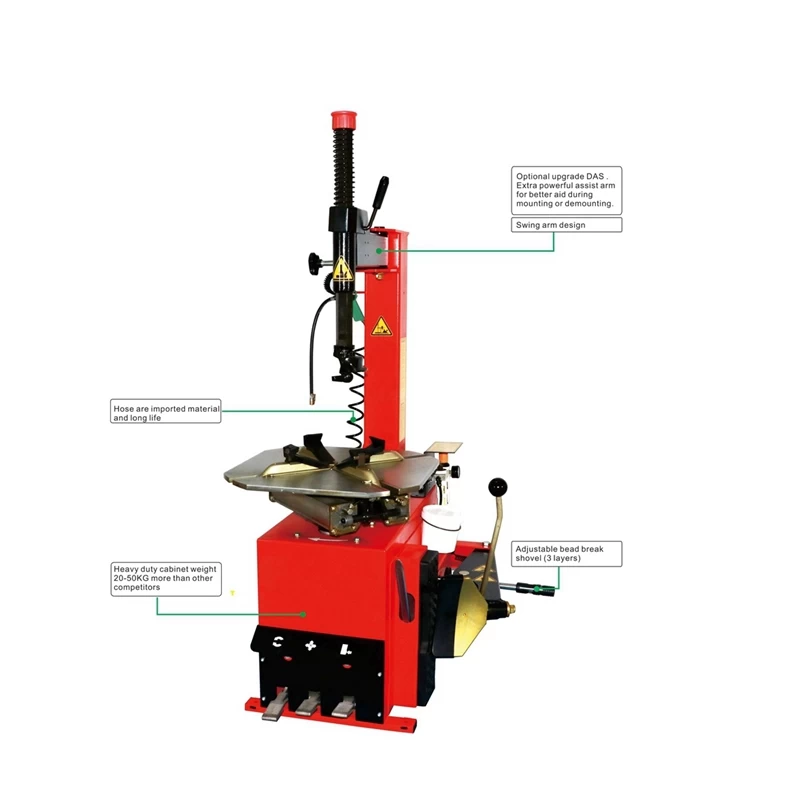

1. Swing arm design.
2. Twins clamping cylinders design.

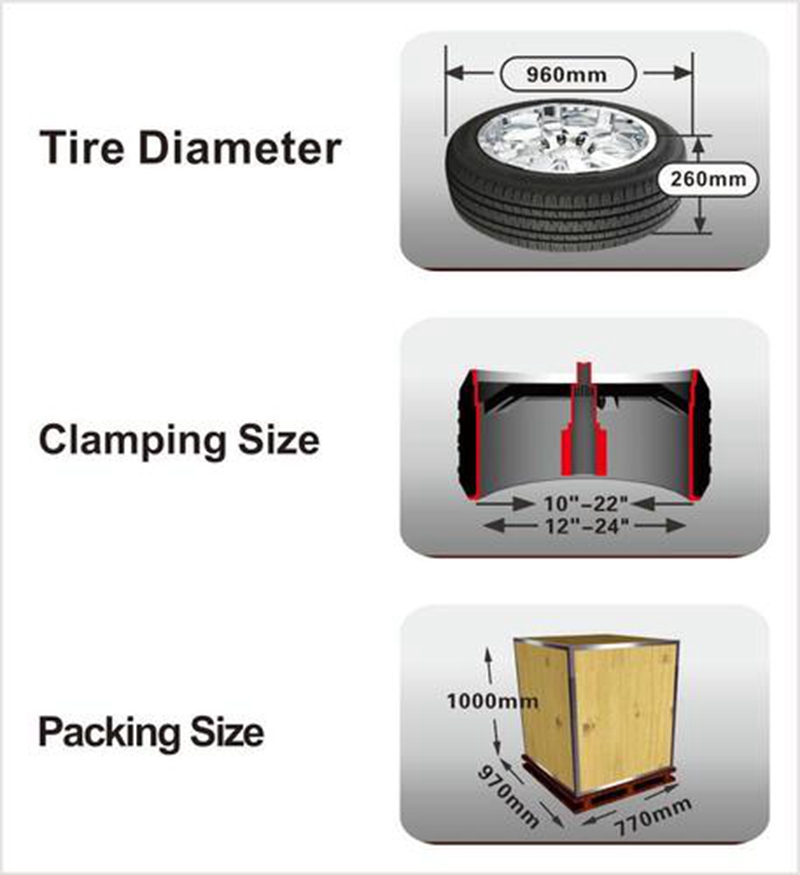

TCS301 Tire Changer Specification:
|
Model
|
TCS301
|
Standard Accessories
|
|
Outside Clamping
|
10”-22”
|
Inflation Gauge
|
|
Inside Clamping
|
12”-24”
|
Lever
|
|
Max. Wheel Width
|
260mm
|
Lubrication Box
|
|
Working Air Pressure
|
960mm
|
Optional accessories
|
|
Working Air Pressure
|
8-10 bar
|
IT Bead Blast System
|
|
Bead Breaker Force(at 8 bar)
|
2000 kgf
|
|
|
Shipping Weight
|
200kg
|
|
|
Voltage/Power
|
110v/60hz/1PH/1.1kw
220v/50hz/1PH/1.1kw
380v/50hz/3PH/0.75kw
|
|
|
Packing Size
|
97*77*100cm
|
|
