TDC-ER01 Electric City Road Bike Frameset Factory

-Type: 700C City E-BIKE FRAME
-Size: 410
-Head Tube: 1 1/2"
-Weight : 1750g



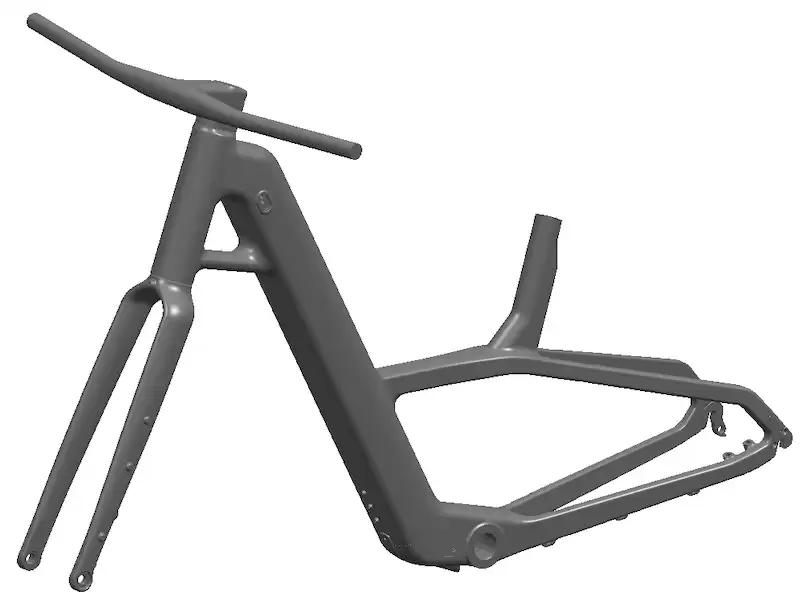

TDC-ER01 Electric City Road Bike Frameset

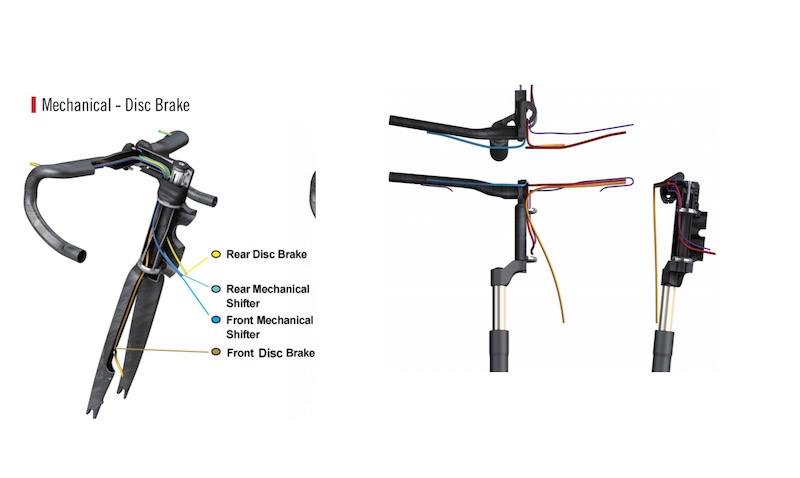

  • Frame:Rear axle width:138mm ,BSA,upper / bottom 1.5” ACR headtube,full internal routing, Flat mount .
  • Fork:1 1/2 head diameter and carbon base (36 degrees),Flat mount,12*100mm thru axle.
  • Headset:FSA NO.55 series , upper / bottom 1.5” , internal & external wiring compatible with headset.
  • Material: High modulus Toray T700 / T800 carbon fiber+basalt fibre
  • Size: 410
  • Head Tube: 1 1/2"
  • Weight : 1750g
  • Seat tube Diameter :31.6mm
  • Motor System:H620-135mm (Bafang/Aikema)
  • Battery :  REENTION-IF-4C Battery+Controller(40*18650)36v*14AH
  • Max Tire Clearance :  700*50c
  • Brake Type :  Flat Mount Disc Brake 140/160mm disc rotor
  • Dropout : Thru axle : Front 12*100mm  Rear 10*138mm

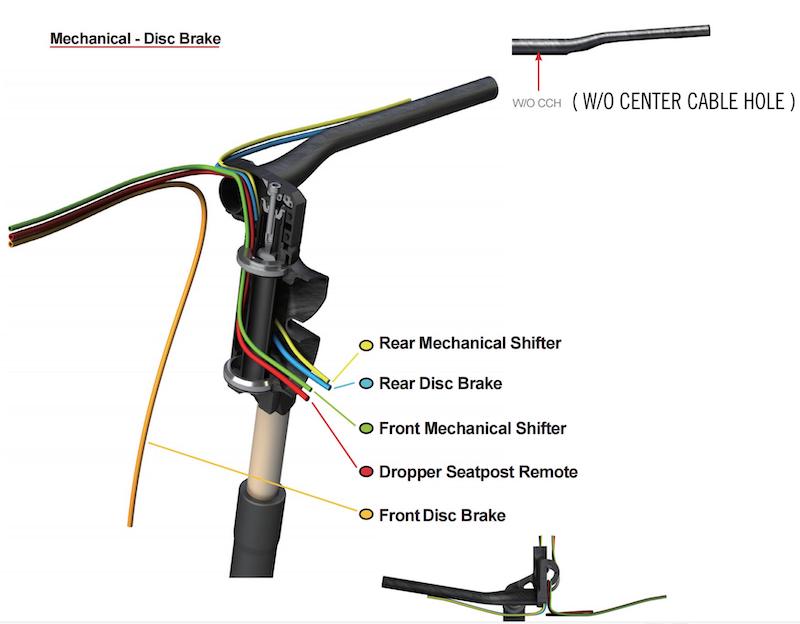

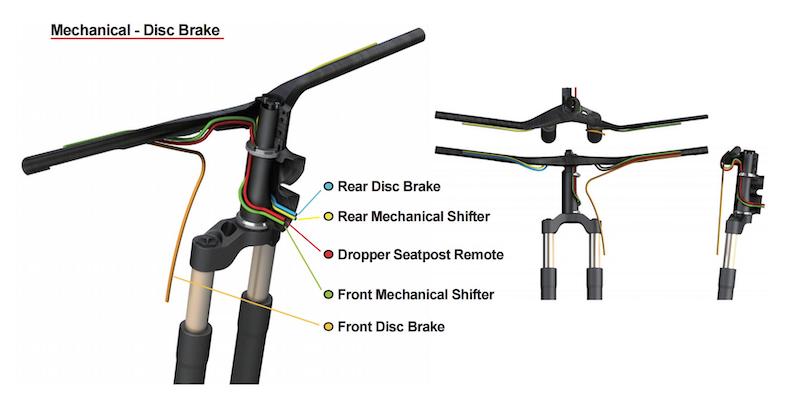

  • Cable Routing :Full internal routing
  • Max Chainring:38T
  • Test Standard : ISO4210/EN15194


City Road Bike carbon fiber Frameset


Many kinds of frame size for customer more option,please send email to sales@tourdecycling.com for more frames size geometry.


Size 430 460
Stack 617 635
Reach 415 430
Head Tube Angle 70.5 71
Head Tube Length 195 215
Seat Tube Angle 73.5 73.5
Seat Tube Length 430 470
Top Tube Length 598 612
BB Drop 75 75
Rear To BB Center 445 445
Fork To BB Center 665 680
Fork Built Height 400 400
Fork Rake 51 51
Wheel Base 1100 1120


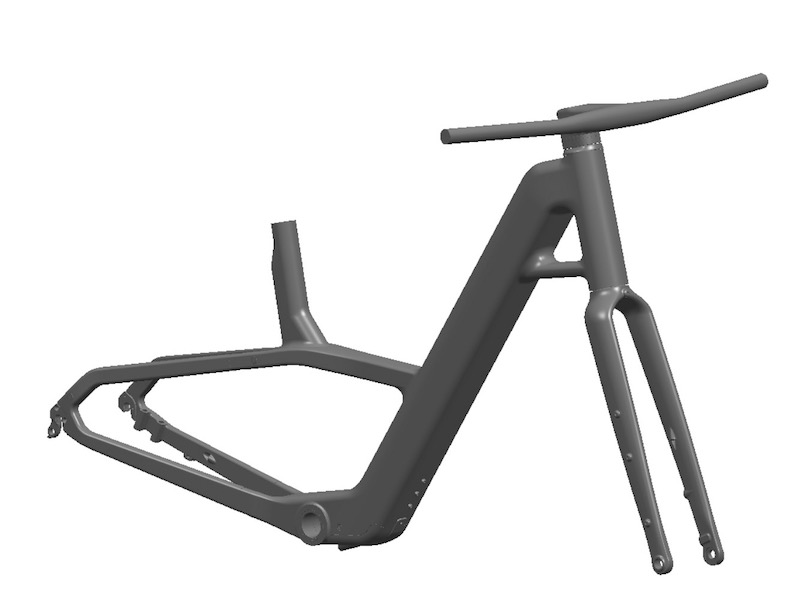

Electric bike frameselectric bike frames

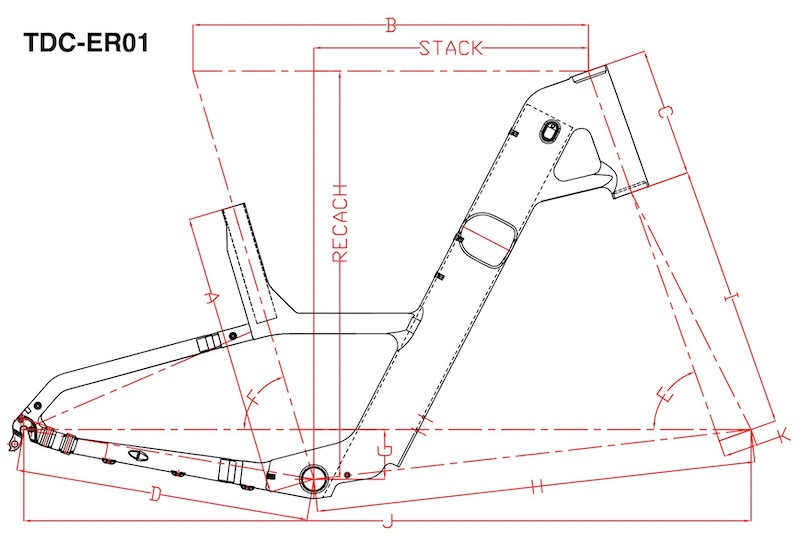

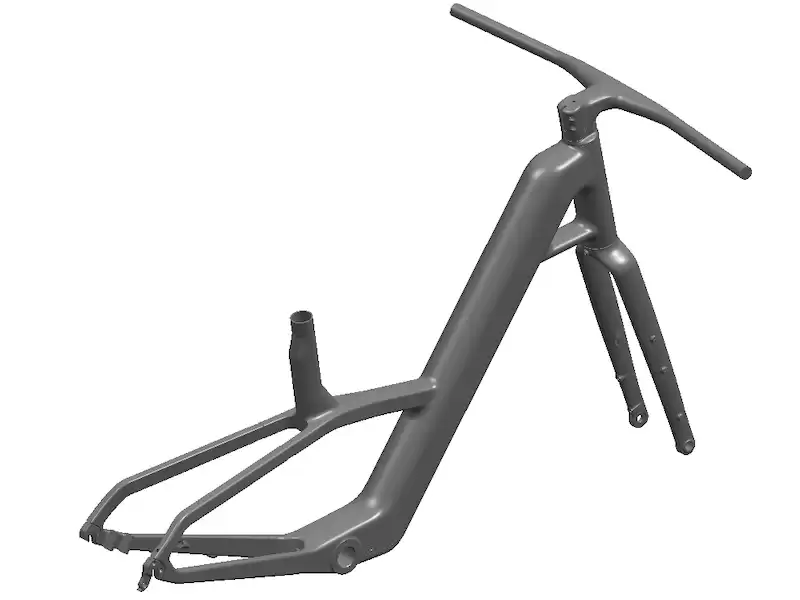

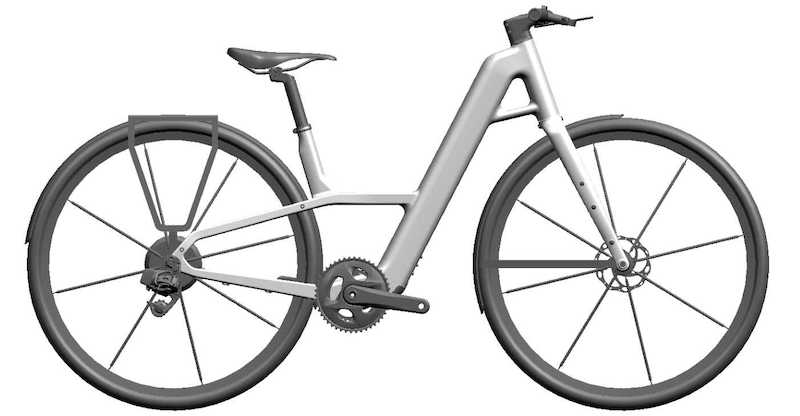

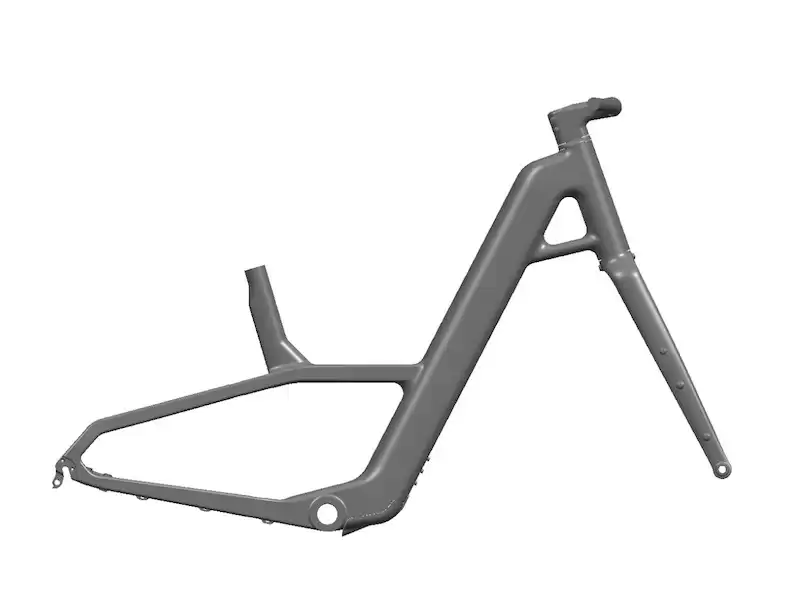

Technical drawings can help customer find the frame detail parameters and structure they are interested.

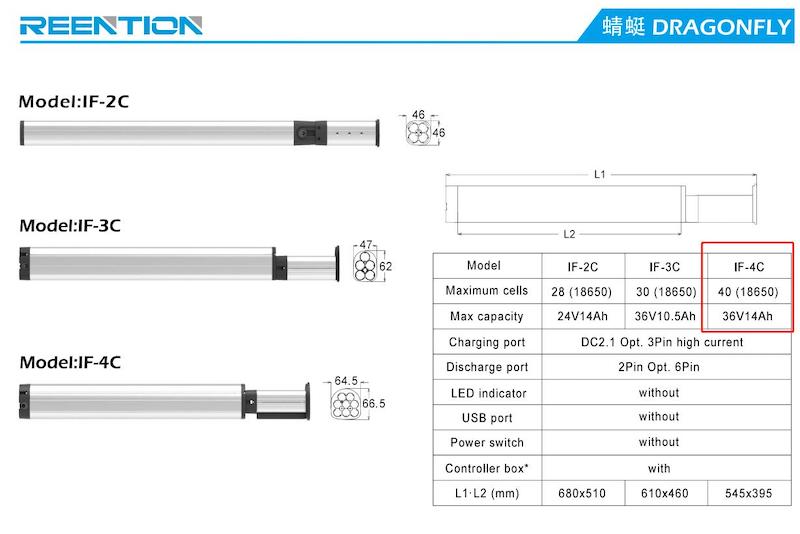

Battery:36V hidden battery case (18650*40), total battery capacity 14AH

battery for e bike frames

Note: there are many kinds of battery PAK, the price is different, can be roughly divided into domestic PAK and imported PAK, for customers to choose

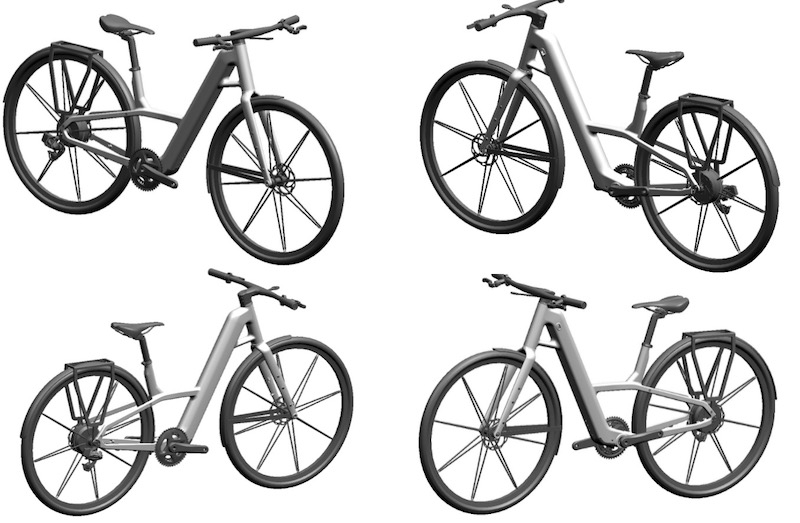

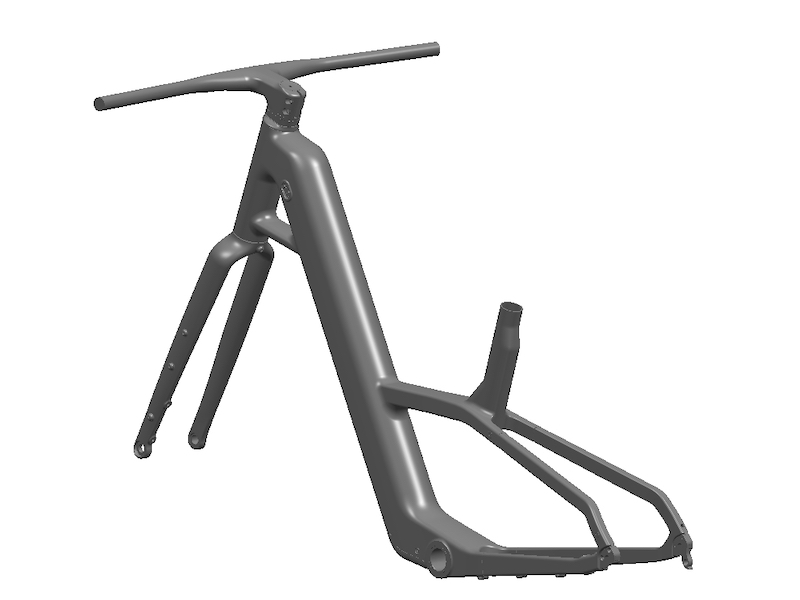

carbon fiber e bike framesetelectric city bike framesetcity e bike frames



TECHNOLOGY


carbon fiber frames design

Italy Design Team

we invited Italy professional engineer to develop new moulding each year. More than 10 years design experience can supply more accurate design which is developed according to the customer’s requests and specifications, focusing on the targets and providing functional solutions.


bicycle frame 3D print

3D latex mandrel technology

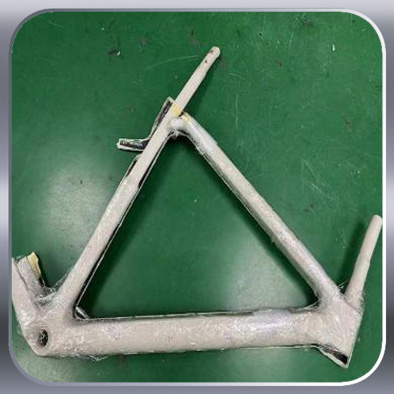

we added new 3D latex mandrel technology. 3D latex mandrel technology than traditional EPS or airbag technology can make frames more smooth without wrinkle inner wall.


carbon fiber Tory for bicycle frameset

Carbon Fiber Material

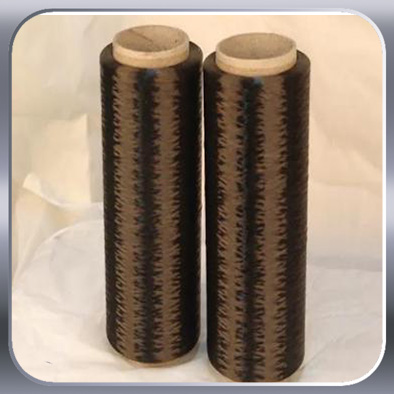

Premium Japan Toray T700/T800 carbon fiber is used in our carbon bike frame.

Combining with stable resin system to make consistent quality and light weight frame.

BIKE FRAMES TEST LAB

Lab Test

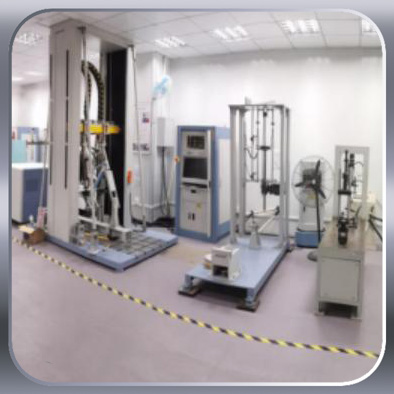

All tour de cycling carbon frame are rigorously tested under international standard ISO4210/EN15194.We will also be sent sample to the 3rd External Organization for SGS testing upon customer’s requirement. All new frames will be tested at least 10% more strictly during the development phase on the basis of EN15194 or ISO4210, thus it can ensure the safety of all products.
