TDC-RD06 700C Carbon Fiber Road Bike Disc Frameset Manufacturer

-700C Road Disc Framesets
-Size: 440mm / 470mm / 500mm / 540mm
-Cable Routing : Internal, Di2 compatible
-Head tube: Tapered 1 1/8" - 1 1/2"



TDC-RD06 700C Carbon Fiber Road Bike Disc Frameset

  • Type:  Road Disc 700C
  • Size: 440 / 470 / 500 / 540
  • Head tube: Tapered 1 1/8" - 1 1/2"
  • BB: BB86.5
  • Fork model : TDC-F05
  • Seat post model : TDC-E03

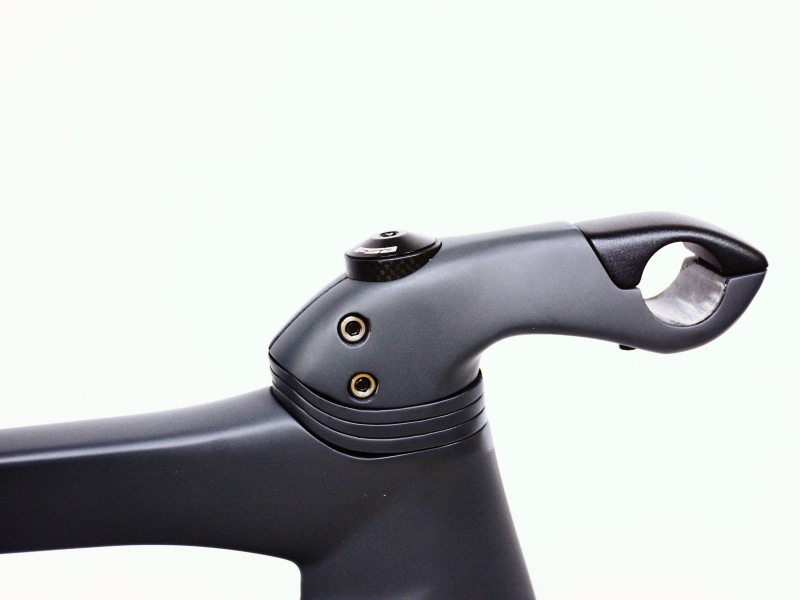

  • Stem model : TDC-S01(90/100/110/120mm)

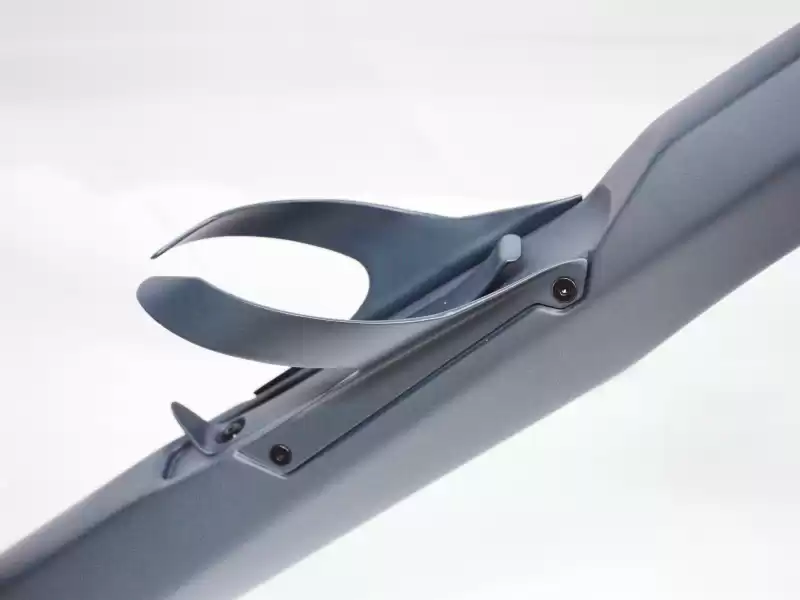

  • Bottle cage model : TDC-W01
  • Weight : 990±35 (Size 500)

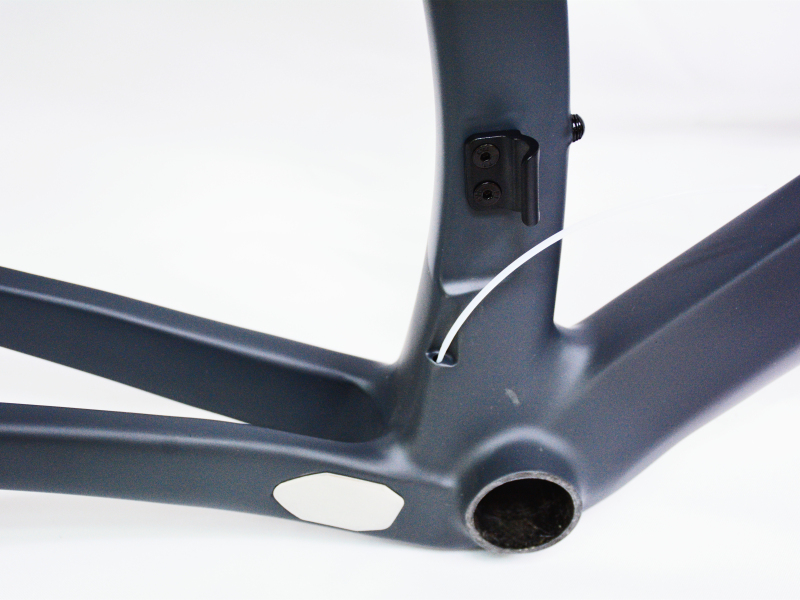

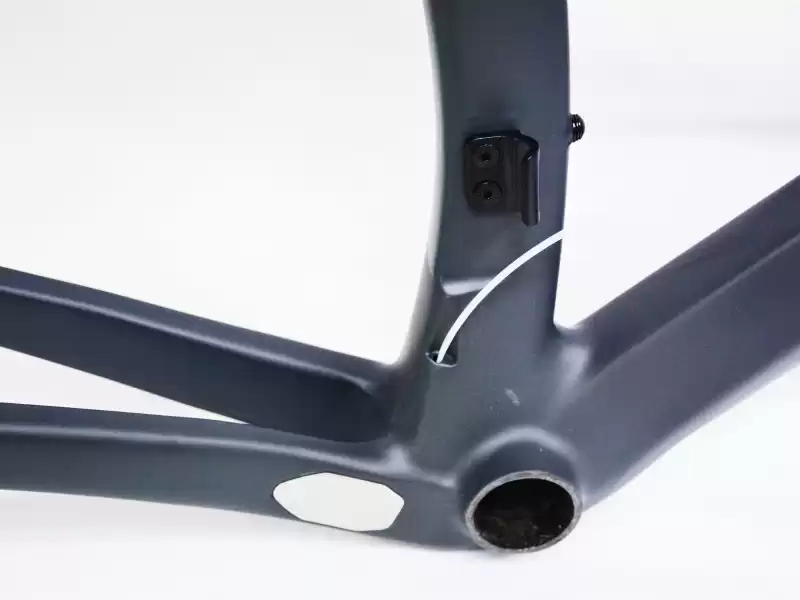

  • Cable Routing : internal shift and internal brake, Di2 compatible
  • Disc Mount : Flat mount
  • Tire : 700*28C
  • Thru axle : 12x100mm / 12x142mm
  • Material : High modulus Toray T700 / T800 carbon fiber

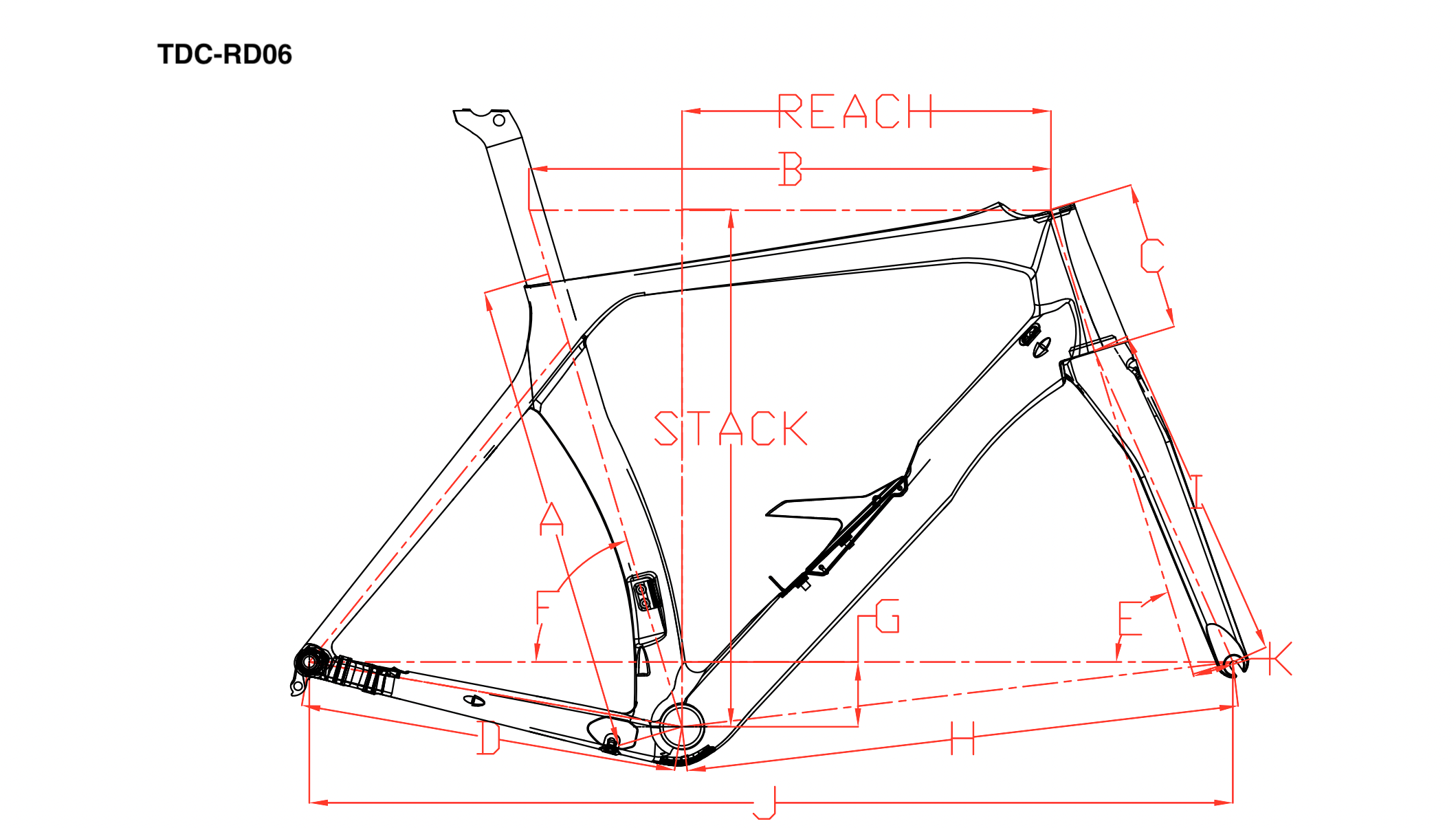

Road Disc 700C frames geometry


Many kinds of frame size for customer more option,please send email to sales@tourdecycling.com for more frames size geometry.

Size 440 470 500 540
Stack 517 538 558 590
Reach 387 388 399 397
Head Tube Angle 72 72.5 73 74
Head Tube Length 115 135 159 185
Seat Tube Angle 74.5 74 73.5 72.5
Seat Tube Length 440 470 500 540
Top Tube Length 525 542 565 583
BB Drop 70 70 70 70
Rear To BB Center 409 409 409 409
Fork To BB Center 579 587 600 597
Fork Built Height 368 368 368 368
Fork Rake 45 45 45 45
Wheel Base 978 986 999 996

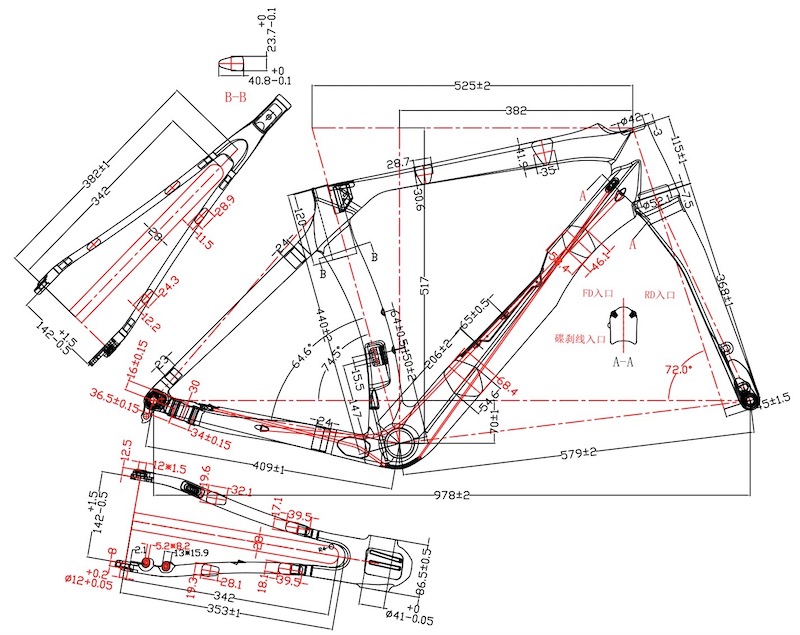

Technical drawings can help customer find the frame detail parameters and structure they are interested.

disc brake road frameset



TECHNOLOGY


carbon fiber frames design

Italy Design Team

we invited Italy professional engineer to develop new moulding each year. More than 10 years design experience can supply more accurate design which is developed according to the customer’s requests and specifications, focusing on the targets and providing functional solutions.


bicycle frame 3D print

3D latex mandrel technology

we added new 3D latex mandrel technology. 3D latex mandrel technology than traditional EPS or airbag technology can make frames more smooth without wrinkle inner wall.


carbon fiber Tory for bicycle frameset

Carbon Fiber Material

Premium Japan Toray T700/T800 carbon fiber is used in our carbon bike frame.

Combining with stable resin system to make consistent quality and light weight frame.

BIKE FRAMES TEST LAB

Lab Test

All tour de cycling carbon frame are rigorously tested under international standard ISO4210/EN15194.We will also be sent sample to the 3rd External Organization for SGS testing upon customer’s requirement. All new frames will be tested at least 10% more strictly during the development phase on the basis of EN15194 or ISO4210, thus it can ensure the safety of all products.


Bicycle frameset wrannty

2-Year Warranty

We have very strict mass production management system, IQC, PQC, OQC and Lab Testing process. We insist on making high quality.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty  to see more details in another page.


Why choose us ?

Tour De Cycling has more than 17 years of production experience in carbon frame developing and manufacturing.. Our factory has mature technology and patents, can be customized design for brand companies, and provide OEM services. More than 100 kinds of frame products have been developed and produced, and more than 95% of them are exported overseas.


FAQ:


Q1: Wonder if you accept small orders?

A1: Yes, we accept small trial orders. Besides, trial order's product quality is the same to massive production.


Q2: Can you send samples to test?

A2: Sure, sample is welcomed, while the sample's fare and freight at your cost.


Q3: Can you do OEM/ODM for me?

A3: Yes, both is available, besides, we have design department, if you have problems, we can help solve them.


Q4: How can I place the order?

A4: Firstly, confirm PI and pay deposit,then we will arrange sample and massive production. After finished production, plz pay the balance before shipment. Then delivery the goods.
