Tea Baking Machine And Equipment Tea Leaf Dryer Machine 6CHZ-27

DL-6CHZ-27 tea leaf dryer machine can use for all most kinds tea leaf, such as green tea, black tea, herbal tea and so on.

  • Dimension2390×1300×2670mm
  • Voltage380/50 V/Hz
  • Heating elementElectric heating wire
  • Total power/Group18kw / 3 group
  • Power of fan motor
  • Speed of fan motor
  • Voltage of fan motor
  • Power of rotary motor
  • Speed of rotary motor
  • Voltage of rotary motor
  • Rotary speed6 rpm
  • Rotary typeRound
  • Total drying area26.7 m2
  • Drying layer42
  • Efficiency320 kg/h
Facebook Twitter Pinterest LinkedIn 分享

Description:
For non-fermented tea such as green tea: evaporate water, tighten the tea, make the tea fully dry, divergent to remove the grassy taste, enhance the aroma of the tea.

For fermented tea such as black tea: the activity of the enzyme is destroyed by high temperature, the enzymatic oxidation is interrupted, and the quality of the tea is maintained.
Evaporate the water in the tea leaves, so that the tea leaves are fully dried, divergent to remove the grassy taste, and enhance the aroma of the tea leaves.

For herbal tea: Evaporate water, tighten flowers and plants, and keep the original color and original aroma

Application:
Tea leaf drying machine can process almost all tea: such as black tea, green tea, oolong tea, and herbal tea.

Parameter:

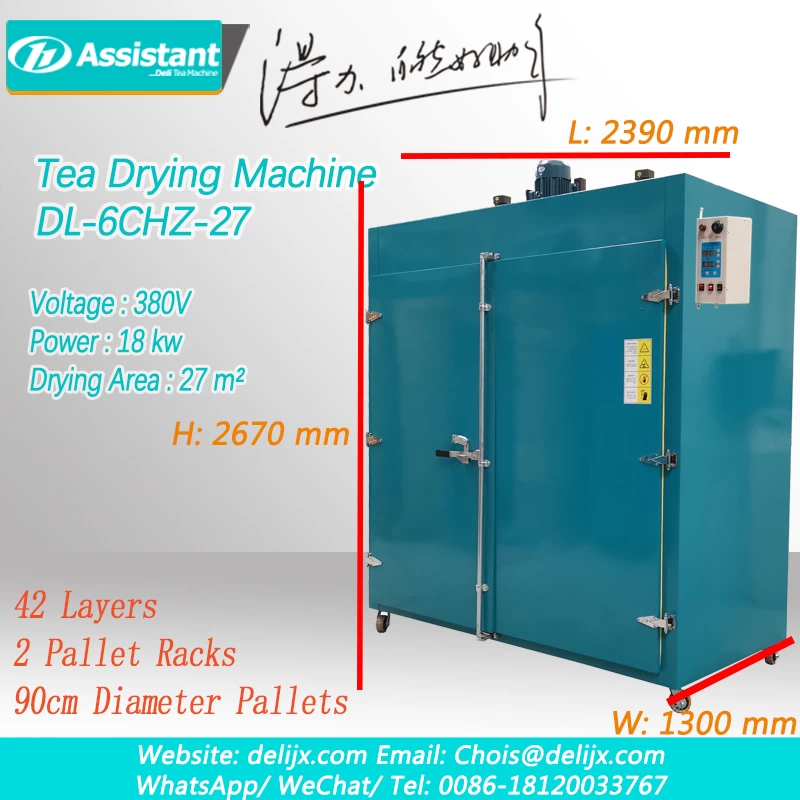

DL-6CHZ-27 tea leaf dryer machine specification:

Model DL-6CHZ-27
Dimension 2390×1300×2670 mm
Voltage 380/50 V/Hz
Heating element Electric heating wire
Total heating power 18 kw
Heating element group 3 Group
Fan motor Power 0.75 KW
Speed 1400 rpm
Rated voltage 380 V
Pallet rotary motor Power 80 W
Speed 1250 rpm
Rated voltage 220 V
Pallet rotary speed 6 rpm
Pallet type Round
Drying pallet diameter 90 cm
Effective drying area 26.7 m2
Number of drying pallet 42
Efficiency 320 kg/h

The above data is based on fresh tea leaf water content of 75-80%.

Deatails:

DL-6CHZ-27 tea leaf dryer machine decomposition diagram:

Electric Heating Tea Leaf Dryer Drying Machine 6CHZ-14
 ①
 Exhaust vent
②
 Hinge
③
 Transmission rod
④
 Nylon wheel
⑤
 Drive motor
⑥
 Electric control panel
⑦
 Tank body
⑧
 Sealing strip
⑨
 Door

Advantage:

Intelligent temperature and time control system

Add mechanical temperature limiting module to ensure precise temperature control. 		Electric Heating Tea Leaf Dryer Drying Machine 6CHZ-14

Electric Heating Tea Leaf Dryer Drying Machine 6CHZ-14
 Electric Heating Tea Leaf Dryer Drying Machine 6CHZ-14
 Electric Heating Green Tea Leaves Dryer Machine DL-6CHZ-14
Patented hot air duct design
 Copper core driving motor on the top
 Galvanized sheet and calcium silicate board insulation system

Electric Heating Green Tea Leaves Dryer Machine DL-6CHZ-14
 Electric Heating Green Tea Leaves Dryer Machine DL-6CHZ-14
Tea drying machine modular design
 Rotary drying method for tea

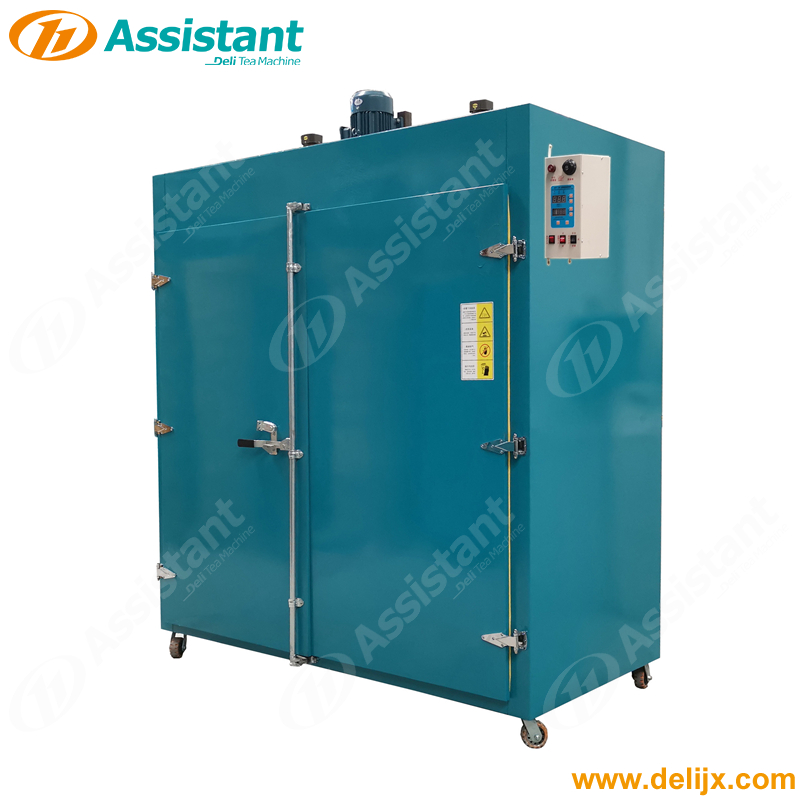

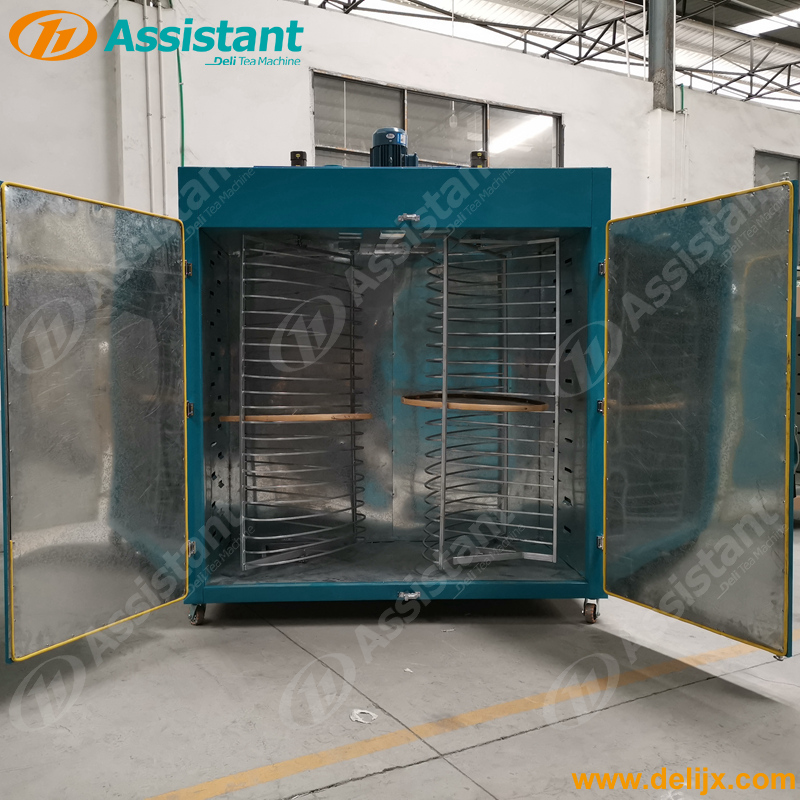

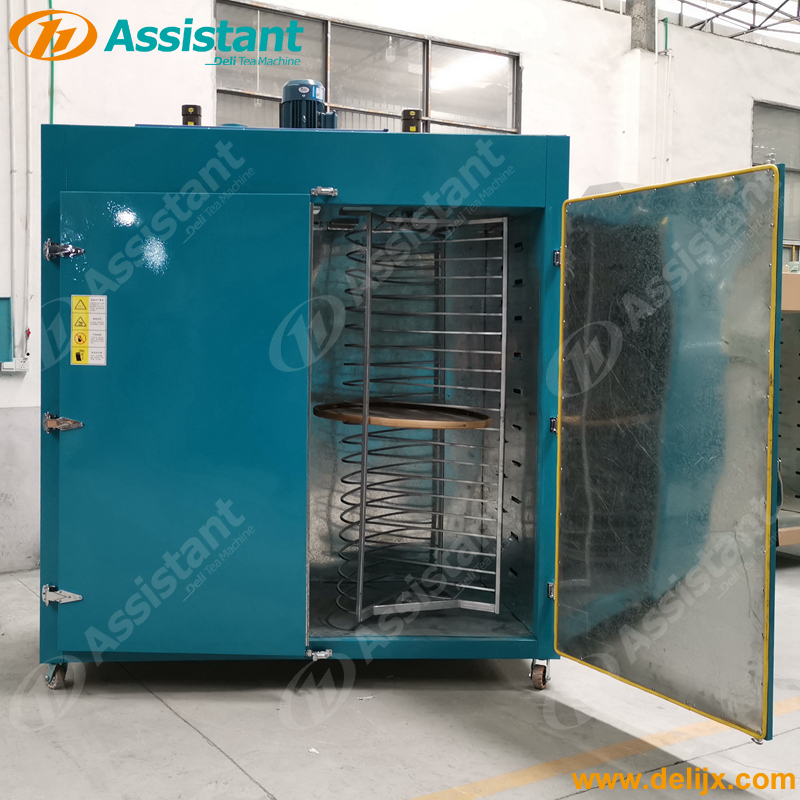

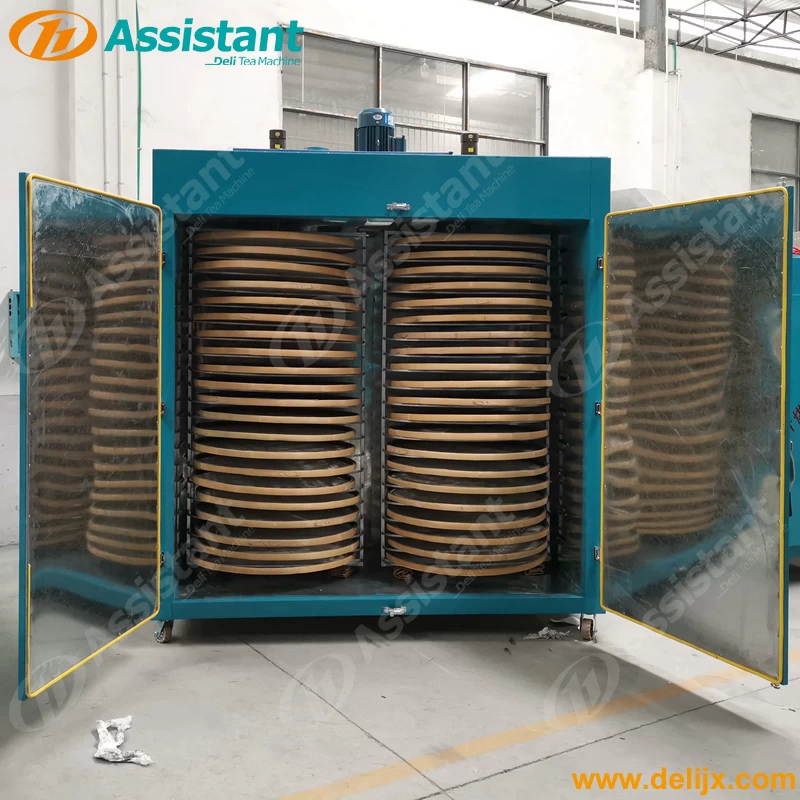

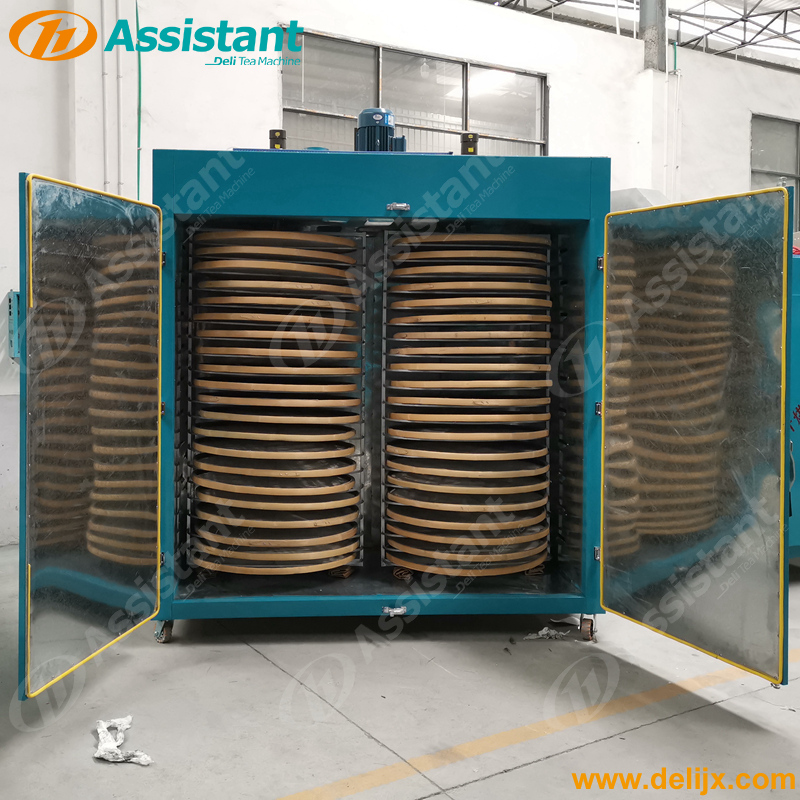

DL-6CHZ-27 electric heating tea leaf dryer machine photos:

Tea Leaf Dryer Machinery And Equipment Tea Baking Machines DL-6CHZ-27
Tea Leaf Dryer Machinery And Equipment Tea Baking Machines DL-6CHZ-27
Tea Leaf Dryer Machinery And Equipment Tea Baking Machines DL-6CHZ-27
Tea Leaf Dryer Machinery And Equipment Tea Baking Machines DL-6CHZ-27
Tea Leaf Dryer Machinery And Equipment Tea Baking Machines DL-6CHZ-27
