Tea fermentation process machine mainly used for processing black tea and other fermentation tea, also can also be used for fermentation of seeds or other food.
The automatic intelligent black tea fermentation machine is mainly made of fermented tea such as black tea. It can control the temperature and humidity of the machine box independently and accurately. At the same time, oxygen and gas are exchanged for the tea, so that the tea can be fermented under the most suitable conditions. Let the color of the tea be red, the grassy taste disappears, and the fruit is ripe.
1. This machine is suitable for the fermentation process in the production process of black tea;
2, can accurately control the temperature and humidity of the box wind, so that the control of the fermentation process can be freely desired, so that the production of fine black tea can be copied in batches;
3, the use of advanced integrated circuits, coupled with efficient atomizing head and electric heating system, accurately control the internal temperature and humidity of the box;
4. The patented air circulation system ensures uniform temperature and humidity of each floor;
5. The inner tank, water tank and material plate are made of stainless steel.

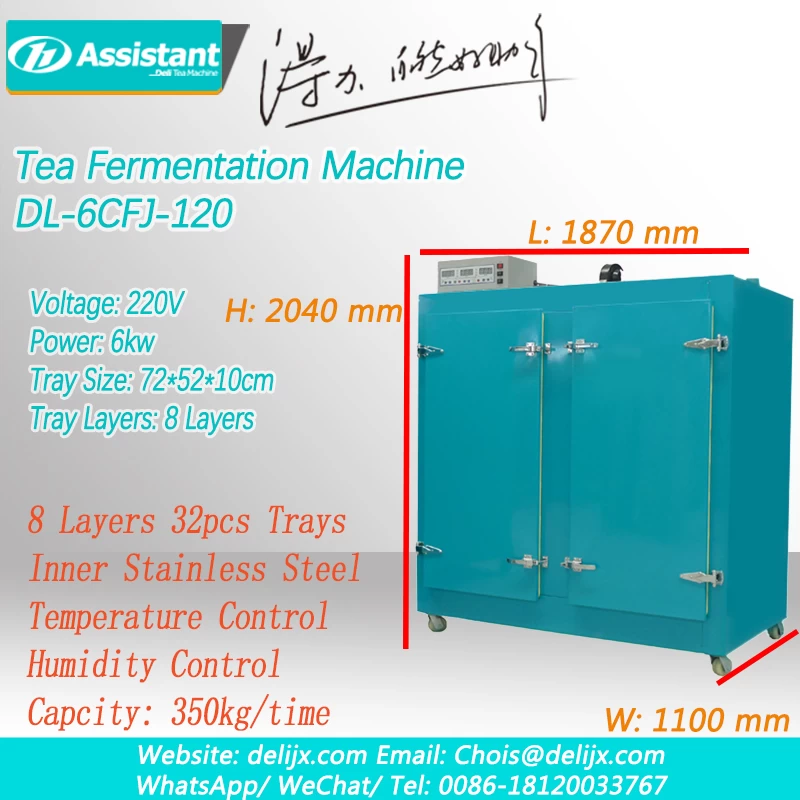

DL-6CFJ-120 automatic Intelligent black tea fermentation machine specification:
|
Model
|
DL-6CFJ-120
|
|
Size
|
1870×1100×2040 mm
|
|
Voltage
|
220/50 V/Hz
|
|
Heating mode
|
Heating wire
|
|
Heating power
|
6 KW
|
|
Heating group
|
1 Group
|
|
Fan
motor
|
Power
|
85 W
|
|
Speed
|
2200 rpm
|
|
Voltage
|
220 V
|
|
Tray size
|
720*520*100 mm
|
|
Tray quantity
|
32 pcs
|
|
Tray layers
|
2×8
|
|
Efficiency
|
350 kg/time
|
The above data is based on fresh tea leaf water content of 75-80%
DL-6CFJ-120 automatic Intelligent dark tea black tea fermentation machine decomposition diagram:
|
①
|
Electric control panel
|
②
|
Door handle
|
③
|
Door
|
④
|
Hinge
|
⑤
|
Air motor
|
⑥
|
Exhaust vent
|
⑦
|
Tank body
|
⑧
|
Sealing strip
|
⑨
|
Nylon wheel
|
|
Intelligent temperature, time and humidity control system
Microcomputer control system, temperature and humidity can be adjusted according to demand, ensure that tea is fermented in the most suitable environment.
|
|
|
|
Tea fermentation is more uniform by multi-layer fermentation.
|
Temperature and humidity induction probe
|
Ultrasonic water atomizer
|
|
|
Food grade stainless steel tray
|
Unique air duct and copper core motor
|
|

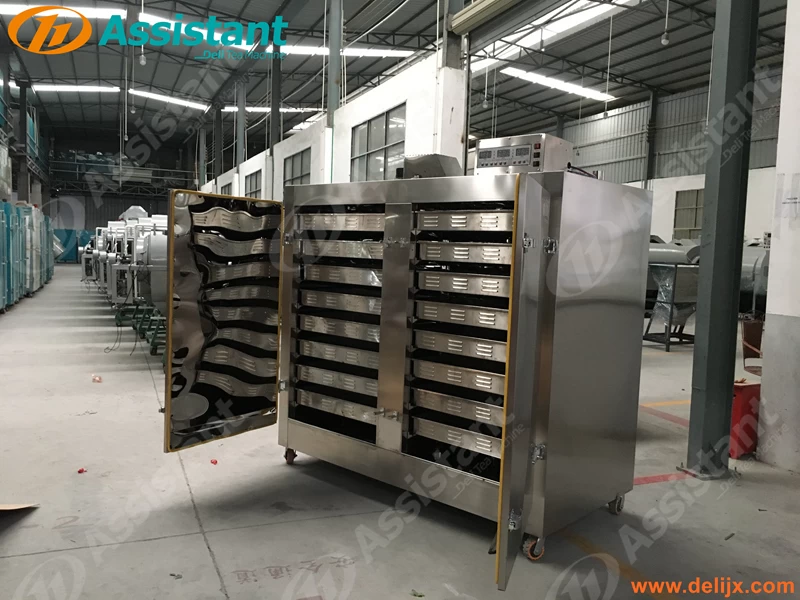

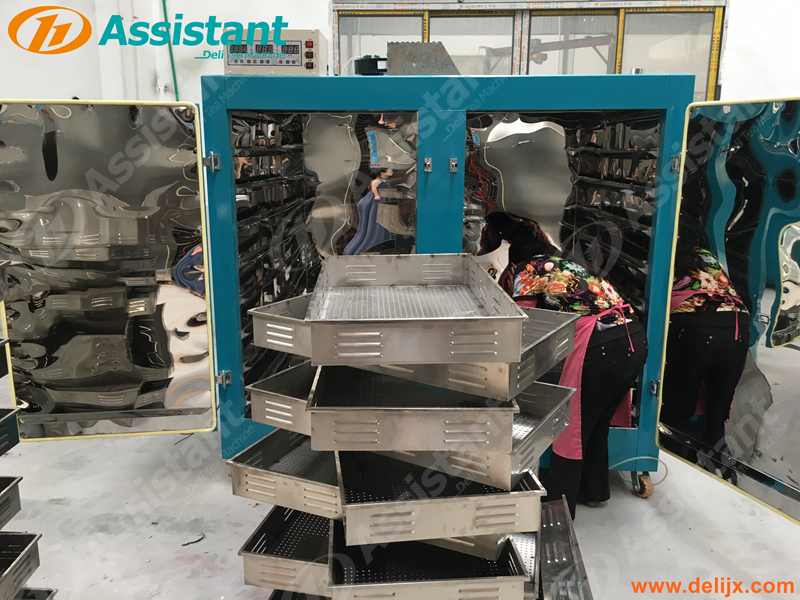

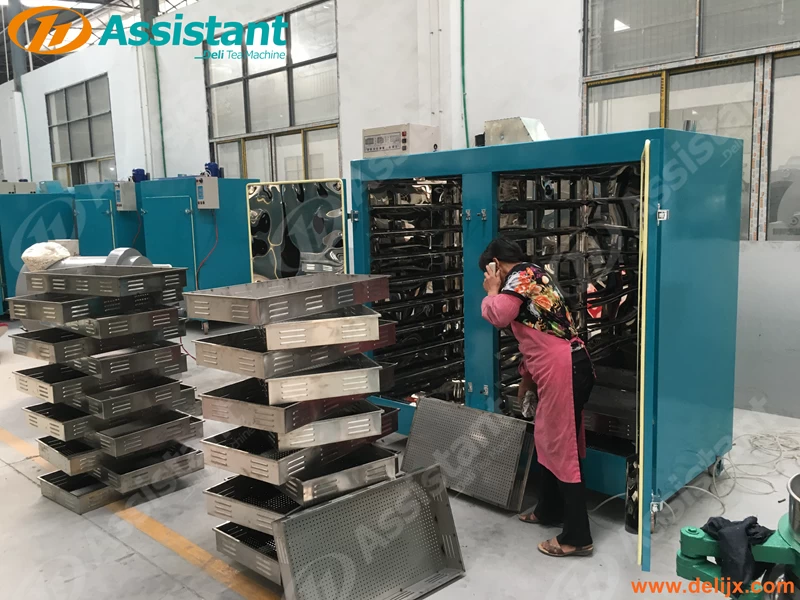

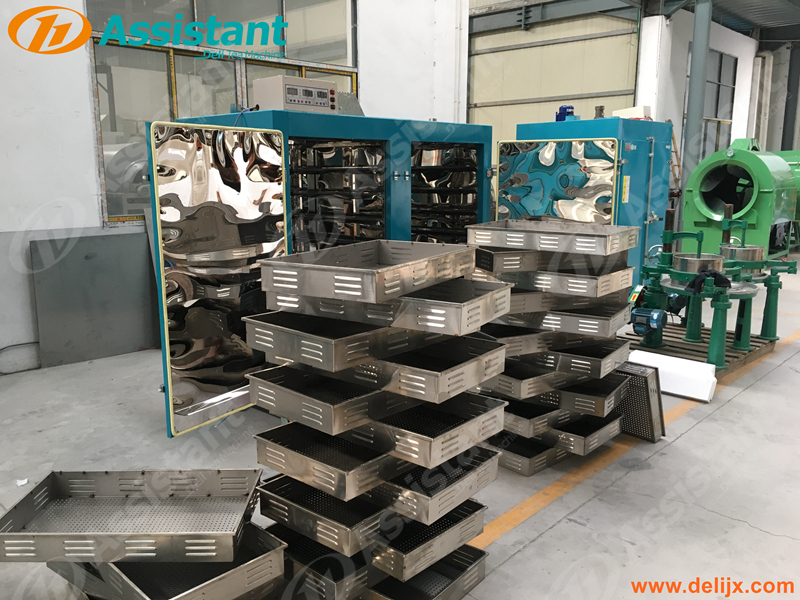

DL-6CFJ-80 tea fermentation machine photos:
|
|
Tea after black tea fermentation cabinet:
|
