Tea rolling machine can use for most of tea such as black tea, green tea, and oolong tea, for green tea ( non-fermented ) is mainly used for shaping the strip type, for black tea ( fermented tea ) is mainly used to destroy the cells of fresh tea leaves, so that the juice in tea can flow out and facilitate subsequent fermentation.
Through the external force of the tea roller machine, the tea leaf's juice overflows, the tea cells are damaged, fresh tea leaf is twisted and curled into a strip shape, the juice in the fresh tea leaves is squeezed out. When brewing, the taste is stronger, the color of the tea soup is brighter and the quality of the tea is better.

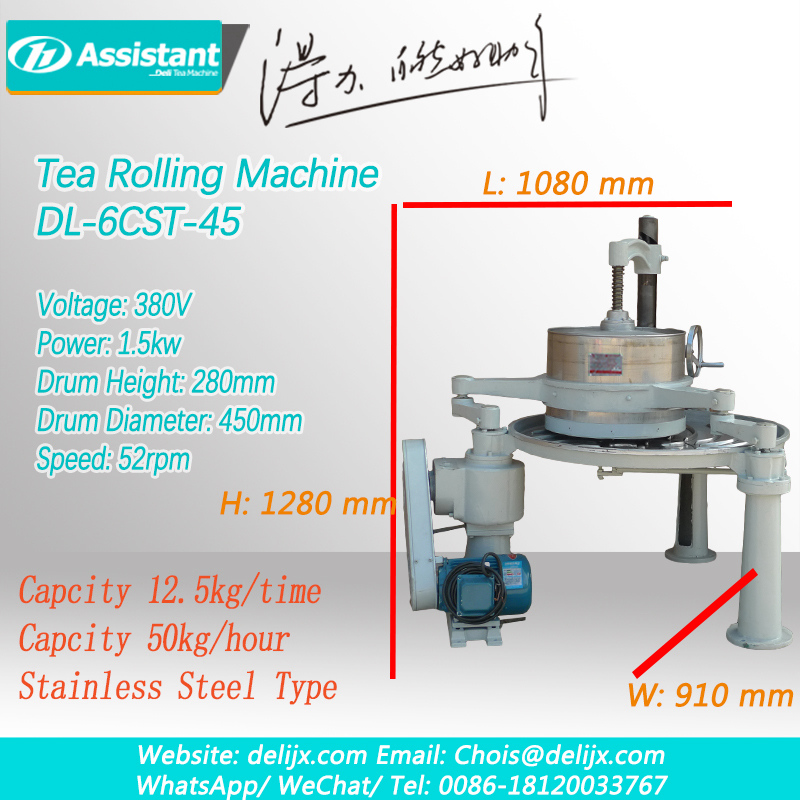

DL-6CRT-45 tea rolling processing machine specification:
|
Model
|
DL-6CRT-45
|
|
Dimension
|
910*1080*1280 mm
|
|
Input voltage
|
380V / 50Hz
|
|
Tea disc diameter
|
885 mm
|
|
Barrel diameter
|
450 mm
|
|
Barrel height
|
285 mm
|
|
Matching motor
|
Power
|
1.5 kW
|
|
Speed
|
1400 RPM
|
|
Rated voltage
|
380 V
|
|
Barrel speed
|
52 RPM
|
|
Productivity
|
50 Kg/h
|
|
Maximum capacity per time
|
12.5 kg
|
The above data is based on fresh tea leaf water content of 75-80%.
DL-6CRT-45 tea processing rolling decomposition diagram:
|
①
|
Transverse arm
|
⑧
|
Support column
|
②
|
Barrel cover
|
⑨
|
Rolling disc
|
③
|
Stainless steel Drum
|
⑩
|
Handwheel
|
④
|
Crank
|
⑪
|
Support frame
|
⑤
|
Transmission case
|
⑫
|
Tea discharge handle
|
⑥
|
Transmission belt
|
⑬
|
Tea outlet
|
⑦
|
Drive motor
|
⑭
|
Support leg
|
|
|
Professional design of rolling plate tilt angle and kneading strip radian, the speed of forming tea and pour out tea leaf is 30% faster.
|

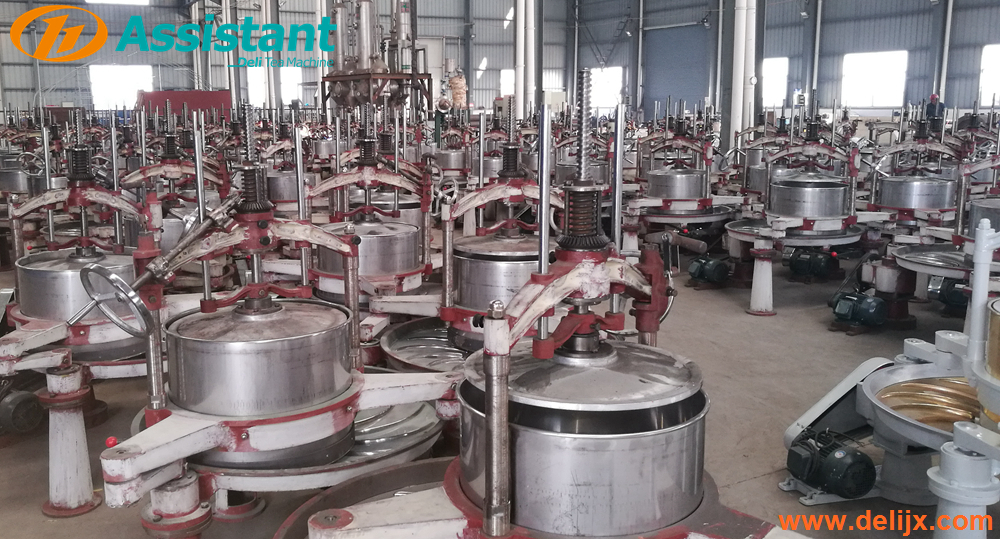

We have 30 stocks for each model of tea rolling machines, delivery is fast, no need to wait, packing in steel rack, more stable.
|
1. Stable gearbox, crank and support frame , ensure smooth and safe operation of tea kneading machines
2. Powerful copper core drive motor, provide a steady source of power for tea kneading machines.
3. Double support arm, the barrel lid is pressurized by springs, and can be rotated, quality of tea more higher.
|

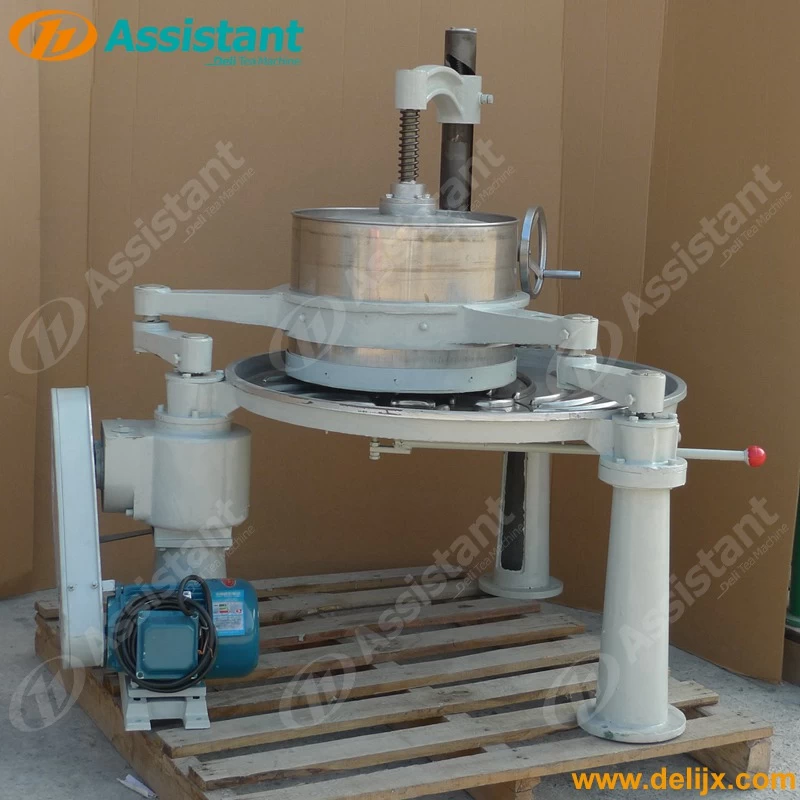

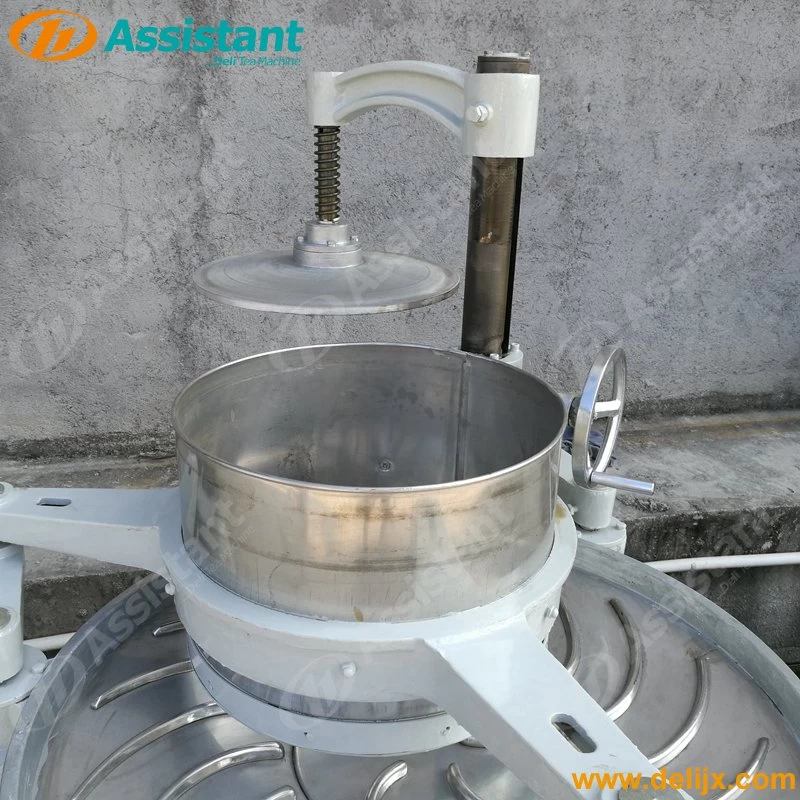

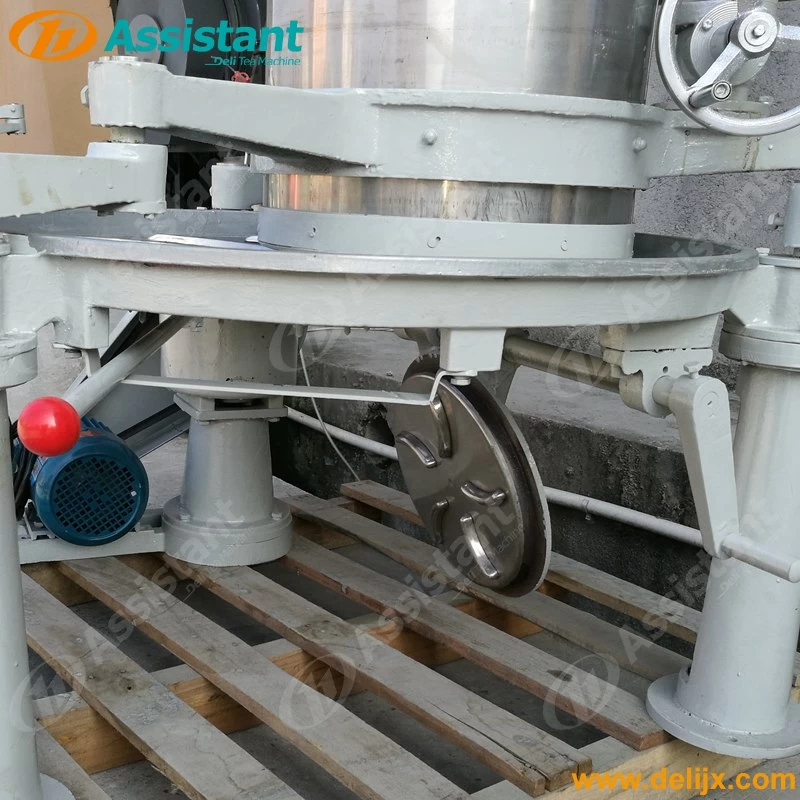

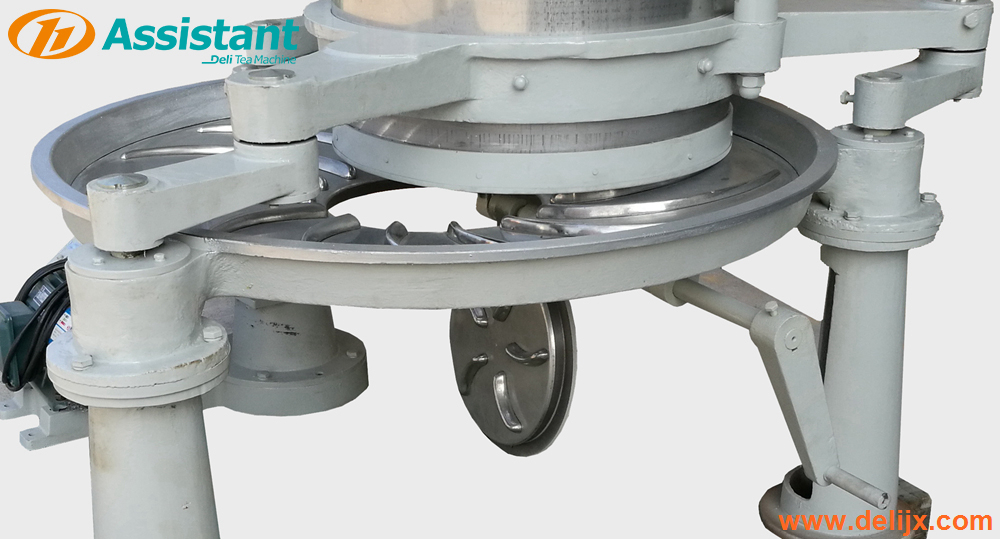

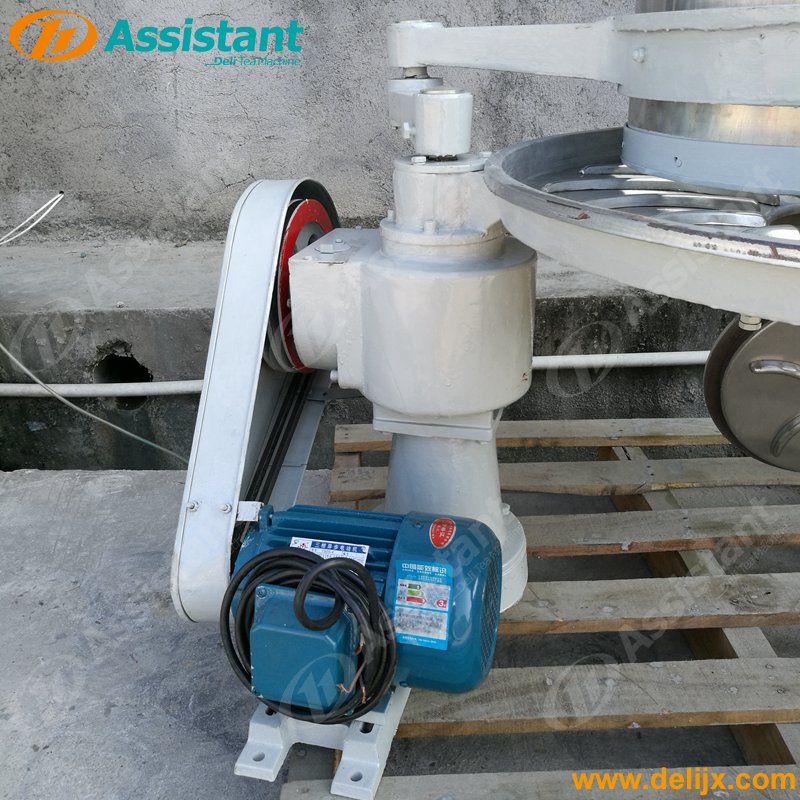

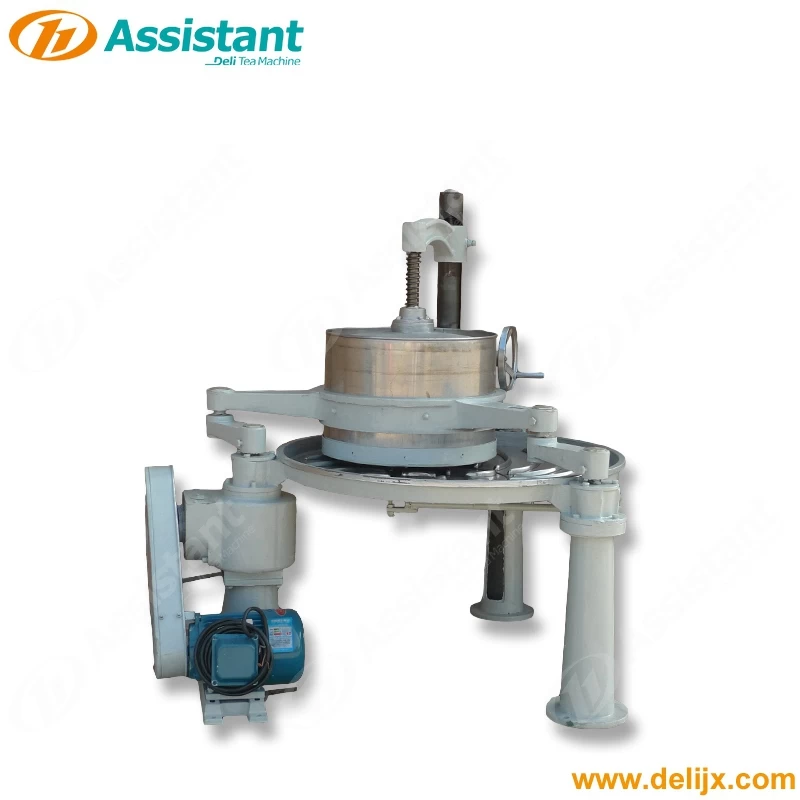

DL-6CRT-45 green tea black tea roller machine photos:
|
