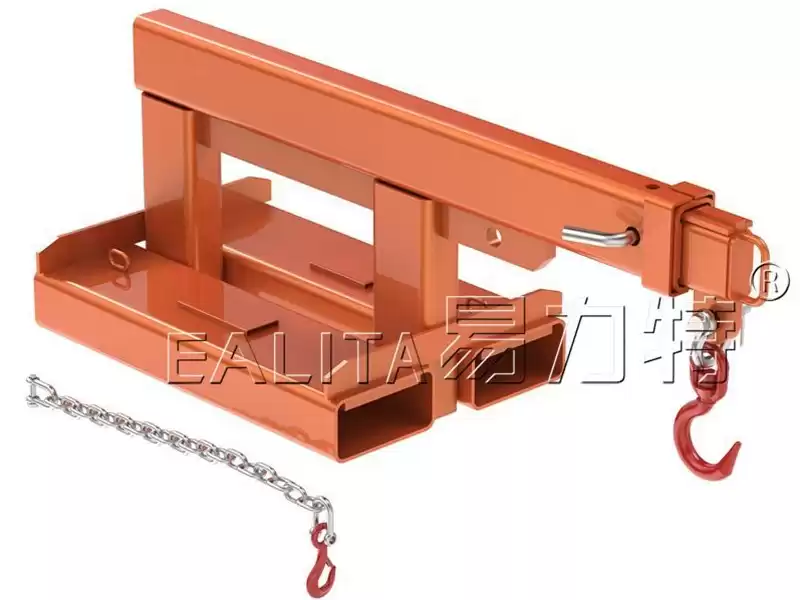

Jib allows for additional lifting height with the extension beam being raised above the fork pockets.
- The overall length when retracted is 1.3 metres, and when extended is 2 metres.
- Zinc plated finish.
Specifications
• Code: 03.01.04.0006
• Safe Working Load (SWL) 2500kg Max.
• Unit Weight 100kg
• Load Centre 790mm
• Pocket Size 185 x 65
• Pocket Centres 275 mm
• Horizontal C of G 630mm
• Vertical C of G 135mm
