Telescopic Grab Bar Length Adjsutable

Telescopic grab handrails provide the widest possible choice for positioning on a wall with fiber cement sheet and studs at the back. They enable horizontal, vertical and diagonal installation on the pre-cladding covering walls.




  • Size600-750mm,800-950mm,1000-1150mm,1200-1350mm

Telescopic grab bars adjustable length


Use:


Telescopic grab handrails provide the widest possible choice for positioning on a wall with fiber cement sheet and studs at the back. They enable horizontal, vertical and diagonal installation on the pre-cladding covering walls.

Not only apply to use as bath shower grab bar, but also can hold clothing, towel and etc.

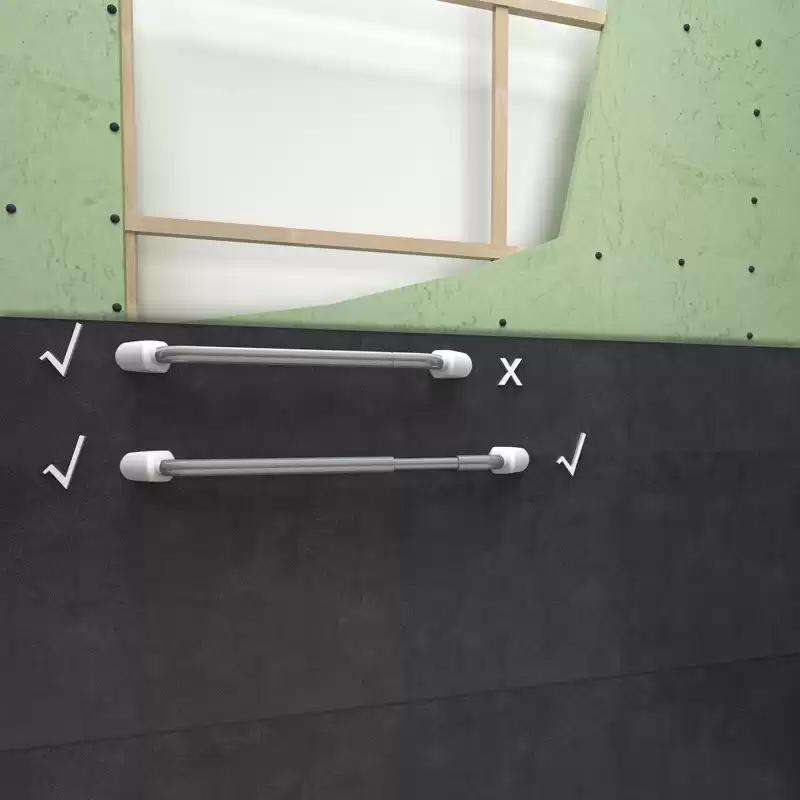

Please note: The flange base of the adjustable grab bars must be fixed to the metal or wood studs or any other reinforced part of the walls, to make sure the wall is solid and stable for pull force.


Features:


  • Unique Design- The arc of the grab tube is natura transition, the special shaped grab bars' end flange base are available in different colors. The colorful bases make nice decoration for the bathroom. Concealed mount design allows for easy installation at any angle.

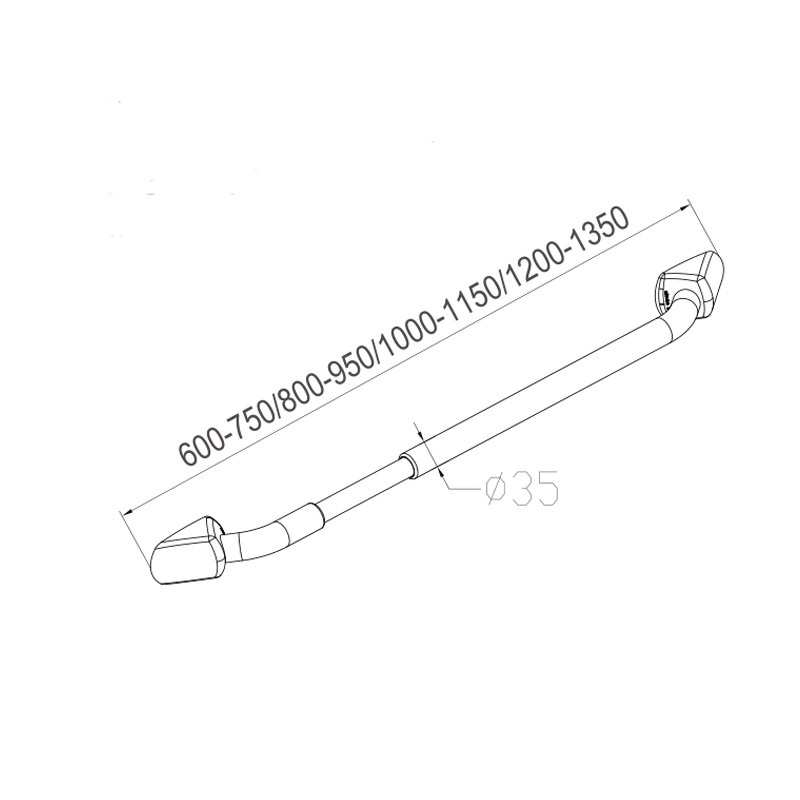

  • Large Adjustment- The telescopic grab bars provide 150mm adjustment. Very flexible to suit different conditions of the re-cladding walls. For example, XFS- 600-750. The minimum length is 600mm and maximum length is 750mm.

          telescopic hand rails

  • Versatile Installation Option- Easily mount the metal grab bar vertically, horizontally or diagonally depending on your particular needs.


  • Durable Quality- Constructed with a super solid aluminum alloy, the silver metal grab bar is corrosion-resistant for exceptional durability and safely supports up to 150kgs. The steel grab bar measures 35mm in diameter, creating an easy, secure grip for all hand sizes. The handrails are tested with a 1.5 safety factor in accordance with the requirements in ISO 17966:2016.


Materials:



1. The bathroom safety grab bars is constructed with super solid anodized aluminum.

2. The end of the gripping bars' flange base is made of PP and 15% reinforced glass fiber.

The flange base cover is PP.

3. The fixing kits and fasteners are made of stainless steel.

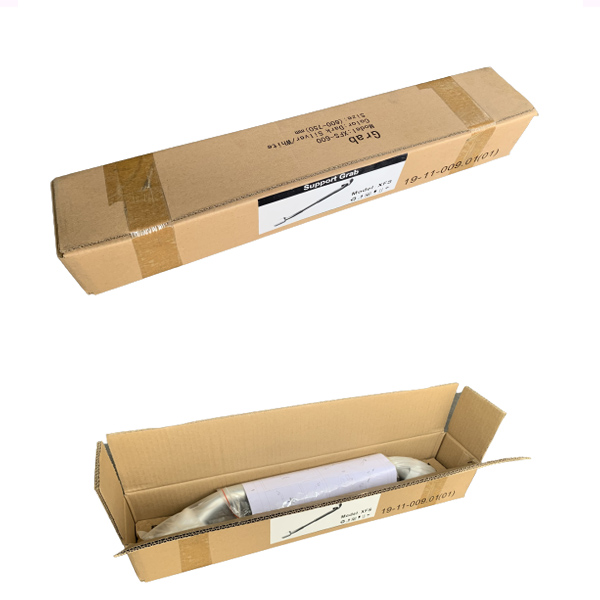

Packaging:



One piece in one brown carton. Carton size and Gross weight varies from different length of grab bars.

Model Carton Size Gross Weight
XFS-600-750 650x110x100mm 1.22 Kgs
XFS-800-950 850x110x100mm 1.55 Kgs
XFS-1000-1150 1050x110x100mm 1.88  Kgs
XFS-1200-1350 1250x110x100mm 2.21 Kgs

carton of grab bar model XFS

Cleaning:



1. The Aicube Care product is to be cleaned with hot water or a mild soapy cleaning agent.

2. We recommend that chalky deposits be removed from aluminum parts using a solution of 3:7 acetic acid: tap water. When the aluminum parts have been washed down with this solution, the parts must be wiped over with a damp cloth, wrung out in clear water. The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.


Warm Note: Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.
