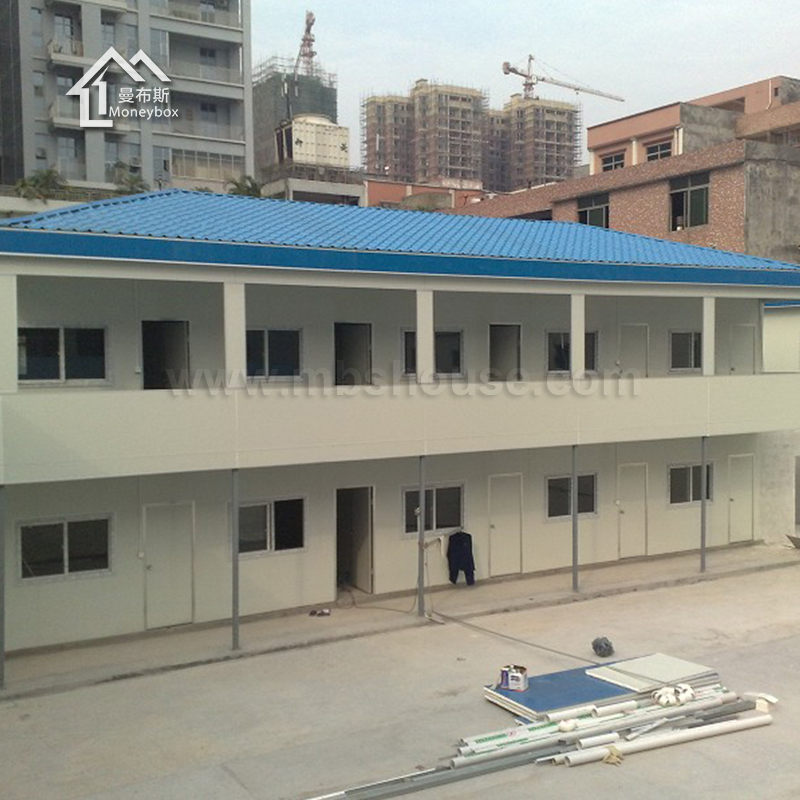

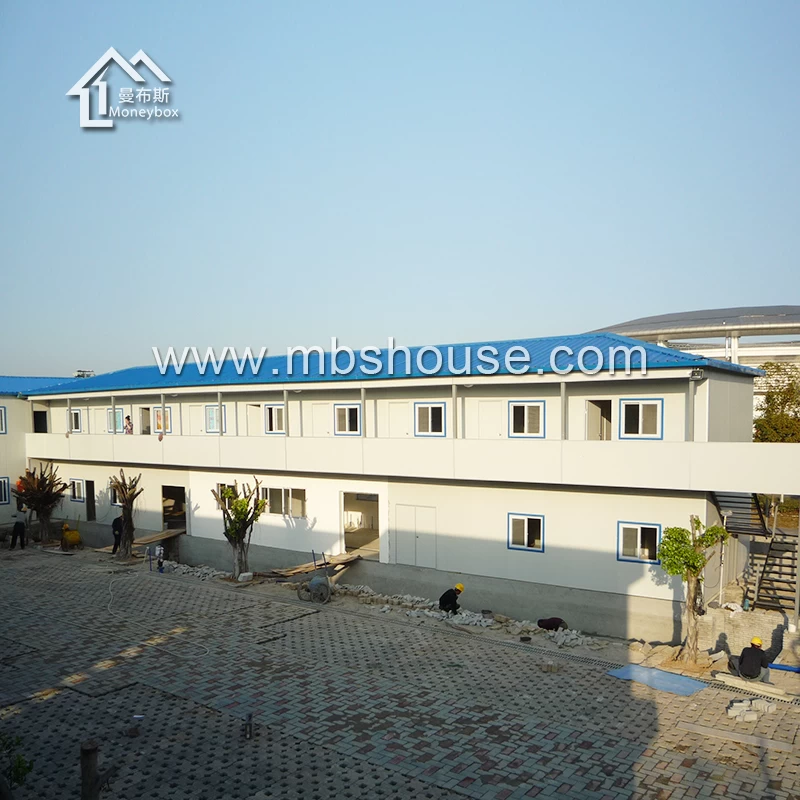

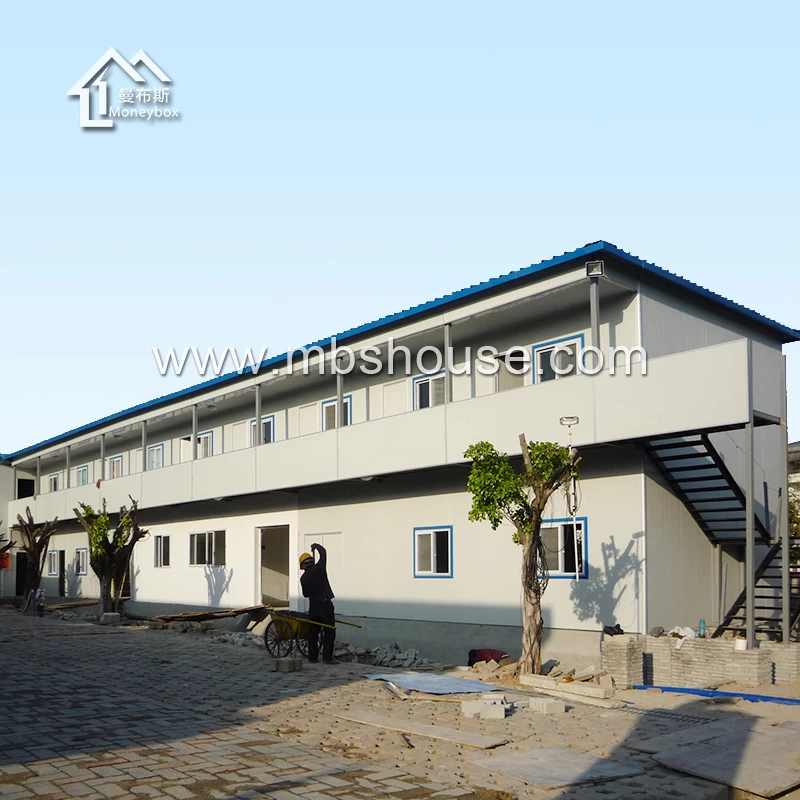

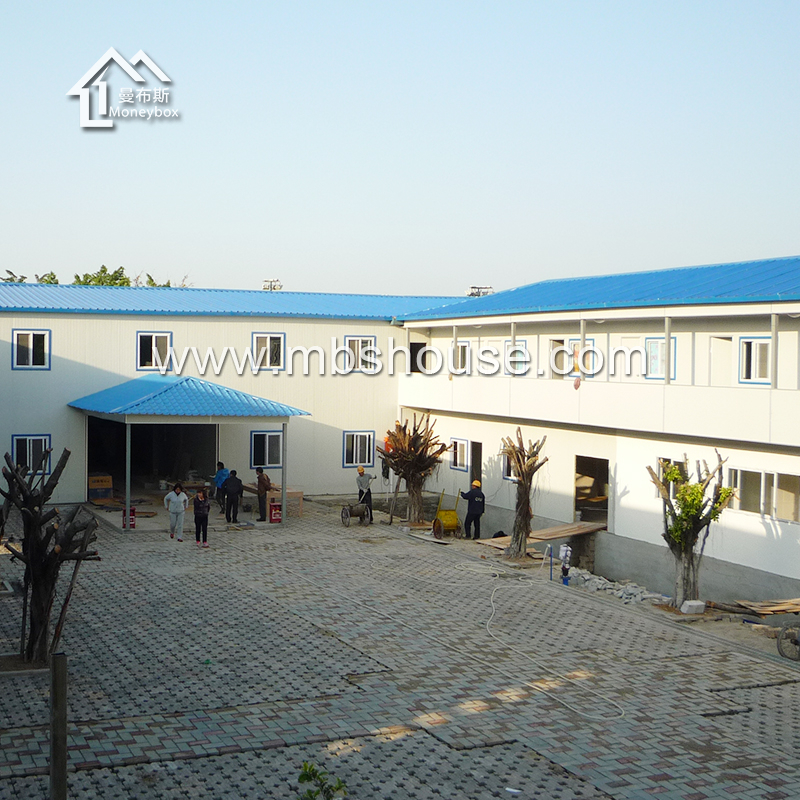

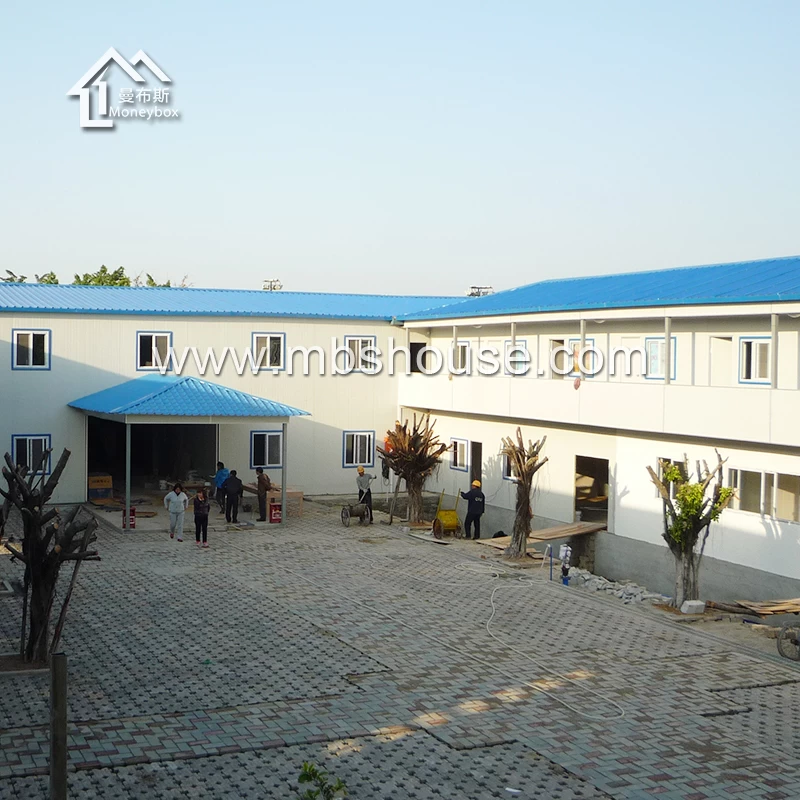

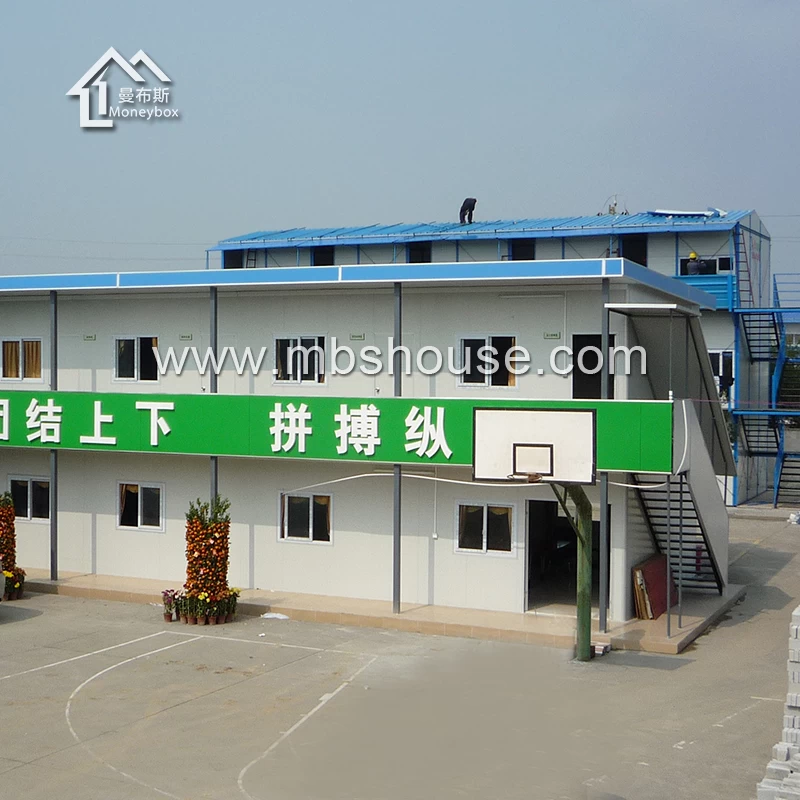

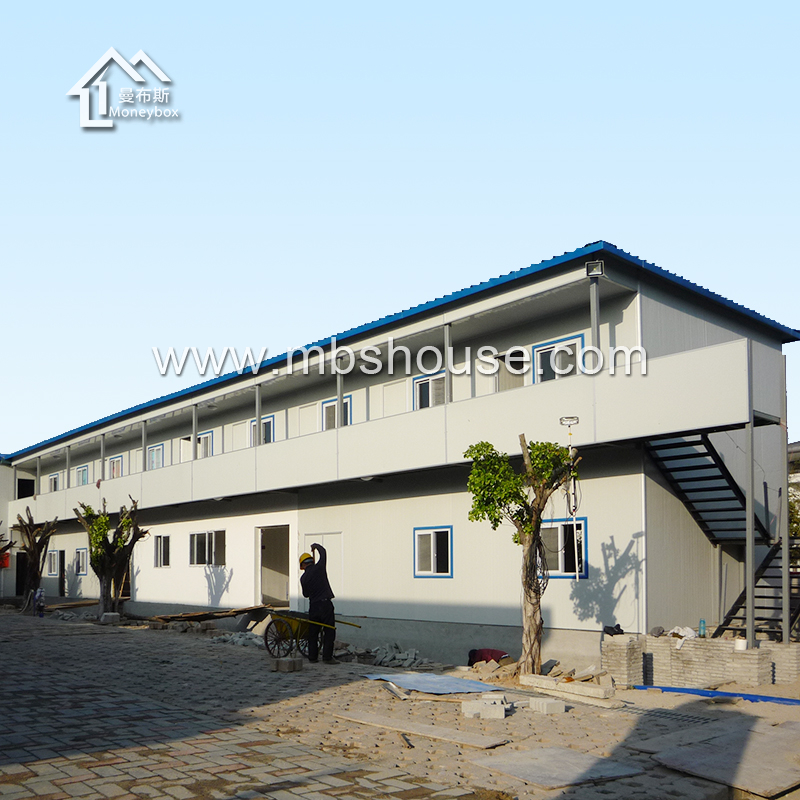

Temporary Prefab House for Construction Site Labour Camp
TECHNICAL CHARACTERISTICS OF T HOUSE
1.Compared with the civil building, easy construction, low cost, time-saving and labor saving.
2.It has a good proof, noise proof, and heat insulation performance.
3.The steel structure is painted and anti-rust which can be normally used more than 15 years.
4.Environmental-friendly, the house can be assemble and disassemble and six times.
5. 300mm high flat level can meet the foundation of the house.
6.100sqm only need 4 workers 1 day.
Temporary Prefab House for Construction Site Labour Camp
|
Item no.
|
Component
|
Specification
|
|
1
|
Wall panel
|
50Double Color-coated Steel EPS Sandwich Board
(steel:0.286mm,EPS density :10kg)
|
|
2
|
Roof title
|
50Double Color-coated Steel EPS Sandwich Board
(steel:0.286mm,EPS density :10kg)
|
|
3
|
Partition wall
|
50Double Color-coated Steel EPS Sandwich Board
(steel:0.286mm,EPS density :10kg)
with aluminum Slot and accessories
|
|
4
|
Column
|
Double C-shaped Steel Size80*40*1.8mm
|
|
5
|
Roof beam
|
C-Shaped Steel Size:80*40*1.8mm & 50*40*1.8mm
|
|
6
|
Tie rod
|
φ8
|
|
7
|
Ground Beam
|
Double C-shaped Steel Size:80*40*1.6mm
|
|
8
|
Round Beam
|
Double C-shaped Steel Size:80*40*1.6mm
|
|
9
|
Roof Purlin
|
Galvanized Angel Steel:1.5mm
|
|
10
|
Door
|
50mm Double Colored-coated steel EPS Sandwich Door Size:800*2000mm
|
|
11
|
Window
|
plastic steel window:1740*925mm
|
Temporary Prefab House for Construction Site Labour Camp
