Item
|
7 inch tft lcd with touch panel
|
|
Part No.
|
TST070CBOT-02WP, 7 inch lcd panel
|
|
Outline Dimension(mm)
|
164.9x100.0x6.7
|
|
Display Area(mm)
|
154.08x85.92
|
|
Resolution(dots)
|
WVGA, 800*RGB*480
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Number of Pixel(pixels)
|
800RGB(H)xRGBx480(V)
|
|
Touch panel
|
96% transmittance RTP
|
|
Dot Pitch
|
0.0642(W)x0.1790(H)
|
|
Pixel arrangement
|
RGB Vertical stripe
|
|
Display mode
|
Normal white,Transmissive, 7 inch TFT
|
|
Surface treatment
|
Antiglare
|
|
View direction
|
6H
|
|
Weight(g)
|
TBD
|
|
Power Consumption(w)
|
Panel
|
0.226(Typ.)
|
|
B/L system
|
1.674(Typ.)
|
|
Interface
|
Digital
|
|
Module lifetime(Hours)
|
50,000-100,000
|

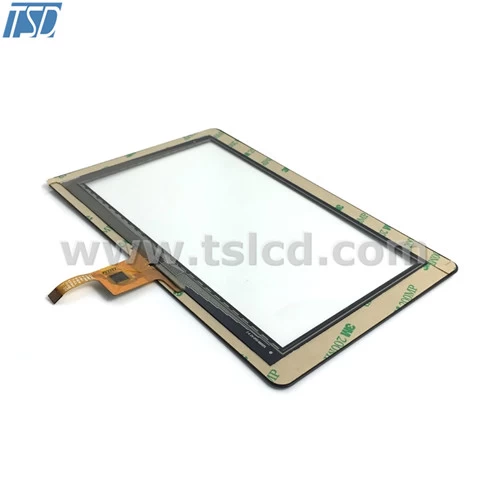

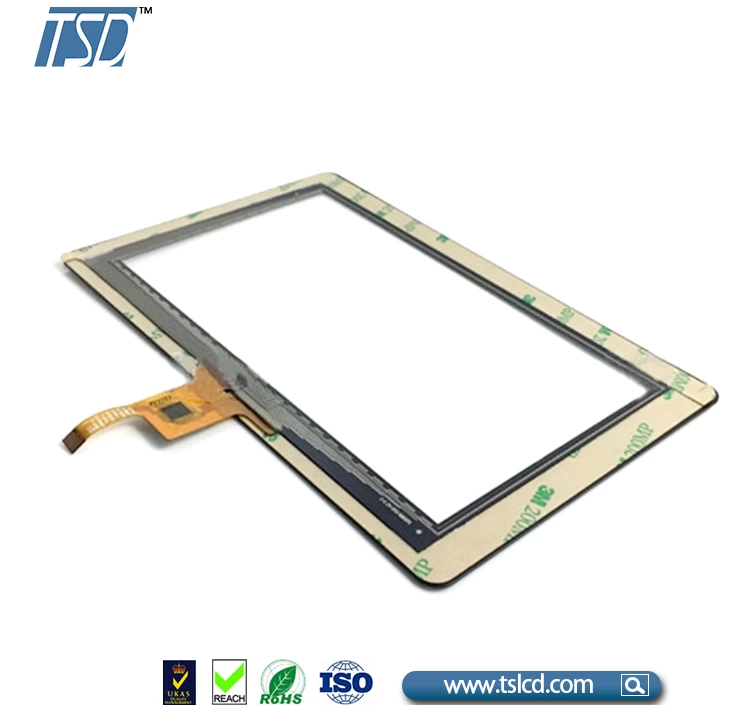

Standard CTP Spec. for 7.0"
|
Touch panel Size
|
7.0
|
|
Outline Dimension(OD)
|
190.08*121.92mm
|
|
Product Thickness
|
1.6mm(max)
|
|
Glass Thickness
|
0.7mm
|
|
Ink View Area
|
154.82*87.1mm
|
|
Sensor Active Area
|
154.82*87.1mm
|
|
Input Method
|
5 Fingers
|
|
Activation Force
|
Touch
|
|
Surface Hardness
|
≥6H( 750gf)
|
|
Interface
|
I2C
|
|
Driver IC
|
FT5446
|
|
CTP PINs
|
10pins
|
We can design and customize Capacitive touch panel for you with different size, shape and Logo. Welcome to contact us for details. We would like to help you develop your project.
Customized CTP Features:
1. Touch point： Multi-touch ,can up to 10 touch points
2. Bonding: OCA bonding,3M double side bonding, commonly it is optical bonding between the sensor and cover lens.
3. Surface Treatment: AR/AF/AG coating available
4. …
Custom Process:
Confirm specific requirements → pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
Lead time for custom LCD:
drawing making:2-5days
tooling and samples: around 3wks
