Thermal Insulated Corrugated Rockwool Sandwich Roof Panel

Rockwool roof sandwich panel performance full as the unique properties of rock wool material, with high effect for fire-resistance, thermal insulation, acoustic insulation and other aspects.



Characteristic:

1.Fire-resistance: Uses raw materials, production process and formulation, rock wool sandwich panel has good fire-resistance. Tests showed that it has over 1000 ° C fire resistance.


2.Thermal insulation:The sandwich thermal insulation performance based on rockwool thermal conductivity=0.043W/,testing according to corresponding proportion thickness rock wool the calculation obtained.


3.Acoustic insulation : At the same time, the rockwool sandwich panel performed with good acoustic insulation, it absorb sound within a relatively wide frequency range. According to ISO 35/85 standard, acoustic performance level of rockwool sandwich panel meets DELTA LA=15.7Db(A)

Specifications:

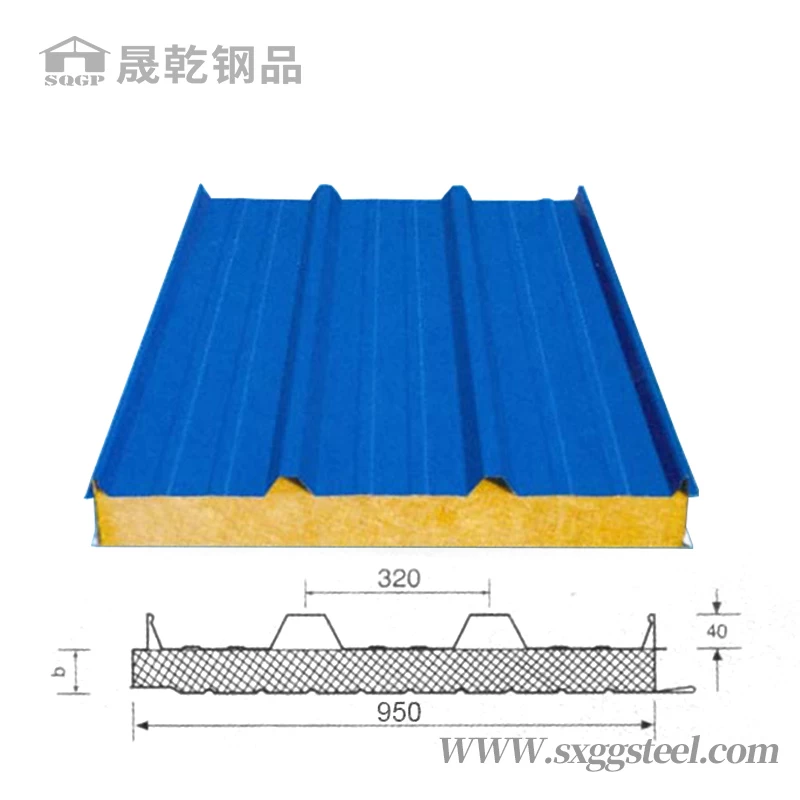

Width:

Wall panel: 950mm 1150mm ;      Roof panel: 950mm

Length:

According to customer' s request

Material:

Rock wool, Color steel sheet

Structure:

Upper and lower layer: Color steel sheet

Core material: rock wool

Treatment:

Pressing

Thickness:

Color steel sheet: 0.3-0.6mm
Rock wool board50mm 75mm 100mm 150mm 200mm

Density:

80~120kg/m3 Rock wool

Life Period:

15-20 years

Package:

PVC foil

Usage:

various roofs and walls referring to the large size industry factory, storages, exhibition halls, gymnasiums, outdoor shelter etc.
