HCET-C thermal protector for electric blankets
HCET-C series is thermal protector with bimetal element.When HCET-C temperature thermal protector working, the bimetal element is in a free state, the moving contact and the static contact piece are closed, and the circuit is turned on. When the electrical appliance is heated for some reason and the temperature rises to the rated operating temperature value of the product, the bimetal element is heated to generate internal stress and resist rapid action, push the moving contact piece to disconnect the contact, cut off the power supply, and stop the electrical appliance from working, so as to play a thermal protection role.HCET-C widely used in pet pads, electric blankets, car seat cushions and so on.
Features
Small size, long life and high reliability.
100% snap action.
Both temperature and current sensitive.
The enclosure is sealed and waterproof.
The type of cut off is optional and customized.
Specifications
|
Item No.
|
HCET-C
|
|
Electrical specifications
|
20 amps/16 volts DC
|
|
15 amps/250 volts AC
|
|
20 amps/125 volts AC
|
|
18 amps/125 volts AC
|
|
Operating temperature range
|
10°C to 180°C
|
|
Temperature Tolerance
|
± 3°C, ± 5°C
|
|
Case material
|
Plastic
|
|
Case size(mm)
|
20.8*36*6.5
|
|
Wire
|
Optional and customized
|
Applications
 |
 |
 |
 |

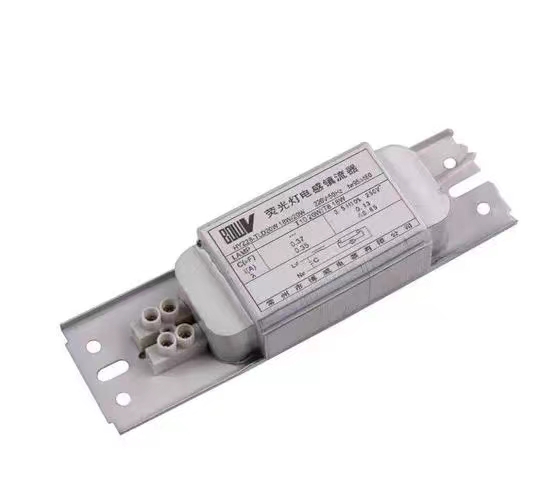

| Ballasts |

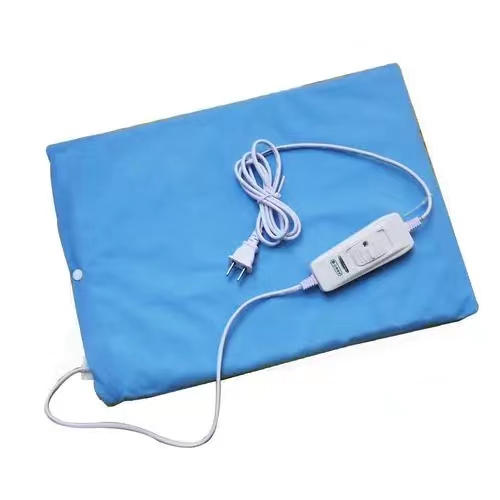

Electric blankets |
Electric heating cushions |
Electric heating suits |
 |
 |
 |
 |

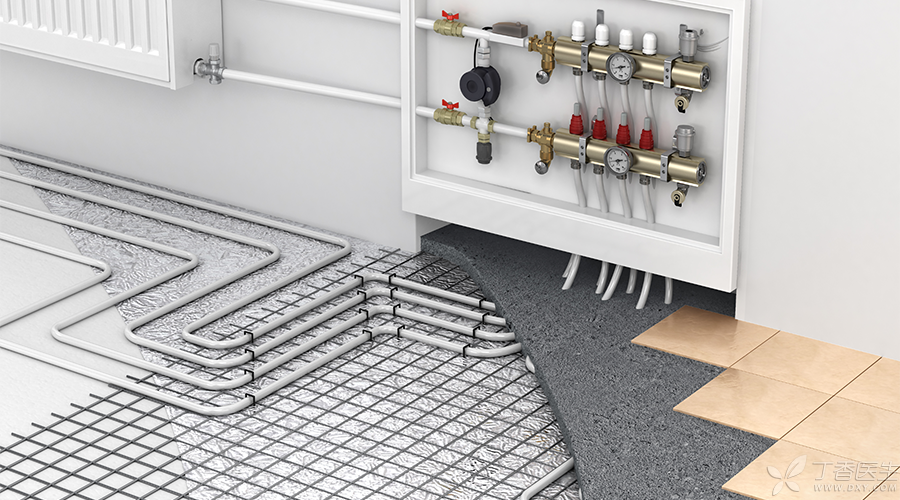

| Floor heating |
Medical pads |
Pet pads |

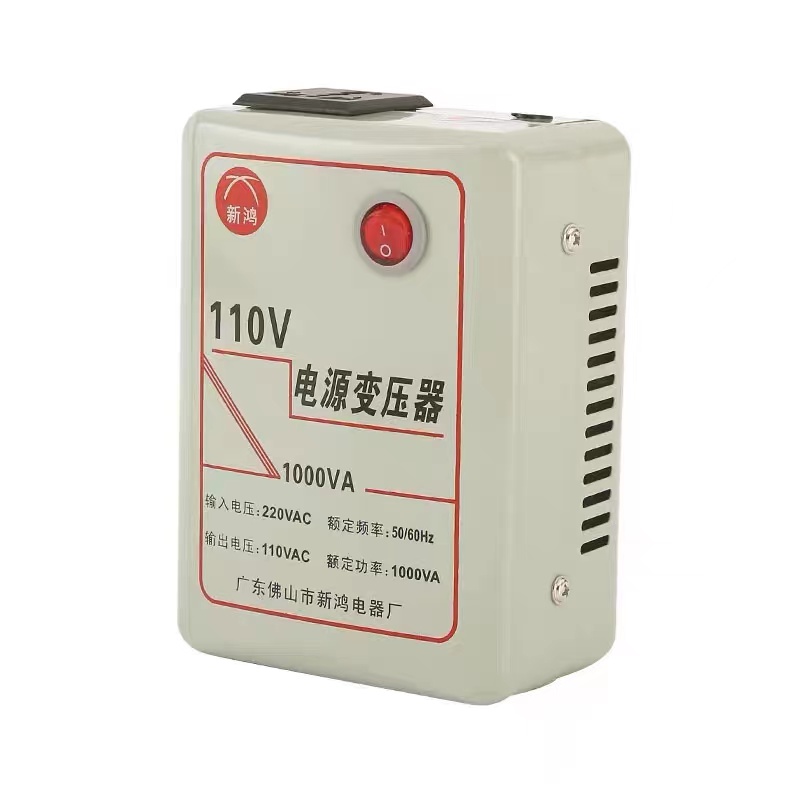

Transformers |

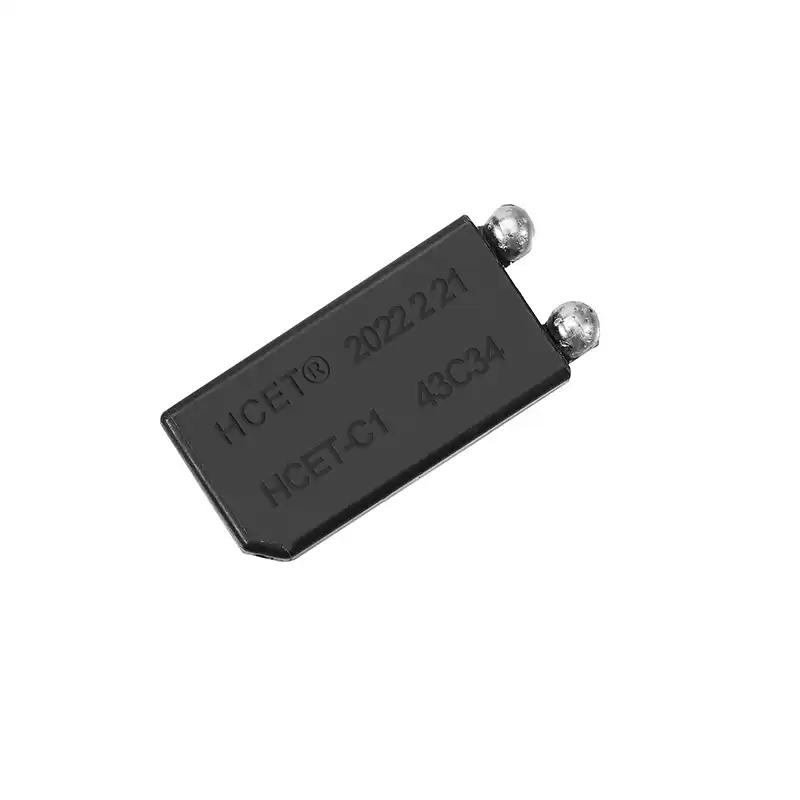

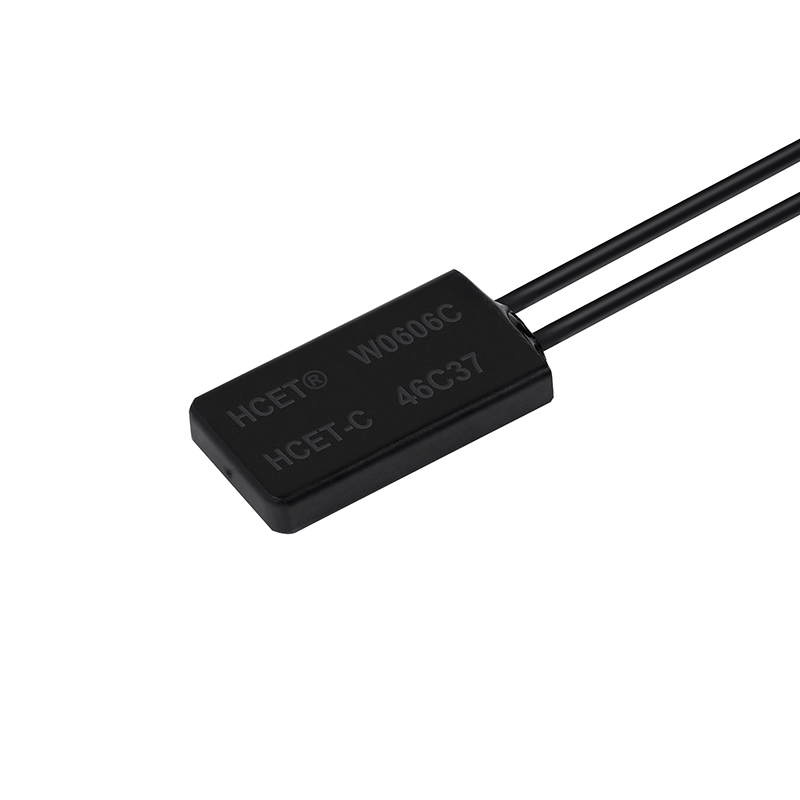

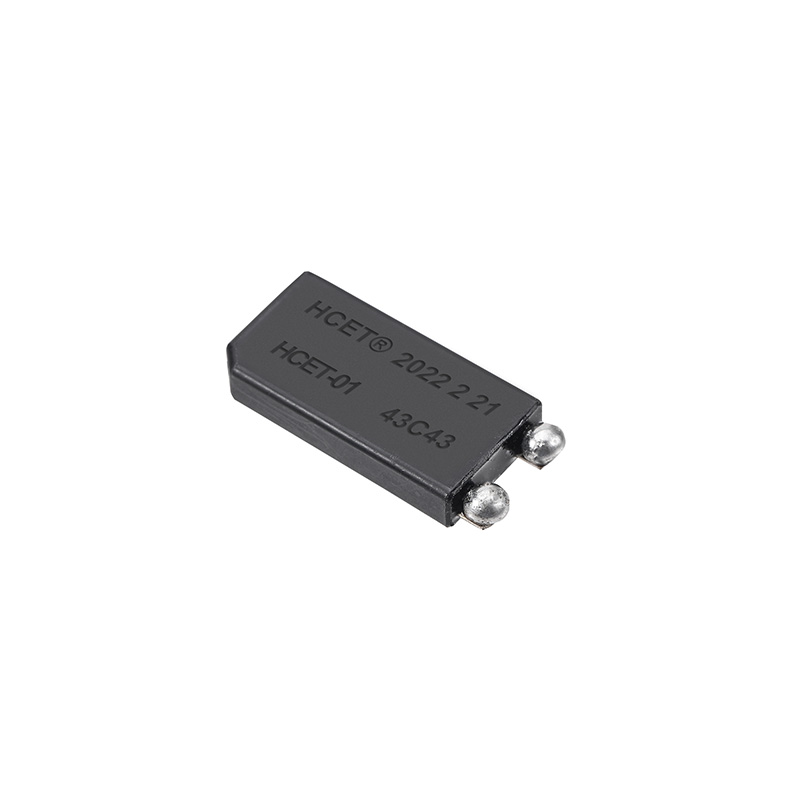

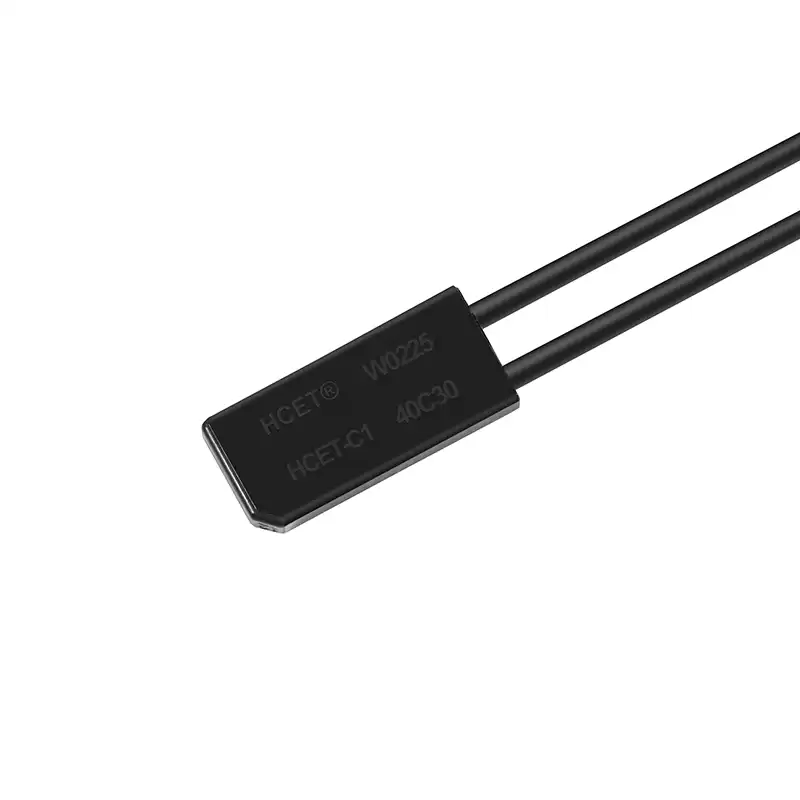

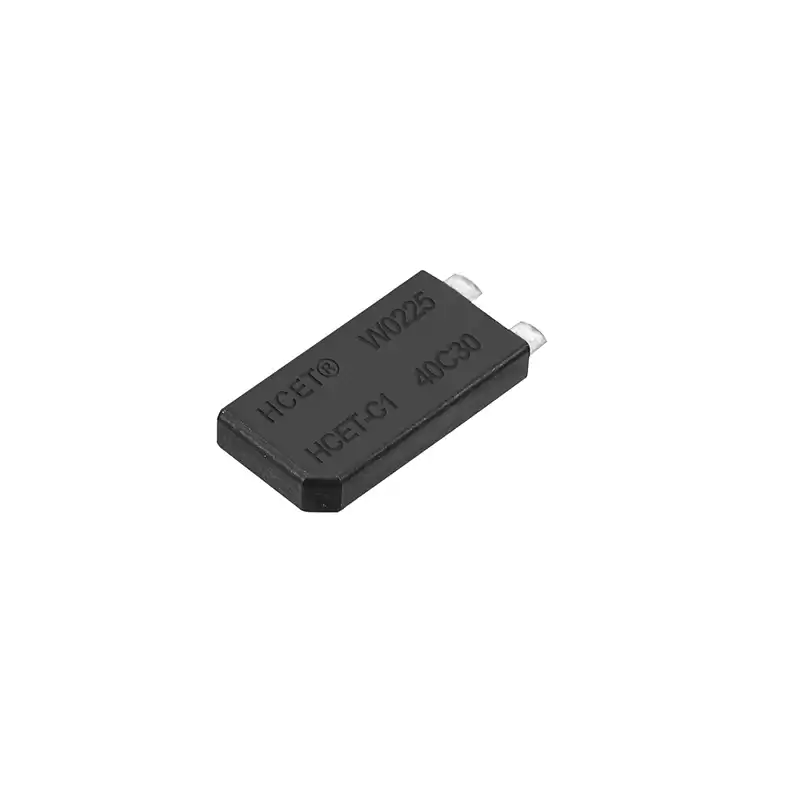

Product display

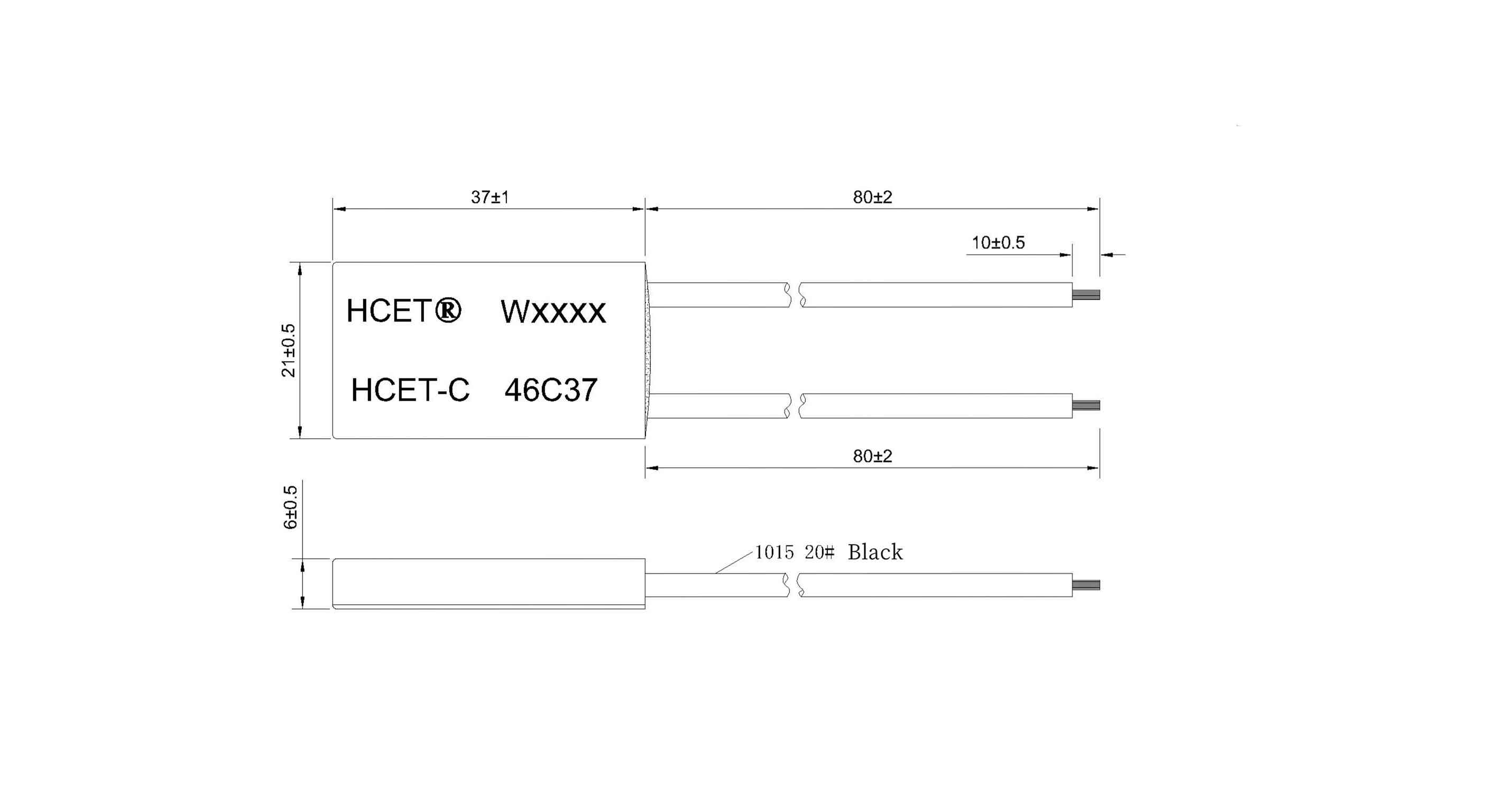

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.

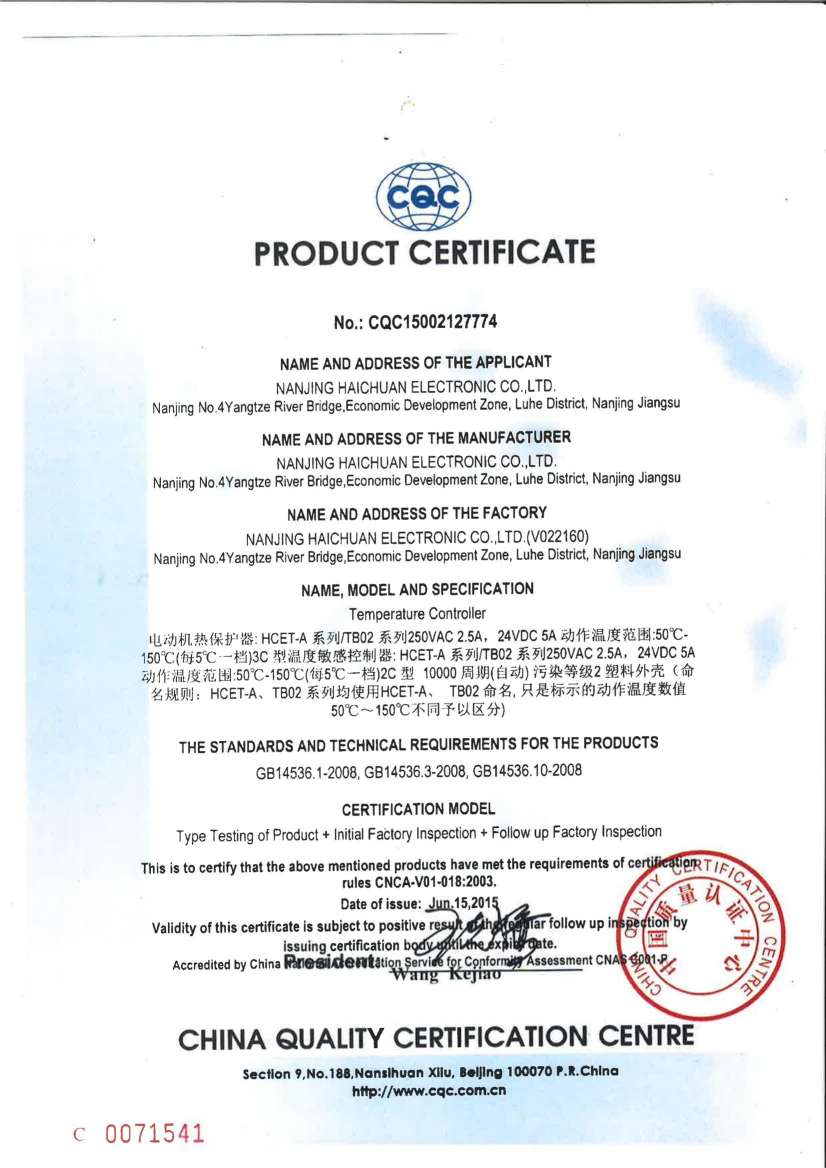

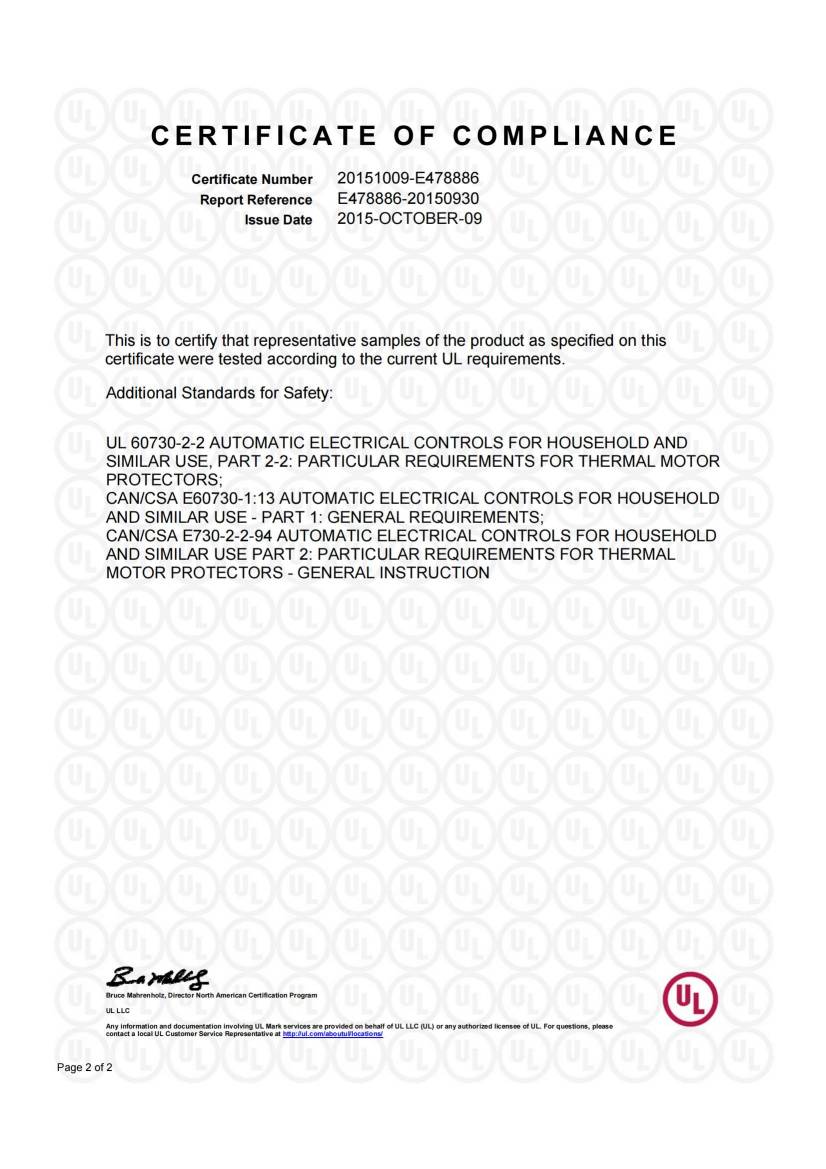

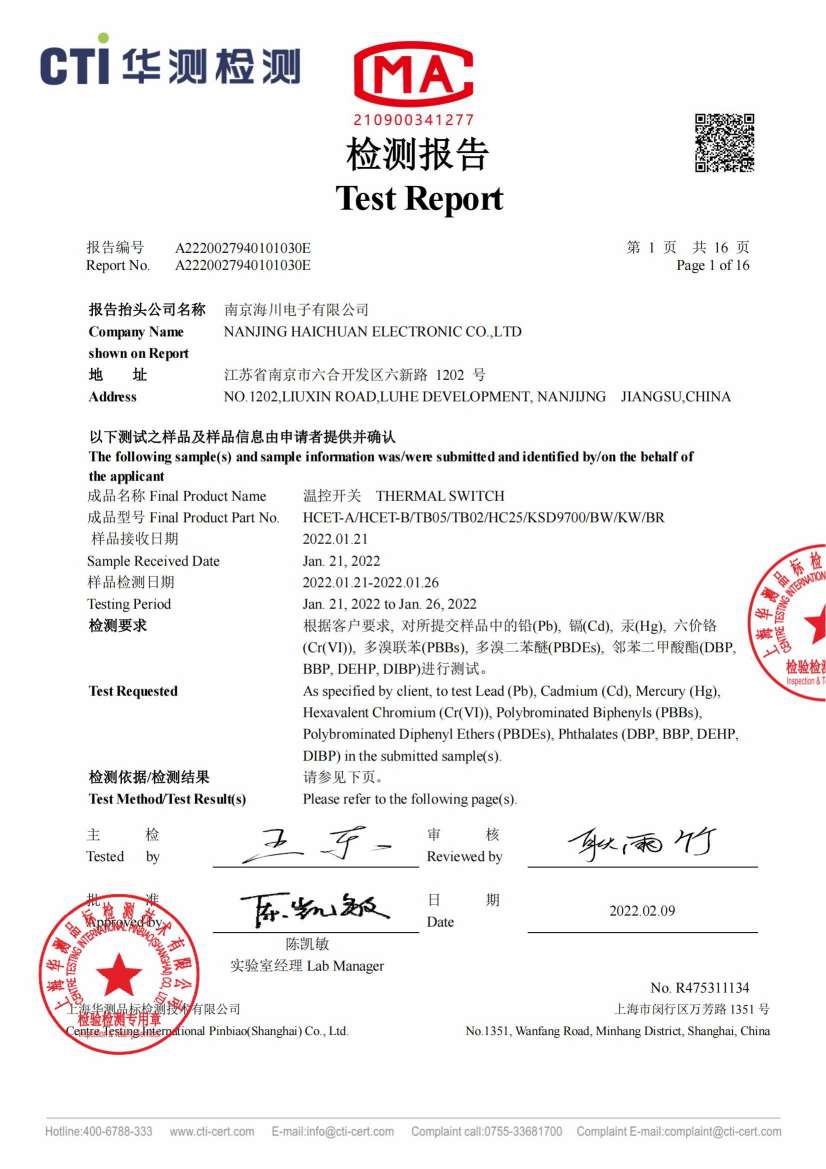

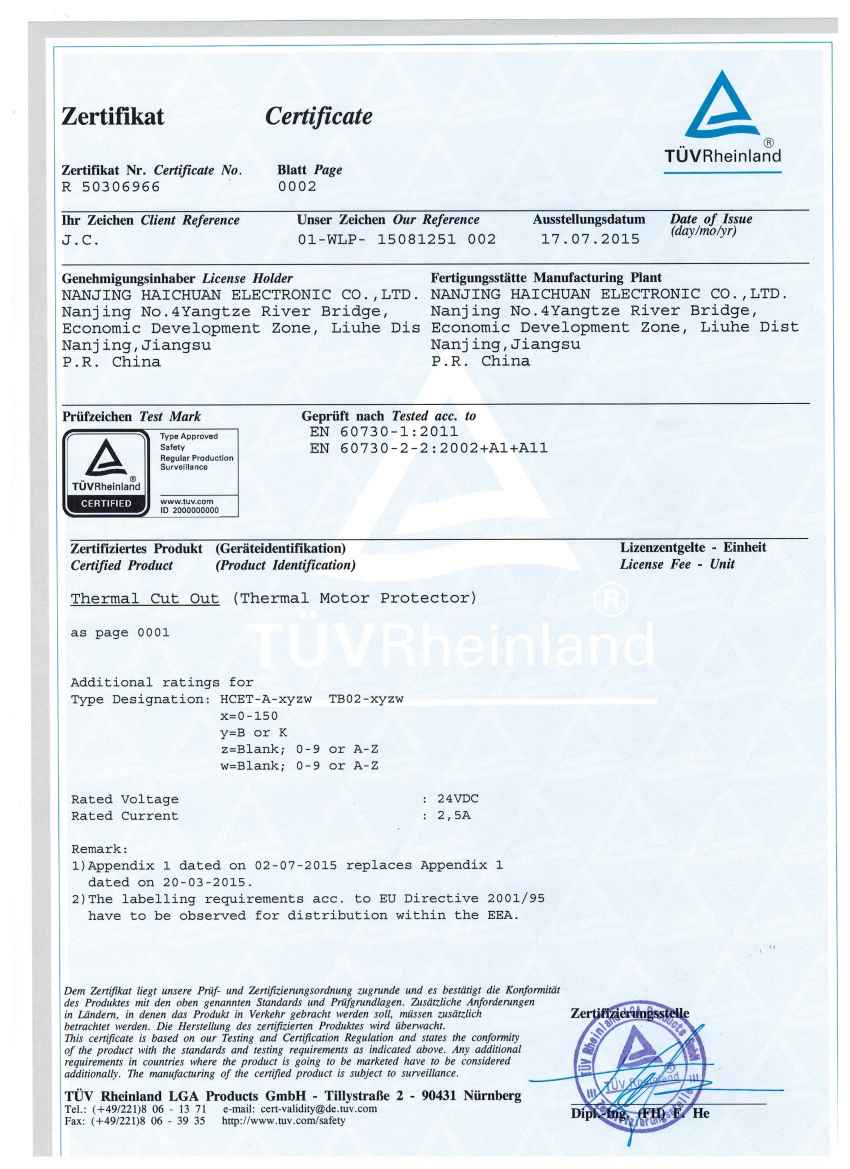

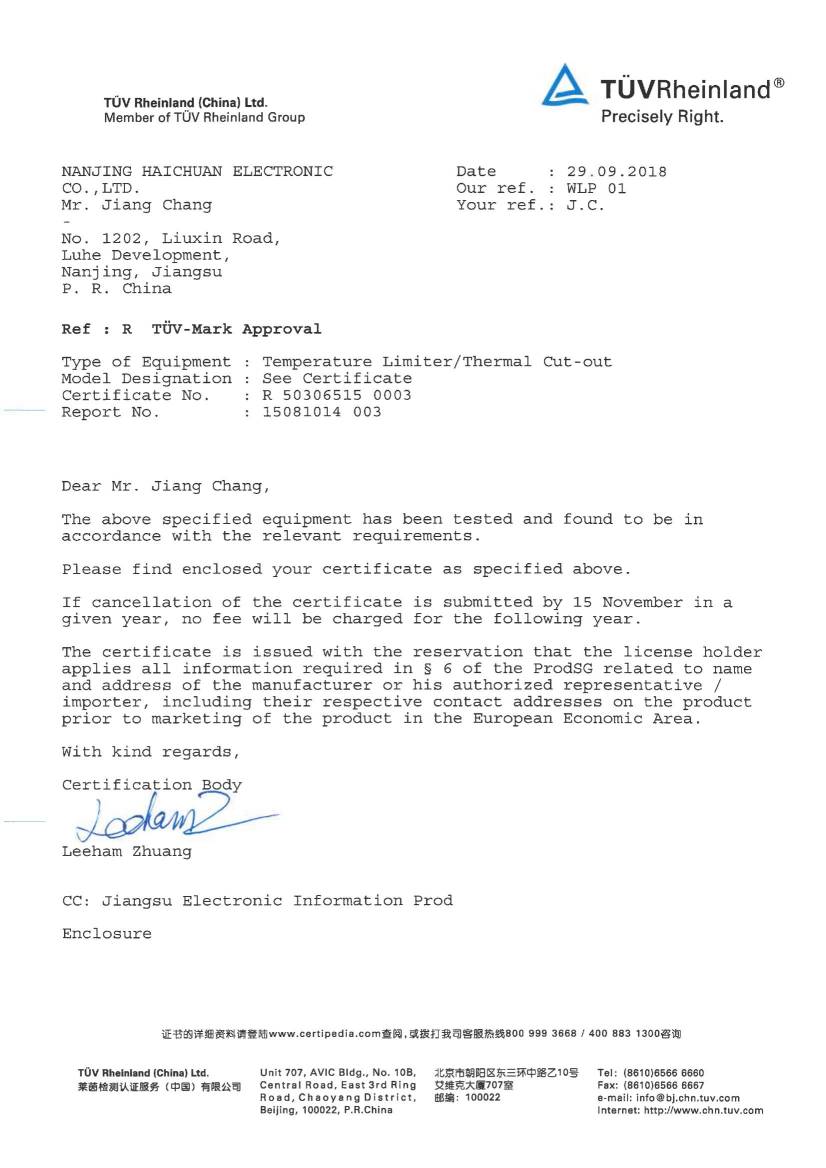

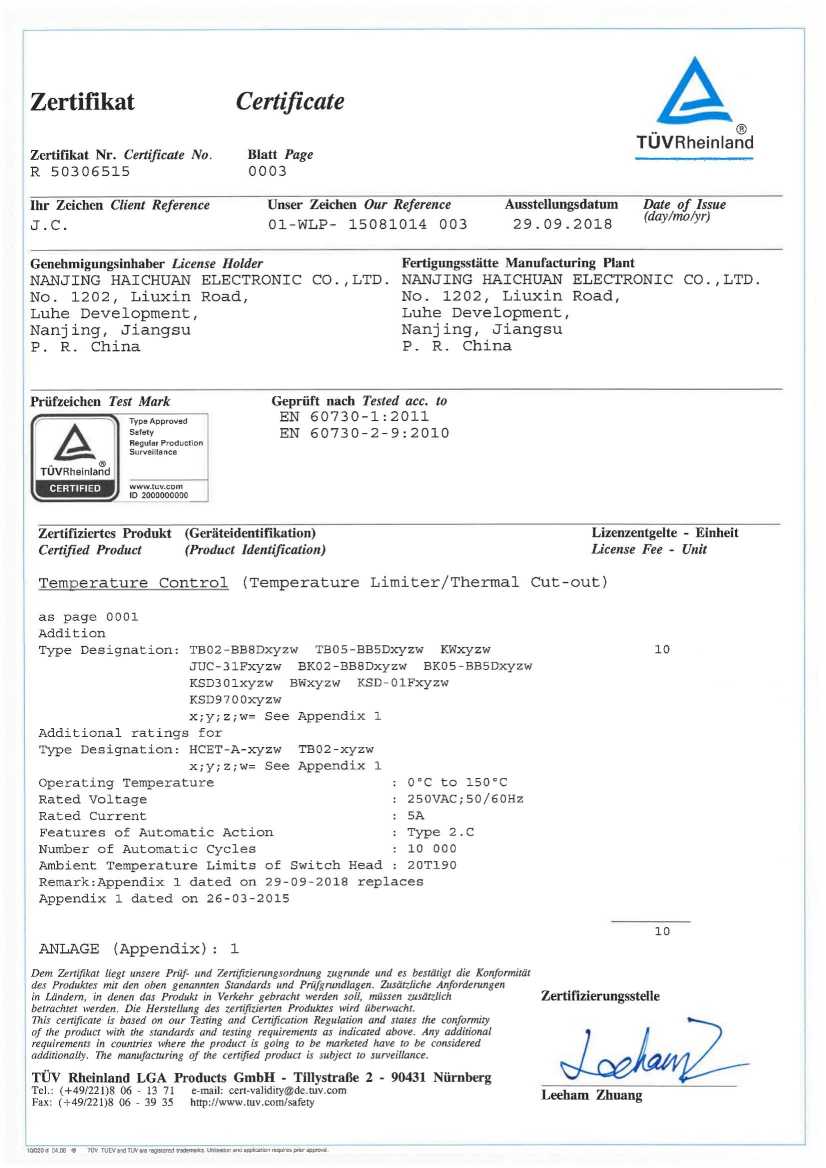

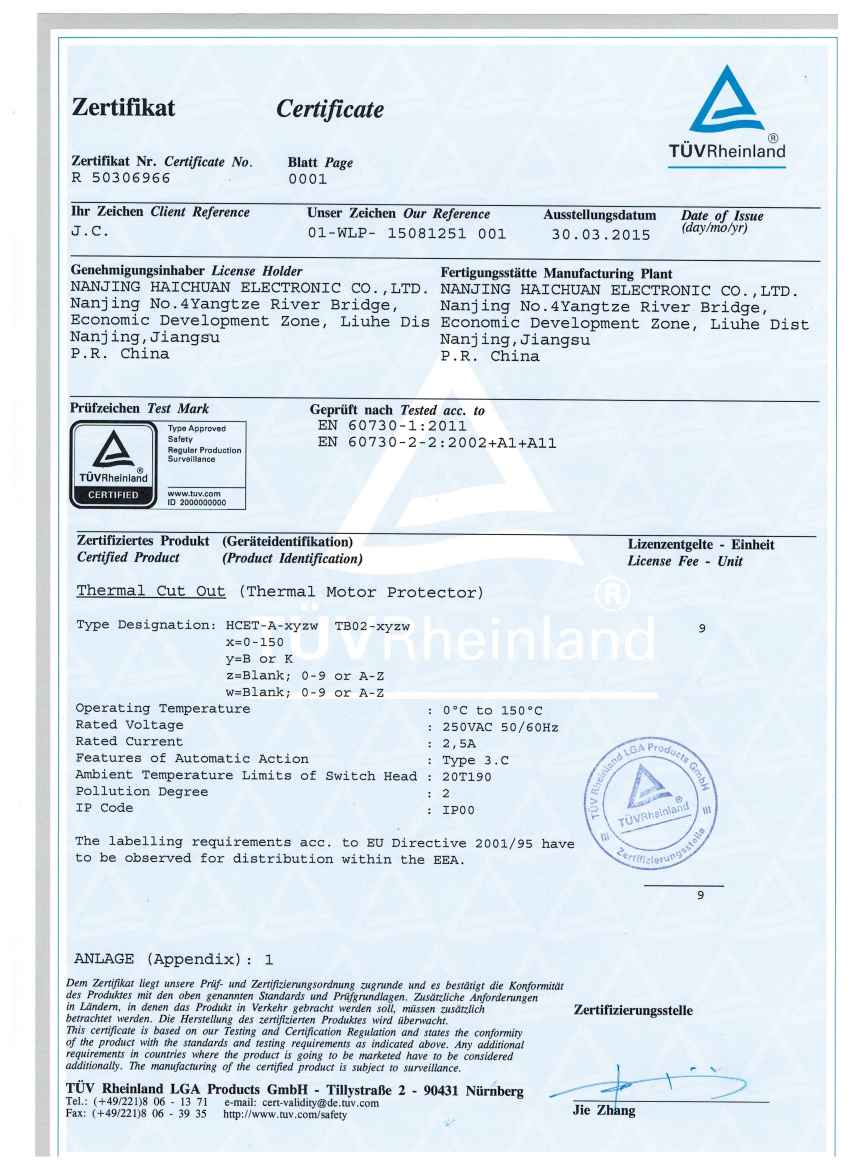

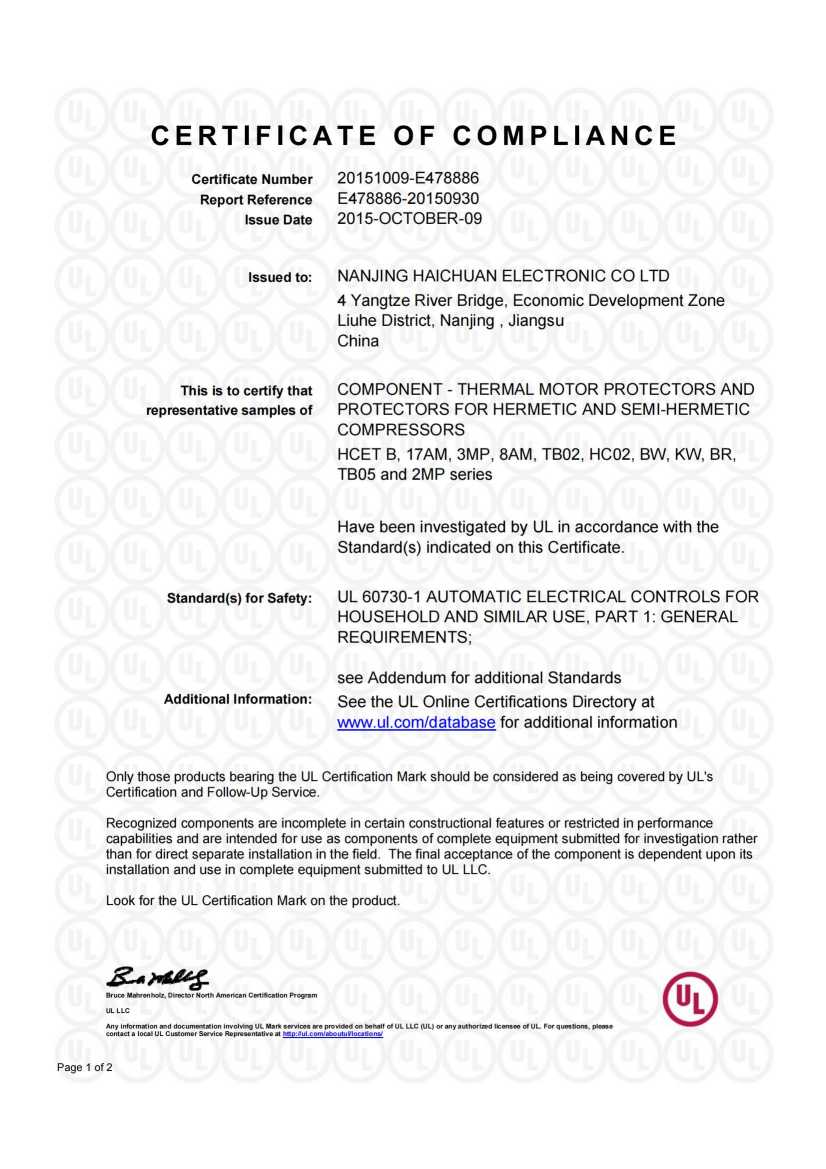

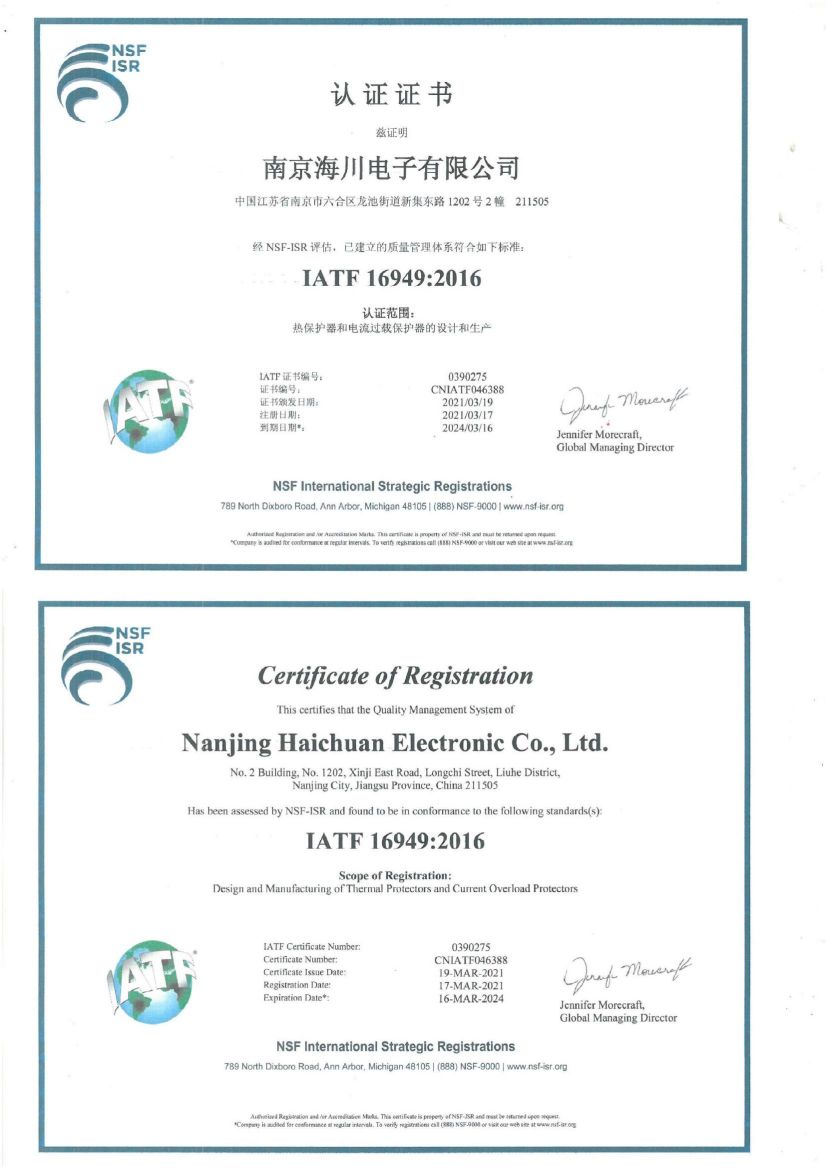

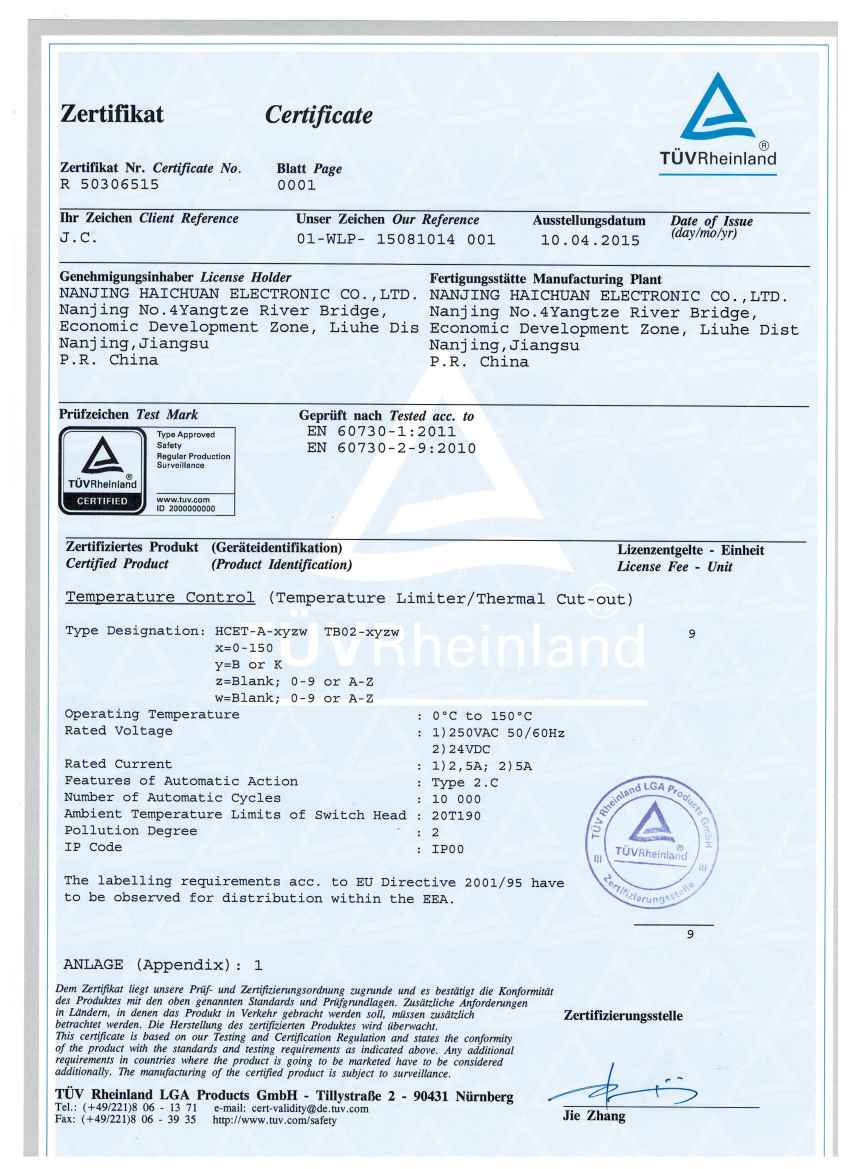

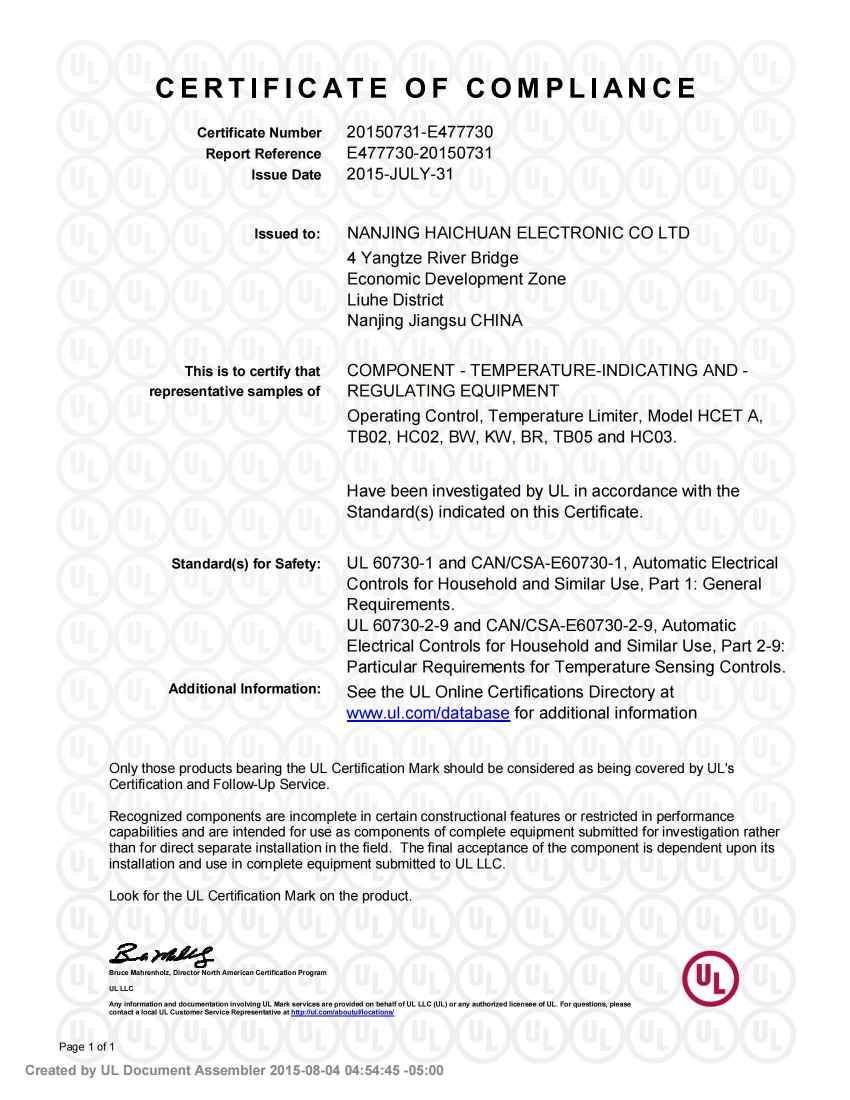

Certificates
Nanjing Haicheng Electronic Technology Co., Ltd. is a national high-tech enterprise which has passed the ISO/TS16949 quality management system certification. It has a number of independent patents, and its products have passed the UL, TUV, CQC, PSE multinational international safety regulations certification.
