Thermal protectors for lighting fixtures and ballasts

17AM series thermal protector is a both temperature and current sensitive protector. It has a small size but high capacity,widely used in lighting fixtures and HID ballasts.



17AM thermal protector for lighting fixtures and HID ballasts



17AM thermal protector switch is widely used in lighting fixtures and HID ballasts.Regarding the overheating protection method of HID ballast,the simplest one is to install a temperature switch in the ballast circuit,and detect the temperature of the HID ballast through the temperature switch.If the temperature is too high, the temperature switch will disconnect the circuit and stop the power supply.When the ballast returns to normal temperature,the temperature switch is automatically closed and the circuit is re-energized.



Features

Small size design.

Temperature is 100% calibrated.

Snap action.

Both temperature and current sensitive.

Types and length of wires are optional.

Multiple terminals are available.

100% comply with ROHS.



Specifications

Item No.

17AM

Electrical specifications

20 amps/16 volts DC

10 amps/250 volts AC

20 amps/125 volts AC

Operating temperature range

50°C~180°C

Temperature Tolerance

± 3°C, ± 5°C

Case material

Metal

Case size(mm)

24.2*9.5*4.5

Wire

Optional and customized



Applications

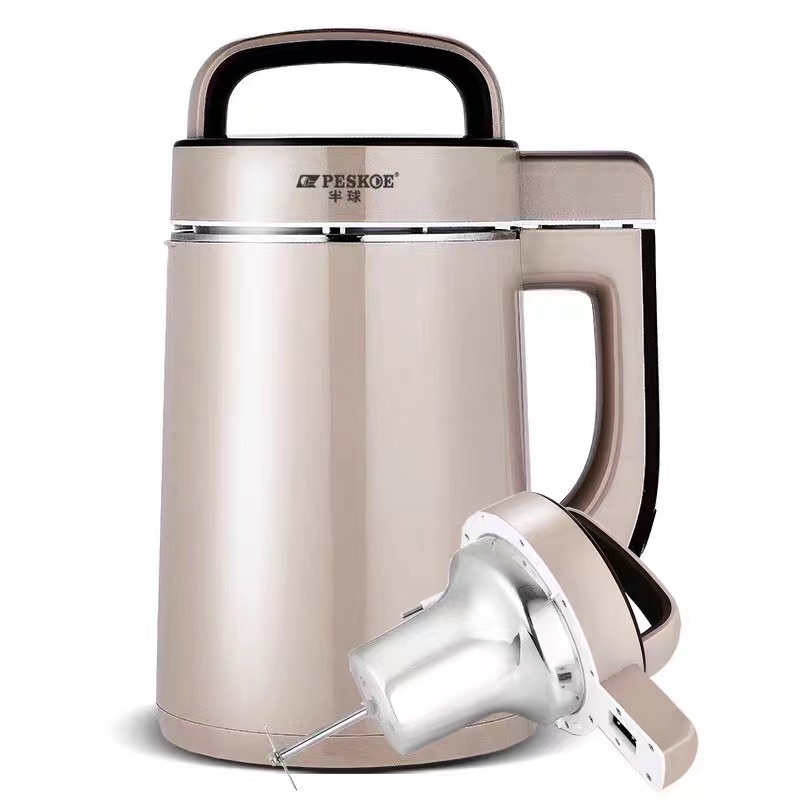

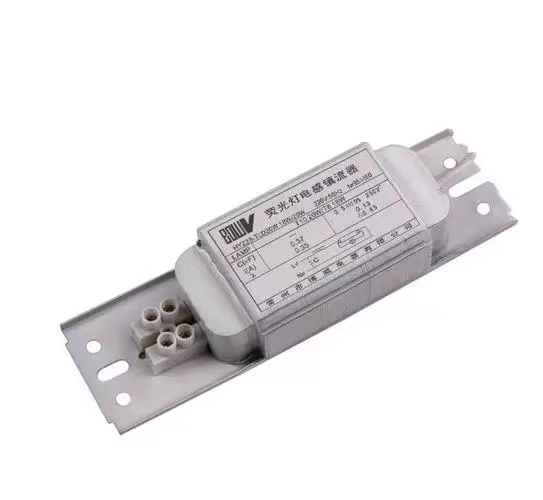

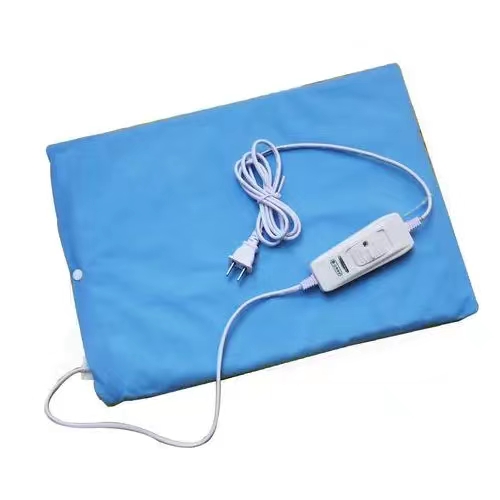

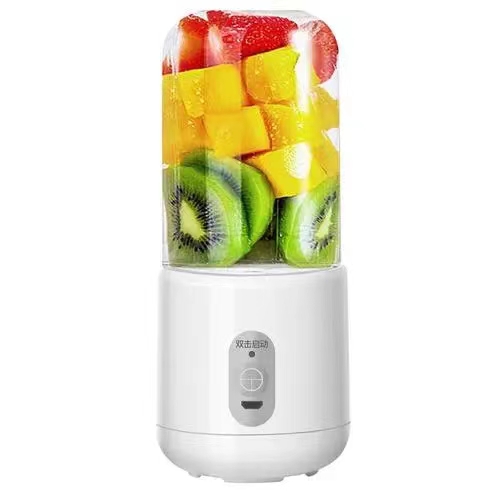

Ballasts Heating pads Juicers Soybean milk machines

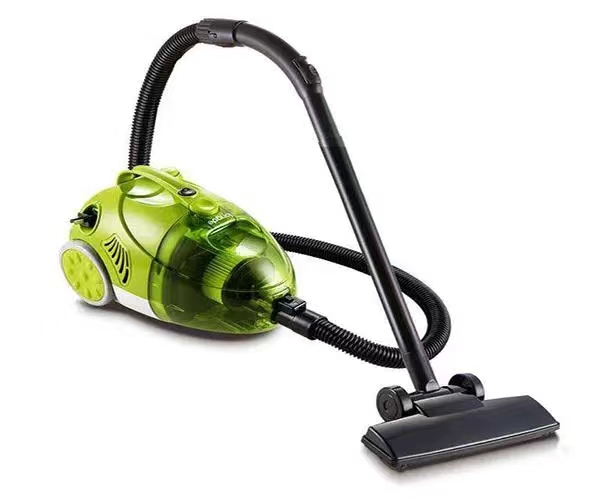

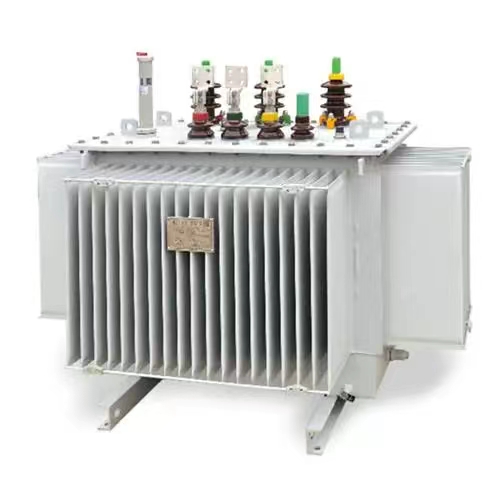

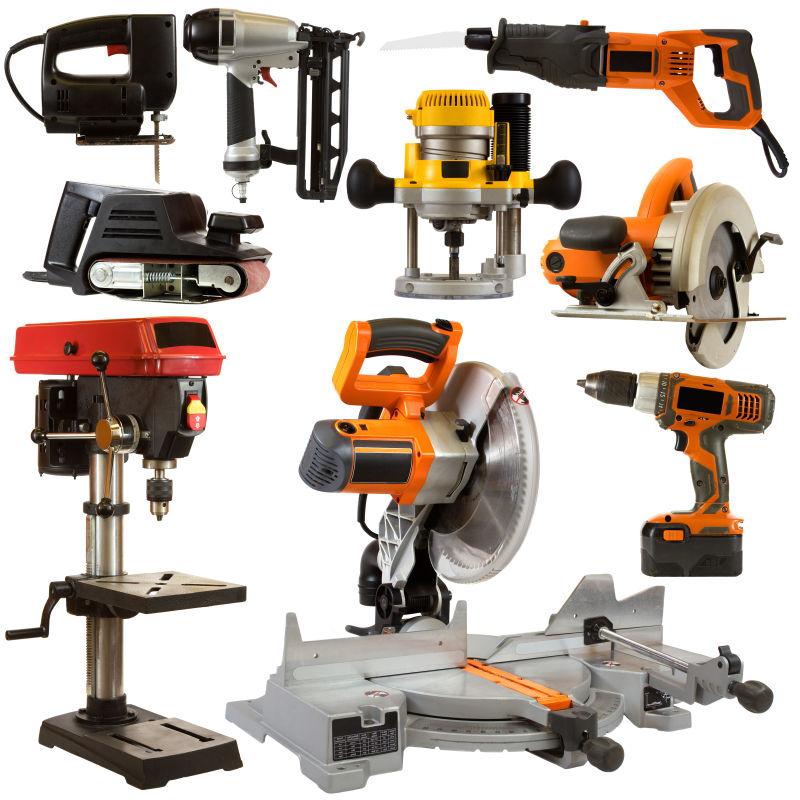

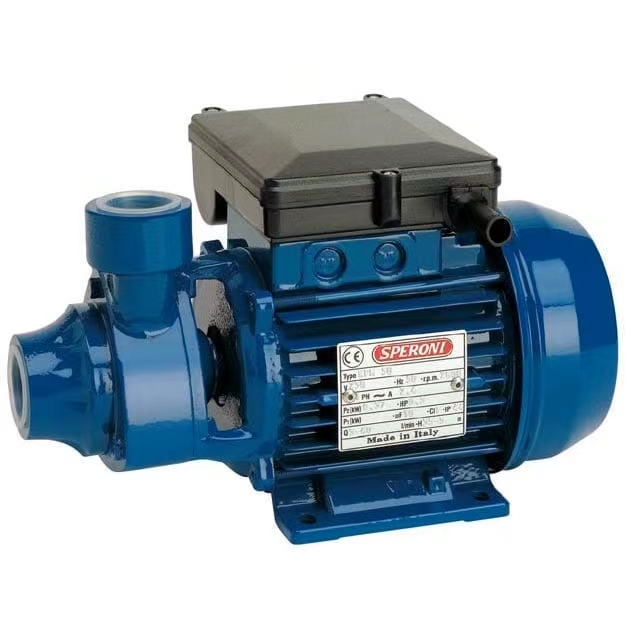

Transformers Vacuum cleaners Water pumps Electric tools

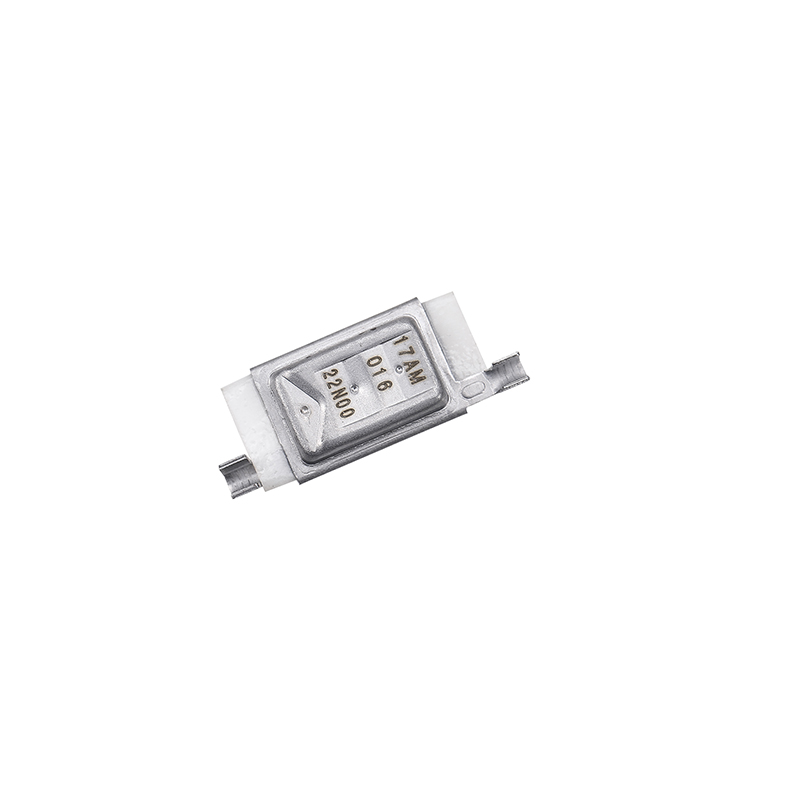

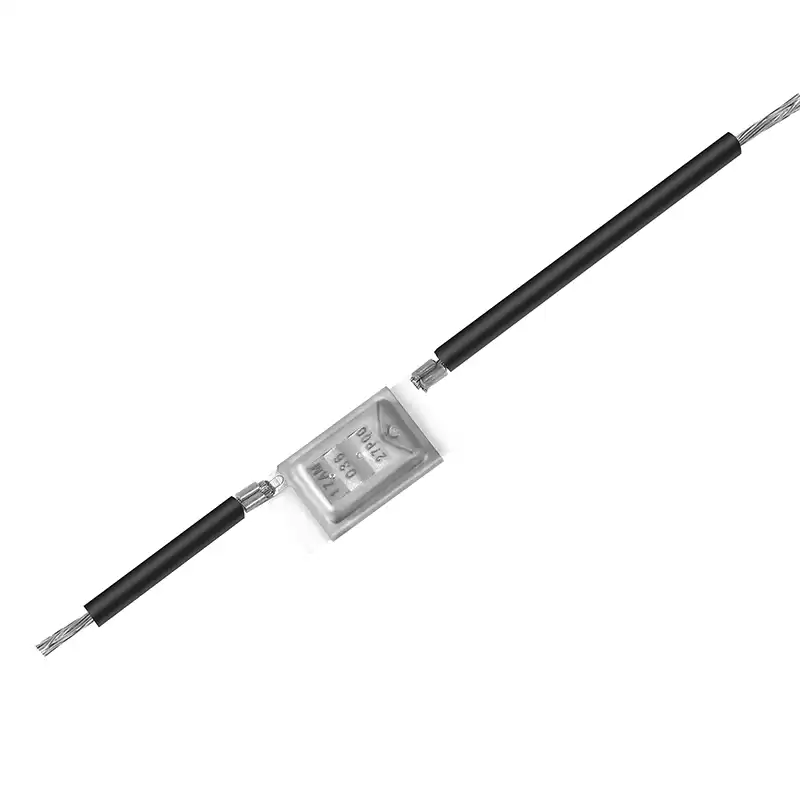

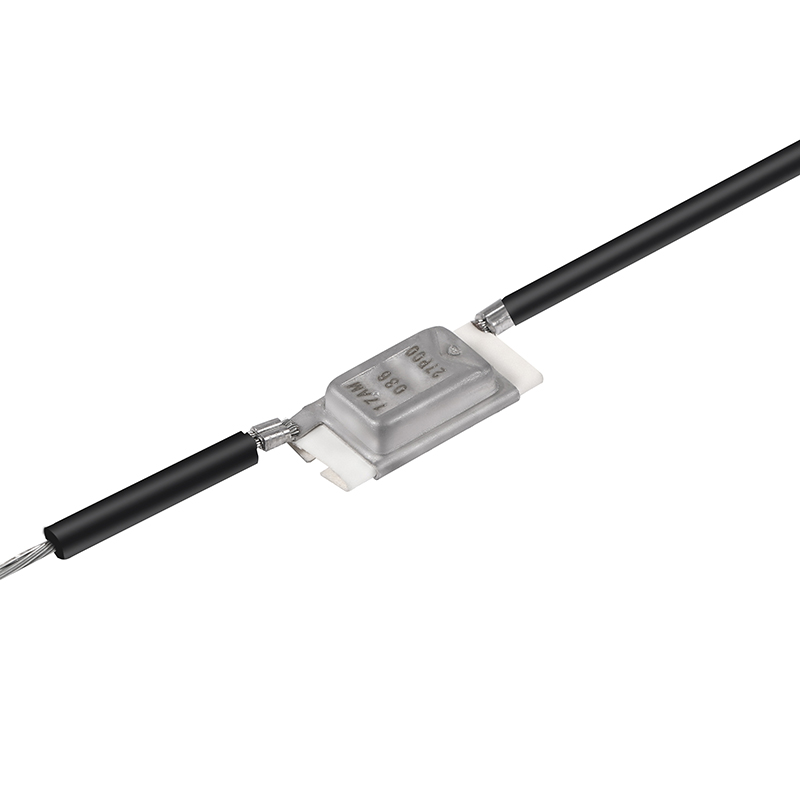

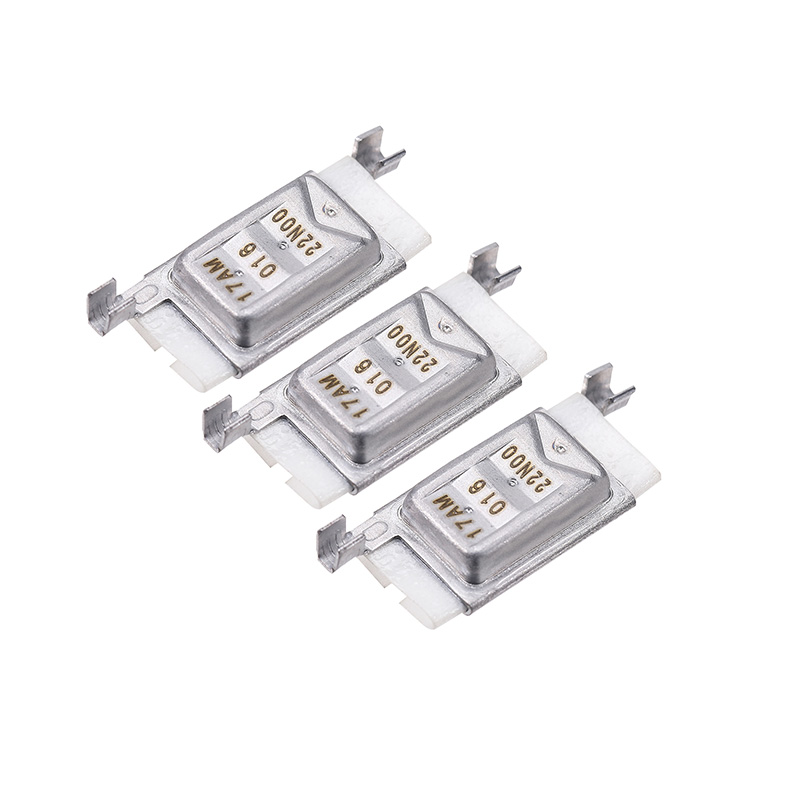

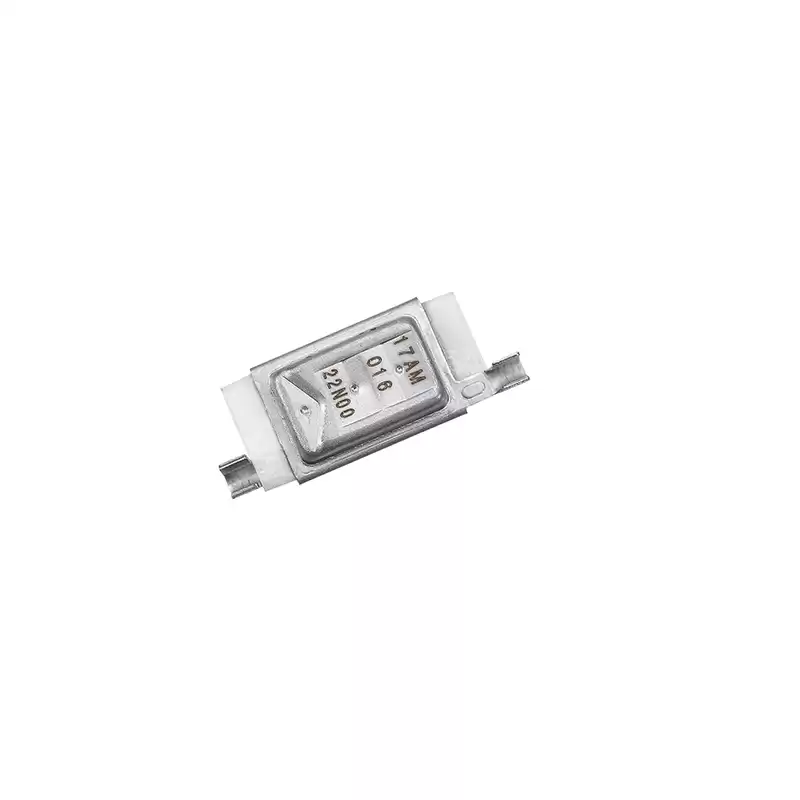

Product display

17AM motor thermal switchoverload thermal protectors

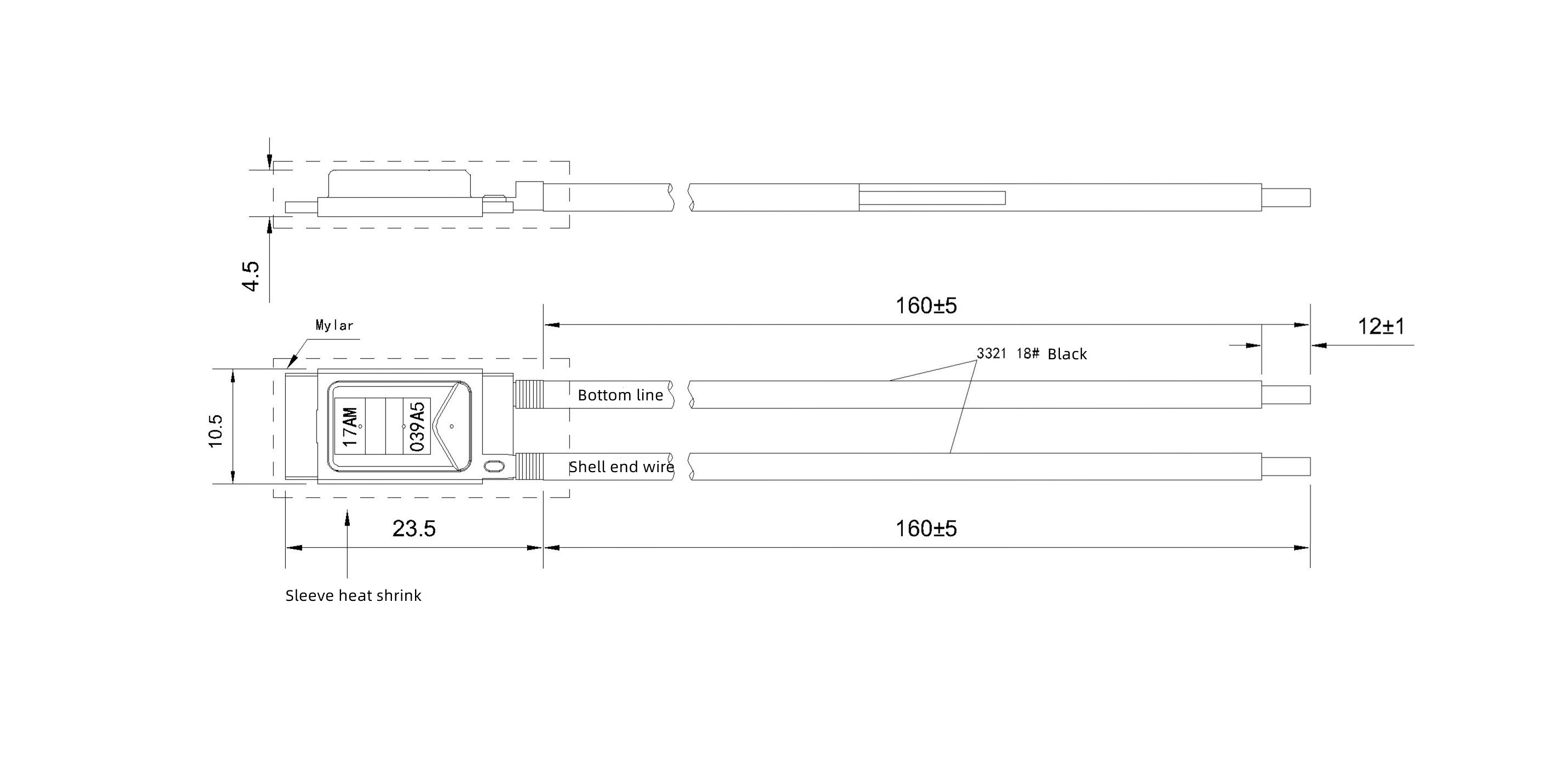

Size details

Thermal protector for household applications

Packing & Delivery



Packing:

Packed in standard export cartons.

If you have special packing requirements,please feel free to discuss with us,thank you.

Delivery time:

Delivery time for small orders:7-15 days.

Delivery time for special requirements orders:15-30 days.

FAQ



Q:Are you a product supplier or a factory?

A:Yes, we are a factory. Located in Nanjing, Jiangsu Province. We've been making them for 12 years.

Q:How can I get a free sample?

A:We can provide 5-10 pcs samples for free, but the overseas shipping cost will in your side.

Q:What is the shipping term of bimetal thermal protector?

A:The bimetallic thermal switches we produce are all small size, so the mode of transportation should be subject to the order quantity. For a single order of more than 50,000 pieces, sea transport is the most economical option.If the order quantity of thermal switches is less than 10000 pieces each time, express delivery is the best way, because the weight of 10000 pieces will be less than 50Kg, which is the minimum order quantity of air freight. If the quantity is between 10,000 and 50,000 PCS,express or air transport can be chosen freely according to the weight of different thermal switches.

Q:What parameters should I provide when I want to buy a thermal protector?

A:If you want to buy a thermal protector, please prepare these parameters:

1. Rated voltage, rated current.

2. Operating temperature and rest temperature of thermal protectors.

3. Length of lead wire, color, type and temperature resistance.

4. Application of thermal protector.

5. Mounting requirements if needed, including dimensional requirements.
