Thickness 80um-25mm Copper Foam Cu Metal Foam For Battery Making


Introduction

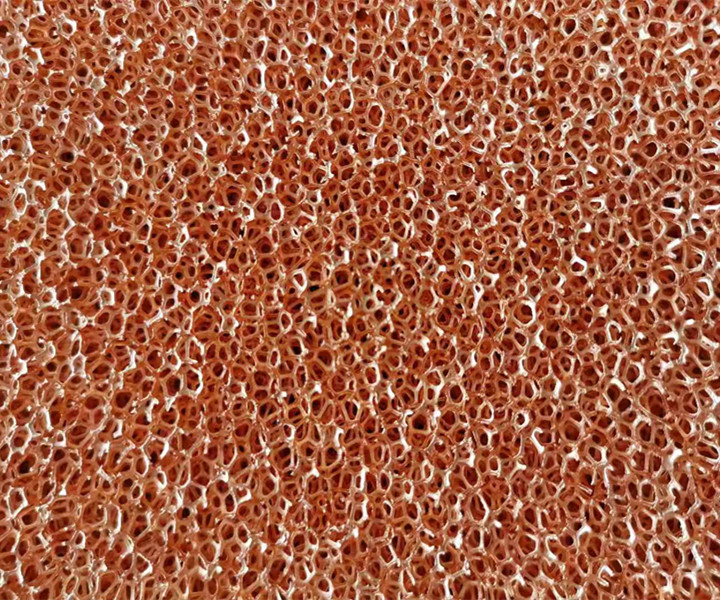

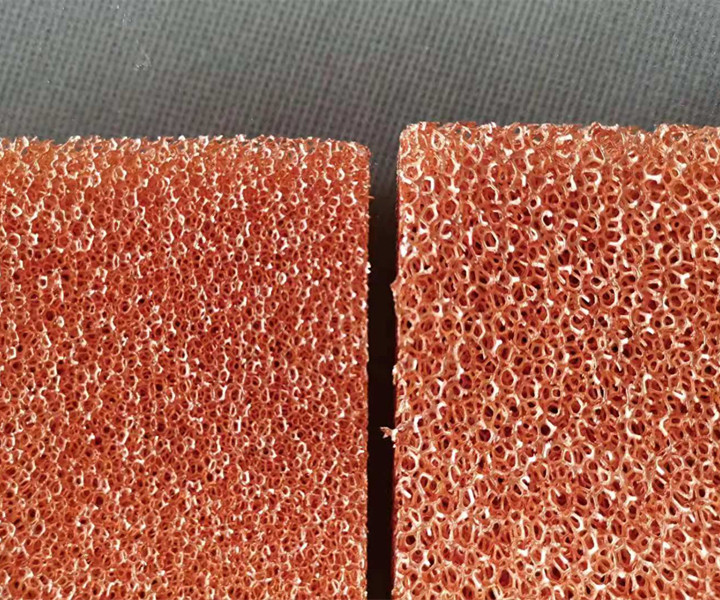

Apart from Aluminum, Copper is the most widely used material for making heat sinks, because properties of copper make it suitable for the purpose.Micro-porous copper foam is like an open cell structure, with an extraordinarily large number of interconnected pores distributed uniformly throughout the base copper material.

Advantage:

1. Copper foam  has great function of conducting heat and electricity, which can be used as the electrode substrate of lithium ion battery or fuel cell or Nickel zinc battery and electric double layer capacitor electrode material.

2. The copper foam can be also used as Heat sink materials, heat absorption materials, chemical catalyst carrier, electromagnetic shielding materials, filtration materials, damping materials, battery electrode materials, deadening, high-grade decorative materials.

Specifications

Type

Open cell

Purity

> 99%

Form

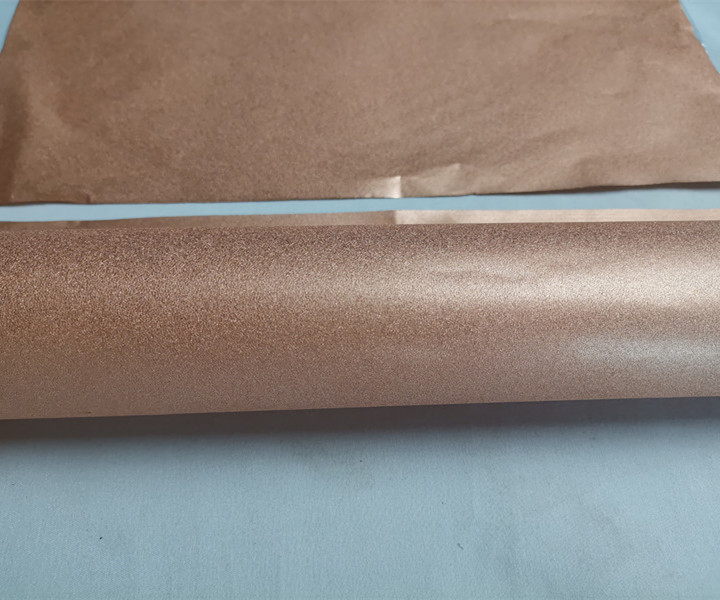

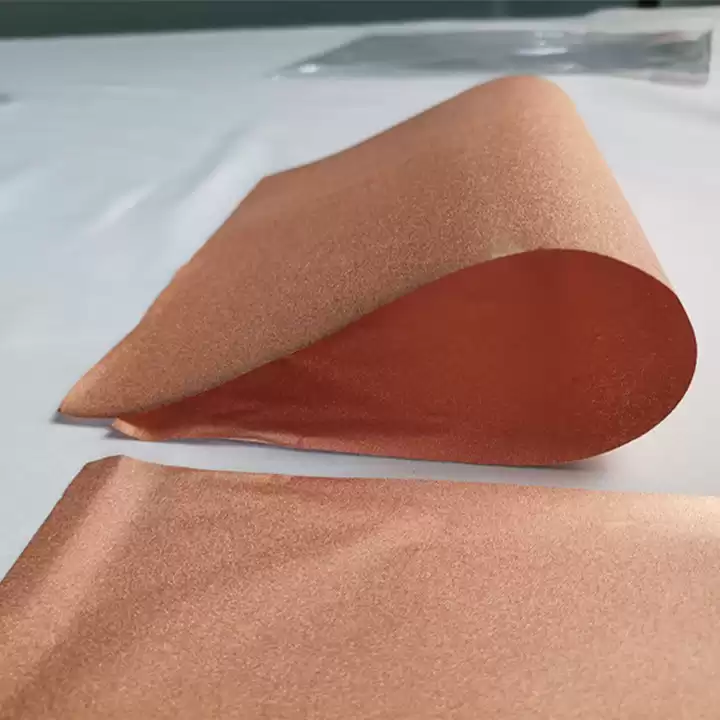

Sheet or Roll, depending on size & thickness

Cell Size (PPI)

10-150PPI, as per request

Thickness

Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request

Size & Shape

Standard: 500*500mm/ 200*300mm; can be made in different shape as per request

Porosity

95%-98%

Open Cell Rate

≥98 %

Volume Density

>0.1g/cm3, as per request

Surface Density

200-2500 g/m ^2, as per request

Thermal Conductivity (Theoretical)

>6W/M.K

Mechanical Strength (Theoretical)

≥2.5MPa

Tensile Strength (Theoretical)

5-18MPa

Dimension (Thickness* Length*Width)

80um*200mm*300mm

0.1 to 0.2mm*200mm*300mm

0.3 to 0.5mm*200mm*300mm

1mm*200mm*300mm

2mm*200mm*300mm

3 to 5mm*200mm*300mm

6mm*200mm*300mm

8mm*200mm*300mm

10mm*200mm*300mm

20 to 35mm*200mm*300mm

35 to 55mm*200mm*300mm

The size can be customized
