Thin Film Solar Clamp Frameless Solar Mid Clamp End Clamp
1. Specification of solar panel clamp
Color: Natural or Black or customized
Compatibility range: 4mm~10.5mm Thin film module
Material: Anodized Extruded Aluminum 6005-T5, A2-70 Bolt, EPDM Rubber and Stainless Steel Fastener
|
Model Number
|
Description
|
|
SFS-UTMC
|
SFS Universal Thin-Film Mid-Clamp 80mm/120mm/200mm/customized length
|
|
SFS-UTEC
|
SFS Universal Thin-Film End-Clamp 80mm/120mm/200mm/customized length
|
|
SFS-UTMCG2
|
SFS Universal Thin-Film Mid-Clamp Group 80mm/120mm/200mm/customized length
|
|
SFS-UTECG2
|
SFS Universal Thin-Film End-Clamp Group 80mm/120mm/200mm/customized length
|

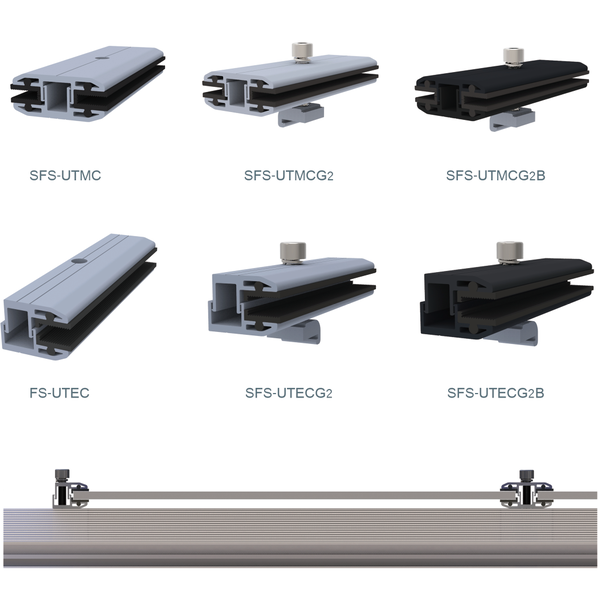

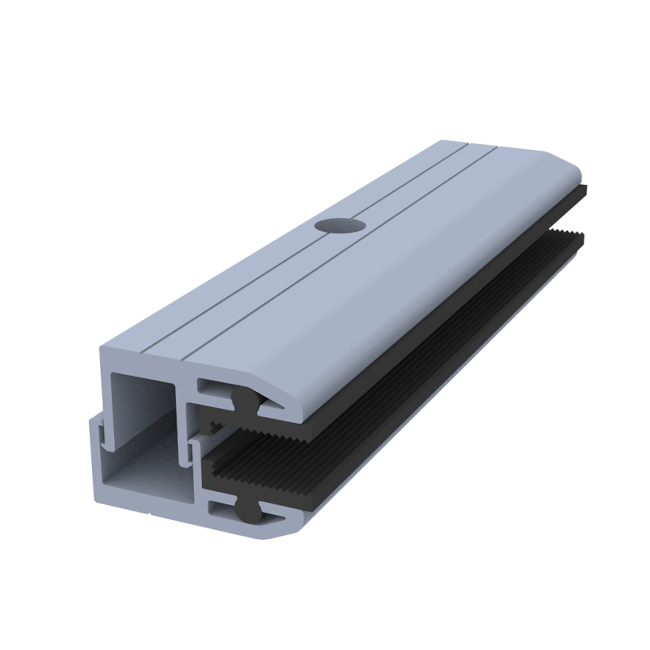

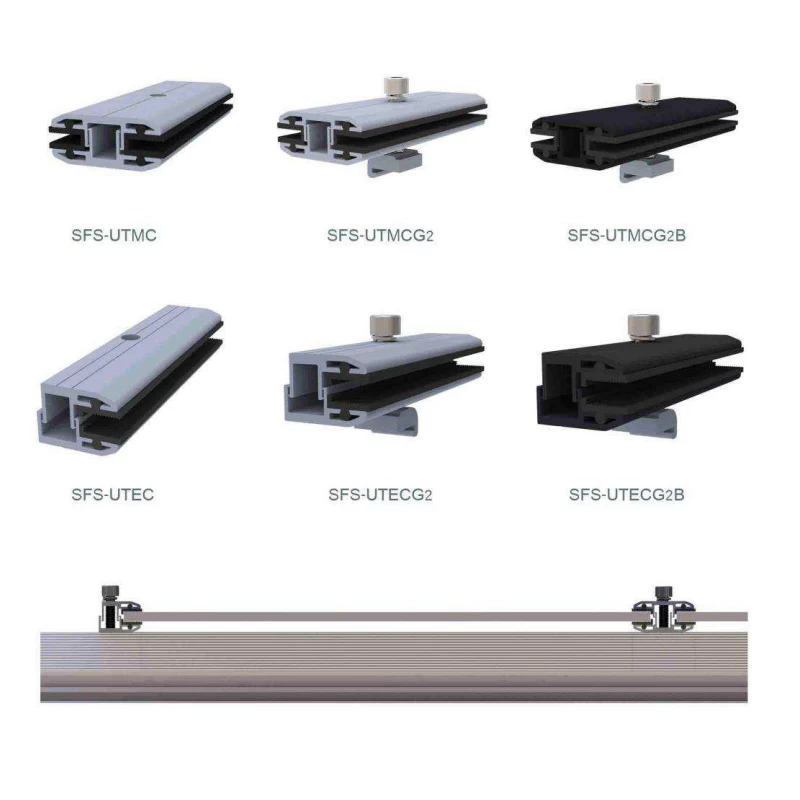

2. Photo Show of solar panel clamp

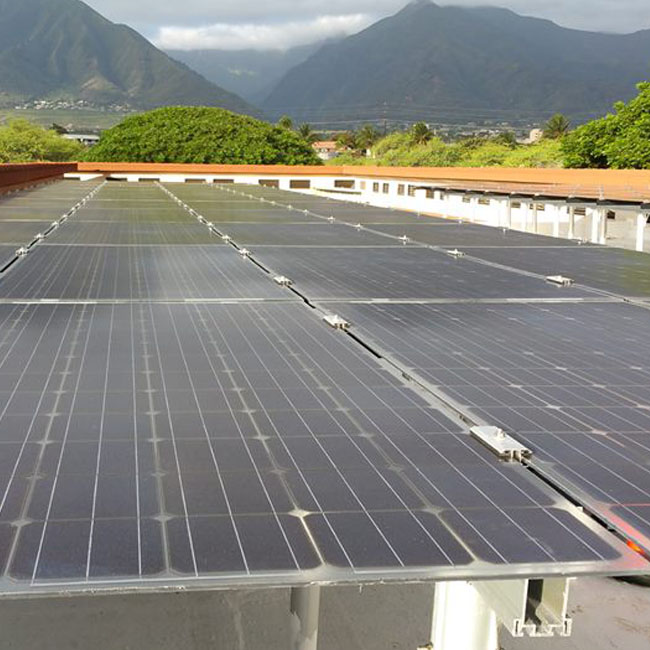

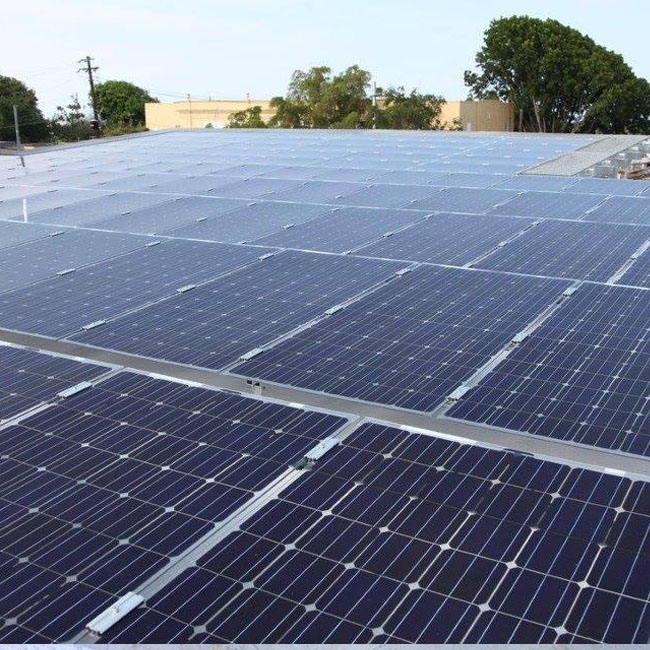

3. Project Photo Show of solar panel clamp
4. Installation of frameless solar mid clamp and end clamp
