Structure configuration：

The national standard square tube skeleton; The cover is 1.5mm iron plate spray;

Cleaning section and drying section are stainless steel shell.

Four pairs of absorbent sponge rollers adopt imported pu material to withstand high temperature, long service life;

The drive part is controlled by variable frequency motor, and the cleaning speed can be adjusted arbitrarily.

Three pairs of brush (diameter of 0.15MM imported DuPont nylon silk, natural rubber roller to ensure cleaning effect.

The temperature controller can adjust the oven temperature.

The equipment for dense drum driven design, processing area, circulating water cleaning glass once completed.

Can be customized according to the customer's cleaning requirements 1 section 2 or 3 sections of cleaning

Technical requirements:

Cleaning and drying of glass (0.5-5mm)

The effective cleaning width is 580mm

Basic parameters:

Glass size range：30×30 — 580mm

Heating rod 6kg, four fans 0.8kw

Continuously variable transmission: 0.75kw, 380v (stepless speed regulation)

Water pump: 0.25Kw, 380v

Gear motor: 0.75kw,380v

Weight: 600kgs

Dimension: 2000*1200*1000mm

Direction for use

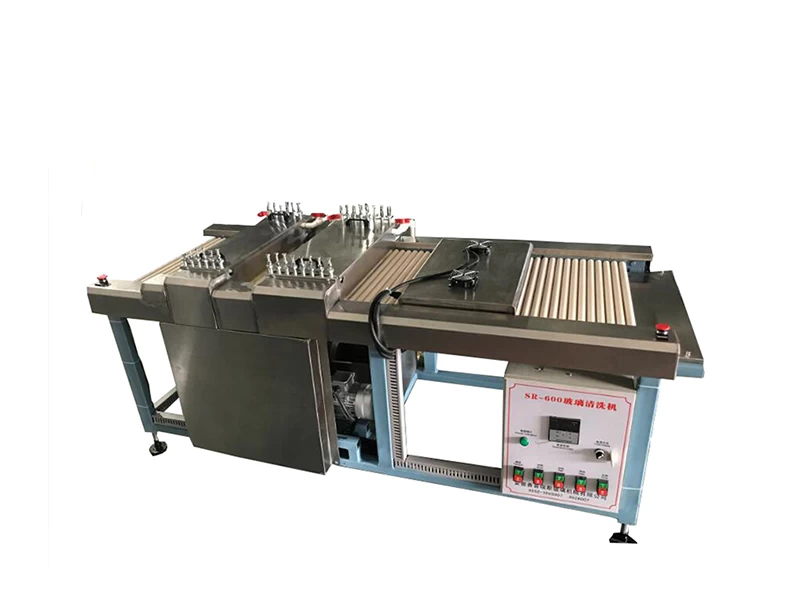

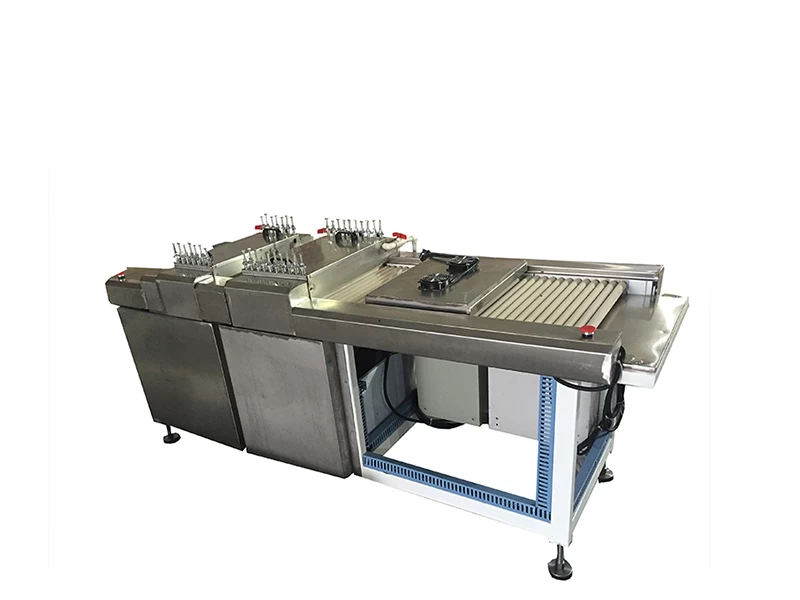

SY- washing machine could wash and dry (0.5-5mm) flat glass, and the machine adopts horizontal structure, flat glass place on horizontal transfer roller, though feed section, cleaning section, water absorption section, dry section, to the discharge section.

The speed of glass transmission can be stepless speed regulation according to process requirements. Hot air temperature can also be set in advance.
