Thin wall aluminum tube

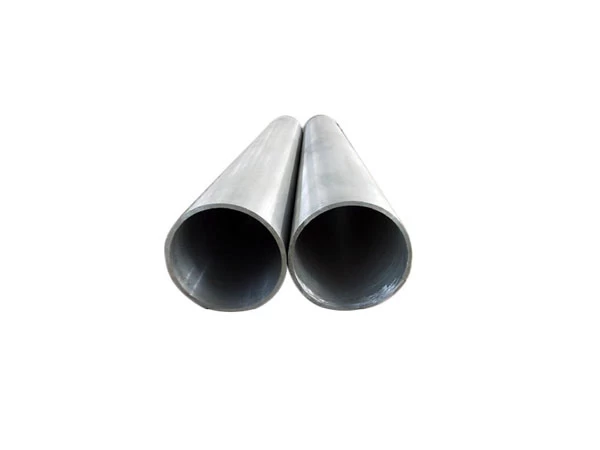

Thin Wall Aluminum Tube

The Fastest Thin wall aluminum tube is widely apply to Industry and construction material.we can manufacture lots of shape of tubes(round,square,oval and other shapes) and any anodized color can as per your requirement , please do not hesitate to contact us for details .our professionaltechnology are always at your service!



Thin Wall Aluminum Tube Product Details:


Place of origin:  Fujian, China (Mainland)       Grade: 6000 Series

Temper: T3-T8                                                  Application: Furniture; Display rack;Solar rack

Shape: Round                                                   Model Number:  FST-AT0011

Brand Name: FASTEST                                   Alloy: 6063/6061/6005


Surface treatment:Original; Anodized; electroplating; spray-paint;

Sandblasted Length: 10mm-6000mm (As Customer’s Requirements)

Wall Thickness: 0.7mm-20mm Hardness: 14hw

Machining: Cutting; Punching; Drilling; Milling; Bending; Welding; CNC etc.

Color: Silver; Bronze; Black; Gold; Blue; Grey; Champagne; red etc.

OEM/ODM: Acceptable

Packaging: Kraft paper+PE film; Bubble bag; Carton; Wooden Case; Metal case


Packaging and Delivery:

Packaging Details:

1. PP bag or PE wrapped for each separate profile, couple pieces packed in a bundle;

2. Carton,wooden case or steel rack is available;

3. Customized packing is acceptable.

Delivery Time: 15-25 days after order confirmed


Thin wall aluminum tube Advantage:

1: Extrusion tooling free!
2: Fast lead time!
3: Guaranteed quality!



1-Chemical Composition Of Aluminum Alloy



Alloy

Si

Mg

Fe

Cu

Mn

Zn

Cr

Ti

Impurity

  Al

Unit

Total

6063

0.2-0.6

0.45-0.9

<0.35

< 0.1

< 0.1

< 0.1

< 0.1

< 0.1

< 0.05

< 0.15

Surplus

6061

0.4-0.8

0.8-1.2

<0.7

0.15-0.4

< 0.15

< 0.25

0.04-0.35

< 0.15

< 0.05

< 0.15

Surplus



2- Chemical Properties Of Aluminum Alloy



Alloy

Temper

Thickness

Intensity streching resistance 6b (Mpa)

Intensity of bending 6p0.2(Mpa)

Stretching rate

T of tested samples (mm)

HV

HW

6063

T5

All

160

110

8

0.8

58

8

6061

T6

All

205

180

8

0.8

90

15
