Product Item: Threaded Connection Fiber Optic Sensor
|
Type
|
Appearance
|
Minimum bend
Radius
|
Detection distance
(mm)
|
Axis diameter
(mm)
|
Length
|
Temperature
|
Product Model
|
|

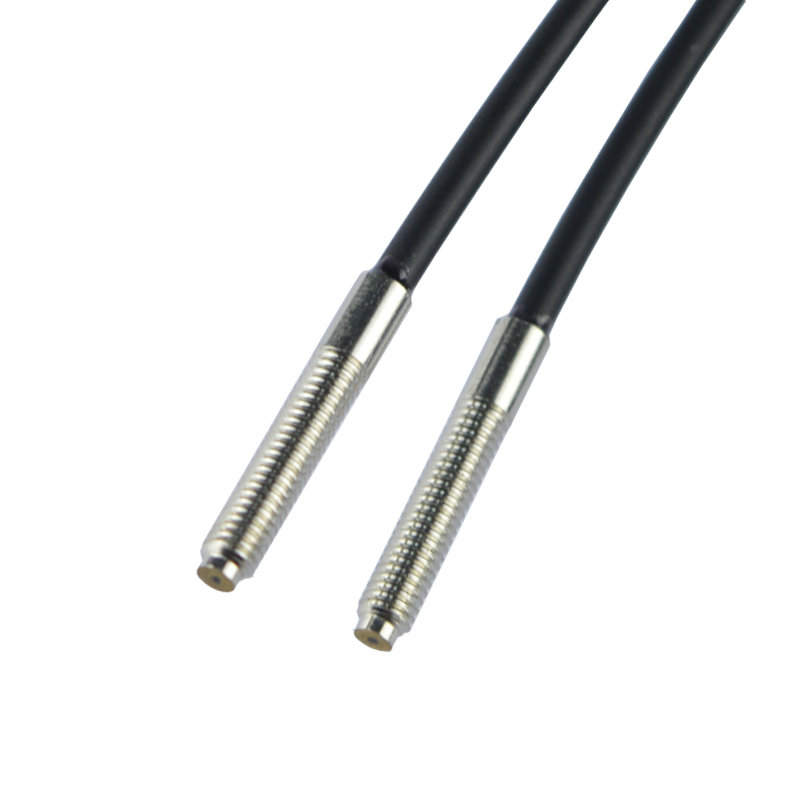

Transmission fiber optic sensors
|
|
M6 Thread
|
|
R25
|
1300
|
1.5
|
2m
|
-40 ~ +70℃
|
PTL-620
|
|
M4 Thread
|
|
R4
|
440
|
Φ0.265*8
|
2m
|
-40 ~ +70℃
|
PT-78
|
|
M4 Thread
|
|
R10
|
880
|
1.0
|
1m
|
-40 ~ +70℃
|
PT-77G
|
|
M4 Thread
|
|
R25
|
1100
|
1.0
|
2m
|
-40 ~ +70℃
|
PT-420-L
|
|
M4 Thread
|
|
R2
|
880
|
1.0
|
2m
|
-40 ~ +70℃
|
PT-420R
|
|
M4 Thread
|
|
R25
|
1100
|
1.0
|
2m
|
-40 ~ +70℃
|
PT-420
|
|
M4 Hexagon
|
|
R20
|
640
|
1.0
|
1m
|
-40 ~ +70℃
|
PT-77MTG
|
|
M4 Hexagon
|
|
R10
|
640
|
1.0
|
1m
|
-40 ~ +70℃
|
PT-77TG
|
|
M4 Hexagon
|
|
R2
|
640
|
1.0
|
2m
|
-40 ~ +70℃
|
PT-77TZ
|
|
M3 Thread
|
|
R25
|
1100
|
1
|
2m
|
-40 ~ +70℃
|
PT-320
|
|
M3 Thread
|
|
R10
|
140
|
0.5
|
1m
|
-40 ~ +70℃
|
PTS-310-I
|
|
M3 Thread
|
|
R10
|
140
|
0.5
|
2m
|
-40 ~ +70℃
|
PTS-320
|
|
M6 Thread
|
|
R25
|
1300
|
1.5
|
2m
|
-40 ~ +70℃
|
PTL-620
|
|
Type
|
Appearance
|
Minimum bend
Radius
|
Detection distance
(mm)
|
Length
|
Temperature
|
Product Model
|
|
Reflective fiber optic sensors
|
|
M3 Hexagon coaxial
|
|
R2
|
70
|
1m
|
-40 ~ +70℃
|
PR-35TZ
|
|
M3 Thread coaxial
|
|
R25
|
110
|
1m
|
-40 ~ +70℃
|
PRO-310
|
|
M3 Thread coaxial
|
|
R25
|
110
|
1m
|
-40 ~ +70℃
|
PR-35FA
|
|
M3 Thread coaxial
|
|
R2
|
72
|
1m
|
-40 ~ +70℃
|
PR-35FZ
|
|
M3 Thread coaxial
|
|
R10
|
72
|
1m
|
-40 ~ +70℃
|
PR-35FG
|
|
M3 Thread coaxial
|
|
R25
|
36
|
50cm
|
-40 ~ +70℃
|
PR-21X
|
|
M3 Thread coaxial
|
|
R10
|
13
|
50cm
|
-40 ~ +70℃
|
PR-24X
|
|
M4 Hexagon
|
|
R2
|
140
|
2m
|
-40 ~ +70℃
|
PR-66TZ
|
|
M4 Thread
|
|
R2
|
190
|
2m
|
-40 ~ +70℃
|
PR-420R
|
|
M4 Thread
|
|
R25
|
300
|
2m
|
-40 ~ +70℃
|
PR-420
|
|
M4 Thread
|
|
R25
|
300
|
2m
|
-40 ~ +70℃
|
PR-420-L
|
|
M6 Hexagon
|
|
R2
|
210
|
2m
|
-40 ~ +70℃
|
PR-67TZ
|
|
M6 Hexagon
|
|
R10
|
210
|
1m
|
-40 ~ +70℃
|
PR-67TG
|
|
M6 Hexagon
|
|
R25
|
210
|
1m
|
-40 ~ +70℃
|
PR-67MTG
|
|
M6 Hexagon coaxial
|
|
R10
|
70
|
1m
|
-40 ~ +70℃
|
PR-35TG
|
|
M6 Thread
|
|
R25
|
300
|
2m
|
-40 ~ +70℃
|
PR-620
|
|
M6 Thread
|
|
R2
|
190
|
2m
|
-40 ~ +70℃
|
PR-620R
|
|
M6 Thread
|
|
R25
|
300
|
2m
|
-40 ~ +70℃
|
PR-620-L
|
|
M6 Thread
|
|
R25
|
380
|
2m
|
-40 ~ +70℃
|
PRL-620
|
|
M6 Thread
|
|
R10
|
210
|
1m
|
-40 ~ +70℃
|
PR-67G
|
