Three balls spirometer

A spirometer is a measurement device that assesses the breath.

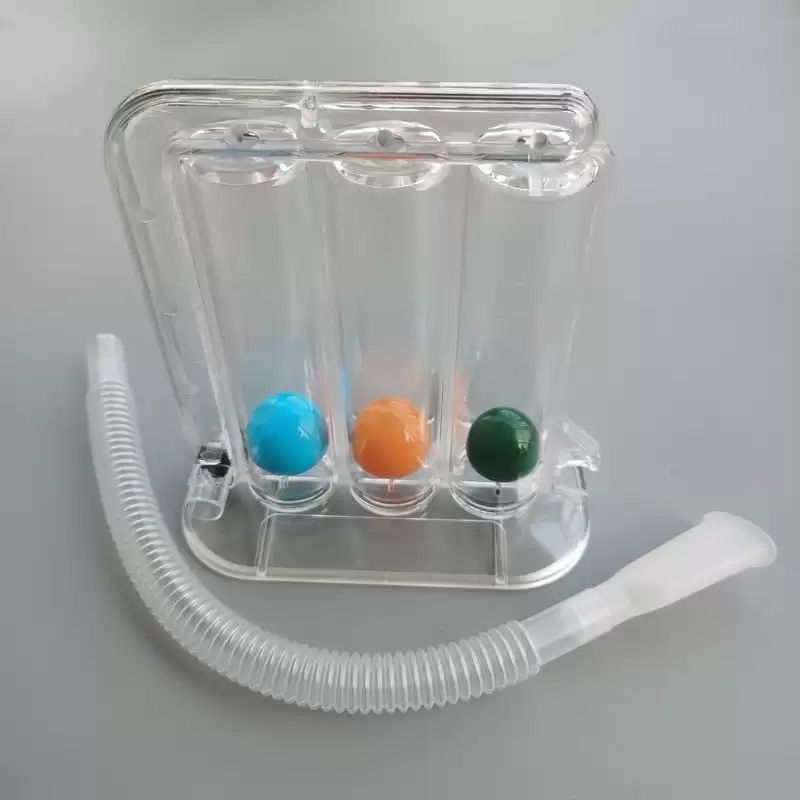

Three balls spirometer

The three-ball spirometer is mainly used for normal breathing restored trainning for the patients who has just done splanchnocoele operation.

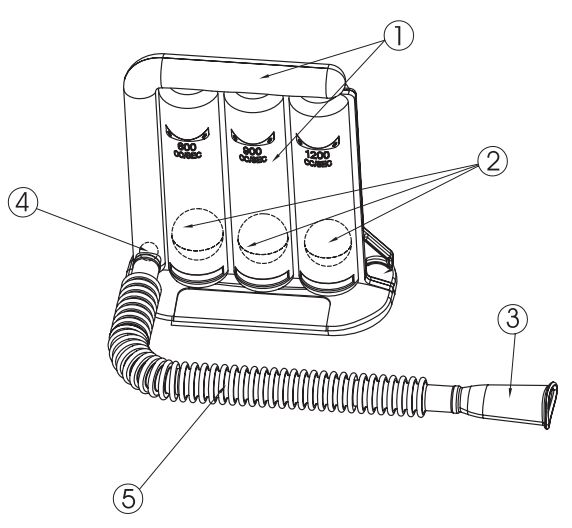

Components

1. Main chamber, material: PS

2. Indicated ball, material: ABS

3. Mouth piece, material: PP

4. Filter sponge, material: PU

5. Inhale tubing, material: EVA

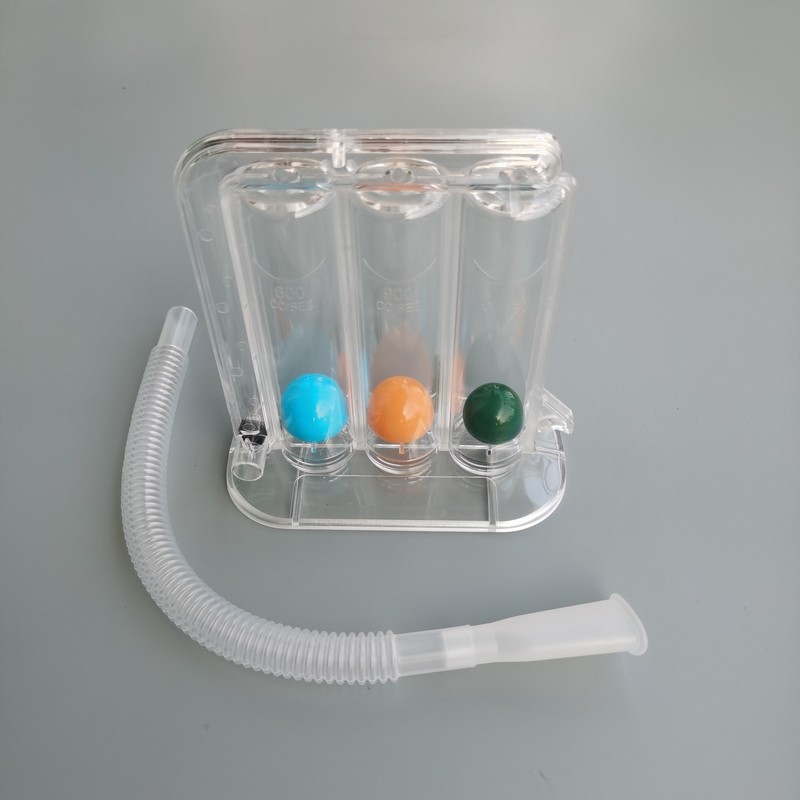

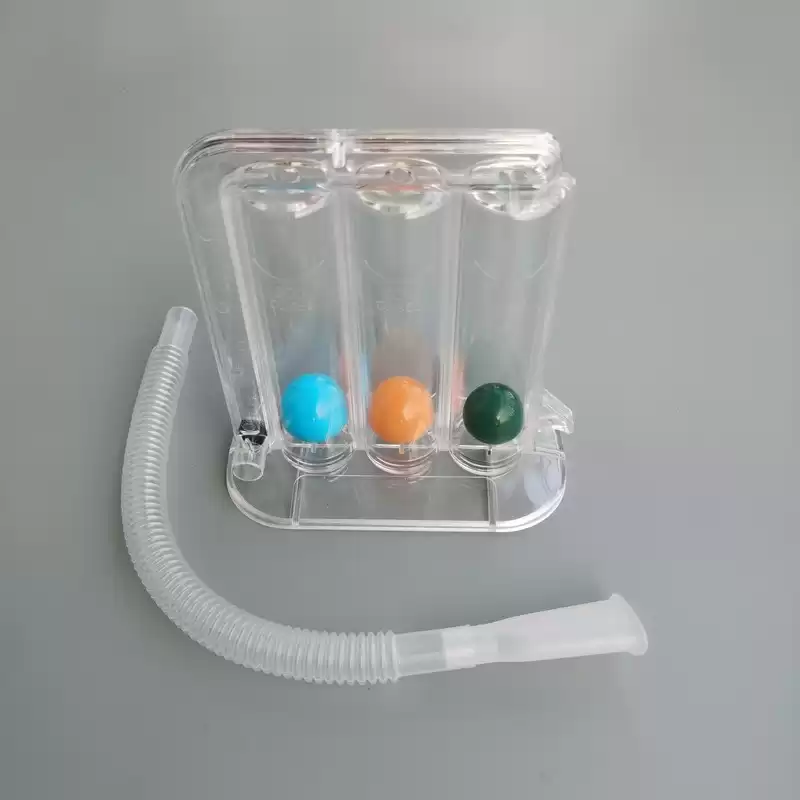

Breathing training spirometer

Advantage

1.This exerciser is meant for inhalation (breathe in) exercise and measurement. It will work upside down if you exhale. Made of good quality materials that last longer.

2.Can be dismantled and cleaned thoroughly, which helps maintain bronchial hygiene and avoids infection.

3.3-balls lung exerciser inhaling breath measurement system helps in achieving maximal lung expansion and strengthening cough effort which helps in maintaining clear airways.

4.Detailed instructions for exercising, calculation of Inspired volume and cleaning are provided.

5.Helps achieve optimum lung capacity and restoring disrupted breathing patterns.

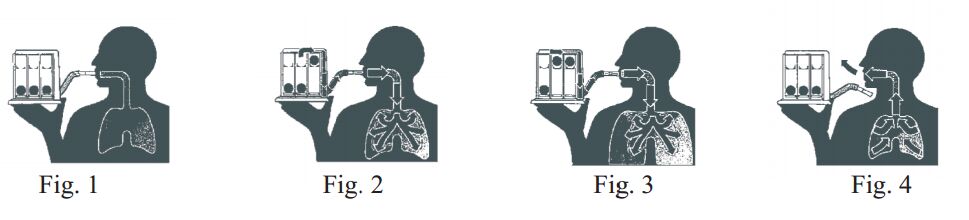

Direction for Use

1. Hold the unit in an upright position.

2. Inhale normally and then place your lips tightly around the mouthpiece at the end of the transparent tubing. (Fig. 1)

3. LOW FLOW RATE - Inhale at a rate to raise only the ball in the first chamber. The second chamber ball must remain in place. This position should be held for three seconds or as long as possible whichever comes first. (Fig. 2)

4. HIGH FLOW RATE - Inhale at a rate to raise the first and second chamber balls. Ensure that the third chamber ball remains in the rest position for the duration of this exercise. (Fig. 3)

5. EXHALE - Take out the mouthpiece and exhale normally. (Fig. 4)

   RELAX (Repeat) - Following each prolonged deep breath, take a moment to rest and breathe normally. This exercise can be repeated according to physician’s instructions.



Rate of Flow

600+60cc/sec, 900+90cc/sec. 1200+120cc/sec


Storage

It should be stored indoors where at normal temperature, with the relevant humidity of no more than 80%, without corrosive gases, cool, dry, well-ventilated and clean.


Notice for Transportation

When in transportation, it should avoid heavy pressure, direct sun light, rain and snow.


Our Services

Customized label or box, white-black or colorful printing


Packaging & Shipping

24sets/export carton, carton size 49X30X34cm, G.W.: 5.2KGS / N.W.: 4.4KGS

Sea/air shipment, domestic delivery available


Company Information

Xiamen Winner is a professional supplier of first-aid & anesthesia products like manual resuscitator, face masks, air splints, CPR mask and extrication collar.We have our own factory in Xiamen and it operates under ISO 13485:2003-, ISO 9001:2000- and ISO 10993-4:2002- certified management systems and all of our products carry CE marks.
