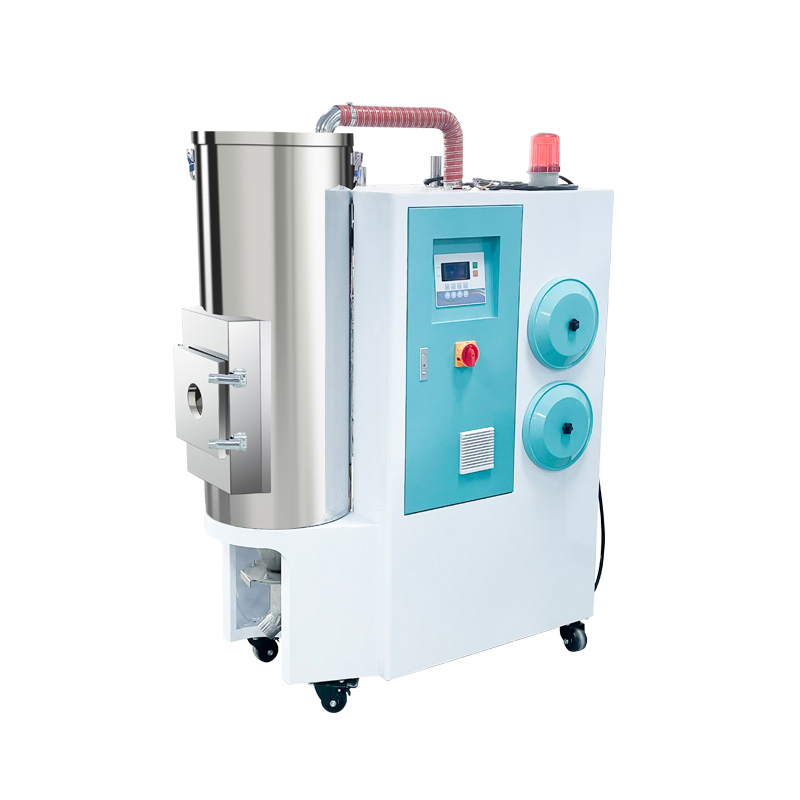

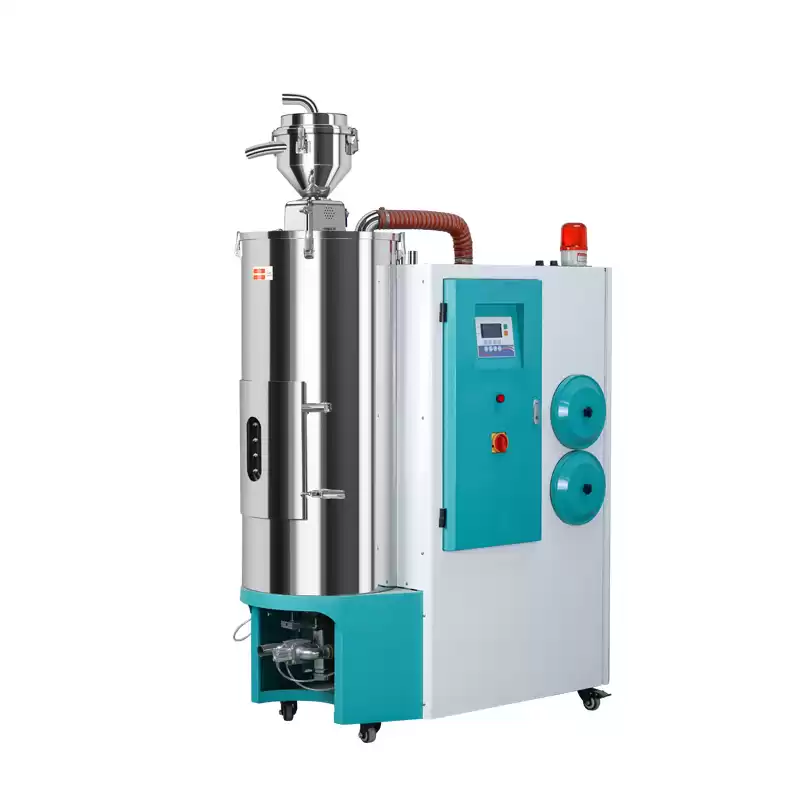

Three-in-One Integrated Industrial Dehumidification & Drying Machine

Designed for hygroscopic engineering plastics like PA, PET, and PC, this Three-in-One Dehumidification & Drying Machine uses -40°C dew point dry air in a closed-loop system to efficiently remove both surface and core moisture from plastic pellets, stabilizing moisture content below 0.02%. It eliminates common molding defects—shrinkage, silver streaks, bubbles, and poor transparency—in injection molding and extrusion processes, while reducing energy consumption by 35% compared to traditional hot air dryers. The ultimate solution for high-precision plastic processing.


  • BrandPQ

Product Description

Molding-Integrated Closed-Loop Dryer

    In the field of precision plastic processing, defects such as shrinkage, silver streaks, and bubbles caused by incomplete drying of hygroscopic raw materials such as PA, PET, and PC not only cause a scrap rate of more than 30%, but also frequently cause delivery delays and customer complaints. Traditional hot air dryers can only handle surface moisture and are helpless against moisture absorption inside the particles, until the emergence of three-in-one dehumidification dryers.

    The three-in-one dehumidifying dryer is equipped with a closed-loop deep dehumidification system, which penetrates the core of the particles through ultra-dry air with a dew point of -40℃, accurately controls the moisture content to below 0.02%, and cuts off the cause of defects from the source.

     It is especially suitable for production scenarios such as new energy vehicle parts and electronic precision parts that require strict material stability.





Product Parameters



Specifications 25kg 50kg 75kg 100kg 150kg 200kg Notes
Power Supply Voltage 3¢ 380V 3¢ 380V 3¢ 380V 3¢ 380V 3¢ 380V 3¢ 380V
Frequency 50HZ 50HZ 50HZ 50HZ 50HZ 50HZ
Drying Barrel Capacity (L) 25 50 75 100 150 200 Optical Grade
Dehumidification Air Volume (m³/hr) 30 50 80 100 120 200 Dew Point: -40°C
Drying Electric Heating Power (kW) 2.7 4 4 6 8 12
Drying Fan Power (kW) 0.37 0.37 0.37 0.55 1.1 1.5 TIANTAI
Regeneration Electric Heating Power (kW)
2 2 2.7 3.5 4 5
Regeneration Fan Power (kW) 0.18 0.18 0.18 0.25 0.25 0.37 TIANTAI
Feeding Fan Power (kW) 0.75 1.1 1.1 1.1 1.1 1.5 TIANTAI
Rotary Motor (W) 15 15 15 15 15 15
Total Machine Power (kW) 6 7.65 8.35 11.4 14.45 20.37
Computer Controller SF877000A / / / / / Bangpu,
Optional 879001A
Contactor LC1N / / / / / Schneider
Thermal Overload Relay LRN / / / / / Schneider

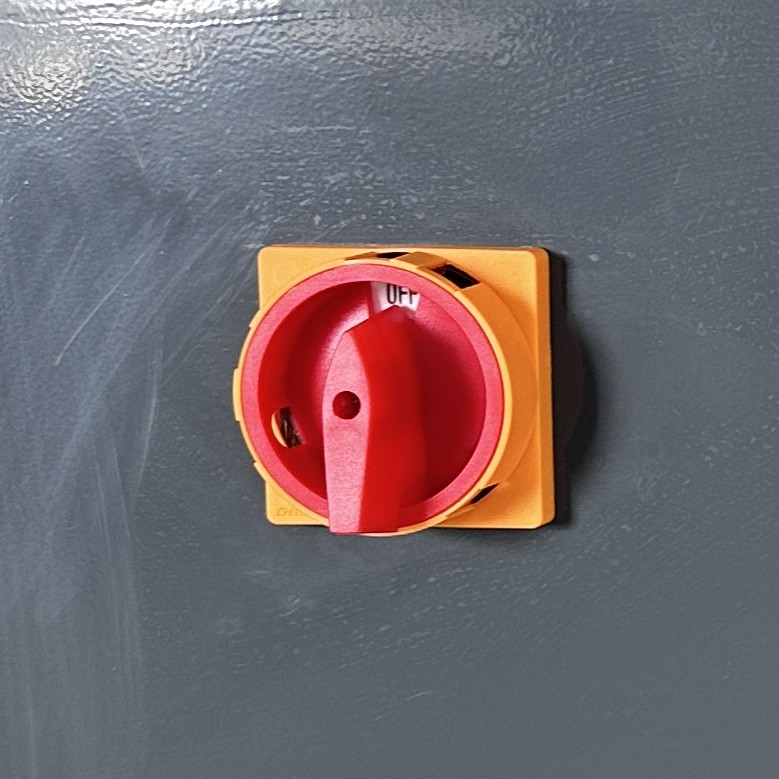

Main Power Switch GLD11 / / / / / Gree
Stainless Steel Micro-Motion Bucket 7.5L / / / / /
Photoelectric Bucket 7.5L / / / / / Photoelectric
Sensor: FOTEK
Vacuum Suction Box 1 1 1 1 1 1 38# 51#
Disconnection Type Suction Box 1 1 1 1 1 1 38# 51#
Cooler 1 1 1 1 1 1 Water-Cooled
Overall Dimensions (mm) 650*1150*1400 650*1150*1520 650*1150*1620 730*1330*1620 730*1330*1980 840*1430*2400
Pipe (M) 8 10 10 10 12 12 38# 51#





Specifications 300kg 400kg 600kg 800kg 1000kg Notes
Power Supply Voltage 3¢ 380V 3¢ 380V 3¢ 380V 3¢ 380V 3¢ 380V
Frequency 50HZ 50HZ 50HZ 50HZ 50HZ
Drying Barrel
Capacity (L)
300 400 600 800 1000 Optical Grade
Dehumidification Air Volume (m³/hr) 300 400 500 700 800 Dew Point: -40°C
Drying Electric Heating Power (kW) 15 18 22 25 28
Drying Fan Power (kW) 2.2 3 4 4.5 5 TIANTAI
Regeneration Electric Heating Power (kW) 8 10 10 12 15
Regeneration Fan Power (kW) 0.55 0.75 1.1 1.5 2.2 TIANTAI
Feeding Fan Power (kW) 1.5 2.2 2.2 2.2 3 TIANTAI
Rotary Motor (W) 15 15 15 25 25
Total Machine Power (kW) 27.25 33.95 39.45 45.45 53.45
Computer Controller / / / / / Bangpu,
Optional 879001A
Contactor / / / / / Schneider
Thermal Overload
Relay
/ / / / / Schneider
Main Power Switch / / / / / Gree
Stainless Steel Micro-Motion Bucket / 12L 12L 24L 24L
Photoelectric Bucket / / / 12L 12L Photoelectric
Sensor: FOTEK
Vacuum Suction Box 1 1 1 1 1 38# 51#
Disconnection Type Suction Box 1 1 1 1 1 38# 51#
Cooler 1 1 1 1 1 Water-Cooled
Overall Dimensions (mm) 900**1630*2200 900*1630*2460 1220*2150*2560 1400*2300*3200 1640*2600*3320
Pipe (M) 12 12 12 18 18 38# 51#







Key Features

Three-in-One Integration: Dehumidify, dry, and feed materials in one step.

 Built for Demanding Environments: Corrosion-resistant & high-temperature durable for 24/7 operation.

Deep Dehumidification: -40℃ dry air penetrates pellets to extract hidden moisture.

Energy-Efficient Loop: Sealed circulation cuts heat loss, saving 30 %+ energy.

Gentle on Materials: Precise temperature control protects heat-sensitive plastics.

Energy-Saving & Durable: Heat recovery reduces energy use; industrial-grade materials ensure longevity.









Product Detail Display













     HIGH-QUALITY COMPONENTS FOCUS ON QUALITY

Make better quality to make customers feel more at ease.



Schneider contactor

      Brand Schneider Contactor

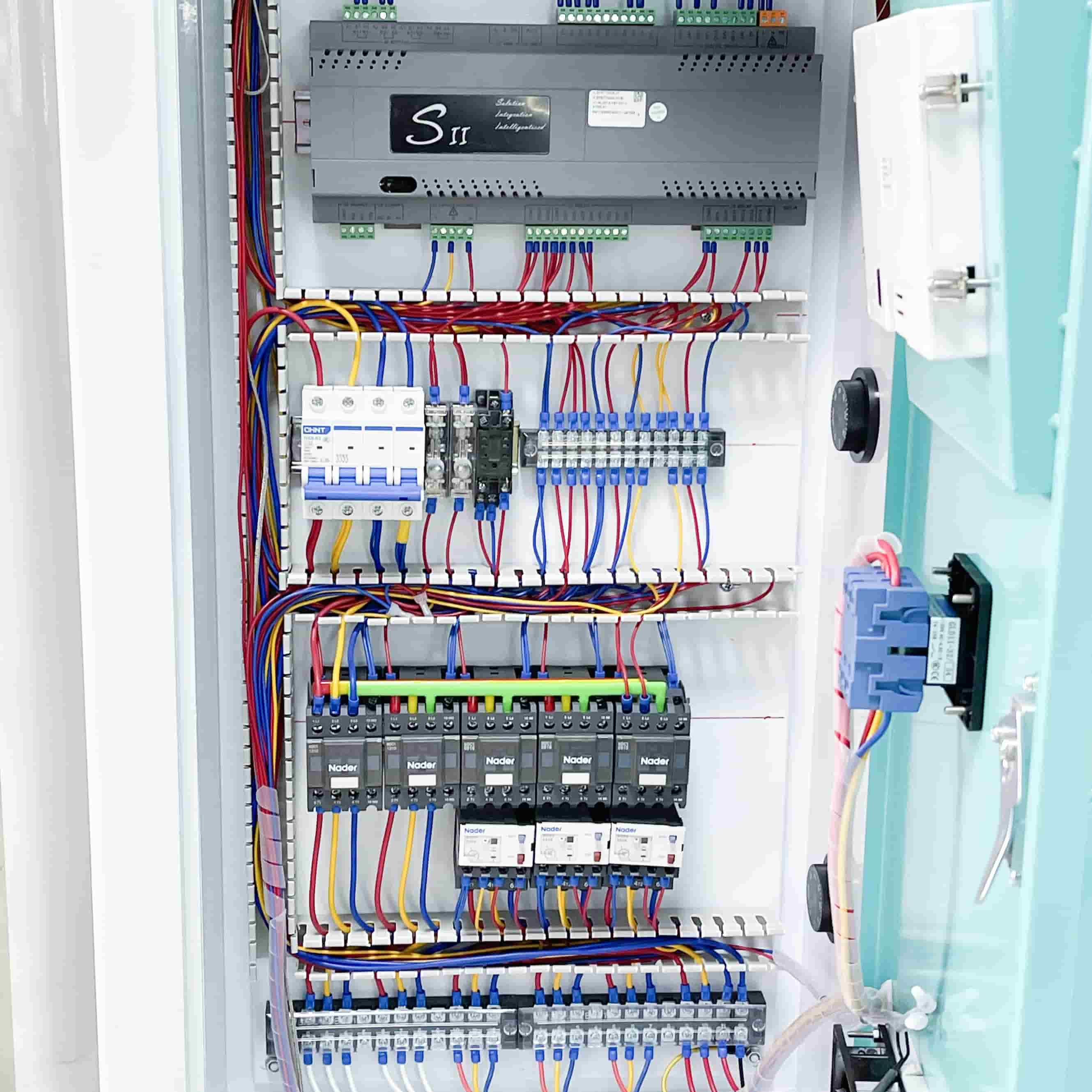

Clear Internal Circuit Structure

Stable Operation

Multiple Protections





Engineering Plastic Moisture Control System

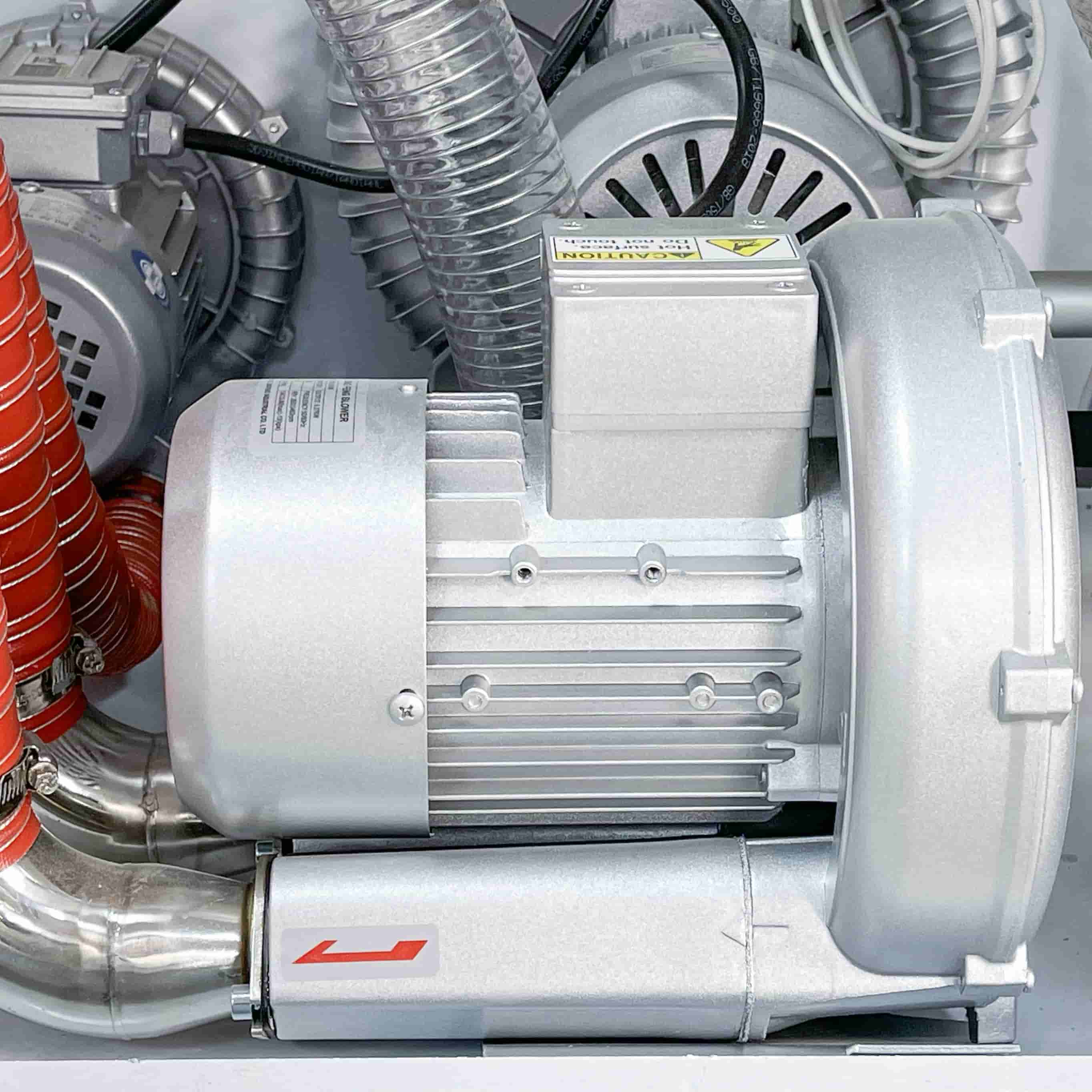

      Built-In Three High-Pressure Fans



Quick Operation

Without Manual Work

Stable and Durable

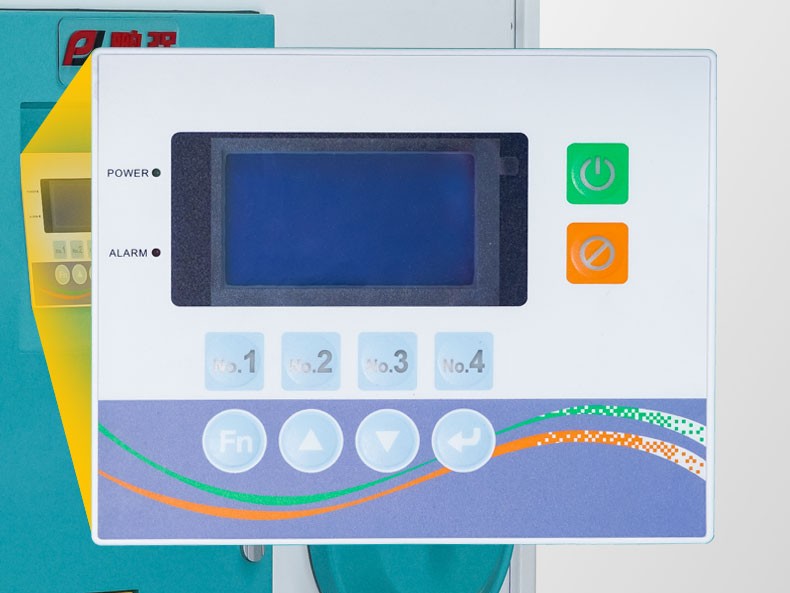

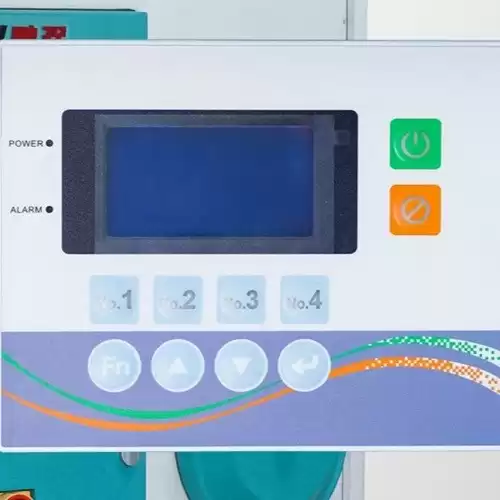

MICROCOMPUTER CONTROL PANEL

The system has a regeneration temperature setting and an actual temperature display screen.



-40°C dew point drying system

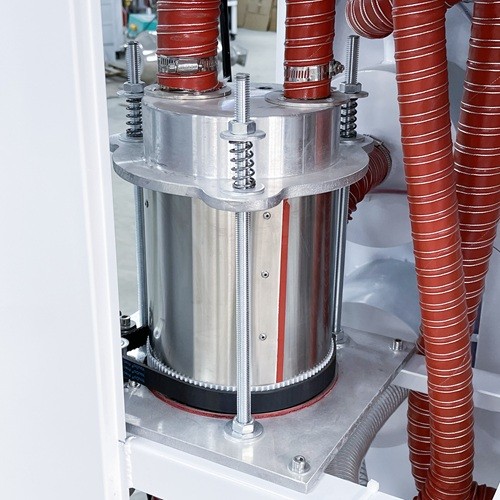

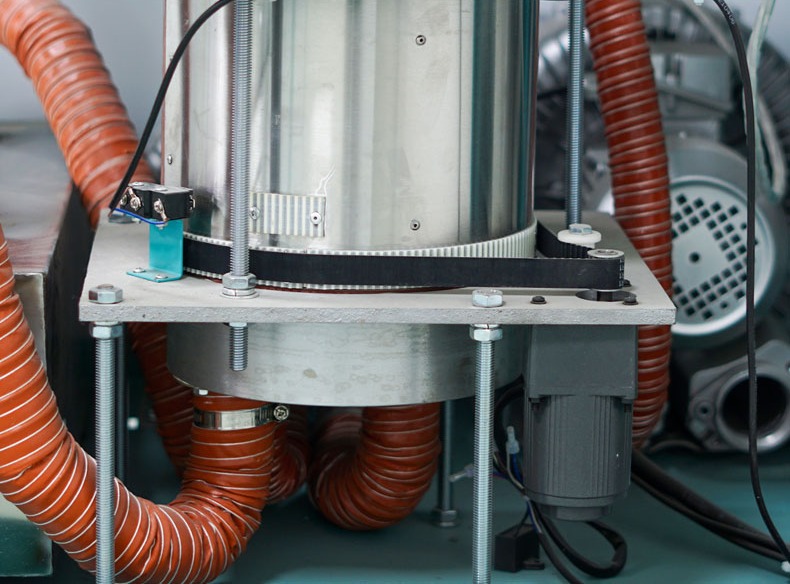

HONEYCOMB ROTOR DESIGN

No switching action to produce a dew point oscillation problem.



Silver Streak Defect Solution

The honeycomb rotor has an adjustable speed,

and the dew point temperature can be lower than -40℃.
