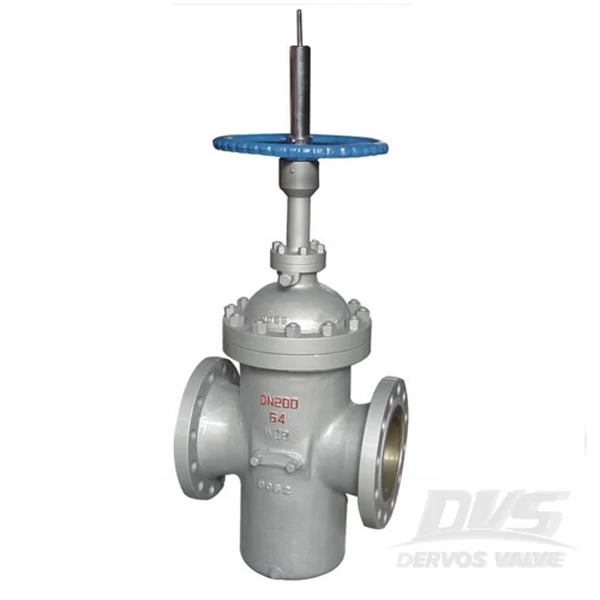

Through Conduit Slab Gate Valve DN200 PN64 Flanged


  • MaterialCarbon Steel Gate Valve, Cast Steel Gate Valve
  • Method of OperationManual Gate Valve

The through conduit slab gate valve, designed as per DIN standard, has the diversion hole for pipeline cleaning. The PN64 parallel disc gate valve is made of carbon steel with RF flange and handwheel.


Quick Detail

Type

Parallel Slab Gate Valve

Nominal Diameter

DN 200

Nominal Pressure

PN 64

Construction

Parallel Slabe Gate Valve, With Diversion Hole, Bolted Bonnet, Resilient Seat

Connection

Flange

Operation

Handwheel Operation

Body Material

Carbon Steel

Medium

Water, Oil and Gas

Origin

China

Slab Gate Valve Manufacturers


Design Feature
1.Parellel disc
2.Soft seat and metal seat for choices
3.Full bore design for pigging and less pressure drop
4.Firesafe design
5.Self relieving function
6.Grease fitting for seat and stem
7.Double block and bleed capability
8.With vent and drain port
9.Tight sealing performance


Material

Part Name Material
Body & Bonnet A216 WCB, CF8, CF8M, CF3, CF3M
Wedge Alloy Steel (face harden treated), Stainless Steel (with Co overlay)
Stem Alloy Steel (face erosion-resistant treated)
Seat Alloy Steel (face harden treated, beset F plastic), Steel (with Co overlay, best F plastic)
Packing PTFE
O-Ring NBR, FEP
Sealing Grease
